Apex Twin Skin Log Cabin 6x4m

External size6 x 4 m
Wall44-100-44 mm
RoofApex
SupplyKit, EXW Eurodita factory
Request a quote

Delivery is agreed individually with each client. Markets and languages

For private buyers the supply route is confirmed project by project.

At a glance

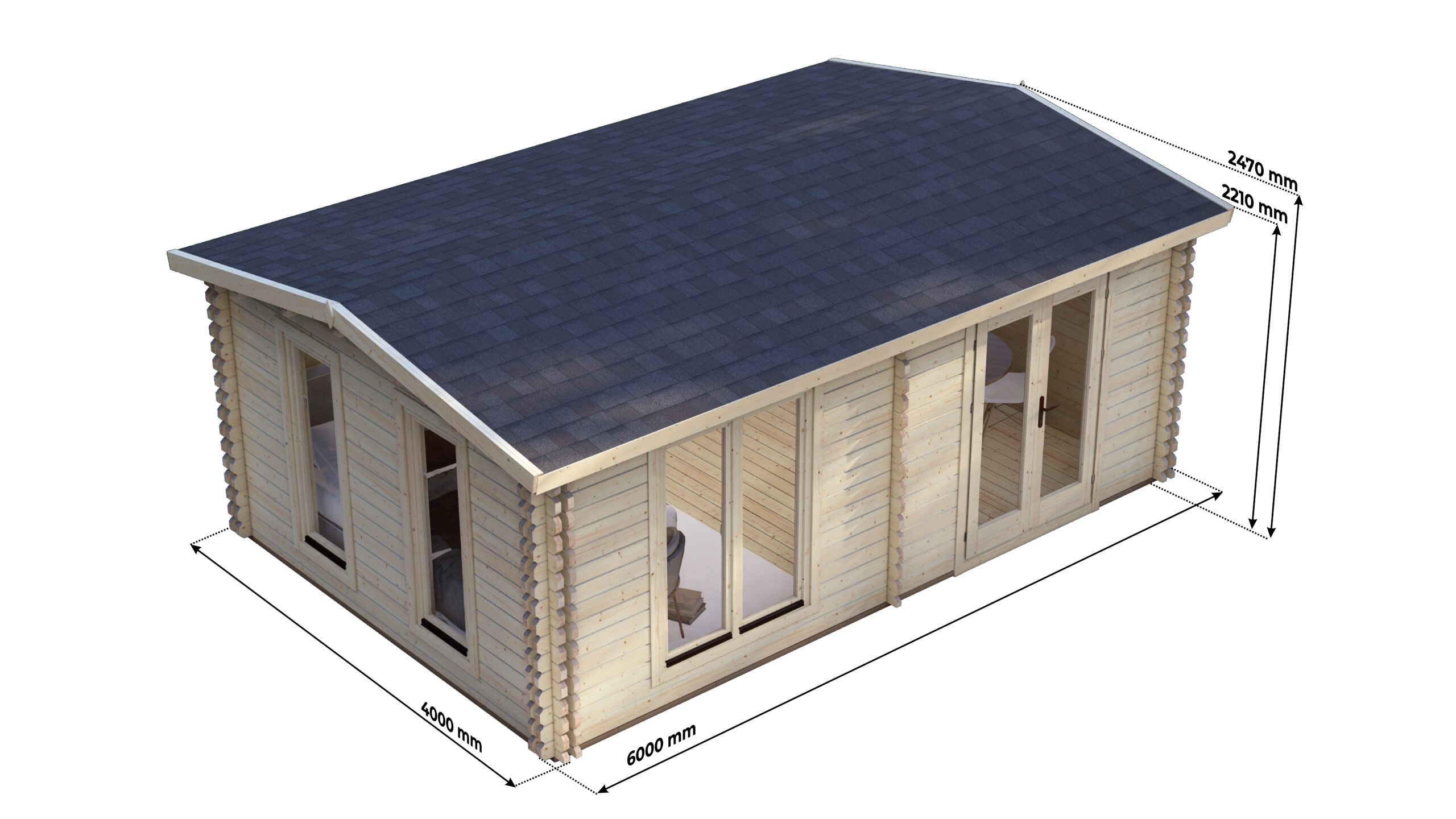

Apex Twin Skin Log Cabin 6x4m is a twin-skin log cabin with an apex roof, supplied as a building kit. It measures 6 x 4 m externally, an external footprint of 24 m². The ridge height is 247 cm and the eaves height 210 cm. It is listed with the twin skin log cabins.

Read the full description

Layout

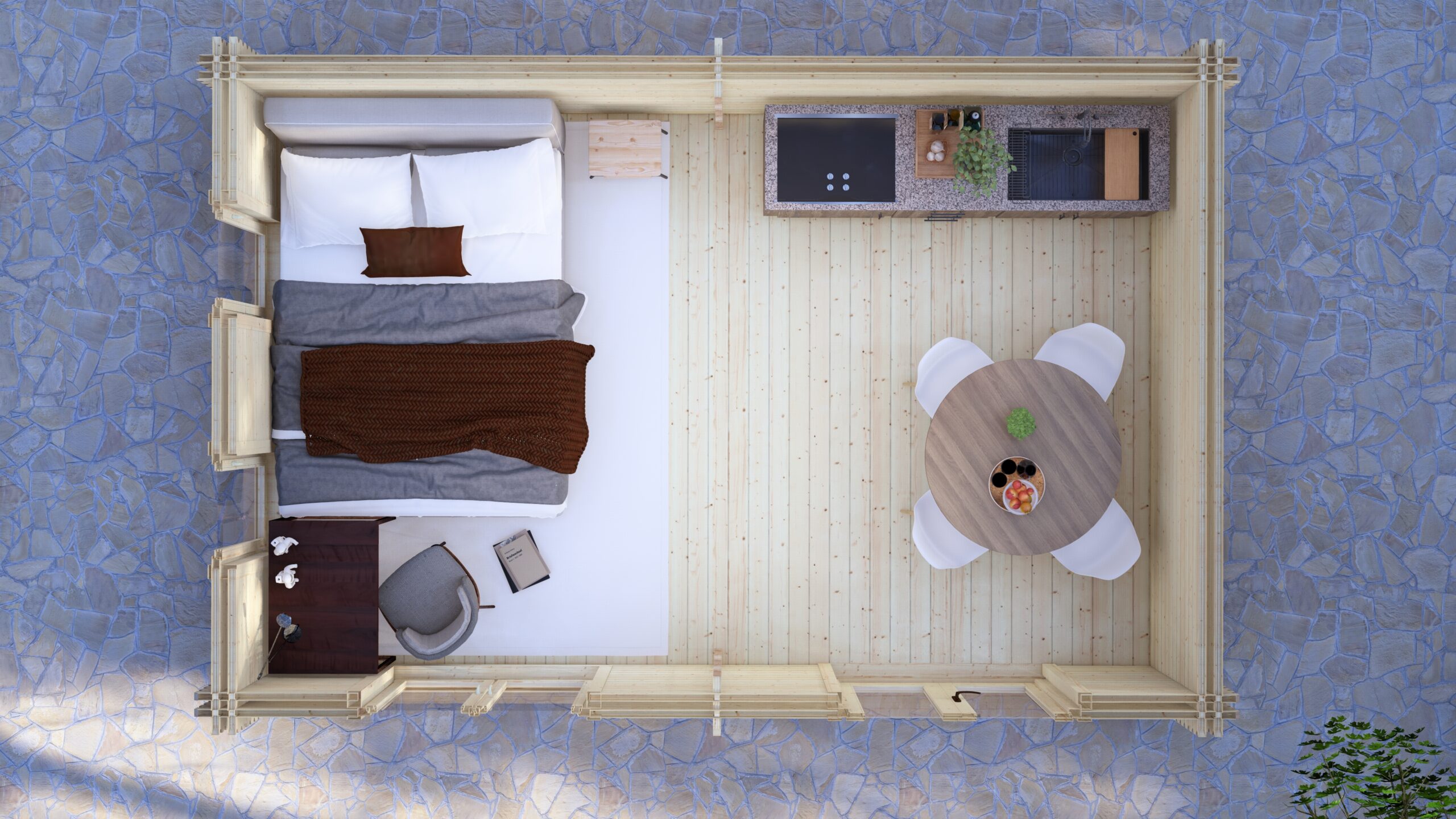

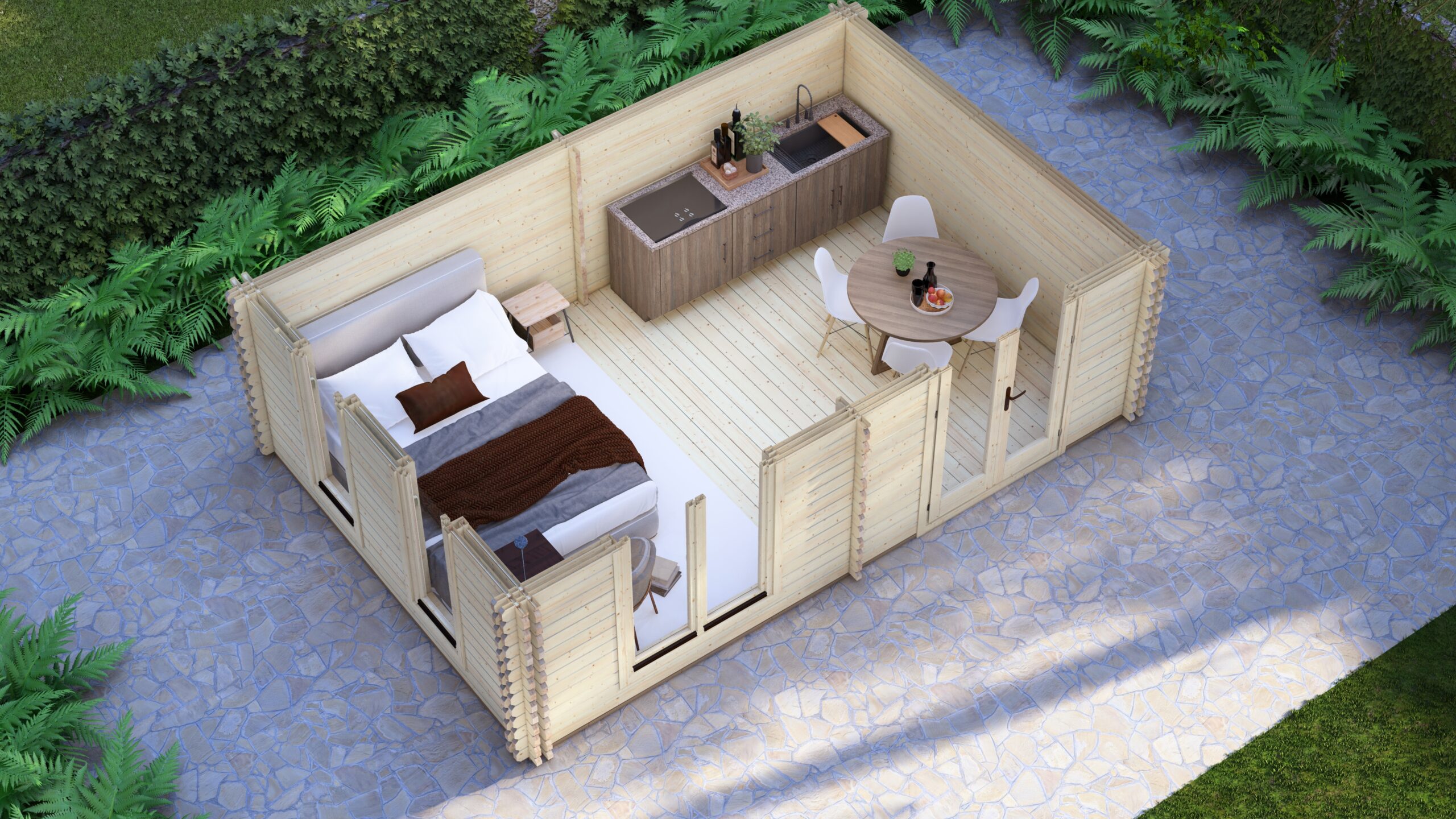

The plan drawing shows one room without inner walls.

Walls

The wall is a twin-skin build-up of 44-100-44 mm: a 44 mm outer wall log, a 100 mm cavity and a 44 mm inner wall log, 188 mm in total. The cavity is prepared for insulation, which is sourced locally.

Doors and windows

Doors and windows are made by Eurodita in timber. See windows and doors.

Technical data sheet

Specification recorded for Apex Twin Skin Log Cabin 6x4m. Dimensions are the building's external dimensions. A row appears only where a figure is recorded for this model.

Building
External dimensions6 x 4 m
External footprint area24 m²
Eaves height210 cm
Ridge height247 cm
BaseExternal footprint 6 x 4 m. Base type and size are confirmed for the specific model and site.
Structure
Wall build-up44-100-44 mm: 44 mm outer skin, 100 mm cavity, 44 mm inner skin. 188 mm total wall thickness.
Other wall optionsThe twin-skin build-ups are 44-100-44, 58-50-58 and 58-100-58 mm; the build-up is confirmed in the written quotation.
ConstructionInterlocking tongue and groove joints
TimberNorthern European timber
Storm brace and anchor setIncluded
Floor
Floor bearersImpregnated as standard
Floor boards28 mm
Roof
Roof formApex
Roof boards19 mm tongue and groove boards
Doors and windows
DoorsResidential type (IV68) timber door, 5-point locking, 4-16-4 mm double glazing
WindowsResidential type (IV68) timber window, tilt and turn, 4-16-4 mm double glazing
Scope of these figures
InsulationThe 100 mm cavity is the space insulation occupies. Eurodita supplies the structure prepared for insulation, not the insulation material, so the cavity dimension is not an insulation specification.
AvailabilityBuild-up availability and suitability for a given project and destination are confirmed per order.
PerformanceThese dimensions establish no thermal, fire, structural or certification performance.

Download technical data sheet (PDF) Wall profile reference

Add-ons & Customisation

Options for this model (branding, wall thickness, openings, insulation preparation, partitions, veranda) are listed on What is in a Eurodita kit and confirmed per order.

Enquiry
Apex Twin Skin Log Cabin 6x4m
44-100-44, 6 x 4 m external. A written quotation is valid for 30 days from its date.
Apex Twin Skin Log Cabin 6x4mRequest a quote

How an Order Is Agreed

Scope is confirmed in the written quotation. Details: Reading a Eurodita quotation.

Need this in a different size?

Size, layout and the positions of doors and windows can be changed for an order. Send a sketch or a drawing. From a complete sketch to a 3D view, drawings and a price within one working day.

Supply

Supplied EXW from the Eurodita factory. We supply the kit with assembly drawings; installation is not part of our supply.

For trade buyers

Dealers, distributors and private-label brands can carry this model in their own range.

Compared with similar models

Apex Twin Skin Log Cabin 5x4m

This modelApex Twin Skin Log Cabin 5x4m
External size6 x 4 m5 x 4 m
External footprint24 m²20 m²
Eaves height210 cm210 cm

Pent Twin Skin Log Cabin 5x4m

This modelPent Twin Skin Log Cabin 5x4m
External size6 x 4 m5 x 4 m
External footprint24 m²20 m²
Eaves height210 cm210 cm

Twin Skin 1 Bedroom Log Cabin 6x5m

This model6x5m
External size6 x 4 m6 x 5 m
External footprint24 m²30 m²
Eaves height210 cm220 cm

Frequently asked questions

Are twin skin log cabins insulated?

A twin skin log cabin is supplied with a cavity for insulation in its walls, not with the insulation itself: two solid log skins with a cavity between them, in three build-ups, 44-100-44, 58-50-58 and 58-100-58 mm (outer skin, cavity, inner skin). The insulation is selected and bought locally. No U-value is published for any twin skin build-up.

What exactly is a "Twin Skin" log cabin?

A twin-skin log cabin uses two parallel machined timber walls with a cavity for insulation between them. The approved Eurodita twin-skin build-ups are 44-100-44, 58-50-58 and 58-100-58 mm (outer skin, cavity, inner skin). The insulation is sourced locally, and final performance depends on insulation, membranes, glazing, floor, roof, ventilation and installation.

Are the floor and roof prepared for insulation?

The floor and roof can be prepared for insulation where the project requires it, and the insulation material is sourced locally. Eurodita supplies the timber structure and boards; membranes and final detailing are checked against the dealer's project brief, destination market and local review route.

Are log cabins well insulated?

It depends on the wall. A solid log wall is timber alone; Eurodita publishes measured U-values of that element for 28 to 220 mm walls, not a figure for a finished building. A twin skin wall adds a cavity for insulation between two log skins, with insulation sourced locally; no U-value is published for it.

Is the assembly process different from a standard cabin?

Yes. Twin-skin assembly follows the same interlocking log principle, but the installer builds two wall layers and places insulation, membranes and service details according to the confirmed package. Timing depends on model size, site preparation, crew experience and the specification, so installation should be planned per project.

Does Eurodita supply twin skin log cabins wholesale?

Yes. Eurodita manufactures the twin skin range for dealers, distributors and other trade partners who resell under their own brand; quotations and drawings can carry the partner's own brand where agreed per order. A relationship can start with a single pilot unit where commercially sensible; there is no single fixed minimum order figure.

Can a twin skin log cabin be made to measure?

A twin skin cabin can be built to a bespoke brief. A sketch or drawing of the intended footprint is reviewed by Eurodita and converted into a manufacturable, priced proposal for that project, using the same three approved build-ups as the catalogue models. This is a per-project review and quotation, not an open-ended customisation offer.

  • Manufacturing timber buildings since 1994
  • Eurodita processes approximately 150,000 m³ of timber per year on average
  • Wall logs machined on Hundegger CNC centres
  • Own timber windows and doors
Hundegger CNC: control desk with wall-log drawings at the Eurodita factory
Hundegger CNC at the Eurodita factory
Building kits wrapped and stacked beside a shipping container at the Eurodita factory
Kits packed for dispatch
