Apex Twin Skin Log Cabin 5x4m

Technical data sheet

Specification recorded for Apex Twin Skin Log Cabin 5x4m. Dimensions are the building's external dimensions. A row appears only where a figure is recorded for this model.

Building

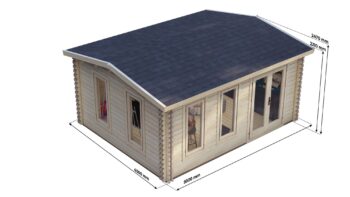

External dimensions	5 x 4 m
External footprint area	20 m²
Eaves height	210 cm
Ridge height	247 cm
Base	External footprint 5 x 4 m. Base type and size are confirmed for the specific model and site.
Structure
Wall build-up	44-100-44 mm: 44 mm outer skin, 100 mm cavity, 44 mm inner skin. 188 mm total wall thickness.
Other wall options	The twin-skin build-ups are 44-50-44, 44-100-44, 58-50-58 and 58-100-58 mm; the build-up is confirmed in the written quotation.
Construction	Interlocking tongue and groove joints
Timber	Northern European timber
Storm brace and anchor set	Included
Floor
Floor bearers	Impregnated as standard
Floor boards	28 mm
Roof
Roof form	Apex
Roof boards	19 mm tongue and groove boards
Doors and windows
Doors	Residential type (IV68) timber door, 5-point locking, 4-16-4 mm double glazing
Windows	Residential type (IV68) timber window, tilt and turn, 4-16-4 mm double glazing
Scope of these figures
Insulation	The 100 mm cavity is the space insulation occupies. Eurodita supplies the structure prepared for insulation, not the insulation material, so the cavity dimension is not an insulation specification.
Availability	Build-up availability and suitability for a given project and destination are confirmed per order.
Performance	These dimensions establish no thermal, fire, structural or certification performance.

Download technical data sheet (PDF) Wall profile reference

Add-ons & Customisation

Options for this model (branding, wall thickness, openings, insulation preparation, partitions, veranda) are listed on What is in a Eurodita kit and confirmed per order.

Enquiry

Apex Twin Skin Log Cabin 5x4m

44-100-44 · 5 x 4 m external · quoted in writing, EXW Eurodita factory

Request a quote

Different size or layout? Send a bespoke brief

Apex Twin Skin Log Cabin 5x4mRequest a quote

Need this in a different size?

This model is supplied as a 5 x 4 m footprint. If you need a different size or layout, send a drawing. Eurodita will confirm whether the bespoke route and the factory scope fit the project. Partner branding is agreed per order.

1 Send a drawing A hand sketch can start the review. Mark known window and door positions, wall thickness and heights; Eurodita confirms any missing technical inputs.
2 Confirm the quotation scope If the enquiry fits, pricing and any CAD/3D or technical material are prepared to the agreed scope.
3 Review the agreed scope Revisions follow the quotation and project scope until written sign-off.

CAD/3D quotation material is prepared to the qualified project scope. Availability and timing are confirmed during qualification. Partner branding is applied where agreed; required manufacturer, legal and traceability information is retained.

Send a bespoke brief

Dimensions, wall thickness and opening positions are confirmed per project at quote stage. Bespoke production timing is confirmed at quotation stage. See published projects for built examples with dimensions and drawings, or review the rest of the twin skin log cabins range.

About This Apex Twin Skin Log Cabin 5x4m

The model

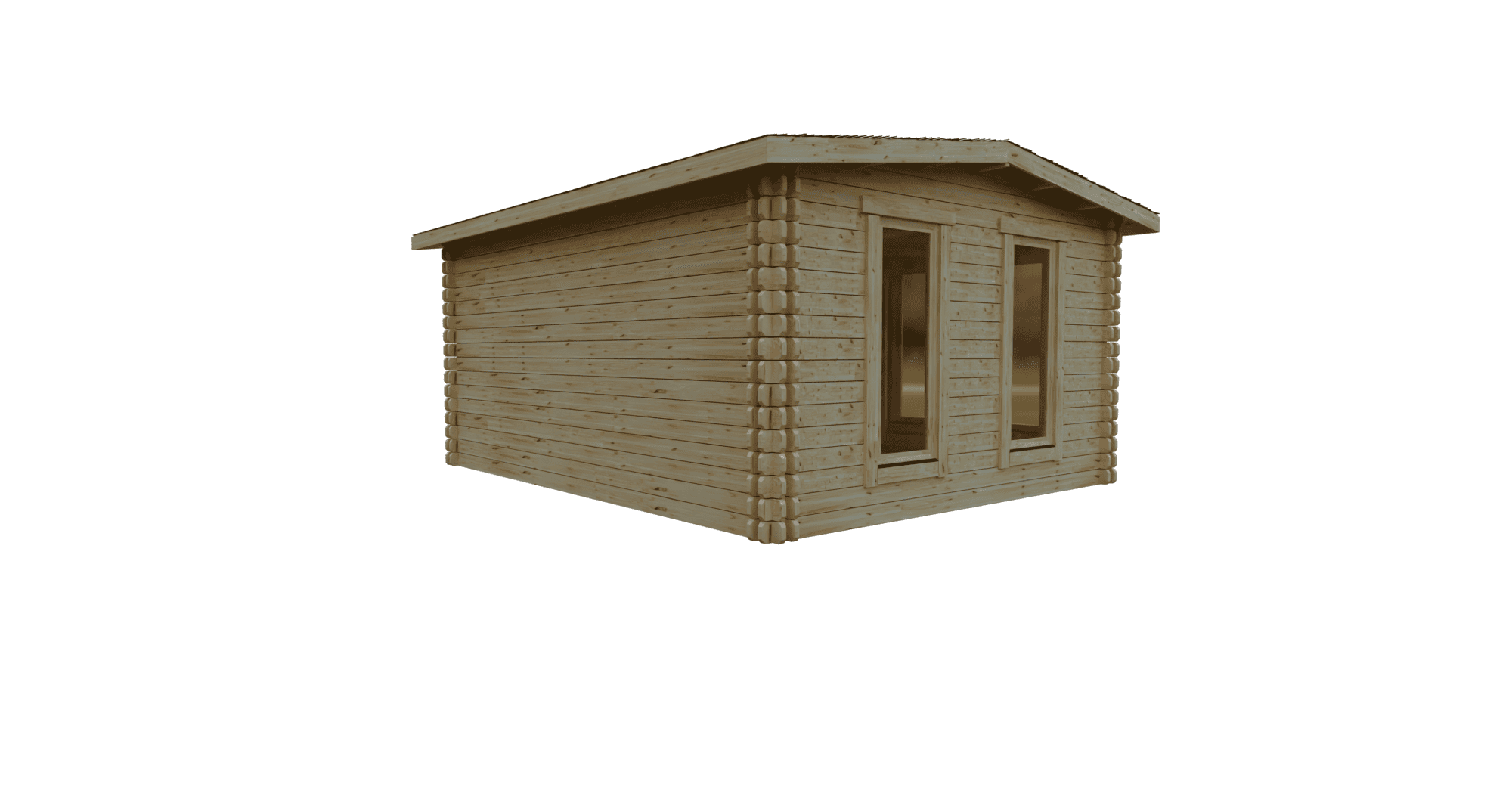

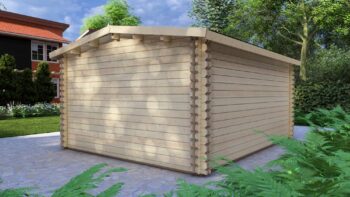

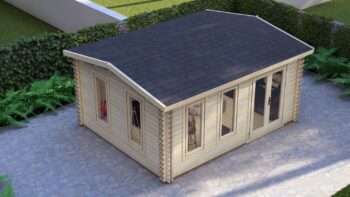

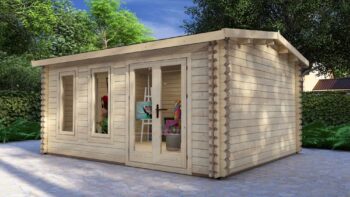

Apex Twin Skin Log Cabin 5x4m is a twin-skin log cabin with an apex roof, supplied as a building kit. It measures 5 x 4 m externally, an external footprint of 20 m². The ridge height is 247 cm and the eaves height 210 cm. It is listed with the twin skin log cabins.

Layout

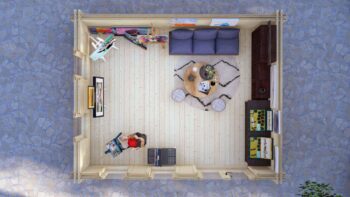

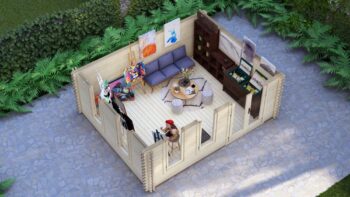

The plan drawing shows one room without inner walls.

Walls

The wall is a twin-skin build-up of 44-100-44 mm: a 44 mm outer wall log, a 100 mm cavity and a 44 mm inner wall log, 188 mm in total. The cavity is prepared for insulation, which is sourced locally. The other approved build-ups (44-50-44, 58-50-58 and 58-100-58 mm) can be specified, and the availability of a build-up is confirmed per order.

Floor and roof

The floor is 28 mm floorboards on floor bearers that are impregnated as standard. The roof is boarded with 19 mm tongue and groove boards. A storm brace and anchor set is included.

Doors and windows

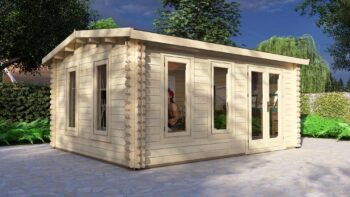

Doors and windows are the residential type (IV68), made by Eurodita in timber: tilt and turn windows and doors with a 5-point locking system, both with 4-16-4 mm double glazing. See windows and doors.

What can be changed

Size, layout and the positions of doors and windows can be changed for an order. Send a sketch or a drawing: the written quotation is prepared in the Eurodita design and estimator system, with 2D drawings and a 3D visualisation. Cable channels are machined in the wall logs where the order specifies them. More on bespoke orders.

Supply

The kit is quoted in writing and supplied EXW from the Eurodita factory. Installation and how it is organised is agreed per project; foundations, utilities and approvals stay with the local team of the buyer. What the kit holds is set out on What is in a Eurodita kit.

How an Order Is Agreed

Scope is confirmed in the written quotation. Details: Reading a Eurodita quotation.

Supply route

Confirmed project by project; partner branding agreed per order.

Production planning

Production scope confirmed in the written quotation.

Commercial terms

Price, quantity and payment quoted per order.

Technical documents

Drawings and specifications listed in the order documentation.

Configuration review

Dimensions, openings and wall profile reviewed before quotation.

Dispatch terms

EXW Eurodita factory as standard; delivered options per market and order.
