At a glance

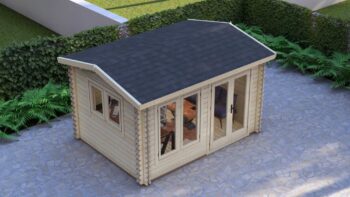

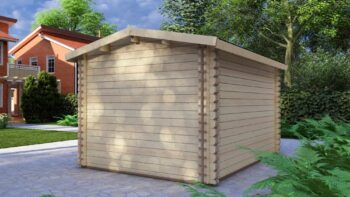

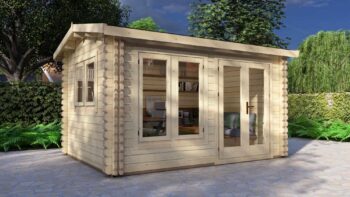

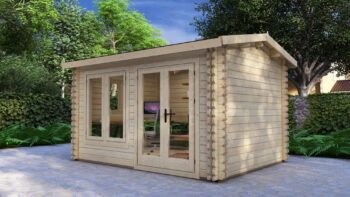

Apex Twin Skin Log Cabin 4x3m is a twin-skin log cabin with an apex roof, supplied as a building kit. It measures 4 x 3 m externally, an external footprint of 12 m². The ridge height is 247 cm and the eaves height 210 cm. It is listed with the twin skin log cabins.
Read the full description
Layout

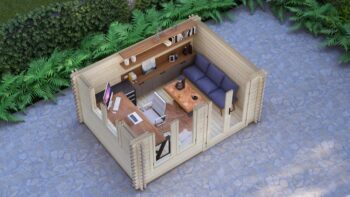

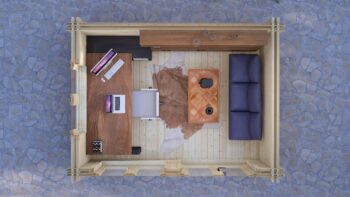

The plan drawing shows one room without inner walls.
Walls
The wall is a twin-skin build-up of 44-100-44 mm: a 44 mm outer wall log, a 100 mm cavity and a 44 mm inner wall log, 188 mm in total. The cavity is prepared for insulation, which is sourced locally.
Doors and windows

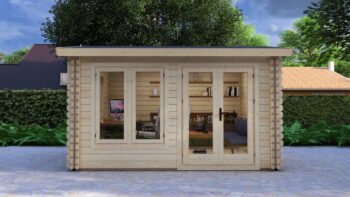

Doors and windows are made by Eurodita in timber. See windows and doors.
Technical data sheet
Specification recorded for Apex Twin Skin Log Cabin 4x3m. Dimensions are the building's external dimensions. A row appears only where a figure is recorded for this model.
| Building | |
|---|---|

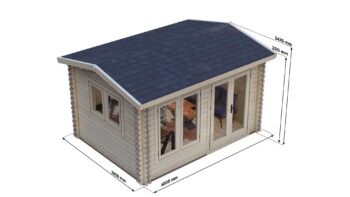

| External dimensions | 4 x 3 m |
| External footprint area | 12 m² |
| Eaves height | 210 cm |
| Ridge height | 247 cm |
| Base | External footprint 4 x 3 m. Base type and size are confirmed for the specific model and site. |
| Structure | |
| Wall build-up | 44-100-44 mm: 44 mm outer skin, 100 mm cavity, 44 mm inner skin. 188 mm total wall thickness. |
| Other wall options | The twin-skin build-ups are 44-100-44, 58-50-58 and 58-100-58 mm; the build-up is confirmed in the written quotation. |
| Construction | Interlocking tongue and groove joints |
| Timber | Northern European timber |
| Storm brace and anchor set | Included |
| Floor | |
| Floor bearers | Impregnated as standard |
| Floor boards | 28 mm |
| Roof | |
| Roof form | Apex |
| Roof boards | 19 mm tongue and groove boards |
| Doors and windows | |
| Doors | Residential type (IV68) timber door, 5-point locking, 4-16-4 mm double glazing |
| Windows | Residential type (IV68) timber window, tilt and turn, 4-16-4 mm double glazing |
| Scope of these figures | |
| Insulation | The 100 mm cavity is the space insulation occupies. Eurodita supplies the structure prepared for insulation, not the insulation material, so the cavity dimension is not an insulation specification. |
| Availability | Build-up availability and suitability for a given project and destination are confirmed per order. |
| Performance | These dimensions establish no thermal, fire, structural or certification performance. |
Add-ons & Customisation
Options for this model (branding, wall thickness, openings, insulation preparation, partitions, veranda) are listed on What is in a Eurodita kit and confirmed per order.
How an Order Is Agreed
Scope is confirmed in the written quotation. Details: Reading a Eurodita quotation.
Need this in a different size?
Size, layout and the positions of doors and windows can be changed for an order. Send a sketch or a drawing. From a complete sketch to a 3D view, drawings and a price within one working day.
Supply
Supplied EXW from the Eurodita factory. We supply the kit with assembly drawings; installation is not part of our supply.
For trade buyers
Dealers, distributors and private-label brands can carry this model in their own range.
Compared with similar models
Pent Twin Skin Log Cabin 4x3m has the same recorded external size, heights, wall profile and layout as this model; their pictures and drawings show where the two differ.
