Technical data sheet

Specification recorded for 3 Bedroom Log Cabin 10x6m, 44mm. Dimensions are the building's external dimensions. A row appears only where a figure is recorded for this model.

Building
External dimensions10 x 6 m
External footprint area60 m²
Eaves height221 cm
Ridge height312 cm
Storeys1
BaseExternal footprint 10 x 6 m. Base type and size are confirmed for the specific model and site.
Structure
Wall profile44 x 130 mm as standard
Other wall optionsOther approved solid wall profiles can be specified to suit the project and budget.
ConstructionInterlocking tongue and groove joints
TimberNorthern European timber
Storm brace and anchor setIncluded
Floor
Floor bearersImpregnated as standard
Floor boards28 mm
Roof
Roof boards19 mm tongue and groove boards
Doors and windows
DoorsDouble-Glazed Timber Joinery, Insulated Profile
WindowsDouble-Glazed Timber Joinery, Insulated Profile
Scope of these figures
InsulationEurodita supplies the timber structure prepared for insulation where required, not the insulation material.
PerformanceThese dimensions establish no thermal, fire, structural or certification performance.

Download technical data sheet (PDF) Wall profile reference

Add-ons & Customisation

Options for this model (branding, wall thickness, openings, insulation preparation, partitions, veranda) are listed on What is in a Eurodita kit and confirmed per order.

Need this in a different size?

This model is supplied as a 10 x 6 m footprint, 44 mm wall profile. If your customer needs a different layout, send a drawing. Eurodita will confirm whether the qualified bespoke route and factory scope fit the exact project. Partner branding is agreed per order.

  1. 1 Send a drawing A hand sketch can start the review. Mark known window and door positions, wall thickness and heights; Eurodita confirms any missing technical inputs.
  2. 2 Confirm the quotation scope If the enquiry fits, pricing and any CAD/3D or technical material are prepared to the agreed scope.
  3. 3 Review the agreed scope Revisions follow the quotation and project scope until written sign-off.

CAD/3D quotation material is prepared to the qualified project scope. Availability and timing are confirmed during qualification. Partner branding is applied where agreed; required manufacturer, legal and traceability information is retained.

Send a bespoke brief

Dimensions, wall thickness and opening positions are confirmed per project at quote stage. Bespoke production timing is confirmed at quotation stage. See published projects for built examples with dimensions and drawings, or review the rest of the 3 bedroom log cabins range.

About This 3 Bedroom Log Cabin 10x6m, 44mm

Product Overview

This 10x6m three-bedroom log cabin serves as a comprehensive project-specific accommodation solution for family housing projects. Built with 44mm wall construction, it delivers project-specific accommodation standards for developers requiring substantial living space. The design accommodates extended family arrangements and multi-generational housing developments across European markets.

Layout & Configuration

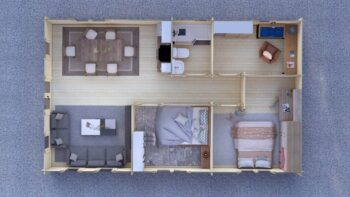

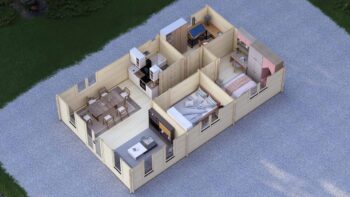

The interior configuration provides three distinct bedroom spaces within the 60 square metre footprint. Open-plan living areas maximize usable floor space while maintaining clear separation between sleeping and communal zones. This layout suits both accommodation applications and extended-stay accommodation projects requiring defined privacy areas.

Timber & Construction

Northern European timber construction incorporates 44mm interlocking tongue-and-groove wall profiles for enhanced assembly stability. Double-glazed timber joinery with insulated profiles supports thermal specification reviewed for extended-season use. The robust joint system helps reduce thermal weak points while providing exceptional weather resistance throughout seasonal temperature variations.

Floor & Roof

The flooring system features 28mm boards supported by pressure-treated bearers for long-term stability and moisture resistance. Roof construction utilizes 19mm tongue-and-groove boards with integrated storm bracing to withstand European weather conditions. This combination supports structural durability and thermal specification for long-term installation applications.

Customisation Options

Wall-thickness and insulation upgrades are confirmed at quotation stage for the product family, target use and destination-market review. Additional glazing specifications, partition reconfiguration kits, and veranda extensions adapt the structure to specific project requirements. Interior partition arrangements can be modified to create alternative bedroom and living space configurations.

Manufacturing & Delivery

Eurodita processes 150,000 m³ of timber annually. Freight route and final delivery timing are agreed per order in the written quotation. Eurodita's standard terms are EXW from Kaunas. The facility accommodates bespoke modifications and project-specific requirements while maintaining consistent quality standards for trade partnerships.

Private Label Partnership

Private-label manufacturing capabilities allow dealers to offer this model under their own branding with customized documentation packages. Professional 3D visualization services support showroom presentations and customer consultations. Branded assembly guides and technical specifications integrate directly with partner sales processes and customer service requirements.

What should dealers confirm before quoting 3 Bedroom Log Cabin 10x6m, 44mm?

Eurodita supplies 3 Bedroom Log Cabin 10x6m, 44mm as a private-label B2B residential log cabin with a 10x6m footprint and 44mm Northern European timber wall specification. Before quoting, dealers should confirm the quote stage package, layout, openings, selected wall or insulation scope, foundation interface, unloading access, EXW release or freight route from Kaunas, private-label documentation, and local-authority planning or site-use review requirements.

Product, order and after-sales conditions are confirmed in writing for each project in the quotation, order confirmation and applicable product documentation. Please contact Eurodita for the documentation relevant to your confirmed order.

B2B Order Framework

Scope is confirmed in the written quotation. Details: Reading a Eurodita quotation.

Private-label scope

Branding on packaging and documents, agreed per order.

Production planning

Production scope confirmed in the written quotation.

Commercial terms

Price, quantity and payment quoted per order.

Technical documents

Drawings and specifications listed in the order documentation.

Configuration review

Dimensions, openings and wall profile reviewed before quotation.

Dispatch terms

EXW Kaunas as standard; delivered options per market and order.
