2 Bedroom Log Cabin 7×5.5m, 44mm

This 2 Bedroom Log Cabin provides 38.5 m² of internal floor area in a 7 x 5.5 m footprint with 44 mm wall thickness .

Technical data sheet

Specification recorded for 2 Bedroom Log Cabin 7x5.5m, 44mm. Dimensions are the building's external dimensions. A row appears only where a figure is recorded for this model.

Building

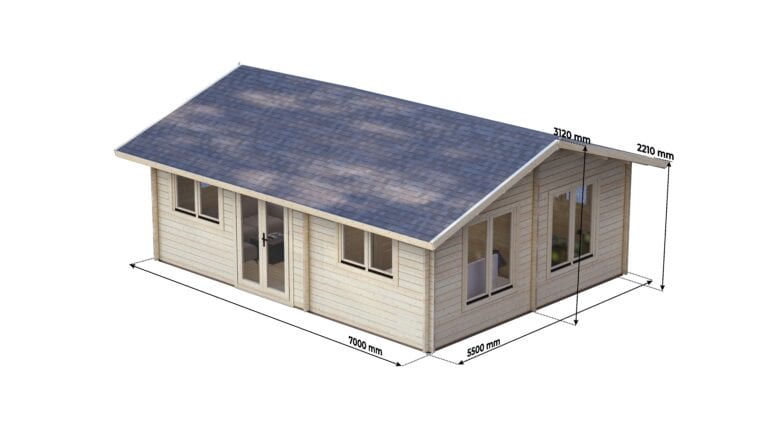

External dimensions7 x 5.5 m
External footprint area39 m²
Eaves height221 cm
Ridge height312 cm
Storeys1
BaseExternal footprint 7 x 5.5 m. Base type and size are confirmed for the specific model and site.
Structure
Wall profile44 x 130 mm as standard
Other wall optionsOther approved solid wall profiles can be specified to suit the project and budget.
ConstructionInterlocking tongue and groove joints
TimberNorthern European timber
Storm brace and anchor setIncluded
Floor
Floor bearersImpregnated as standard
Floor boards28 mm
Roof
Roof boards19 mm tongue and groove boards
Doors and windows
DoorsDouble-Glazed Timber Joinery, Insulated Profile
WindowsDouble-Glazed Timber Joinery, Insulated Profile
Scope of these figures
InsulationEurodita supplies the timber structure prepared for insulation where required, not the insulation material.
PerformanceThese dimensions establish no thermal, fire, structural or certification performance.

Download technical data sheet (PDF) Wall profile reference

Add-ons & Customisation

Options for this model (branding, wall thickness, openings, insulation preparation, partitions, veranda) are listed on What is in a Eurodita kit and confirmed per order.

Need this in a different size?

This model is supplied as a 7 x 5.5 m footprint, 44 mm wall profile. If your customer needs a different layout, send a drawing. Eurodita will confirm whether the qualified bespoke route and factory scope fit the exact project. Partner branding is agreed per order.

  1. 1 Send a drawing A hand sketch can start the review. Mark known window and door positions, wall thickness and heights; Eurodita confirms any missing technical inputs.
  2. 2 Confirm the quotation scope If the enquiry fits, pricing and any CAD/3D or technical material are prepared to the agreed scope.
  3. 3 Review the agreed scope Revisions follow the quotation and project scope until written sign-off.

CAD/3D quotation material is prepared to the qualified project scope. Availability and timing are confirmed during qualification. Partner branding is applied where agreed; required manufacturer, legal and traceability information is retained.

Send a bespoke brief

Dimensions, wall thickness and opening positions are confirmed per project at quote stage. Bespoke production timing is confirmed at quotation stage. See published projects for built examples with dimensions and drawings, or review the rest of the 2 bedroom log cabins range.

About This 2 Bedroom Log Cabin 7×5.5m, 44mm

Product Overview

This 2 Bedroom Log Cabin provides 38.5 m² of internal floor area in a 7 x 5.5 m footprint with 44 mm wall thickness. Manufactured by UAB Eurodita in Kaunas, Lithuania, from kiln-dried Northern European timber. It can be reviewed as a practical multi-room cabin shell for annexe, guest-use and site-specific project briefs where use is checked locally. Browse more at our cabin catalogue.

Layout & Configuration

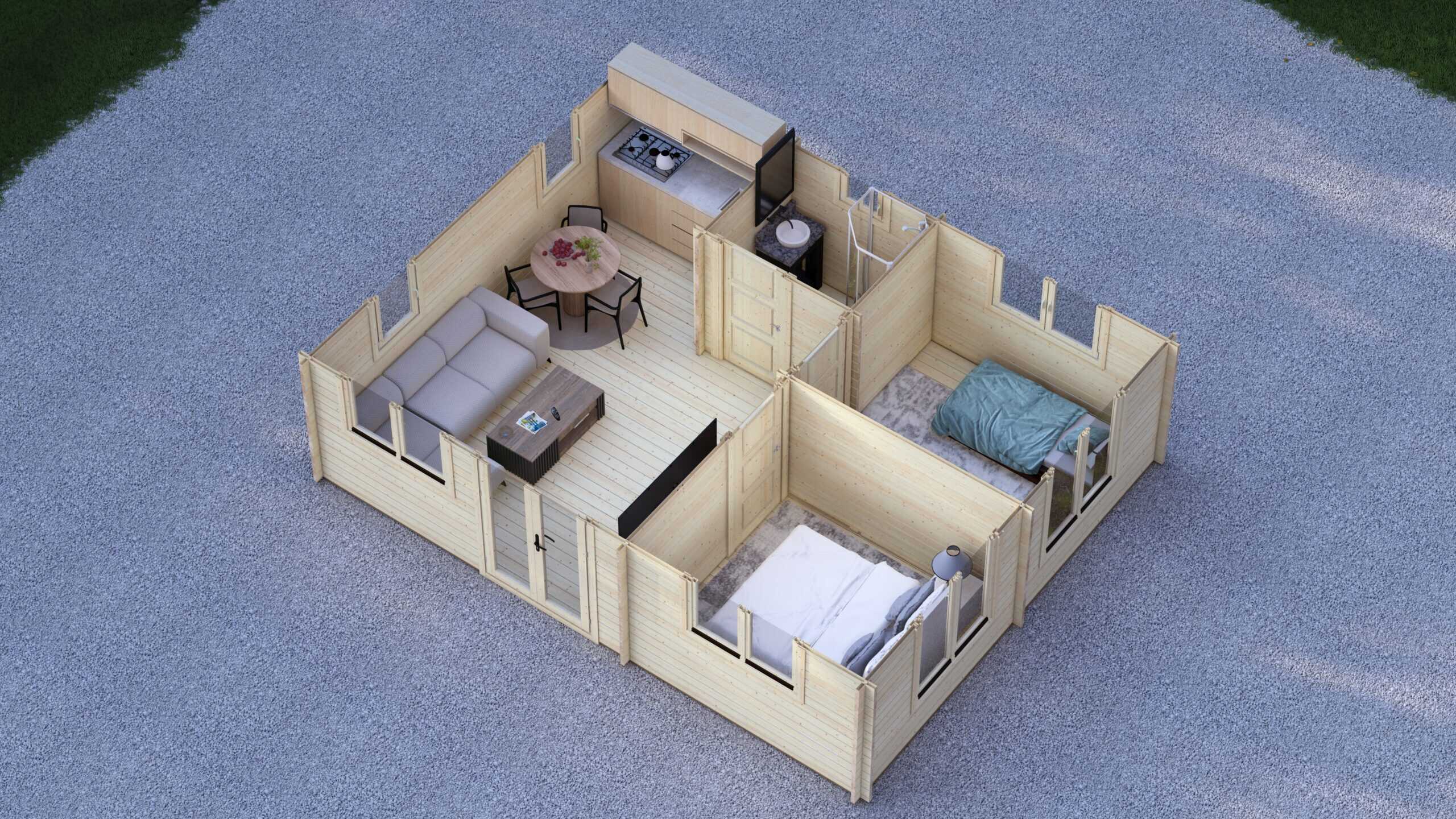

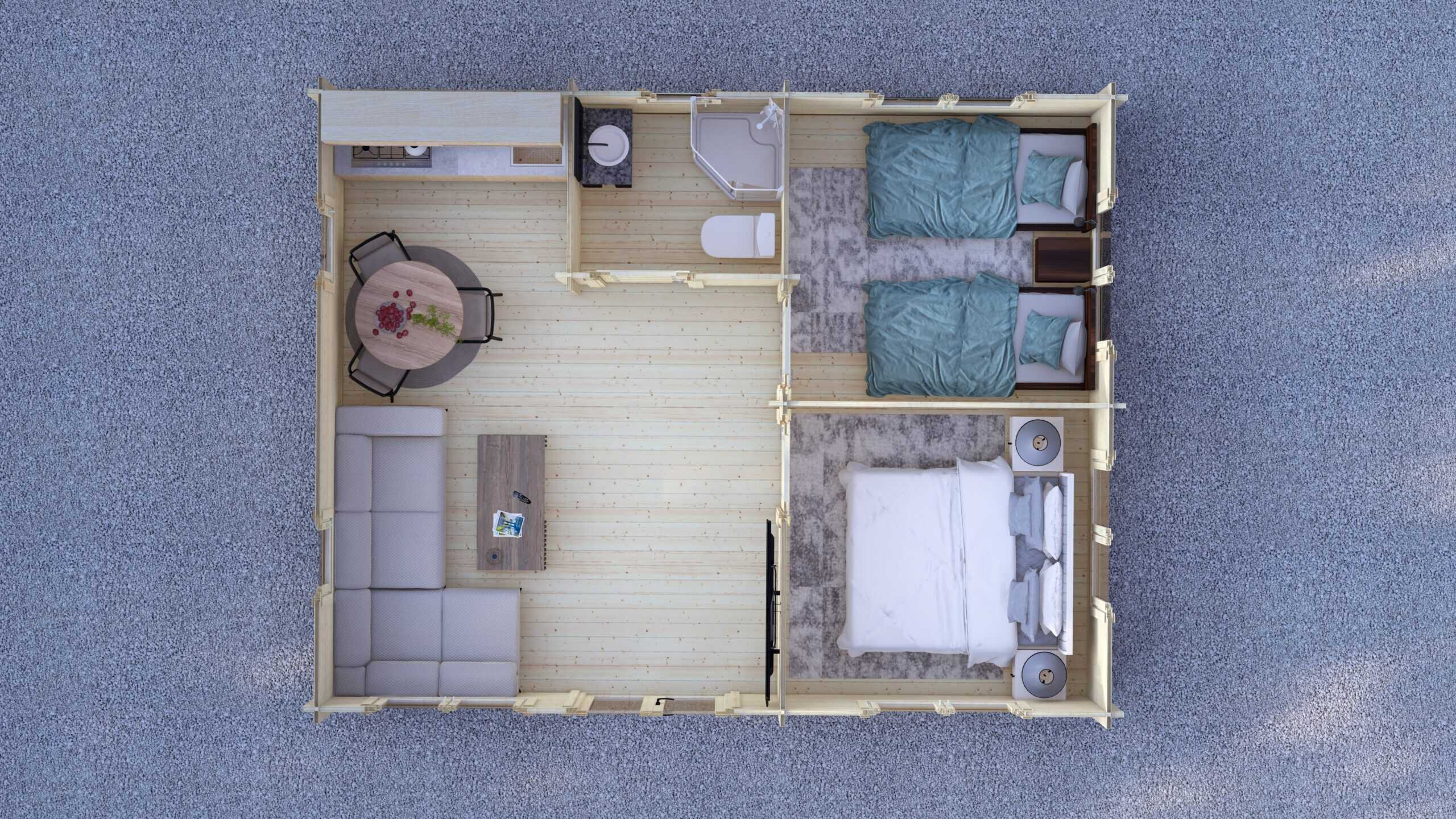

The 38.5 m² floor plan accommodates two bedrooms, an open-plan main room and kitchen area, and a bathroom. The 7 m length provides comfortable room proportions. Supports couple and small family accommodation for seasonal or guest-use briefs after local review.

Timber & Construction

Built from Northern European timber, kiln-dried in Nardi kilns (Italy) to a 12-14% production moisture target. The 44 mm tongue-and-groove wall logs machined on Hundegger CNC centres (Germany). The 44 mm thickness provides enhanced thermal retention and structural solidity.

Technical Specifications

Key specifications: External dimensions: 7 x 5.5 m | Floor area: ~38.5 m² | Bedrooms: 2 | Wall thickness: 44 mm | Timber: Northern European timber, kiln-dried | Foundation: confirmed for the specific model and site.

Customisation Options

Modifications include wall thickness upgrade (70 mm or twin-skin), additional windows, French door, veranda extension, and pre-applied finishes. Insulation packages for extended-season use available. Standard catalogue production lead time is confirmed per order at quote stage.

Manufacturing & Delivery

Manufactured at UAB Eurodita in Kaunas, Lithuania. Ships as a complete flat-pack kit on EUR pallets. Production timing is confirmed per order at quote stage.

Private Label Partnership

Private-label branding, packaging and customer-facing documentation are agreed perorder. The two-bedroom 44 mm cabin is a core product for holiday park and annexe-focused dealers.

Product, order and after-sales conditions are confirmed in writing for each project in the quotation, order confirmation and applicable product documentation. Please contact Eurodita for the documentation relevant to your confirmed order.

What should dealers confirm before quoting 2 Bedroom Log Cabin 7x5.5m 44mm?

Eurodita supplies 2 Bedroom Log Cabin 7x5.5m 44mm through its own-brand two-bedroom cabin manufacturing, with a 7 x 5.5m footprint and 44mm log walls. Before quoting, dealers should confirm room layout, openings, insulation scope, foundation interface, unloading access, EXW logistics route from Kaunas and local authority review requirements. See the granny annexe range for trade partners and EXW logistics for cabin orders guidance before making client-facing commitments.

B2B Order Framework

Scope is confirmed in the written quotation. Details: Reading a Eurodita quotation.

Private-label scope

Branding on packaging and documents, agreed per order.

Production planning

Production scope confirmed in the written quotation.

Commercial terms

Price, quantity and payment quoted per order.

Technical documents

Drawings and specifications listed in the order documentation.

Configuration review

Dimensions, openings and wall profile reviewed before quotation.

Dispatch terms

EXW Kaunas as standard; delivered options per market and order.
