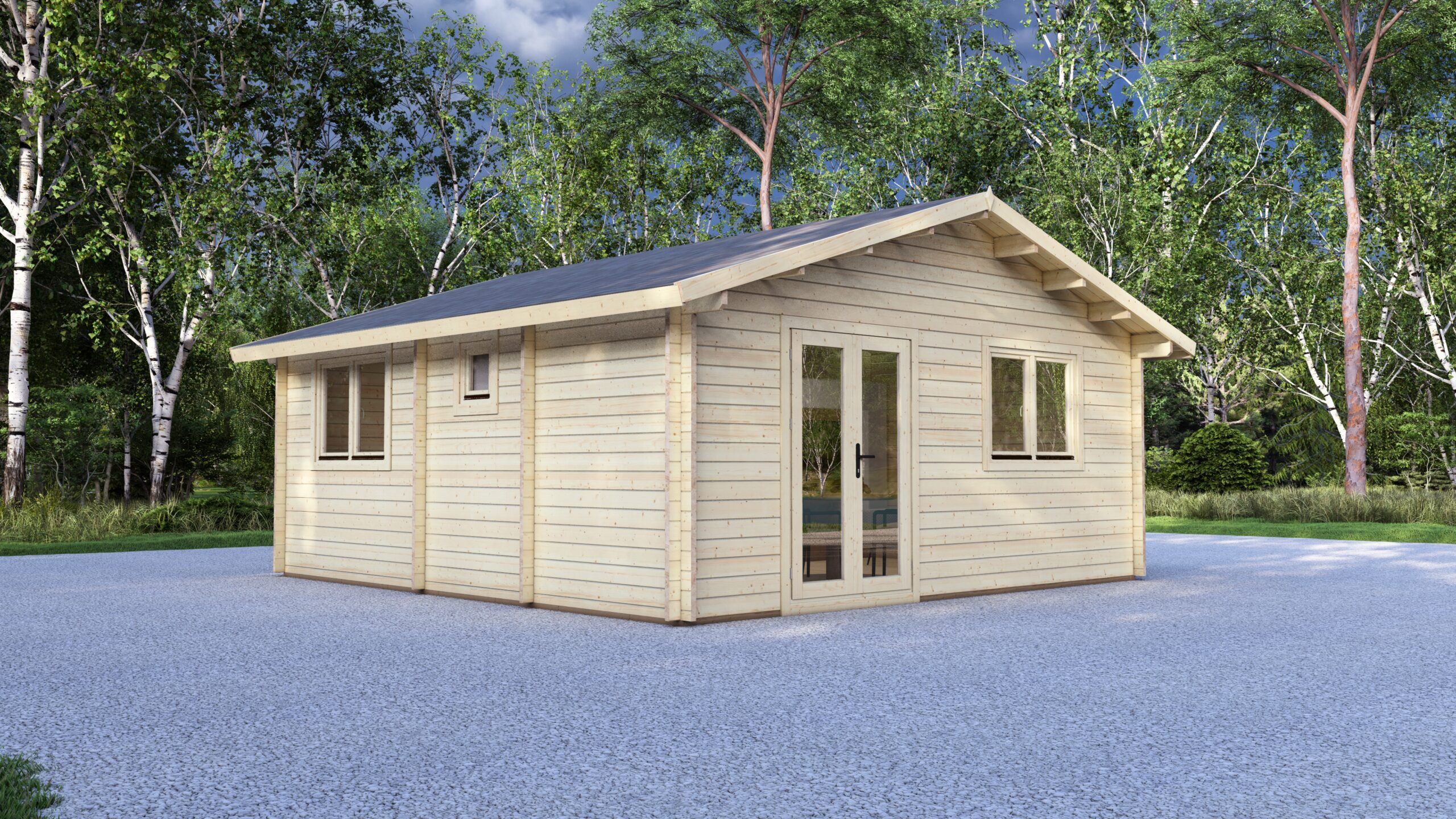

2 Bedroom Log Cabin 6×5.8m, 44mm
The 6 x 5.8m two-bedroom log cabin provides a compact multi-room layout for project-specific B2B briefs. The 44mm Northern European timber construction, room layout and technical data support dealer, contractor and local-authority review where relevant.
Supplied to dealers, developers and private-label partners; larger homes are also supplied directly to private clients.
Technical data sheet
Specification recorded for 2 Bedroom Log Cabin 6x5.8m, 44mm. Dimensions are the building's external dimensions. A row appears only where a figure is recorded for this model.

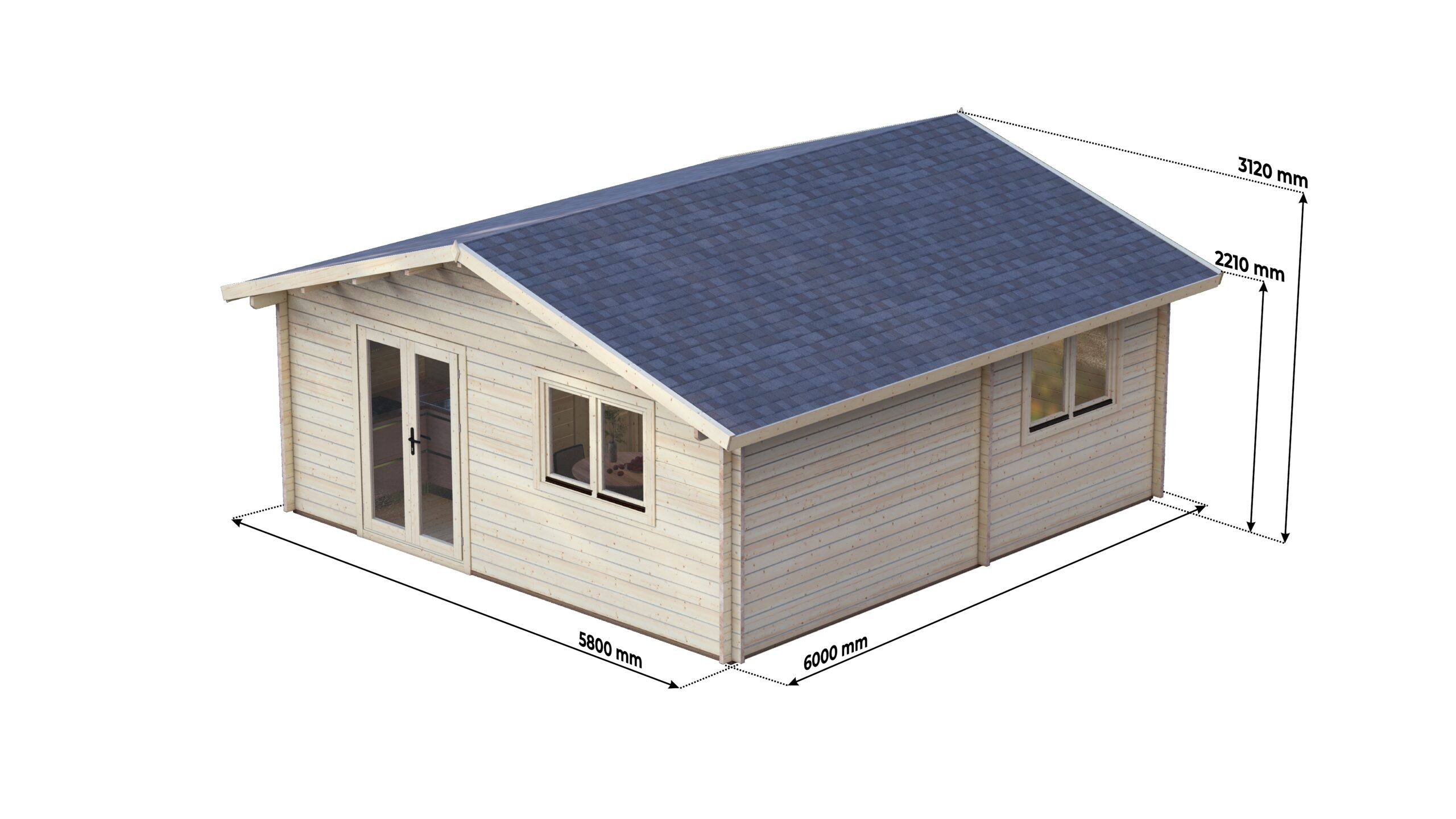

| Building | |
|---|---|
| External dimensions | 6 x 5.8 m |
| External footprint area | 34.8 m² |
| Eaves height | 221 cm |
| Ridge height | 312 cm |
| Storeys | 1 |
| Base | External footprint 6 x 5.8 m. Base type and size are confirmed for the specific model and site. |
| Structure | |
| Wall profile | 44 x 130 mm as standard |
| Other wall options | Other approved solid wall profiles can be specified to suit the project and budget. |
| Construction | Interlocking tongue and groove joints |
| Timber | Northern European timber |
| Storm brace and anchor set | Included |
| Floor | |
| Floor bearers | Impregnated as standard |
| Floor boards | 28 mm |
| Roof | |
| Roof boards | 19 mm tongue and groove boards |
| Doors and windows | |
| Doors | Double-Glazed Timber Joinery, Insulated Profile |
| Windows | Double-Glazed Timber Joinery, Insulated Profile |
| Scope of these figures | |
| Insulation | Eurodita supplies the timber structure prepared for insulation where required, not the insulation material. |
| Performance | These dimensions establish no thermal, fire, structural or certification performance. |
Add-ons & Customisation
Options for this model (branding, wall thickness, openings, insulation preparation, partitions, veranda) are listed on What is in a Eurodita kit and confirmed per order.
Need this in a different size?
This model is supplied as a 6 x 5.8 m footprint, 44 mm wall profile. If your customer needs a different layout, send a drawing. Eurodita will confirm whether the qualified bespoke route and factory scope fit the exact project. Partner branding is agreed per order.
- 1 Send a drawing A hand sketch can start the review. Mark known window and door positions, wall thickness and heights; Eurodita confirms any missing technical inputs.
- 2 Confirm the quotation scope If the enquiry fits, pricing and any CAD/3D or technical material are prepared to the agreed scope.
- 3 Review the agreed scope Revisions follow the quotation and project scope until written sign-off.
CAD/3D quotation material is prepared to the qualified project scope. Availability and timing are confirmed during qualification. Partner branding is applied where agreed; required manufacturer, legal and traceability information is retained.
Send a bespoke briefDimensions, wall thickness and opening positions are confirmed per project at quote stage. Bespoke production timing is confirmed at quotation stage. See published projects for built examples with dimensions and drawings, or review the rest of the 2 bedroom log cabins range.
About This 2 Bedroom Log Cabin 6×5.8m, 44mm
Product Overview
The 6 x 5.8m two-bedroom log cabin provides a compact multi-room layout for project-specific B2B briefs. The 44mm Northern European timber construction, room layout and technical data support dealer, contractor and local-authority review where relevant. Contractors and developers can assess this model for holiday parks, annexes and other space-conscious timber-building projects.
Layout & Configuration

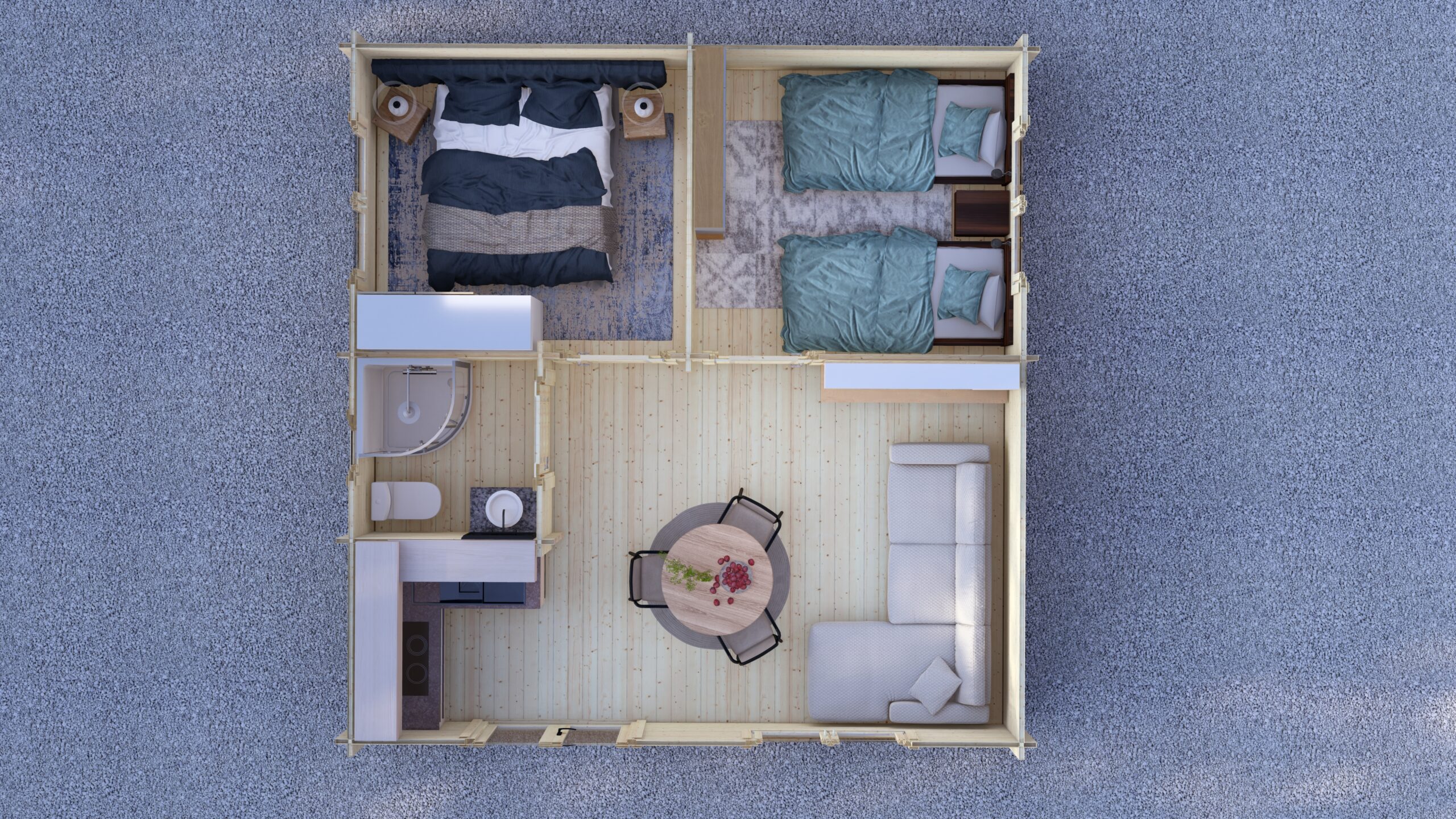

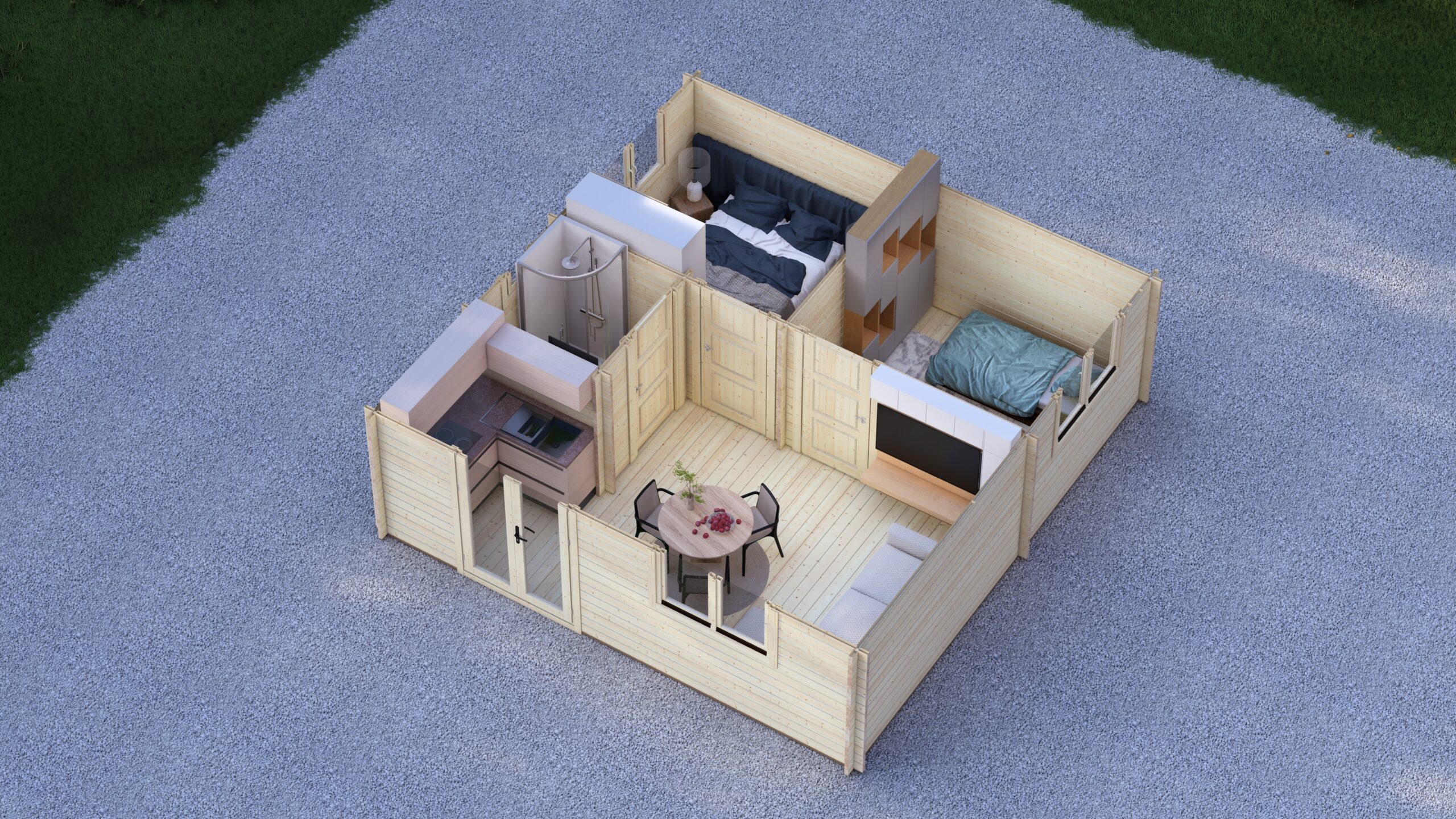

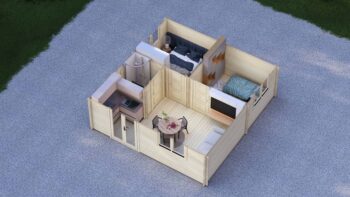

Internal configuration provides two separate sleeping areas with central internal floor area. The rectangular floor plan supports furniture placement and circulation planning. Ridge height of 312cm and eaves height of 221cm create spacious interior volumes. Room divisions accommodate en-suite facilities, storage solutions, and flexible layout arrangements within the timber framework.
Timber & Construction
Northern European timber forms interlocking tongue-and-groove wall systems for the project specification. The 44mm wall thickness and double-glazed timber joinery provide technical inputs for insulation, heating, ventilation and local-use review where relevant. Construction details are documented for dealer and project-team assessment before quotation or production.
Floor & Roof
Floor construction incorporates 28mm tongue-and-groove boarding over pressure-treated support bearers. Roof assembly features 19mm tongue-and-groove boards providing roof deck boards for roof membrane systems. Storm bracing components are reviewed for assembly stability against site wind exposure. Floor build-up space can be reviewed for insulation and services integration.
Customisation Options
Wall thickness upgrades to 58mm, 70mm, or 88mm profiles enhance insulation specification for specific climate requirements. Internal partition kits create additional room configurations. Insulation packages include floor, wall, and roof thermal layers. Veranda extensions expand covered outdoor space. Triple-glazed joinery options available for project-specific energy specification options.
Manufacturing & Delivery
The Eurodita factory is dimensioned for 150,000 m³ of timber a year. Standard catalogue production timing, route-specific freight timing and any custom specification are confirmed per quote. Bespoke modifications are reviewed against site conditions and destination-market requirements before quote approval. Quality control protocols ensure dimensional accuracy and material consistency.
Private Label Partnership
Private-label manufacturing enables dealer branding across documentation and packaging systems. 3D visualisation services support customer presentations and planning applications. Branded assembly instructions and technical drawings carry partner identity. Display models for a partner's showroom can be quoted per order.
Warranty & Support
Product, order and after-sales conditions are confirmed in writing for each project in the quotation, order confirmation and applicable product documentation. Please contact Eurodita for the documentation relevant to your confirmed order. Complete assembly documentation includes foundation specifications and services integration guidance. Technical support provides product data and installation clarification during the construction phase.
What should dealers confirm before quoting 2 Bedroom Log Cabin 6x5.8m 44mm?
Eurodita supplies 2 Bedroom Log Cabin 6x5.8m 44mm through its private-label two-bedroom cabin supply, with a 6 x 5.8m footprint and 44mm log walls. Before quoting, dealers should confirm partition layout, openings, insulation scope, foundation interface, unloading access, EXW logistics route from the Eurodita factory and local authority review requirements. See the two-bedroom annexe project enquiries and B2B log cabin delivery planning guidance before making client-facing commitments.
