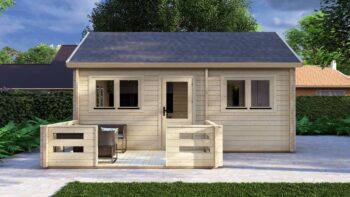

1 Bedroom Log Cabin 5.85×4.1m, with loft
This 1 Bedroom Log Cabin provides 24 m² of ground-floor space plus a loft mezzanine in a 5.85 x 4.1 m footprint .
Technical data sheet
Specification recorded for 1 Bedroom Log Cabin 5.85x4.1m, with loft. Dimensions are the building's external dimensions. A row appears only where a figure is recorded for this model.
| Building | |
|---|---|

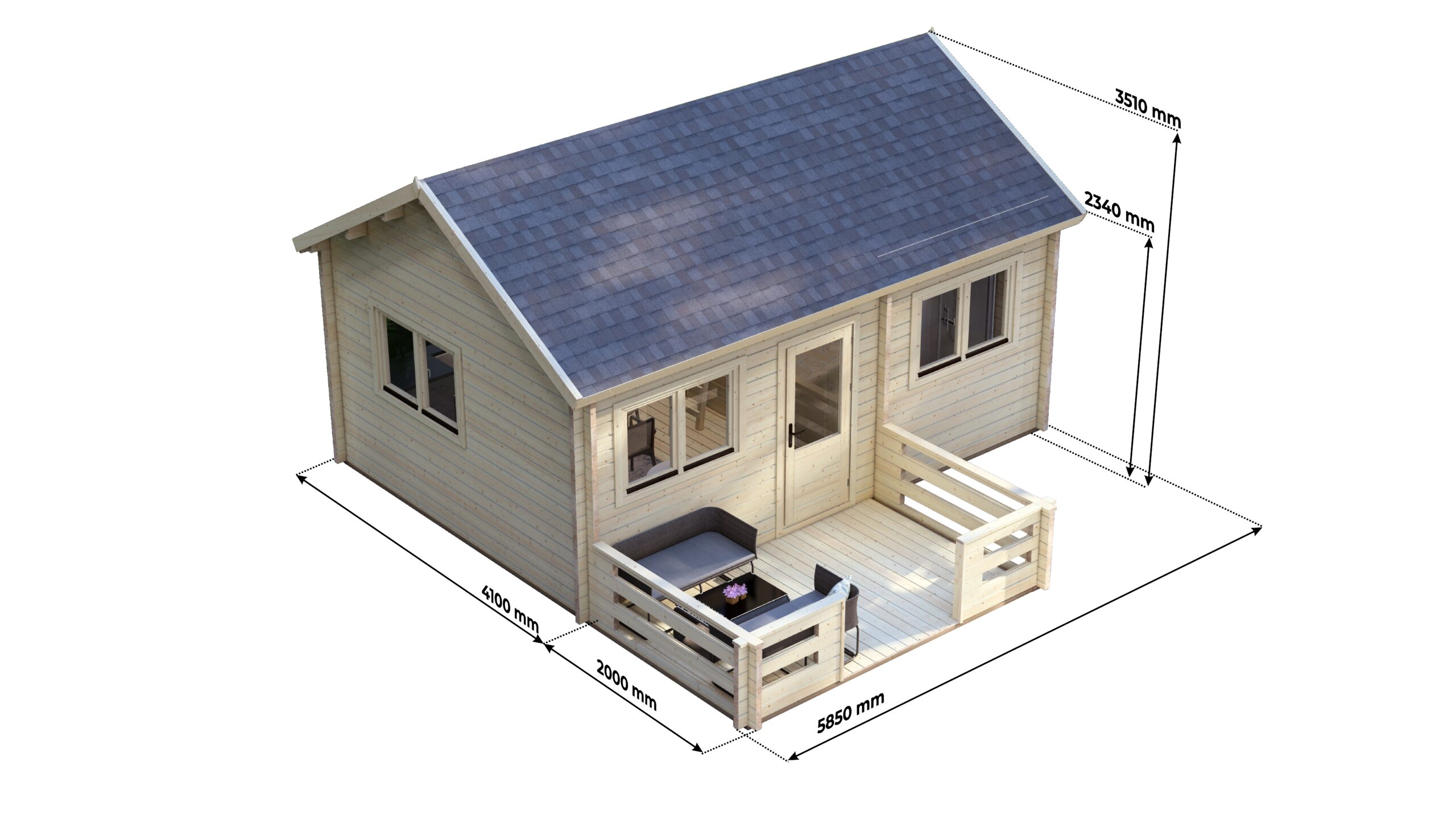

| External dimensions | 5.85 x 4.1 m + 2 m |
| Eaves height | 234 cm |
| Ridge height | 351 cm |
| Storeys | 2 |
| Base | Base type and size are confirmed for the specific model and site. |
| Structure | |
| Wall profile | 58 x 130 mm as standard |
| Other wall options | Other approved solid wall profiles can be specified to suit the project and budget. |
| Construction | Interlocking tongue and groove joints |
| Timber | Northern European timber |
| Storm brace and anchor set | Included |
| Floor | |
| Floor bearers | Impregnated as standard |
| Floor boards | 28 mm |
| Roof | |
| Roof boards | 19 mm tongue and groove boards |
| Doors and windows | |
| Doors | Double-Glazed Timber Joinery, Insulated Profile |
| Windows | Double-Glazed Timber Joinery, Insulated Profile |
| Scope of these figures | |
| Insulation | Eurodita supplies the timber structure prepared for insulation where required, not the insulation material. |
| Performance | These dimensions establish no thermal, fire, structural or certification performance. |
Add-ons & Customisation
Options for this model (branding, wall thickness, openings, insulation preparation, partitions, veranda) are listed on What is in a Eurodita kit and confirmed per order.
Need this in a different size?
This model is supplied as a 5.85 x 4.1 m footprint. If your customer needs a different layout, send a drawing. Eurodita will confirm whether the qualified bespoke route and factory scope fit the exact project. Partner branding is agreed per order.
- 1 Send a drawing A hand sketch can start the review. Mark known window and door positions, wall thickness and heights; Eurodita confirms any missing technical inputs.
- 2 Confirm the quotation scope If the enquiry fits, pricing and any CAD/3D or technical material are prepared to the agreed scope.
- 3 Review the agreed scope Revisions follow the quotation and project scope until written sign-off.
CAD/3D quotation material is prepared to the qualified project scope. Availability and timing are confirmed during qualification. Partner branding is applied where agreed; required manufacturer, legal and traceability information is retained.
Send a bespoke briefDimensions, wall thickness and opening positions are confirmed per project at quote stage. Bespoke production timing is confirmed at quotation stage. See published projects for built examples with dimensions and drawings, or review the rest of the 1 bedroom log cabins range.
About This 1 Bedroom Log Cabin 5.85×4.1m, with loft
Product Overview
This 1 Bedroom Log Cabin provides 24 m² of ground-floor space plus a loft mezzanine in a 5.85 x 4.1 m footprint. The integrated loft level significantly increases usable area without expanding the building footprint. Manufactured by UAB Eurodita in Kaunas, Lithuania. View the full cabin range.
Layout & Configuration

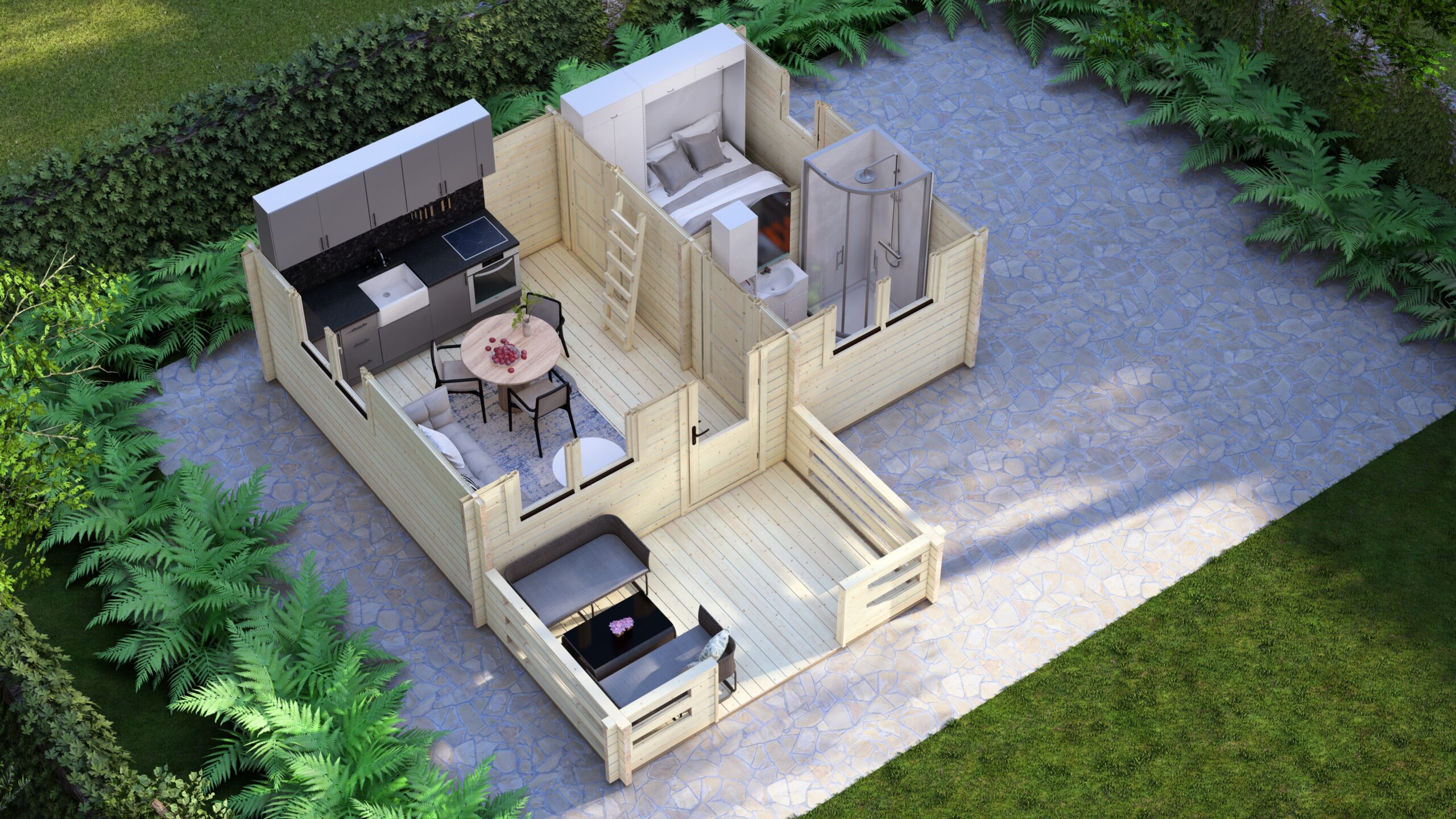

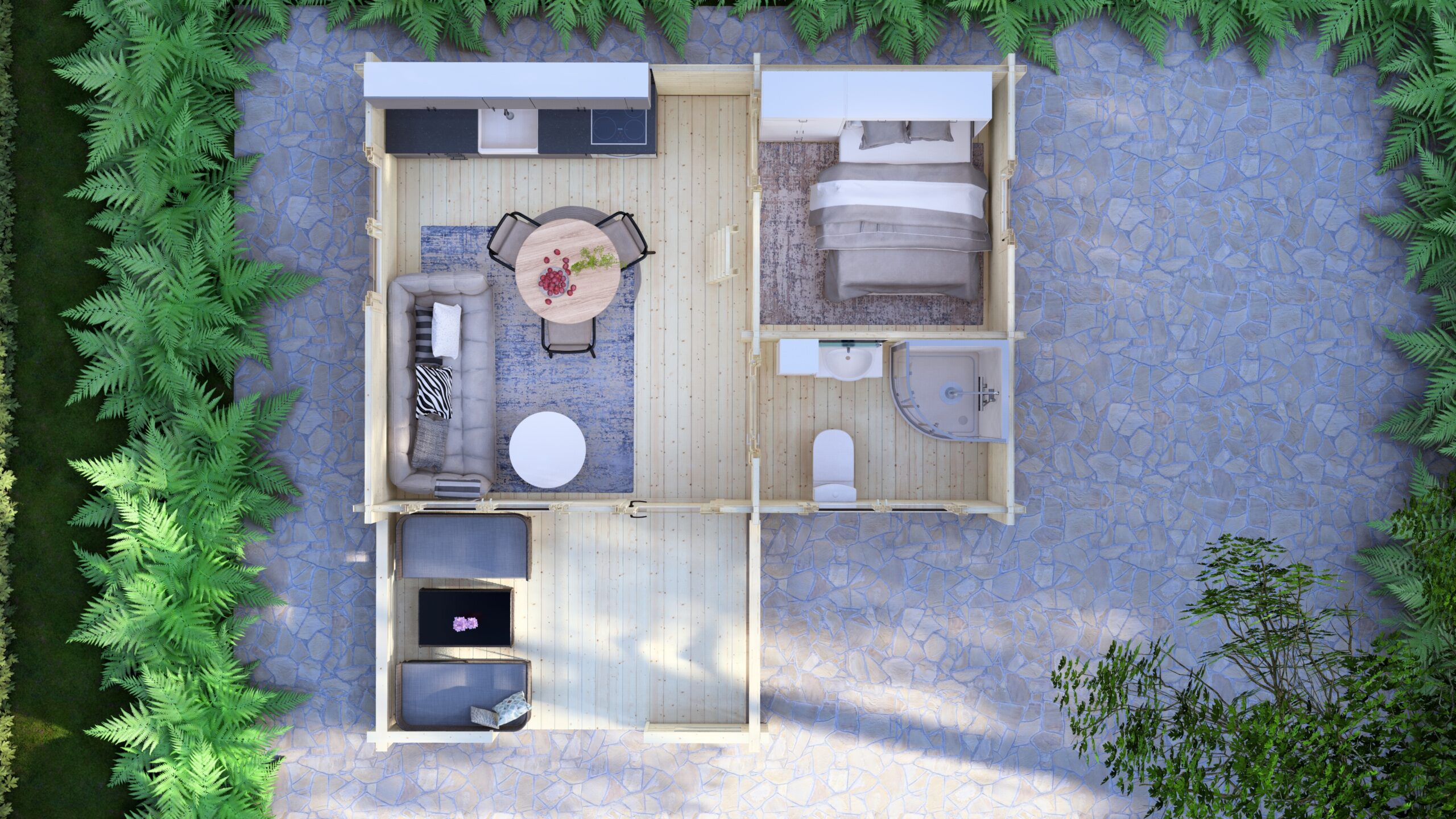

The ground floor (24 m²) accommodates a bedroom, open-plan main room and kitchen area, and bathroom. The loft mezzanine provides additional sleeping, storage, or study space. This dual-level design can be specified for holiday-park, guest-house, or ancillary-project briefs where the intended use is checked locally.
Timber & Construction
Constructed from Northern European timber, kiln-dried to a 12-14% production moisture target. Wall and structural components machined on Hundegger CNC centres (Germany). The loft structure is engineered as an integral part of the roof assembly with load-bearing floor joists sized for safe use.
Technical Specifications
Key specifications: External dimensions: 5.85 x 4.1 m | Ground floor: ~24 m² | Loft: mezzanine level | Timber: Northern European timber, kiln-dried | Access: integrated ladder or staircase option | Foundation: confirmed for the specific model and site.
Customisation Options
Dealers can specify loft floor area expansion, staircase versus ladder, dormer windows, balcony, exterior finishes, and the confirmed 58 mm wall construction. The loft can be open gallery or enclosed room. Standard catalogue production lead time is confirmed per order at quote stage.
Manufacturing & Delivery
Produced at UAB Eurodita in Kaunas, Lithuania. Ships as a complete flat-pack kit including ground floor walls, loft components, roof assembly, windows, doors, and hardware. Production timing is confirmed per order at quote stage.
Private Label Partnership
Private-label branding, packaging and customer-facing documentation are agreed perorder. The loft cabin format is a practical fit for dealer-led annexe and holiday-park ranges.
Product, order and after-sales conditions are confirmed in writing for each project in the quotation, order confirmation and applicable product documentation. Please contact Eurodita for the documentation relevant to your confirmed order.
What should dealers confirm before quoting 1 Bedroom Log Cabin 5.85x4.1m with loft?
Eurodita supplies 1 Bedroom Log Cabin 5.85x4.1m with loft through its private-label cabin manufacturing route, with a 5.85 x 4.1+2m quote footprint and loft layout. Before quoting, dealers should confirm selected wall profile, loft layout, openings, insulation scope, foundation interface, unloading access, EXW logistics route from Kaunas and local authority review requirements. See the annexe project review for trade partners and factory release and freight timing guidance before making client-facing commitments.
