Design Overview

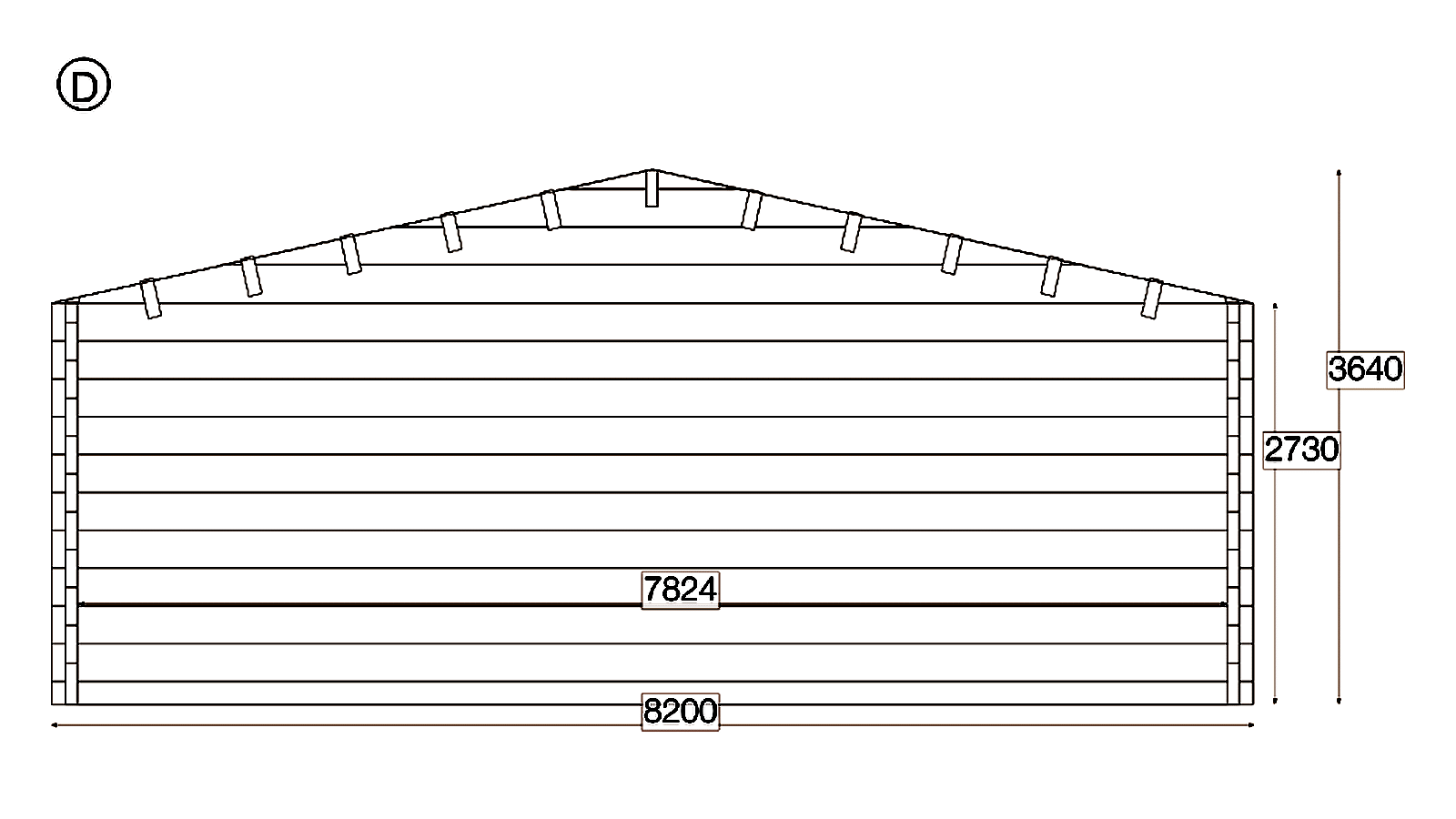

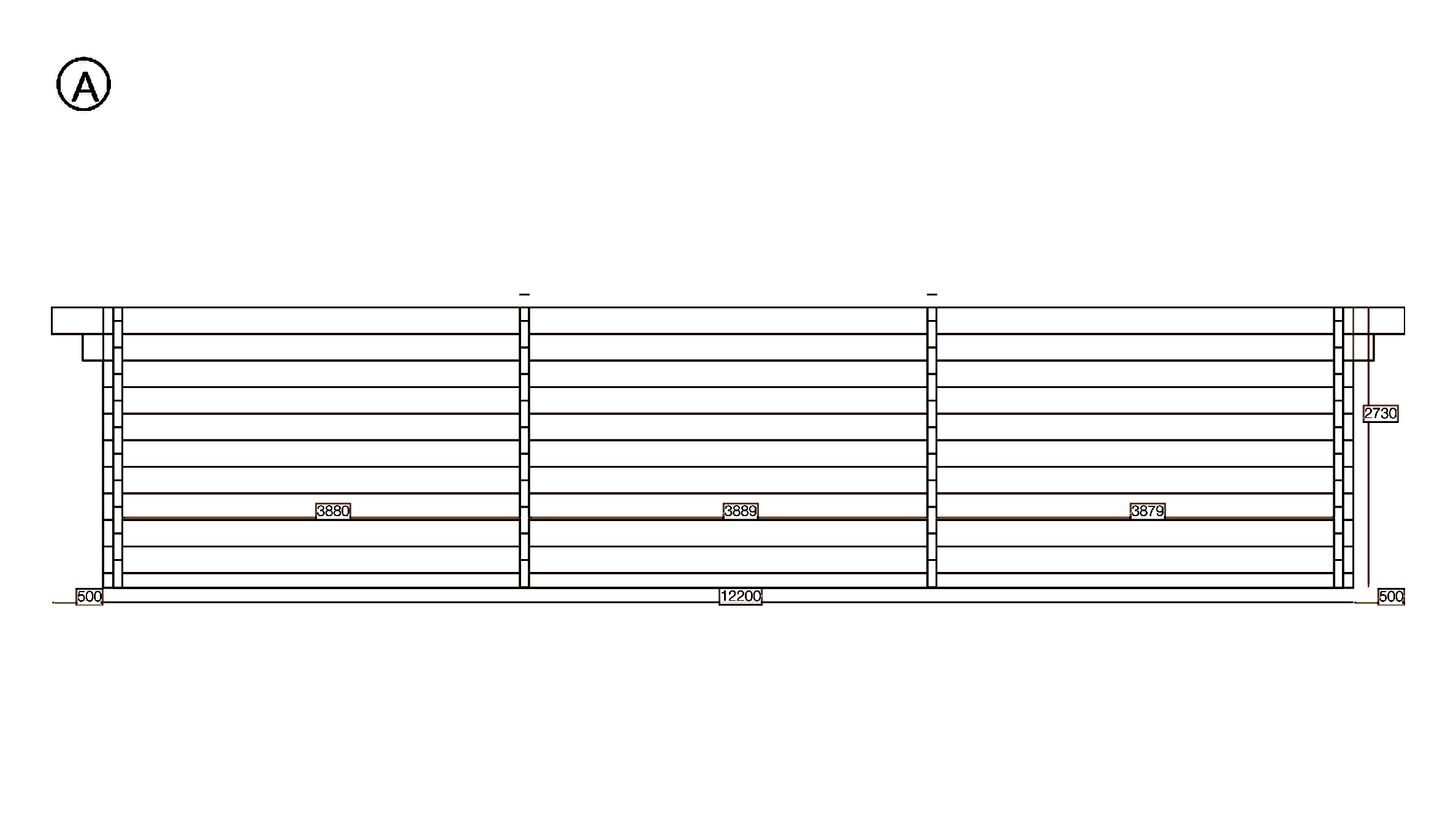

The Glulam Apex Timber Residence 8.2×12.2 is a bespoke timber structure delivering 92.5m² of clear interior space within a 8.2m x 12.2m footprint. Internal dimensions of 7.8m x 11.8m are enclosed by 88mm glue-laminated timber walls rising to a sidewall height of 2730mm, with the apex (gable) roof reaching 3640mm at the ridge. The design incorporates 3 windows and 2 doors, positioned to the client’s layout brief, with the apex (gable) roof spanning 111.7m² above 40x60mm floor bearers. No off-the-shelf components are used in this timber residence; every element is cut and machined to the project-specific measurements, delivering a truly bespoke result for the dealer and their end client.
Why This Configuration

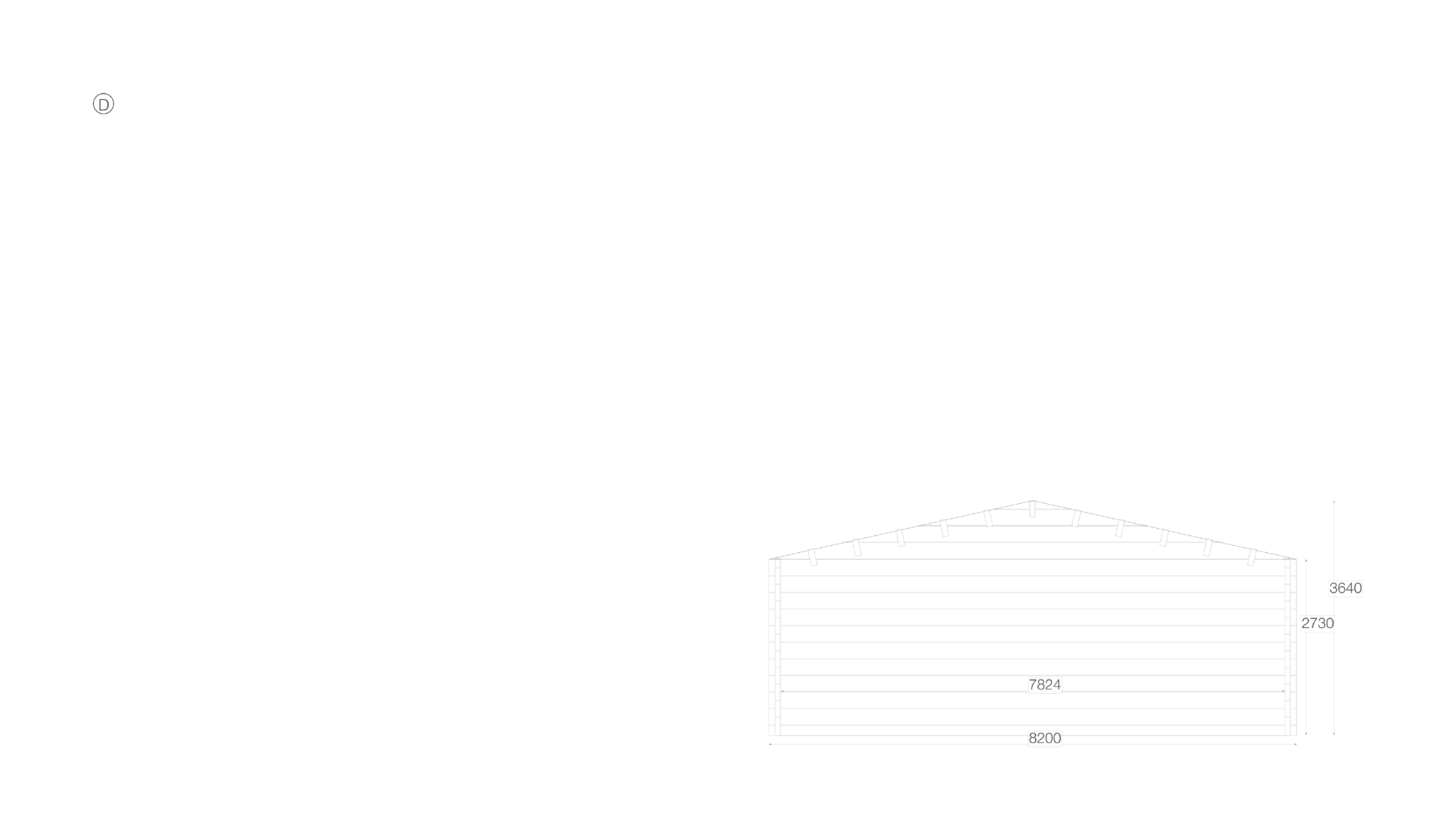

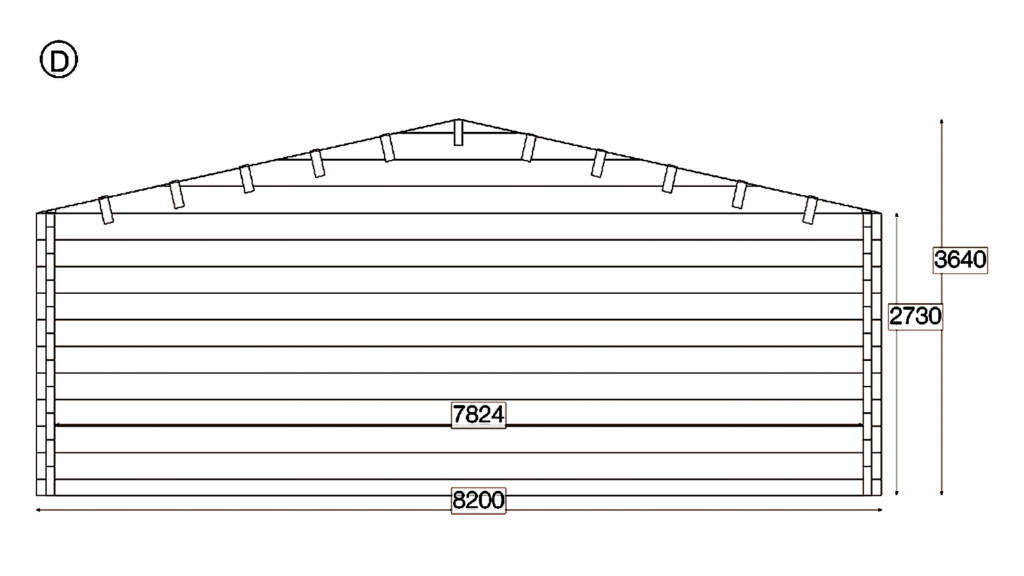

The apex (gable) roof provides balanced aesthetics with symmetrical slopes meeting at a central ridge, creating a classic silhouette that integrates well with residential surroundings. At just 12.7°, the low-profile roof minimises visual impact, an advantage where planning height limits apply.
The wall specification shown here is project data for dealer review. Final use, insulation package, glazing, ventilation, installation quality, and any building-control or local authority route must be confirmed for the target market and project.

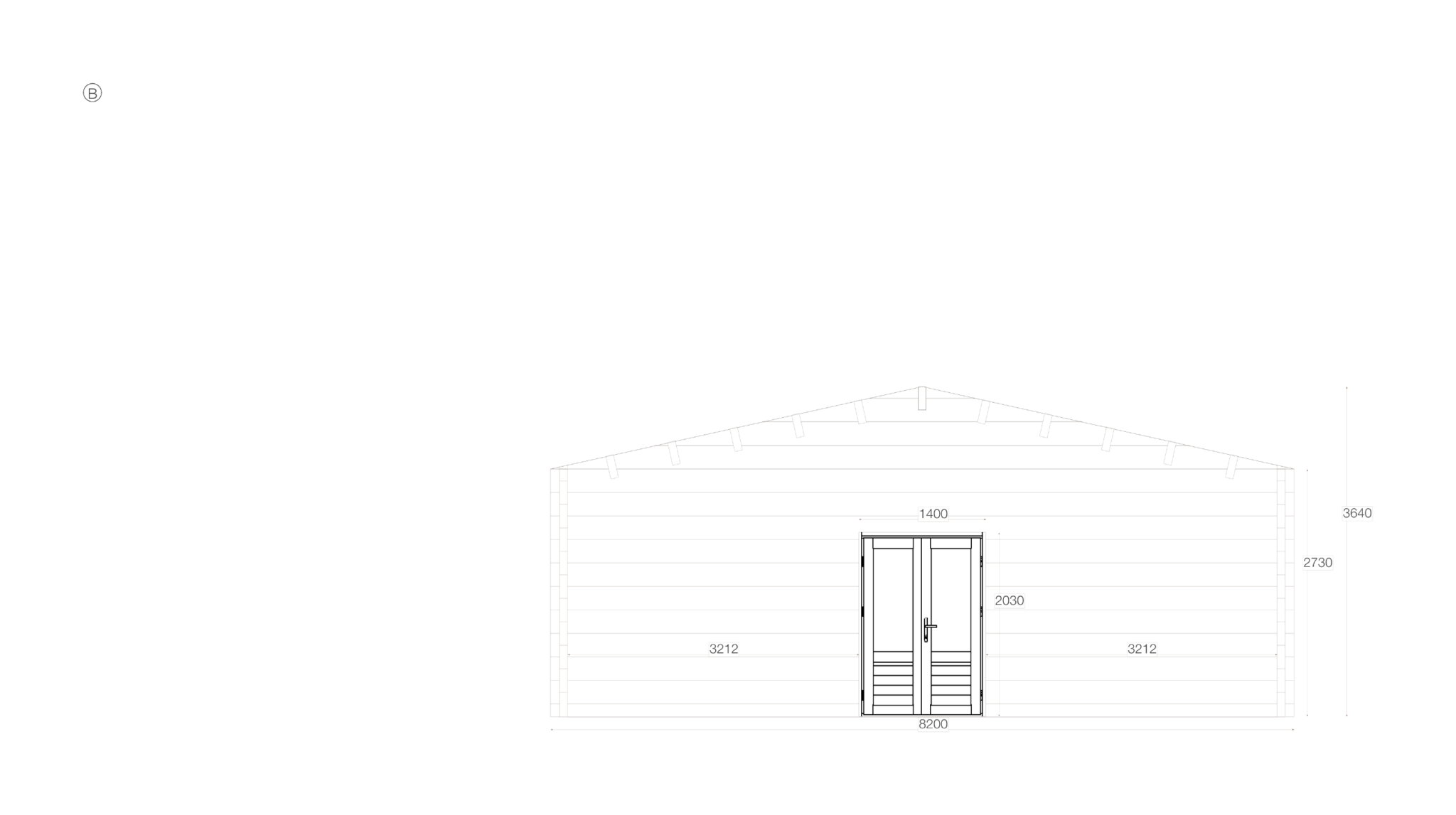

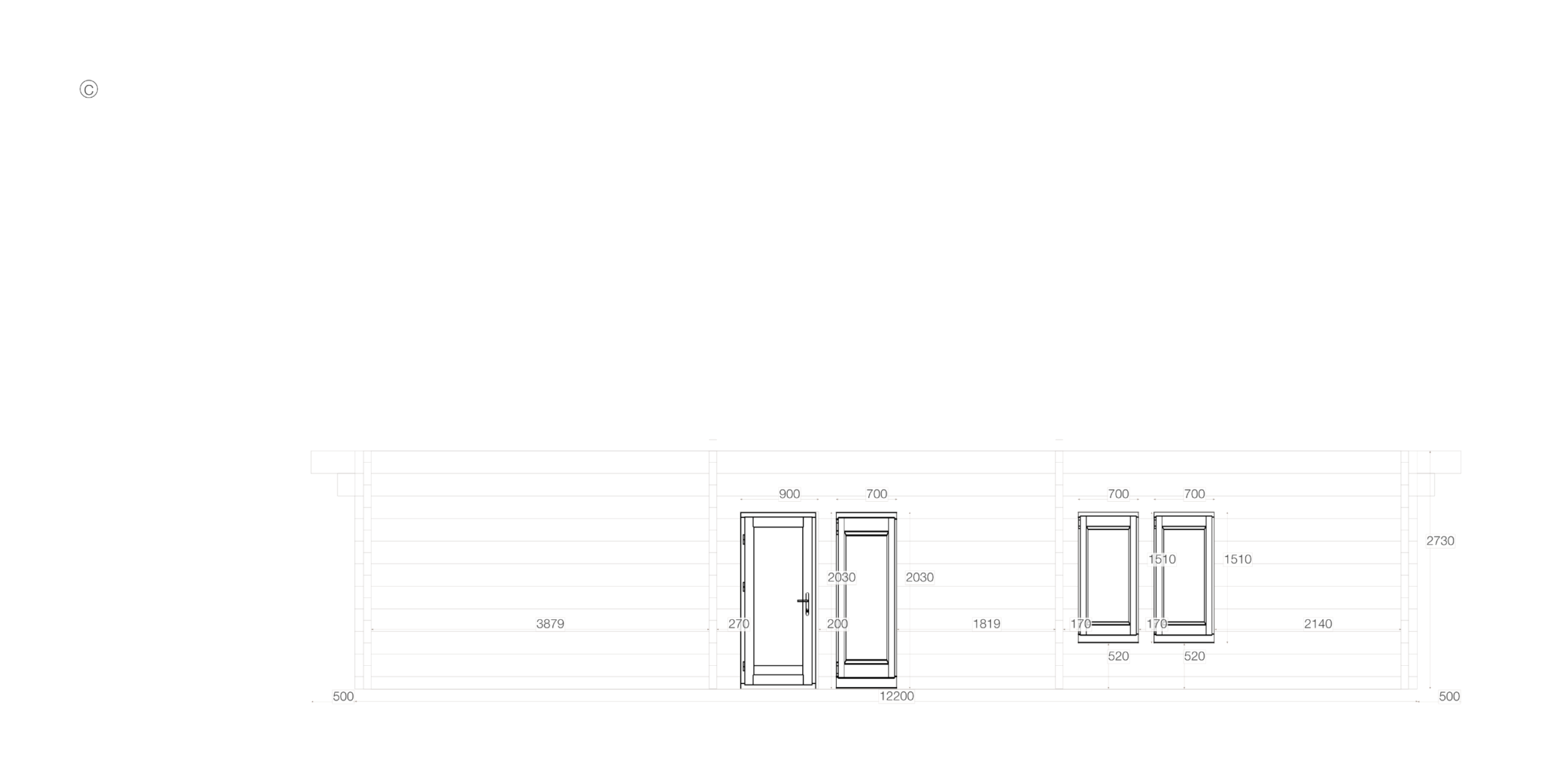

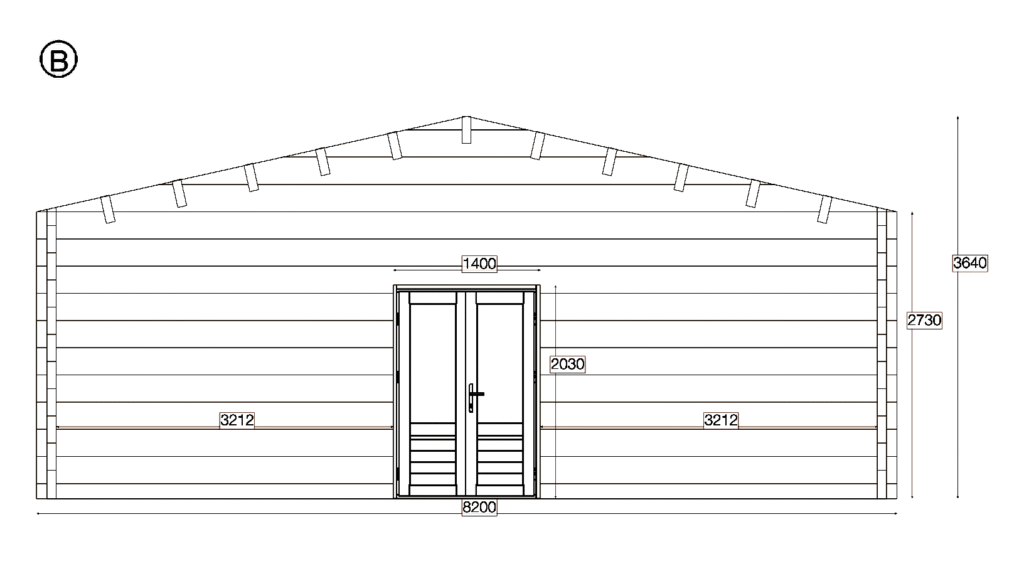

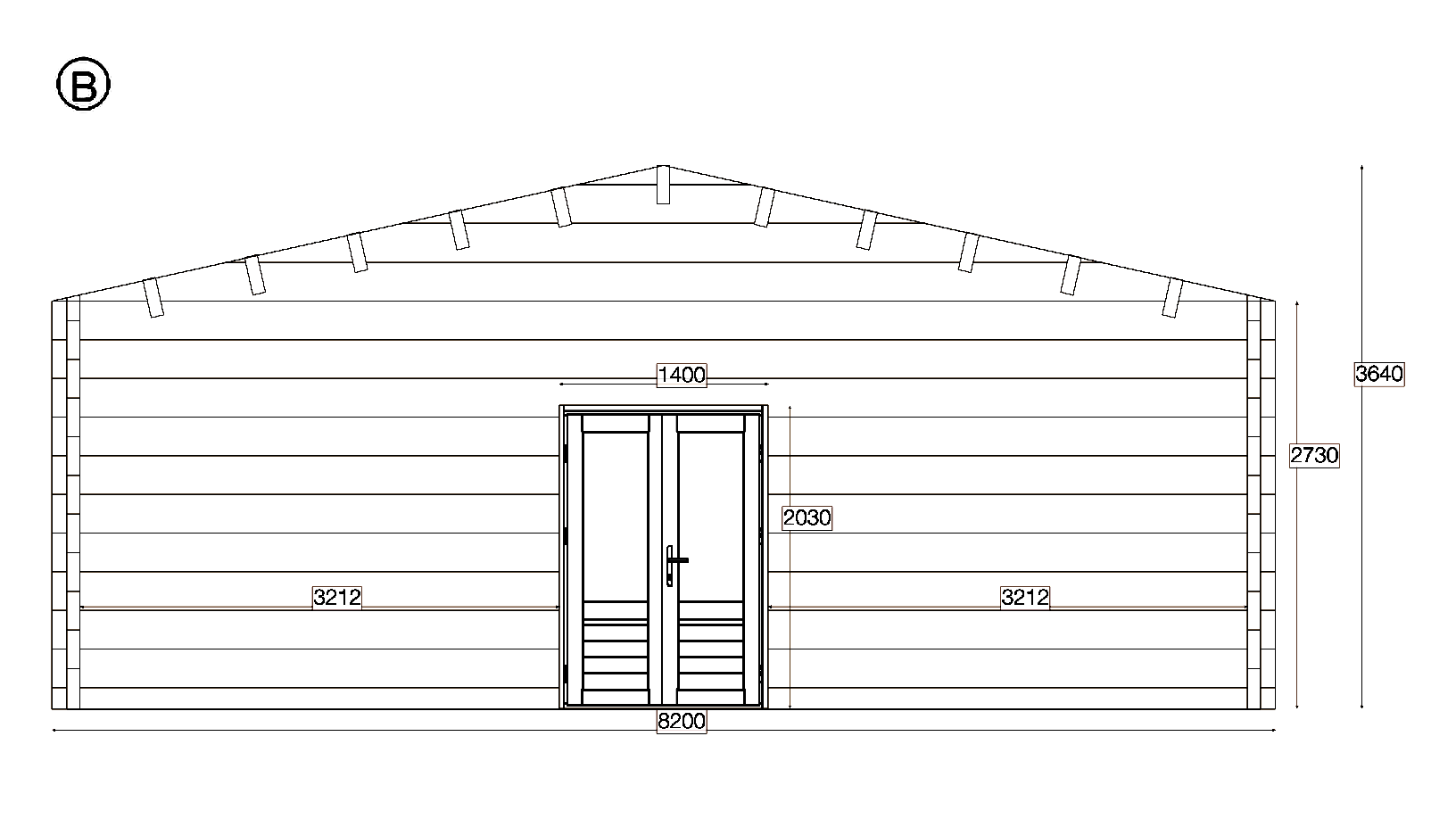

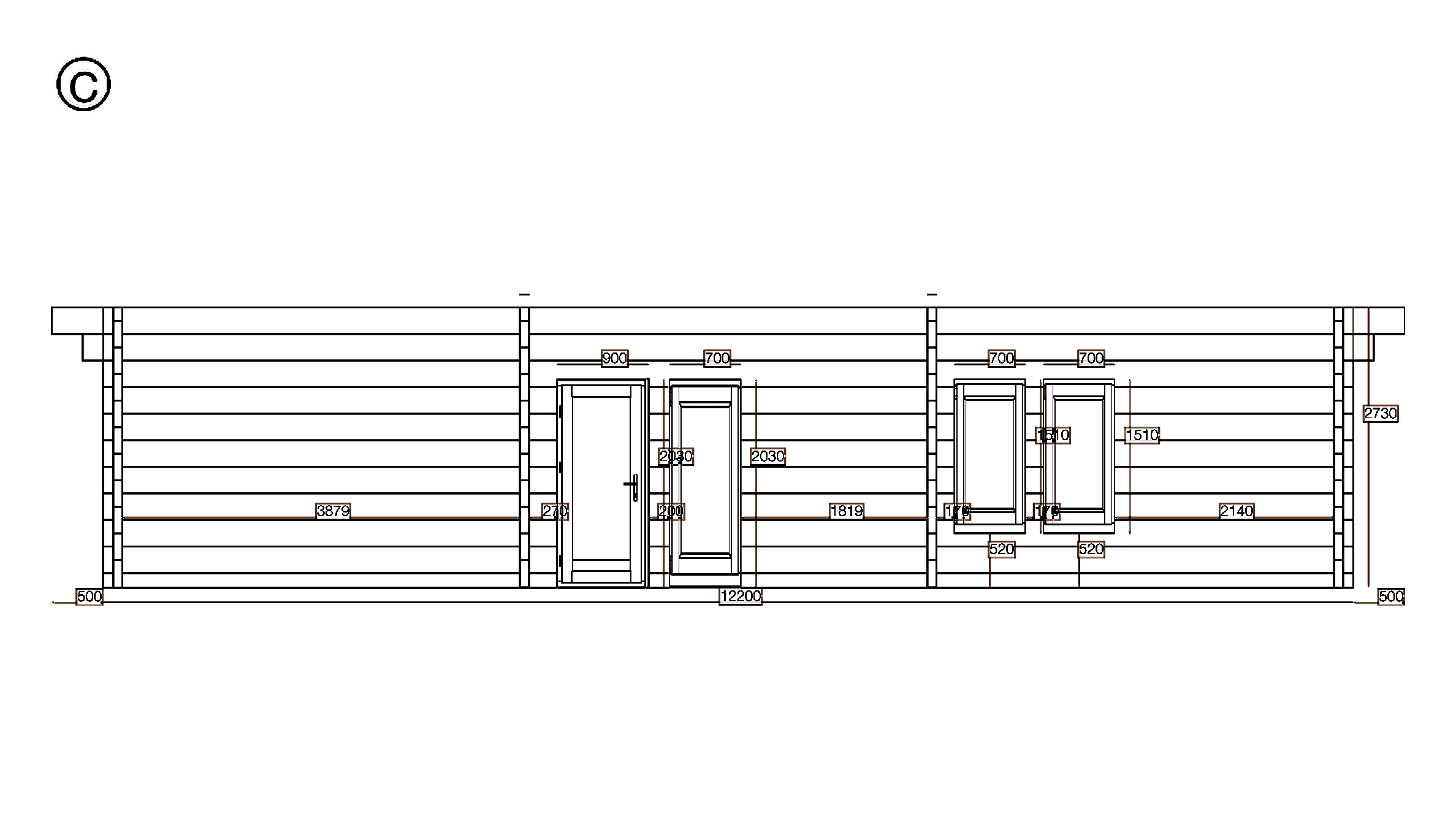

The 3 windows are positioned to balance natural light with wall space for furnishing flexibility. The double-door entry creates a generous opening that accommodates furniture delivery, wheelchair access, and commercial foot traffic, adding versatility to the building’s potential use.

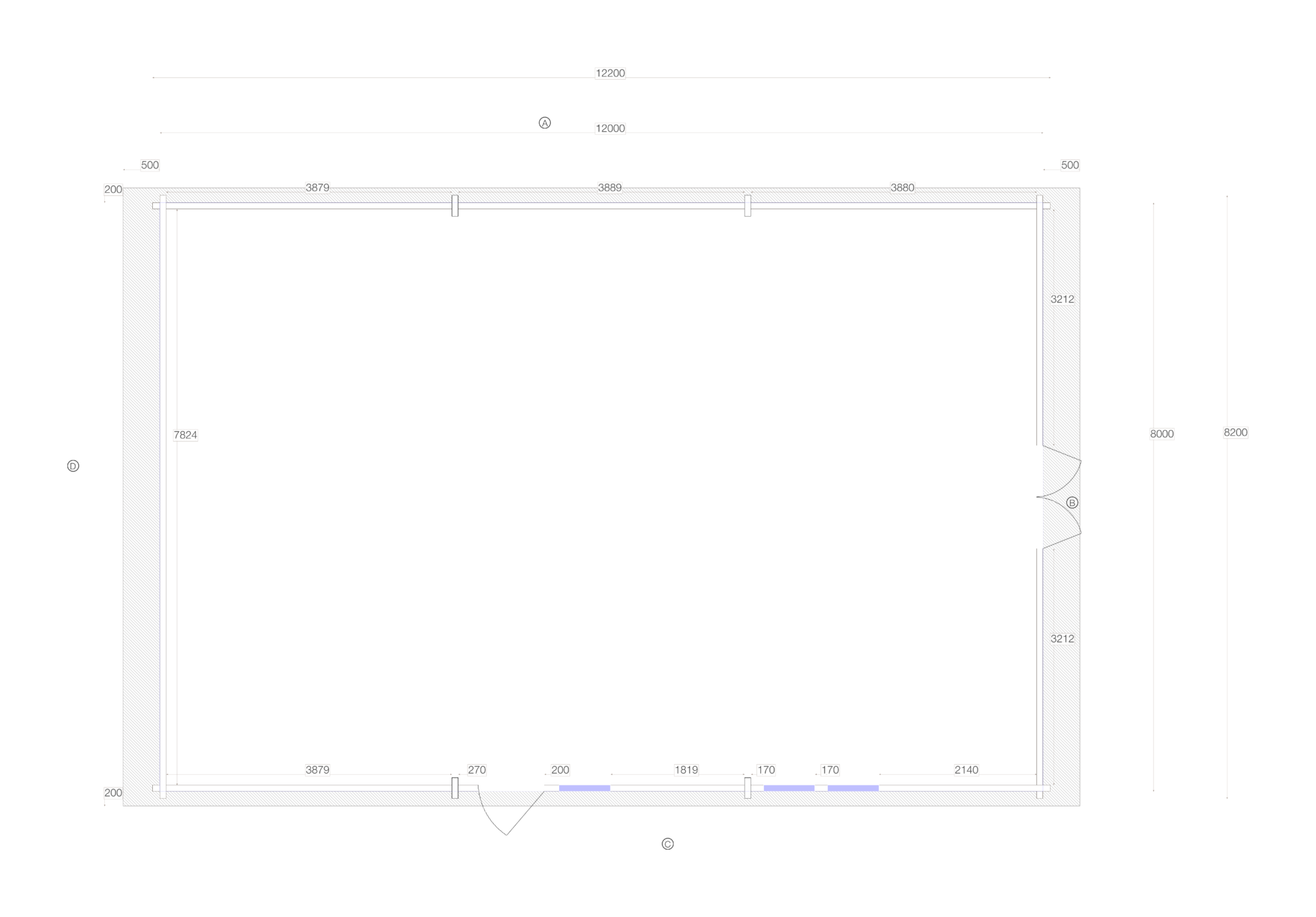

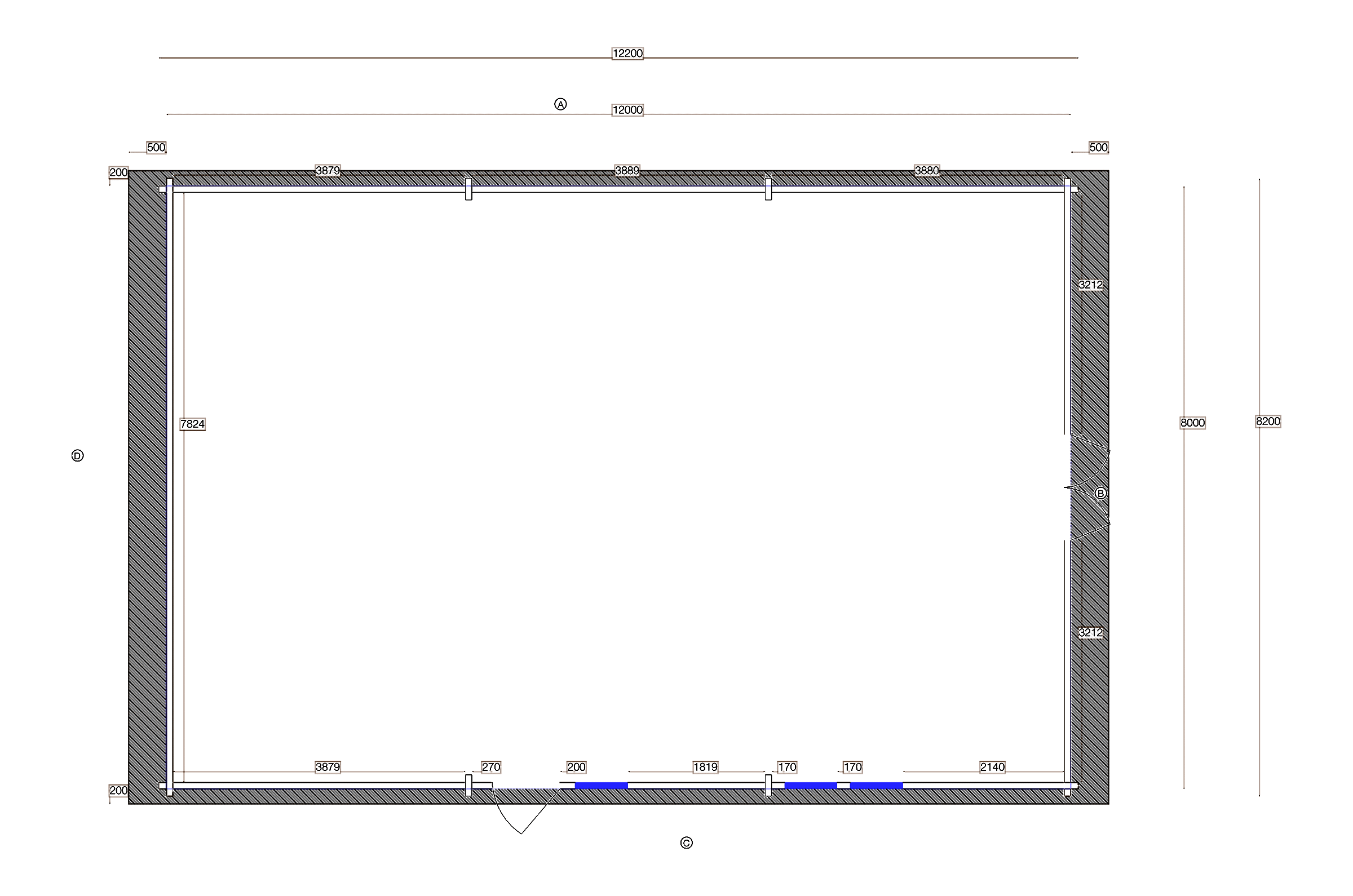

The deep 8.2m x 12.2m plan provides generous room depth, well-suited to open-plan living or configurations requiring clear span in the primary direction.
Materials & Construction
The 88mm glue-laminated (glulam) wall profiles used in this design are engineered for dimensional stability.The laminated construction is selected for dimensional stability, subject to the confirmed specification. Each profile is precision-milled to tight tolerances, ensuring clean airtight joints across every wall section. This engineered approach delivers consistent thermal performance and a refined, contemporary finish that solid log cannot match.
The floor system comprises 40x60mm pressure-treated bearers supporting 28mm tongue-and-groove floorboards. This combination provides a rigid, level deck capable of handling furnishing loads, underfloor insulation, and finished flooring overlays as required by the end user.
The roof structure is carried on 11 purlins of 88x260mm section, covered with 19mm boards to form a total roof area of 111.7m². The deck is supplied ready for the dealer’s choice of final covering – EPDM rubber membrane, bitumen shingles, or standing-seam metal are popular options that Eurodita can advise on.
The wall profile, insulation package, glazing, roof, floor, ventilation, and installation route should be reviewed together before any all-season or residential-style use is marketed. Eurodita provides project data for dealer review rather than a blanket use approval.
Eurodita mills all profiles in-house from slow-grown northern European spruce, kiln-dried to controlled moisture levels before precision machining. This integrated supply chain ensures traceability and consistent quality.
Customisation Options
This Glulam Apex Timber Residence 8.2×12.2 represents one configuration within an effectively unlimited design space. As a bespoke manufacturer, Eurodita builds every project to the dealer’s exact specification – flexible quote-based ordering, no fixed catalogue.
External dimensions can be adjusted freely – the current 8.2m x 12.2m footprint is not a constraint. Wall specification is confirmed per project and product family. Eurodita provides the technical data needed for dealer review, including wall build-up, insulation, glazing, and approval-route considerations where relevant.
The apex (gable) roof shown here can be changed to any supported type (apex, pent, or hip), and the pitch adjusted to suit local planning or aesthetic preferences. Sidewall height, ridge height, and overhang dimensions are all variable.
Window and door positions, sizes, types, and quantities are fully configurable. Glazing can be specified as standard double-glazed (45mm) or living-type (68mm) profiles, with optional painted finishes and crossbar detailing.
Internal partitions, electrical pre-wiring channels, additional insulation packages, and bespoke floor plans are available on request. Eurodita’s engineering team works directly with dealer partners to resolve any design requirement.
Private-Label & private-label Service
Eurodita offers full private-label manufacturing for this log cabin design. Every document, delivery note, and product label carries your brand – not ours. Your clients see your company name from quotation through to installation. This private-label service is available at no additional cost on all bespoke orders, making Eurodita the invisible manufacturer behind your timber building brand.
Ideal Use Cases
This scale can support accommodation-style project briefs, but final classification, permitted use, insulation package, services, and local authority or building-control route must be confirmed per market and project. Dealer partners should use the specification as project-review data, not as a blanket residential approval claim.
Accessibility compliance requires the confirmed opening, threshold, circulation and site design.
The wall section can be considered alongside insulation, services, glazing, roof and floor build-up for project-specific comfort targets. Final all-season or residential-style positioning depends on the confirmed specification and local authority review route.
Delivery & Production
Every component of this 92.The production and dispatch schedule is confirmed for each order. The building is delivered flat-packed on a standard road-transport pallet, with every component numbered and accompanied by detailed assembly drawings. Wall sections, roof elements, floor panels, windows, doors, and all hardware are included. Eurodita coordinates transport across Europe and the UK through long-standing haulage partners, delivering to dealer depots, construction sites, or end-client addresses.
Frequently Asked Questions
Can I customise the dimensions of the Glulam Apex Timber Residence 8.2×12.2?
Yes. Every dimension of this 92.5m2 log cabin is fully customisable. Eurodita manufactures to your exact floor plan; width, depth, wall height, and roof pitch can all be adjusted. Window and door positions, sizes, and types are also changeable. Contact us with your requirements for a bespoke quotation.
What wall thickness does the Glulam Apex Timber Residence 8.2×12.2 use?
This project record lists a project-specific glulam wall profile for the shown design. Alternative wall specifications are confirmed by product family and project brief. Standard solid-log cabins use 28, 34, 44, 58 or 70mm profiles; glulam projects use 88, 135, 180 or 220mm profiles. Final use, insulation, glazing, installation and local authority review are confirmed per quote.
Is the Glulam Apex Timber Residence 8.2×12.All-season suitability is not established by dimensions or wall thickness alone; it must be confirmed from the complete specification, installation and local approval route.
Suitability for all-season or residential-style use is not confirmed from wall thickness alone. Eurodita supplies project data for dealer, client and local-authority review, including the selected wall profile, insulation, glazing, ventilation, foundation and services where relevant. Final marketing or approval claims should be confirmed for the destination market and project specification.
How is the Glulam Apex Timber Residence 8.2×12.2 delivered?
Eurodita supplies project kits from the Kaunas factory with components prepared for the confirmed specification. Standard terms are EXW Kaunas. If a delivered route is required, freight timing and delivery terms are agreed per quotation for the destination market, project size and access requirements.
Does Eurodita supply under my brand (private label)?
Yes. Eurodita is a private-label log cabin manufacturer for trade clients across the UK and EU. We offer two service levels: standard supply with neutral packaging and documentation, or full private-label production with your brand identity on technical drawings, parts lists, packaging labels, and delivery notes. Both levels include the same factory production, materials, and quality control as our catalog range. Private-label terms are agreed per account on order volume and product range. Contact our trade desk for a private-label proposal tailored to your product line.
This one was built to a drawing. Yours can be too.
This project was produced as a 92.5 m2 internal area, 88 mm wall profile, 3640 mm ridge height. Every published project on this page followed a project-specific brief. Send your drawing and Eurodita will confirm whether the qualified bespoke route fits your project. Partner branding is agreed per order.
