Design Overview

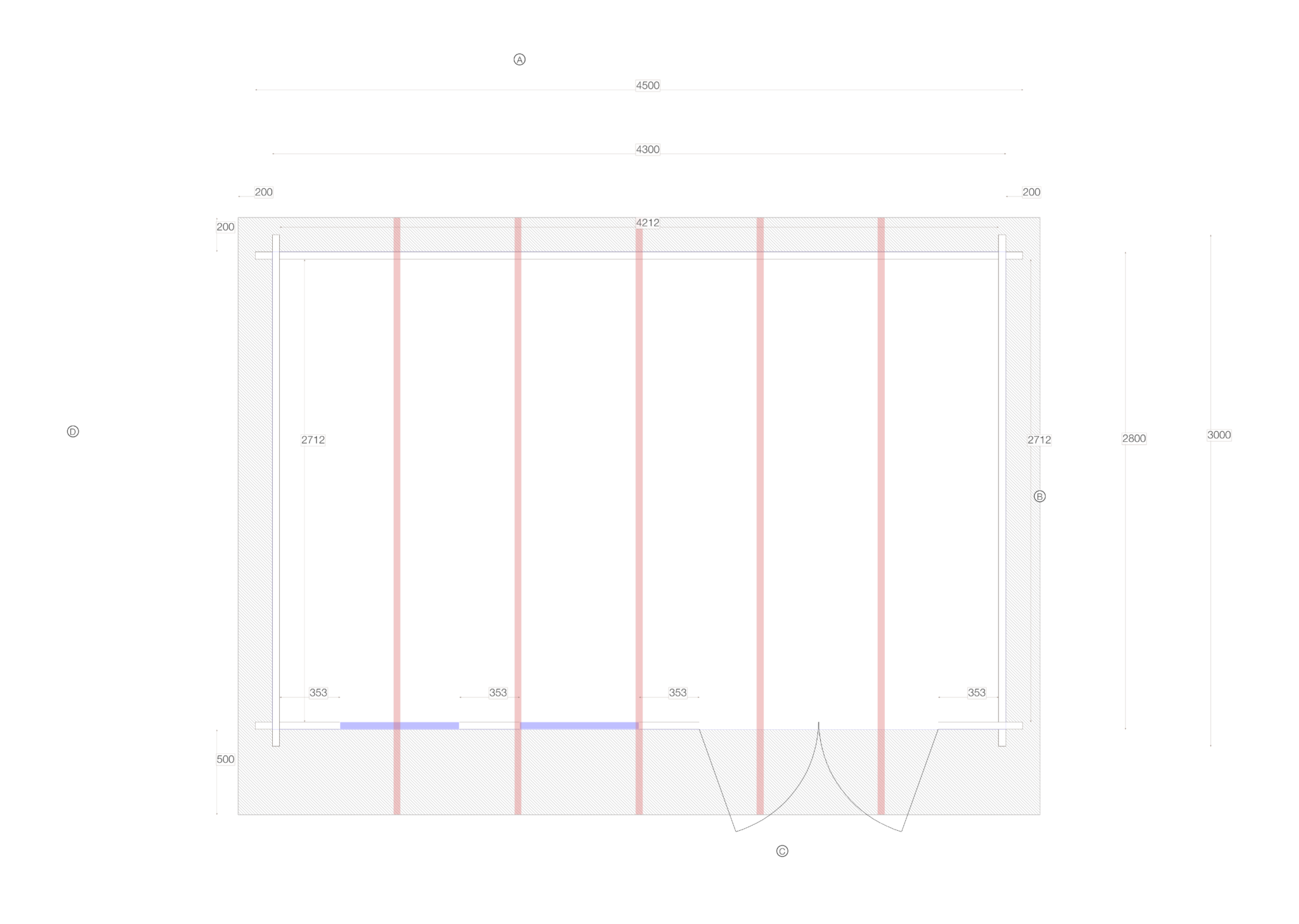

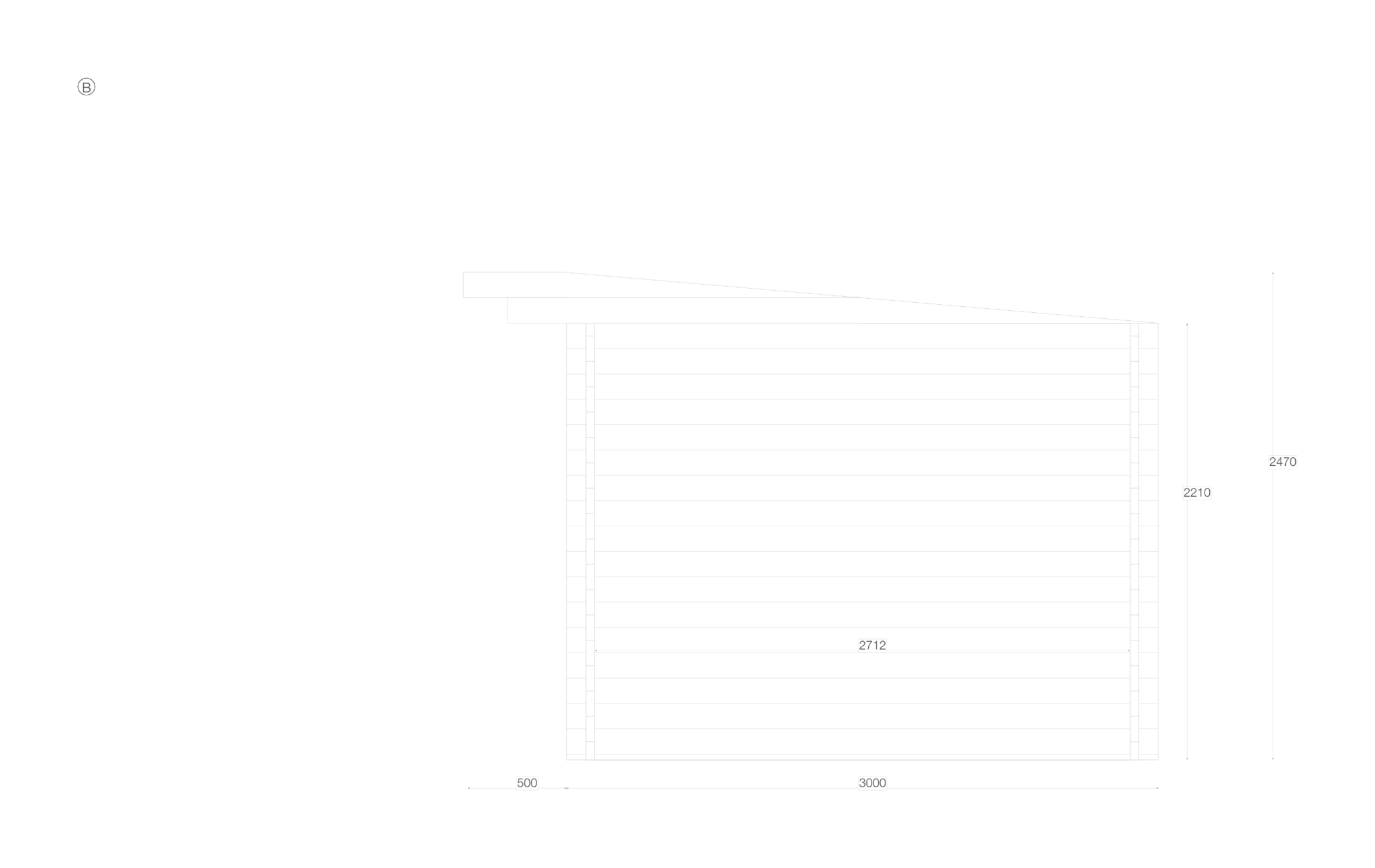

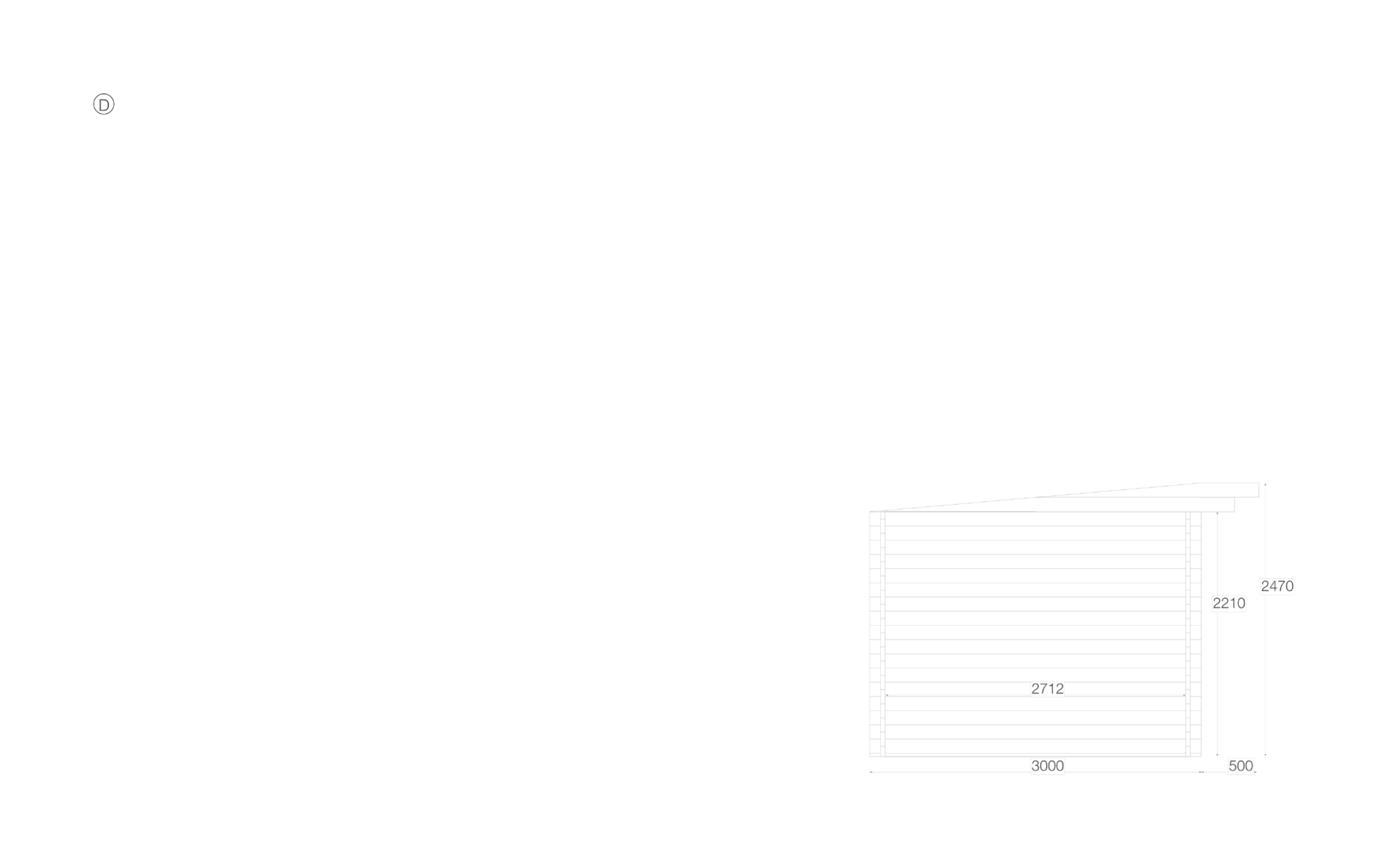

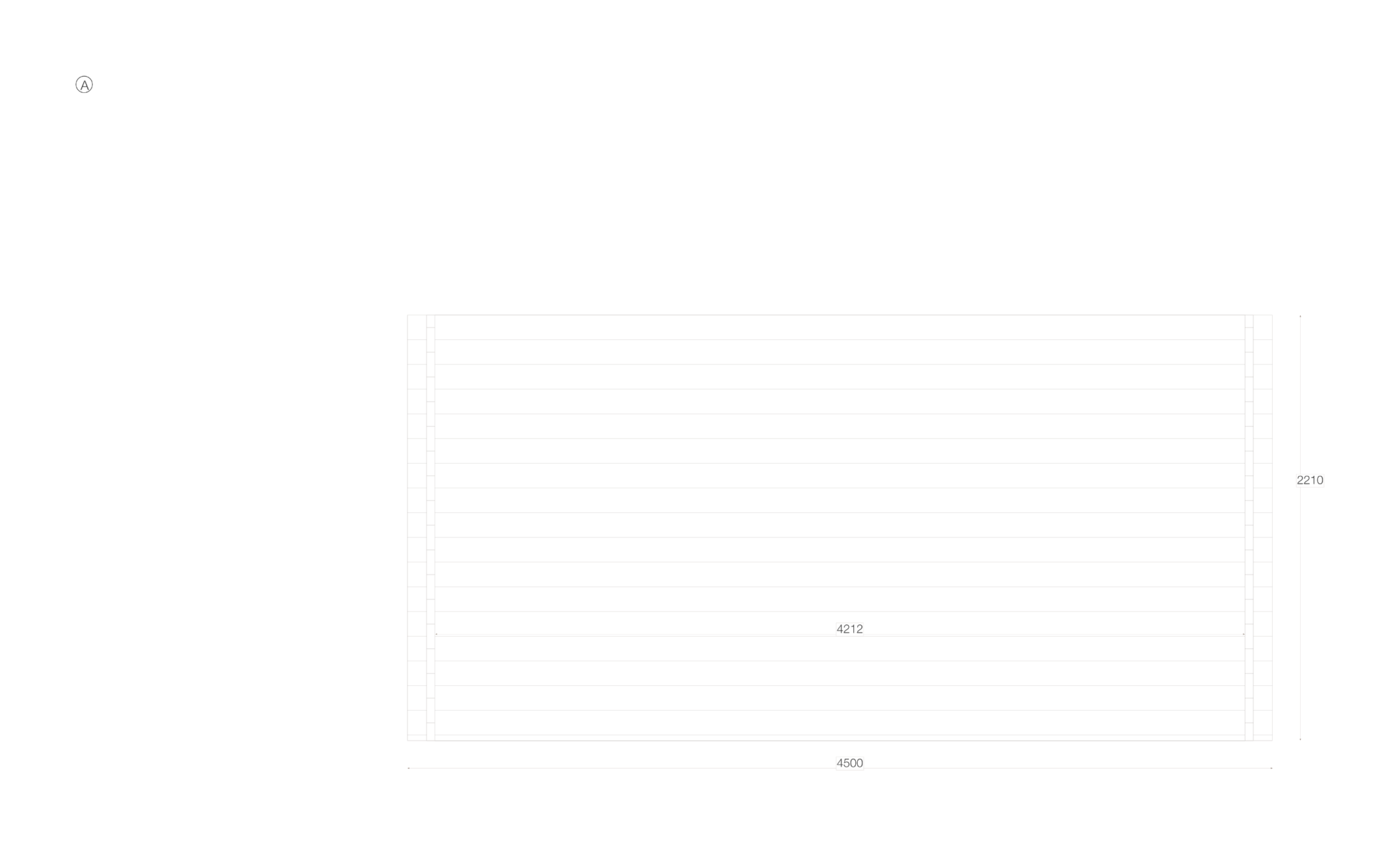

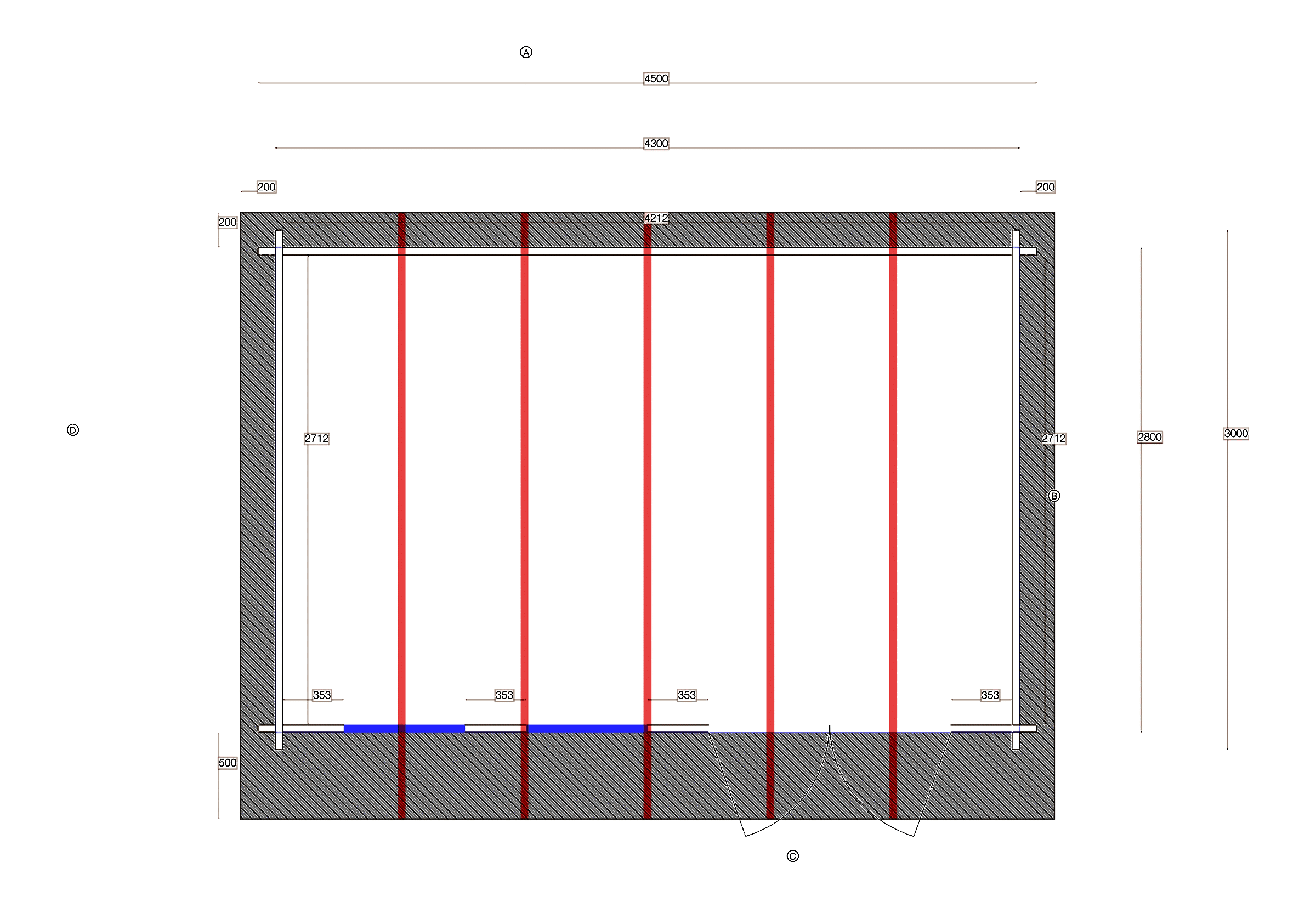

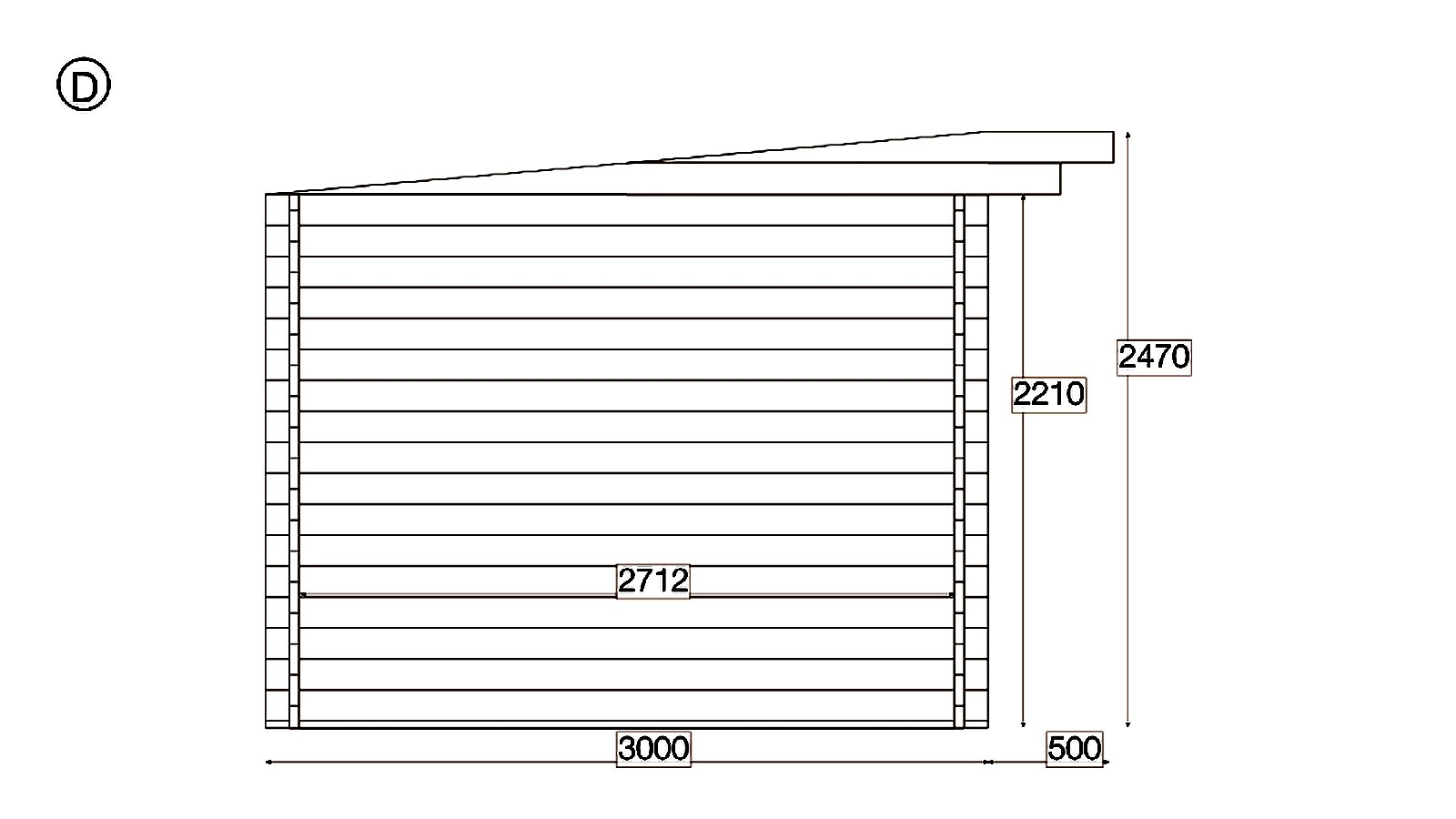

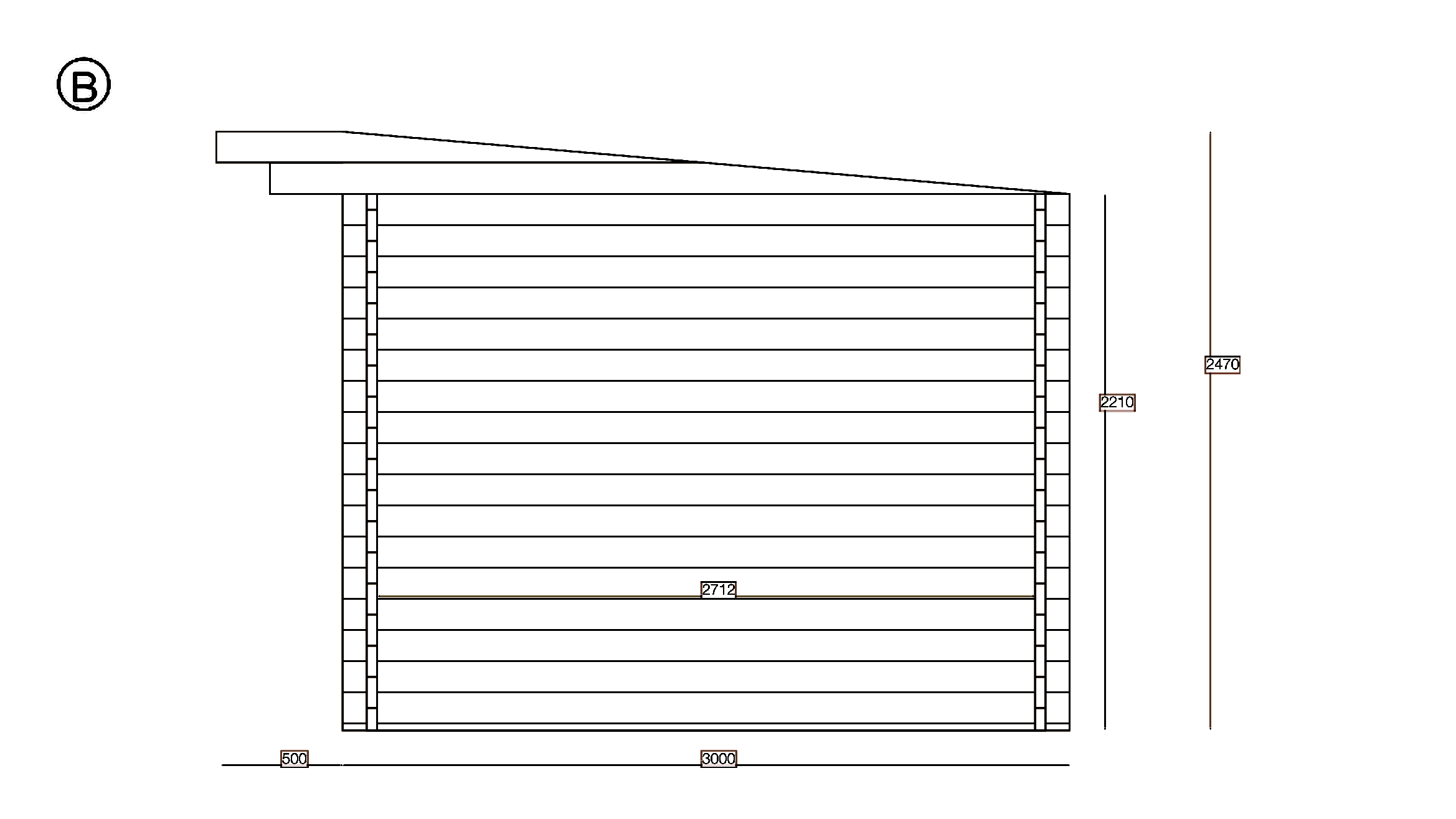

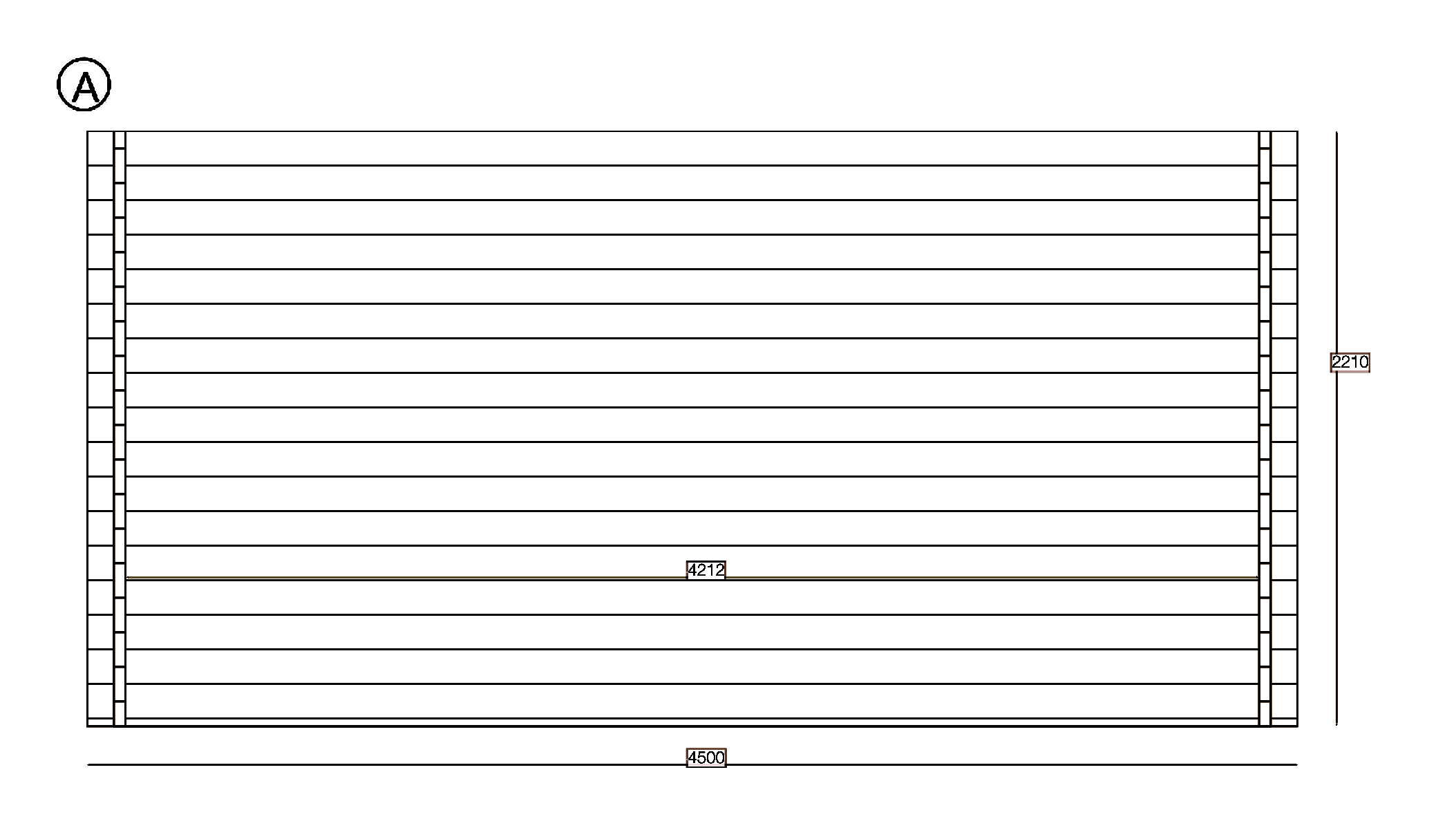

The Garden Studio 3.0×4.5 is a bespoke timber structure delivering 11.4m² of clear interior space within a 3.0m x 4.5m footprint. Internal dimensions of 2.7m x 4.2m are enclosed by 44mm solid log walls rising to a sidewall height of 2210mm, with the pent (mono-pitch) roof reaching 2470mm at the ridge. Fenestration comprises 2 windows and 1 door arranged per the specified floor plan, all beneath a 5.2° pent roof covering 16.5m². As with every Eurodita garden room, all dimensions, materials, and configurations are manufactured to the dealer’s exact brief. No element is taken from stock; each piece is cut to order.
Why This Configuration
The pent (mono-pitch) roof delivers a clean, modern profile with a single slope that simplifies construction and reduces material requirements without compromising weather protection. The low 5.2° pitch maintains a discreet roofline, which can be advantageous in areas with height restrictions or where planning sensitivity is a consideration.
The 44mm wall profile is a common garden-building specification. Planning, permitted-development status and any local authority requirements must be checked against the project site, market and final use.

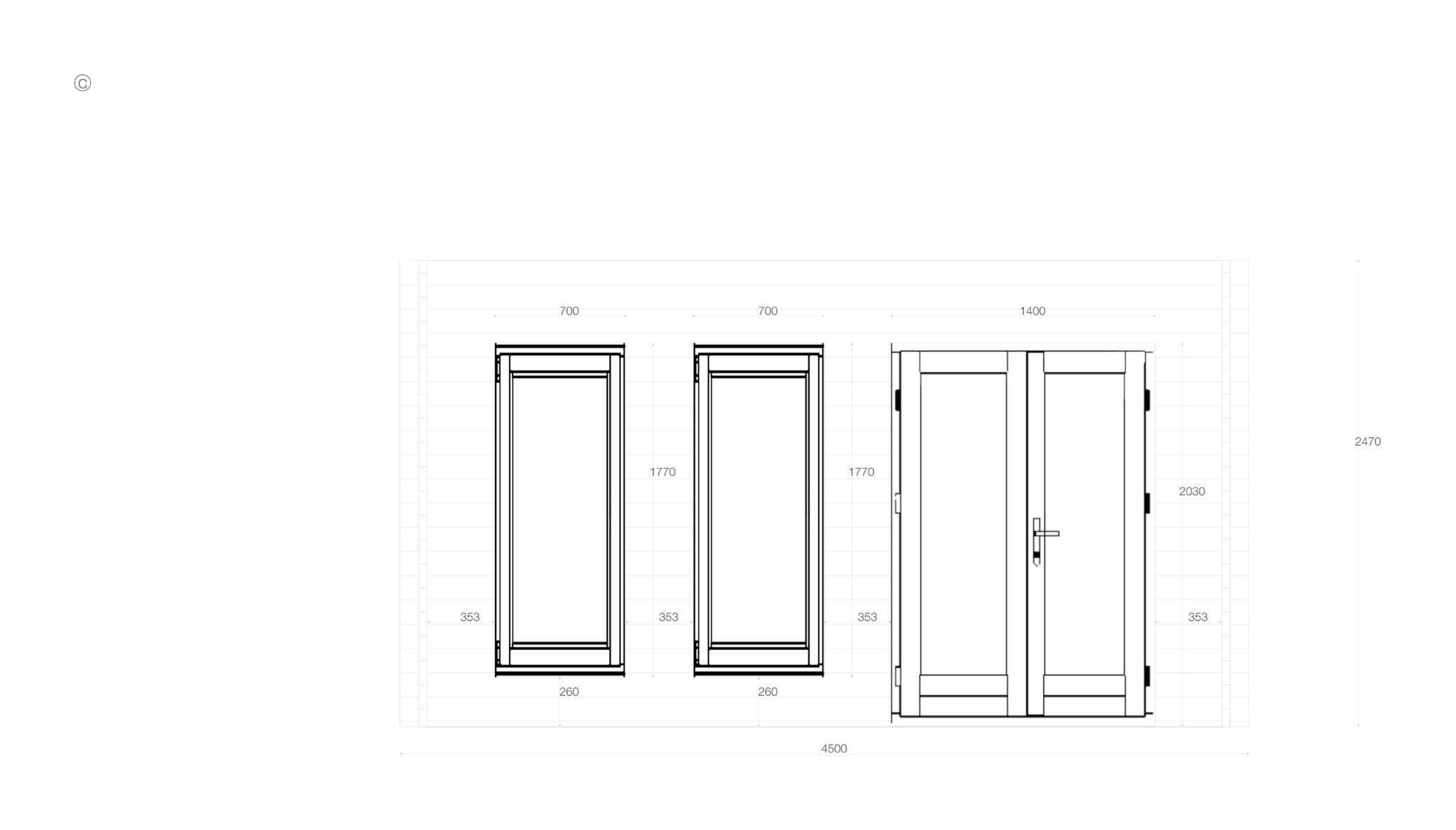

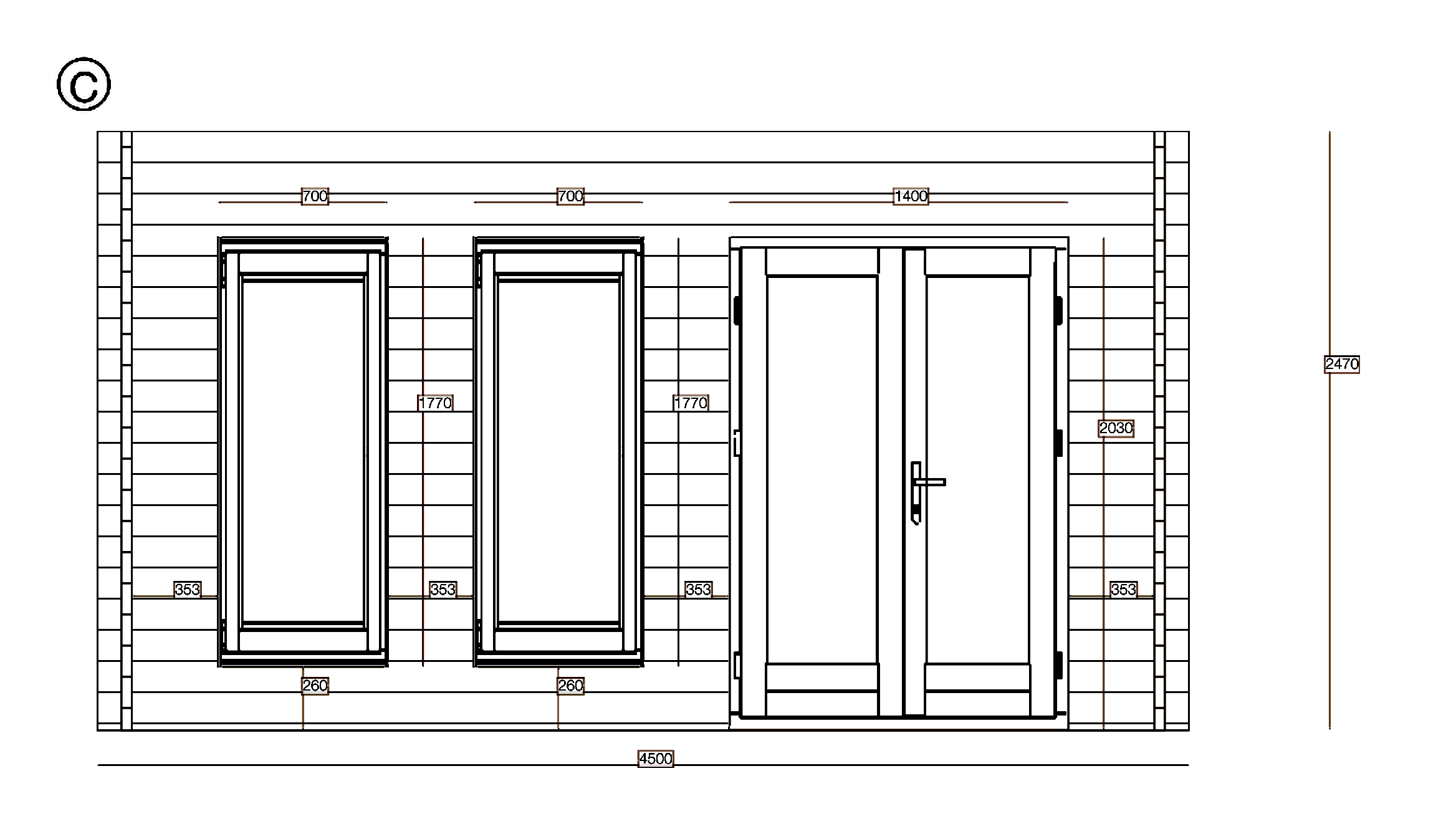

The 2 windows are positioned to balance natural light with wall space for furnishing flexibility. The double-door entry creates a generous opening for furniture delivery, equipment access and flexible circulation, adding versatility to the building’s potential use.
The deep 3.0m x 4.5m plan provides generous room depth, well-suited to open-plan living or configurations requiring clear span in the primary direction.
Materials & Construction
Constructed from 44mm solid log profiles milled from slow-grown northern European spruce, each wall section is tongue-and-groove machined for a tight wind-proof fit. The natural thermal mass of solid timber moderates interior temperature swings, keeping the space cooler in summer and warmer in winter. The honest, textured finish of genuine log construction requires no interior cladding and appeals to buyers seeking authentic timber character.
The floor system comprises 40x60mm pressure-treated bearers supporting 28mm tongue-and-groove floorboards. This combination provides a rigid, level deck capable of handling furnishing loads, underfloor insulation, and finished flooring overlays as required by the end user.
The roof structure is carried on 11 purlins of 44x130mm section, covered with 19mm boards to form a total roof area of 16.5m². The deck is supplied ready for the dealer’s choice of final covering, EPDM rubber membrane, bitumen shingles, or standing-seam metal are popular options that Eurodita can advise on.
Comparative performance is not inferred; it depends on the complete confirmed specification.
Eurodita mills all profiles in-house from slow-grown northern European spruce, kiln-dried to controlled moisture levels before precision machining. This integrated supply chain ensures traceability and consistent quality.
Customisation Options
Every parameter of this 11.4m² design is open to modification. Eurodita operates as a pure bespoke manufacturer: the project shown here is a starting point, not a fixed product.
External dimensions can be adjusted freely, the current 3.0m x 4.5m footprint is not a constraint. Wall thickness can move up or down from 44mm across the full range (28mm to 220mm), and the wall profile can switch between solid log, glulam, or double-wall insulated construction.
The pent (mono-pitch) roof shown here can be changed to any supported type (apex, pent, or hip), and the pitch adjusted to suit local planning or aesthetic preferences. Sidewall height, ridge height, and overhang dimensions are all variable.
Window and door positions, sizes, types, and quantities are fully configurable. Glazing can be specified as standard double-glazed (45mm) or living-type (68mm) profiles, with optional painted finishes and crossbar detailing.
Internal partitions, electrical pre-wiring channels, additional insulation packages, and bespoke floor plans are available on request. Eurodita’s engineering team works directly with dealer partners to resolve any design requirement.
Private-Label Service
Eurodita offers full private-label manufacturing for this log cabin design. Every document, delivery note, and product label carries your brand, not ours. Your clients see your company name from quotation through to installation. This private-label service is available at no additional cost on all bespoke orders, making Eurodita the invisible manufacturer behind your timber building brand.
Ideal Use Cases
At 11.4m², this compact design is well-suited to garden offices, home studios, personal retreats, and secure storage buildings.Weather performance depends on the complete specification, manufacture and installation.Demand and commercial fit vary by market, buyer segment and project brief.
The wide double-door entry can support practical access planning for furniture, equipment and commercial fit-out, with accessibility requirements reviewed for the destination project.
Delivery & Production
Production takes place in Eurodita’s vertically integrated mill in Lithuania. Production timing is confirmed per quotation before EXW factory release. Delivery is flat-packed on standard road-freight pallets. All 44mm wall sections, roof purlins, 28mm floor panels, pre-fitted windows, doors, and fasteners are included as a complete kit with numbered components and illustrated assembly instructions. Eurodita standard terms are EXW from Kaunas, Lithuania; delivered options can be quoted and agreed per order for selected markets and projects.
Frequently Asked Questions
Can I customise the dimensions of the Garden Studio 3.0×4.5?
Yes. Every dimension of this 11.4m² log cabin is fully customisable. Eurodita manufactures to your exact floor plan, width, depth, wall height, and roof pitch can all be adjusted. Window and door positions, sizes, and types are also changeable. Contact us with your requirements for a bespoke quotation.
What wall thickness does the Garden Studio 3.0×4.5 use?
This project record lists 44mm solid log walls for the shown design. Alternative wall specifications are confirmed by product family and project brief. Final use, insulation package, glazing, ventilation, installation and local authority review route are confirmed per dealer project before marketing or approval claims are made.
Is the Garden Studio 3.0×4.All-season suitability is not established by dimensions or wall thickness alone; it must be confirmed from the complete specification, installation and local approval route.
Suitability for all-season or residential-style use is not confirmed from wall thickness alone. Eurodita provides project technical data for dealer and project review; the final specification and local authority route are confirmed per market and project.
How is the Garden Studio 3.0×4.5 delivered?
This project is supplied as a precision-cut, flat-pack kit with numbered components for assembly by the dealer, installer or project team. Eurodita standard terms are EXW (Ex Works) from Kaunas, Lithuania. Delivered options can be arranged for selected markets and projects, with terms agreed individually per order. Production timing is confirmed per quote before EXW factory release, based on the final specification and agreed production slot.
Does Eurodita supply under my brand (private label)?
Yes. Eurodita offers full private-label manufacturing. All documentation, packaging, and delivery notes carry your brand identity. Your clients never see the Eurodita name, we are the invisible manufacturer behind your timber building business.
This one was built to a drawing. Yours can be too.
This project was produced as a 11.4 m2 internal area, 44 mm wall profile, 2470 mm ridge height. Every published project on this page followed a project-specific brief. Send your drawing and Eurodita will confirm whether the qualified bespoke route fits your project. Partner branding is agreed per order.
CAD/3D quotation material is prepared to the qualified project scope. Availability and timing are confirmed during qualification. CAD/3D material and branding follow the agreed order scope.
Send a bespoke briefDimensions, wall thickness and opening positions are confirmed per project at quote stage. Bespoke production timing is confirmed in the written quotation and order. Catalogue models on the same wall profile and a comparable footprint: Modern Log Cabin 4×3m, Alu Sliding Doors, Long Ridge Roof, Modern Log Cabin 4×3m, Alu Sliding Doors, Pent roof, Log Cabin Adam 4x3m, 44mm. Review the wider garden offices range, or see the other published projects with drawings and dimensions.
