Design Overview

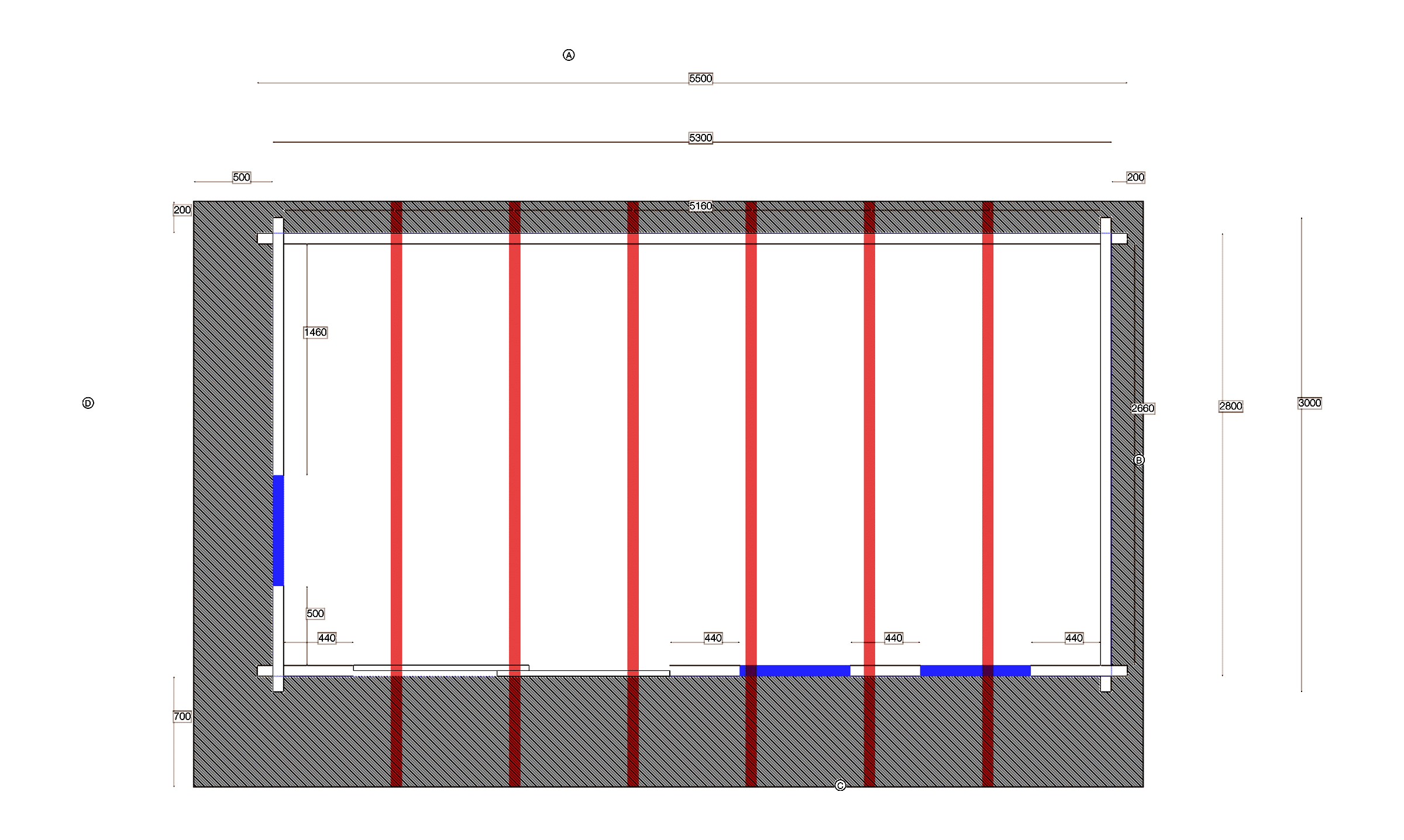

Manufactured to order, this compact design encompasses 13.7m² of interior space within 3.0m x 5.5m external walls. The 70mm solid log walls frame an internal volume of 2.7m x 5.2m with 2210mm sidewalls and a ridge height of 2470mm under the pent (mono-pitch) roof. Fenestration comprises 3 windows and 1 door arranged per the specified floor plan, all beneath a 5.2° pent roof covering 22.3m². No off-the-shelf components are used in this garden room; every element is cut and machined to the project-specific measurements, delivering a truly bespoke result for the dealer and their end client.
Why This Configuration
The pent (mono-pitch) roof delivers a clean, modern profile with a single slope that simplifies construction and reduces material requirements without compromising weather protection. The low 5.2° pitch maintains a discreet roofline, which can be advantageous in areas with height restrictions or where planning sensitivity is a consideration.
The wall specification shown here is project data for dealer review. Final use, insulation package, glazing, ventilation, installation quality, and any building-control or local authority route must be confirmed for the target market and project.
The 3 windows are positioned to balance natural light with wall space for furnishing flexibility.Weather performance depends on the complete specification, manufacture and installation.
The deep 3.0m x 5.5m plan provides generous room depth, well-suited to open-plan living or configurations requiring clear span in the primary direction.
Materials & Construction
The 70mm solid log wall profiles in this design are precision-milled from solid timber for clean joints and consistent assembly. The specification is recorded as a project reference for dealer and project review, with insulation, glazing, ventilation and local authority requirements confirmed per market and final use.
The floor system comprises 100x60mm pressure-treated bearers supporting 28mm tongue-and-groove floorboards. This combination provides a rigid, level deck capable of handling furnishing loads, underfloor insulation, and finished flooring overlays as required by the end user.
The roof structure is carried on 13 purlins of 70x130mm section, covered with 19mm boards to form a total roof area of 22.3m². The deck is supplied ready for the dealer’s choice of final covering, EPDM rubber membrane, bitumen shingles, or standing-seam metal are popular options that Eurodita can advise on.
The wall profile, insulation package, glazing, roof, floor, ventilation, and installation route should be reviewed together before any all-season or residential-style use is marketed. Eurodita provides project data for dealer review rather than a blanket use approval.
Eurodita mills all profiles in-house from slow-grown northern European spruce, kiln-dried to controlled moisture levels before precision machining. This integrated supply chain ensures traceability and consistent quality.
Customisation Options
This 70mm Solid Log Garden Office 3.0×5.5 represents one configuration within an effectively unlimited design space. As a bespoke manufacturer, Eurodita builds every project to the dealer’s exact specification, flexible quote-based ordering, no fixed catalogue.
External dimensions can be adjusted freely, the current 3.0m x 5.5m footprint is not a constraint. Wall specification is confirmed per project and product family. Eurodita provides the technical data needed for dealer review, including wall build-up, insulation, glazing, and approval-route considerations where relevant.
The pent (mono-pitch) roof shown here can be changed to any supported type (apex, pent, or hip), and the pitch adjusted to suit local planning or aesthetic preferences. Sidewall height, ridge height, and overhang dimensions are all variable.
Window and door positions, sizes, types, and quantities are fully configurable. Glazing can be specified as standard double-glazed (45mm) or living-type (68mm) profiles, with optional painted finishes and crossbar detailing.
Internal partitions, electrical pre-wiring channels, additional insulation packages, and bespoke floor plans are available on request. Eurodita’s engineering team works directly with dealer partners to resolve any design requirement.
Private-Label Service
Eurodita offers full private-label manufacturing for this log cabin design. Every document, delivery note, and product label carries your brand, not ours. Your clients see your company name from quotation through to installation. This private-label service is available at no additional cost on all bespoke orders, making Eurodita the invisible manufacturer behind your timber building brand.
Ideal Use Cases
At 13.7m², this compact design is well-suited to garden offices, home studios, personal retreats, and secure storage buildings.Weather performance depends on the complete specification, manufacture and installation.Demand and commercial fit vary by market, buyer segment and project brief.
The wall section can be considered alongside insulation, services, glazing, roof and floor build-up for project-specific comfort targets. Final all-season or residential-style positioning depends on the confirmed specification and local authority review route.
Delivery & Production
The production and dispatch schedule is confirmed for each order. Delivery is flat-packed on standard road-freight pallets. All 70mm wall sections, roof purlins, 28mm floor panels, pre-fitted windows, doors, and fasteners are included as a complete kit with numbered components and illustrated assembly instructions. Eurodita ships across Europe and the UK with established logistics partners, and can arrange delivery to site or dealer depot as required.
Frequently Asked Questions
Can I customise the dimensions of the 70mm Solid Log Garden Office 3.0×5.5?
Yes. Every dimension of this 13.7m² log cabin is fully customisable. Eurodita manufactures to your exact floor plan, width, depth, wall height, and roof pitch can all be adjusted. Window and door positions, sizes, and types are also changeable. Contact us with your requirements for a bespoke quotation.
What wall thickness does the 70mm Solid Log Garden Office 3.0×5.5 use?
This project record lists 70mm solid log walls for the shown design. Alternative wall specifications are confirmed by product family and project brief. Standard solid-log cabins use 28, 34, 44, 58 or 70mm profiles; glulam projects use 88, 135, 180 or 220mm profiles. Final use, insulation, glazing, installation and local authority review are confirmed per quote.
Is the 70mm Solid Log Garden Office 3.0×5.All-season suitability is not established by dimensions or wall thickness alone; it must be confirmed from the complete specification, installation and local approval route.
Suitability for all-season or residential-style use is not confirmed from wall thickness alone. Eurodita supplies project data for dealer, client and local-authority review, including the selected wall profile, insulation, glazing, ventilation, foundation and services where relevant. Final marketing or approval claims should be confirmed for the destination market and project specification.
How is the 70mm Solid Log Garden Office 3.0×5.5 delivered?
Eurodita supplies project kits from the Kaunas factory with components prepared for the confirmed specification. Standard terms are EXW Kaunas. If a delivered route is required, freight timing and delivery terms are agreed per quotation for the destination market, project size and access requirements.
Does Eurodita supply under my brand (private label)?
Yes. Eurodita offers full private-label manufacturing. All documentation, packaging, and delivery notes carry your brand identity. Your clients never see the Eurodita name, we are the invisible manufacturer behind your timber building business.
This one was built to a drawing. Yours can be too.
This project was produced as a 13.7 m2 internal area, 70 mm wall profile, 2470 mm ridge height. Every published project on this page followed a project-specific brief. Send your drawing and Eurodita will confirm whether the qualified bespoke route fits your project. Partner branding is agreed per order.
CAD/3D quotation material is prepared to the qualified project scope. Availability and timing are confirmed during qualification. CAD/3D material and branding follow the agreed order scope.
Send a bespoke briefDimensions, wall thickness and opening positions are confirmed per project at quote stage. Bespoke production timing is confirmed in the written quotation and order. Catalogue models on the same wall profile and a comparable footprint: Golf Simulator Cabin 4.3×3.2m, 70mm. Review the wider garden offices range, or see the other published projects with drawings and dimensions.
