Eurodita timber building project
Apex Residential Cabin 7.2x10.2
A timber building drawn in the Eurodita design and estimating system: 3D views, a floor plan and four elevations with dimensions, and the figures of the building as drawn.

Specification
Technical data
The figures below come from the project drawing of this building.
Dimensions
- Inside area
- 68 m²
- Overall dimensions
- 7200 × 10200 mm
- Internal dimensions
- 6884 × 9884 mm
- Wall thickness
- 58 mm
- Project reference
- ARC-688x988-058
Height and roof
- Sidewall height
- 2210 mm
- Ridge height
- 2925 mm
- Roof type
- Apex
- Roof pitch
- 11.5°
- Roof area
- 81.4 m²
Floor and roof
- Floor bearers
- 100x60mm
- Floorboards
- 28 mm
- Roof boards
- 19 mm
- Roof purlins
- 58x130mm × 9
Windows and doors
Window and door schedule
Drawings
Floor plan and elevations

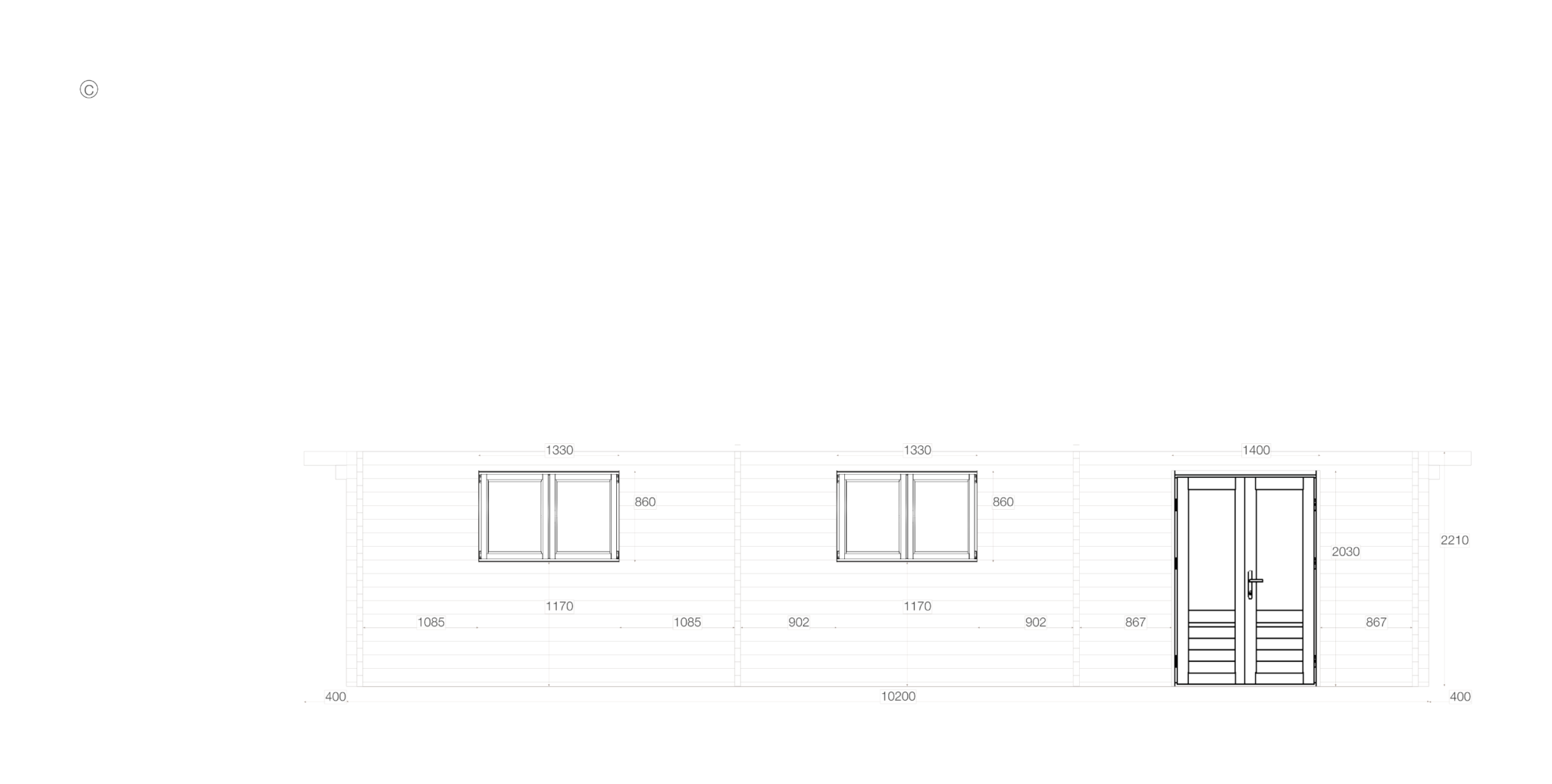

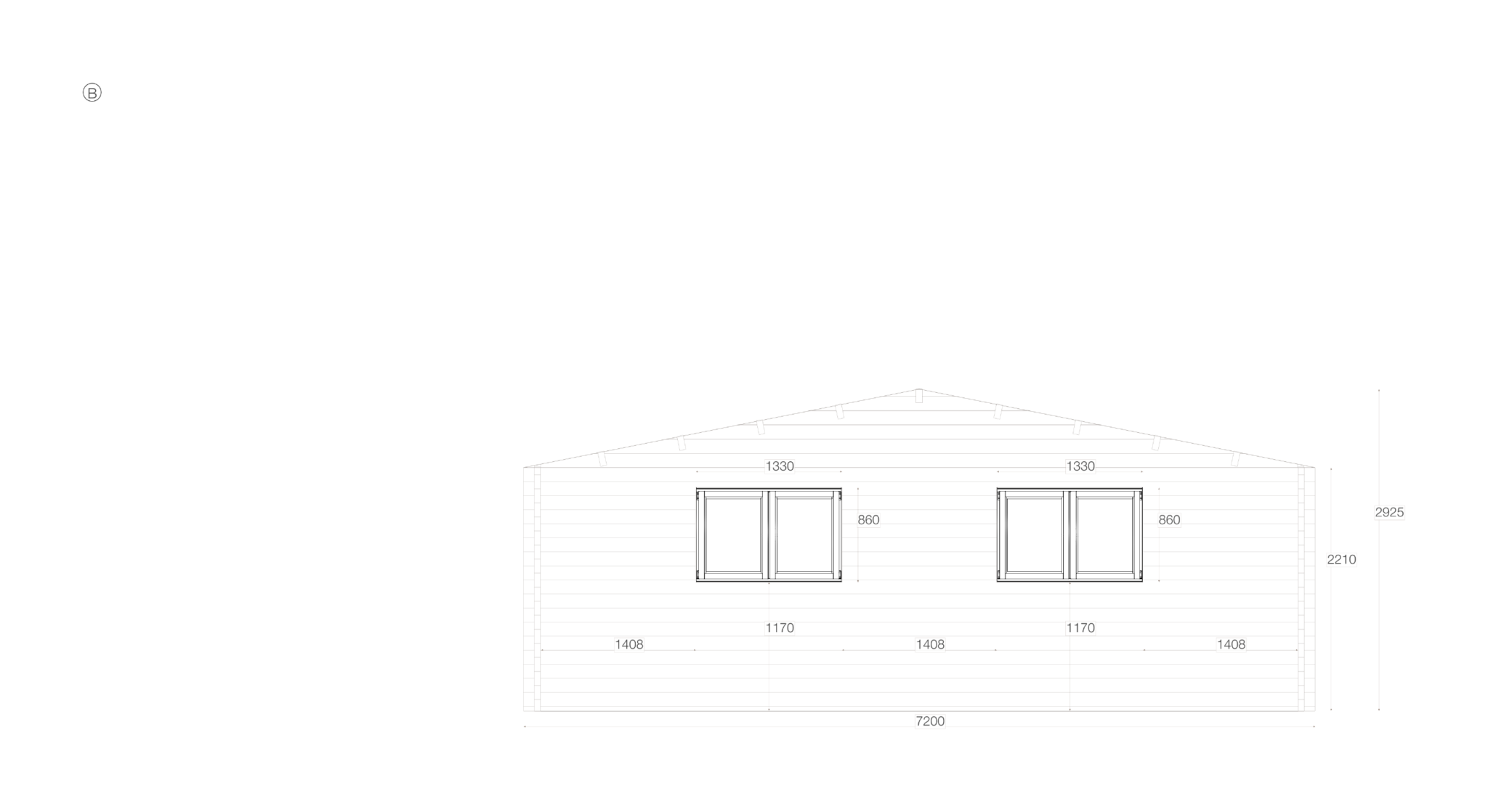

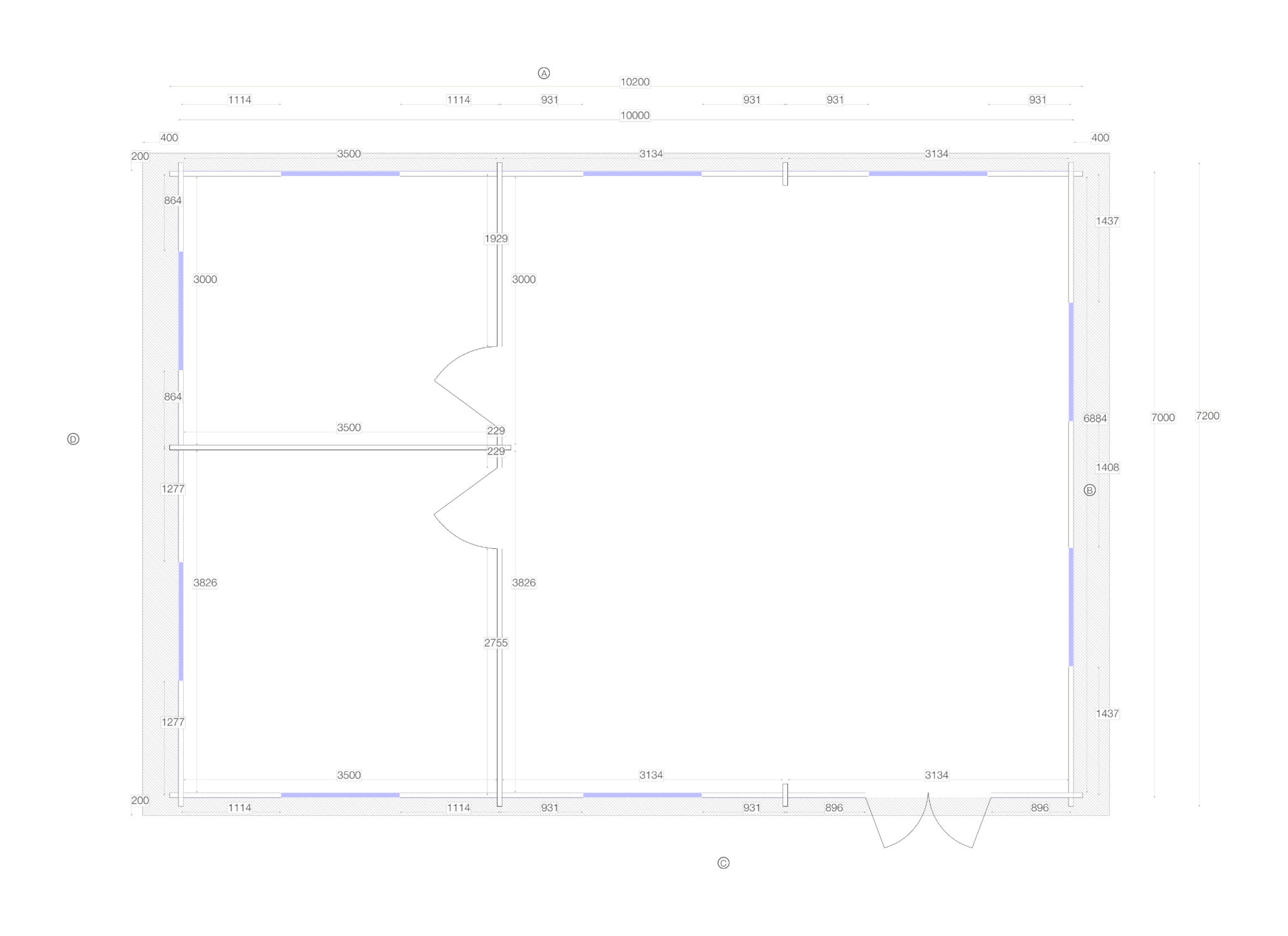

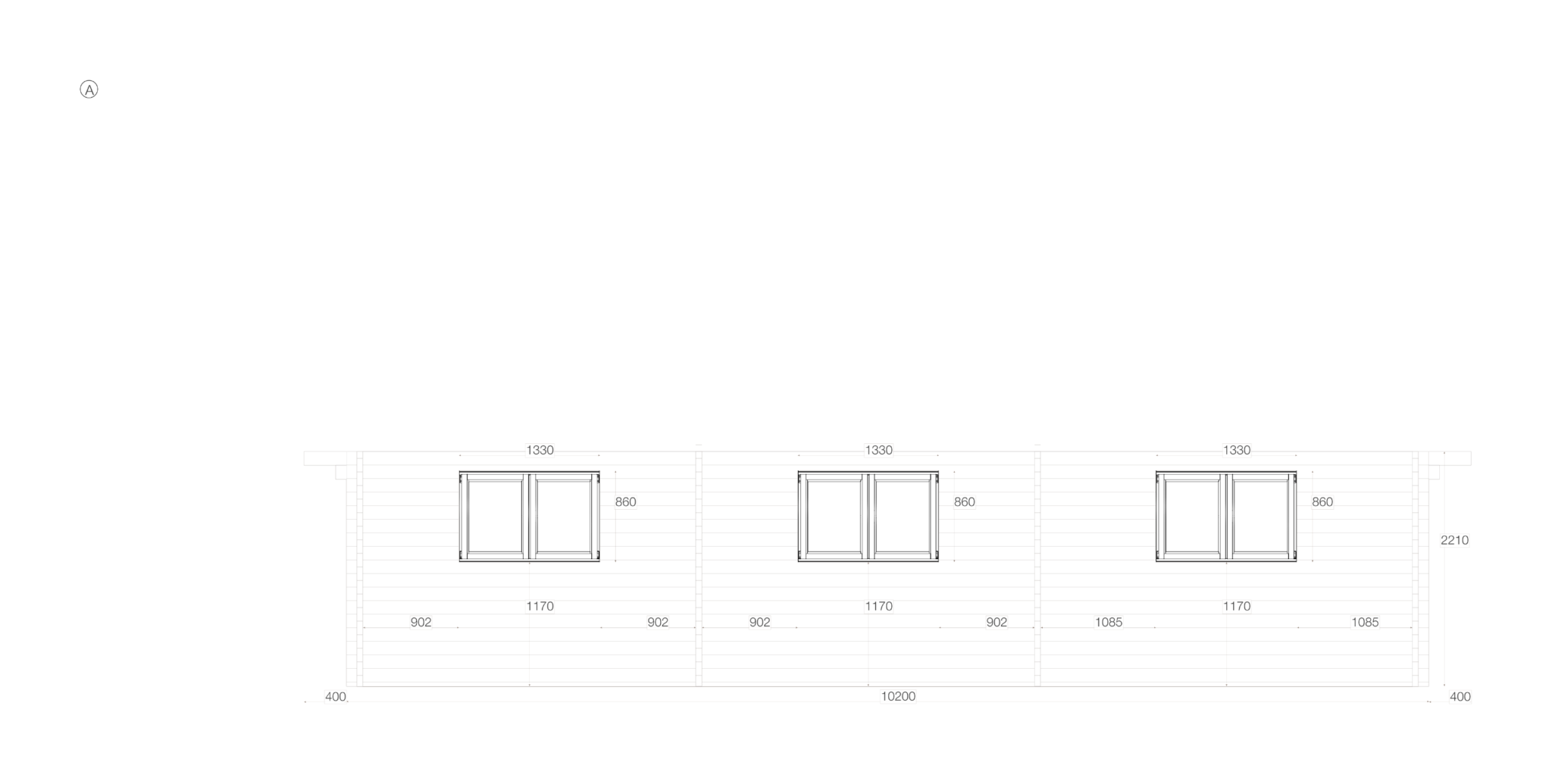

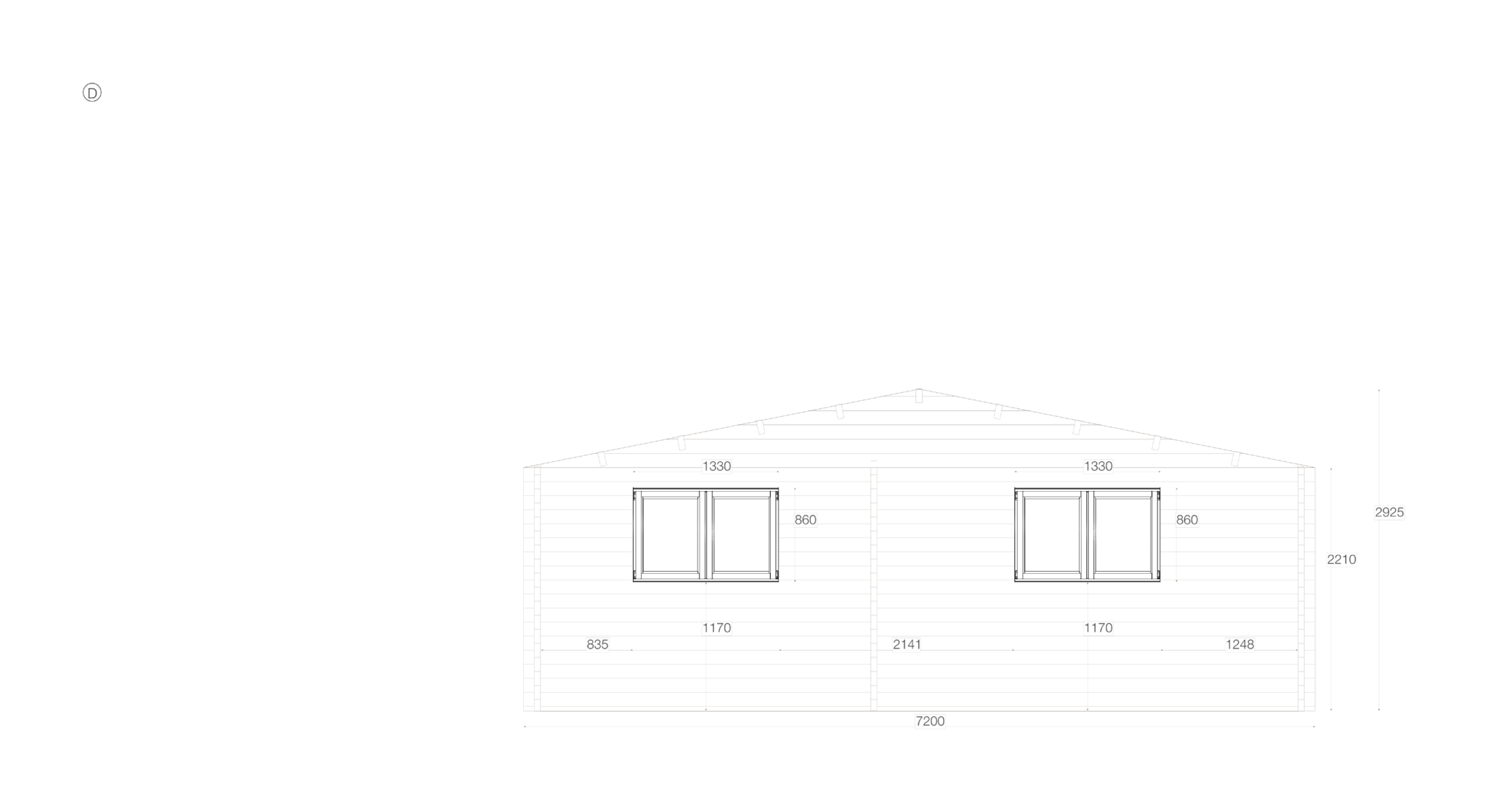

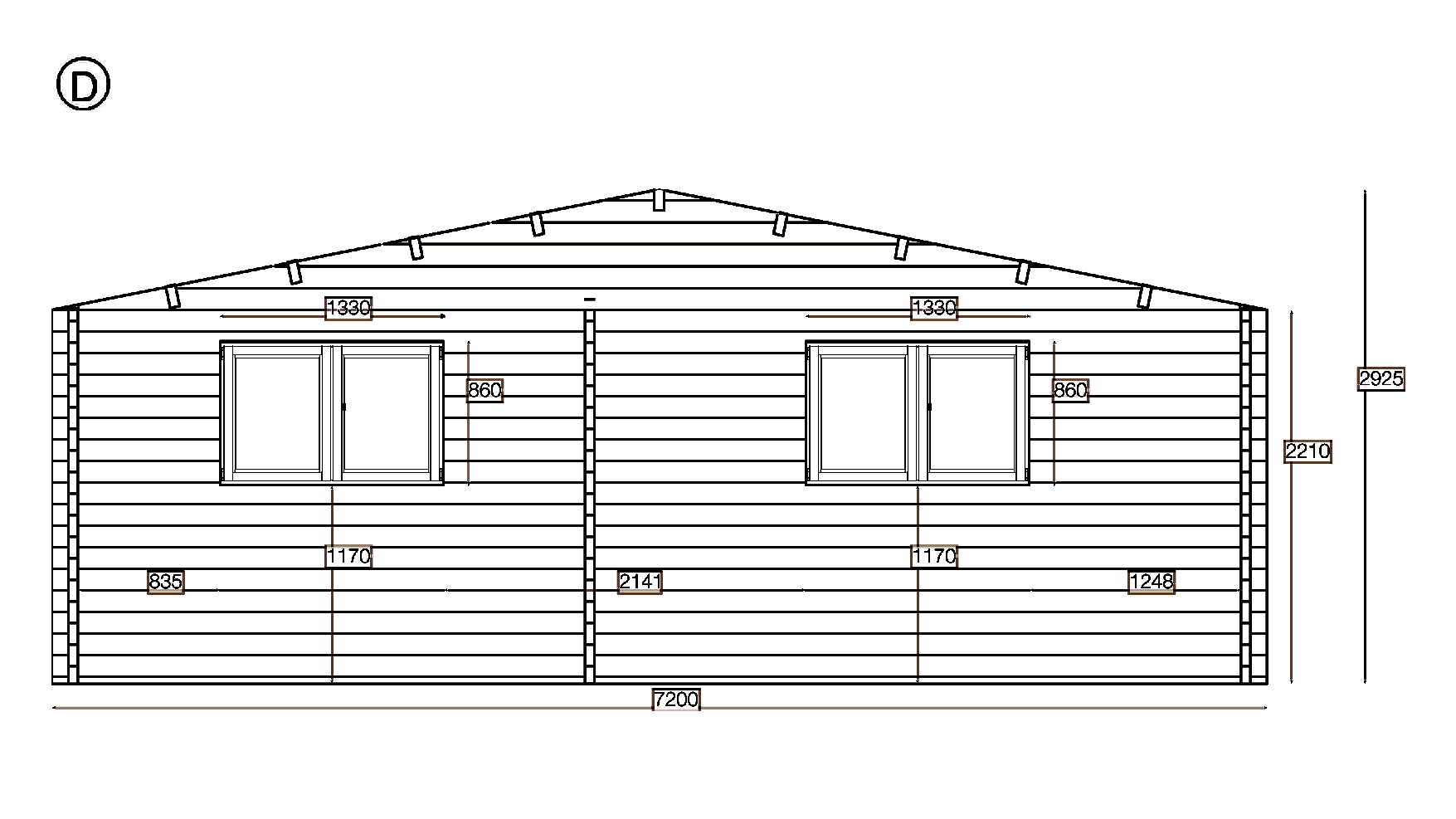

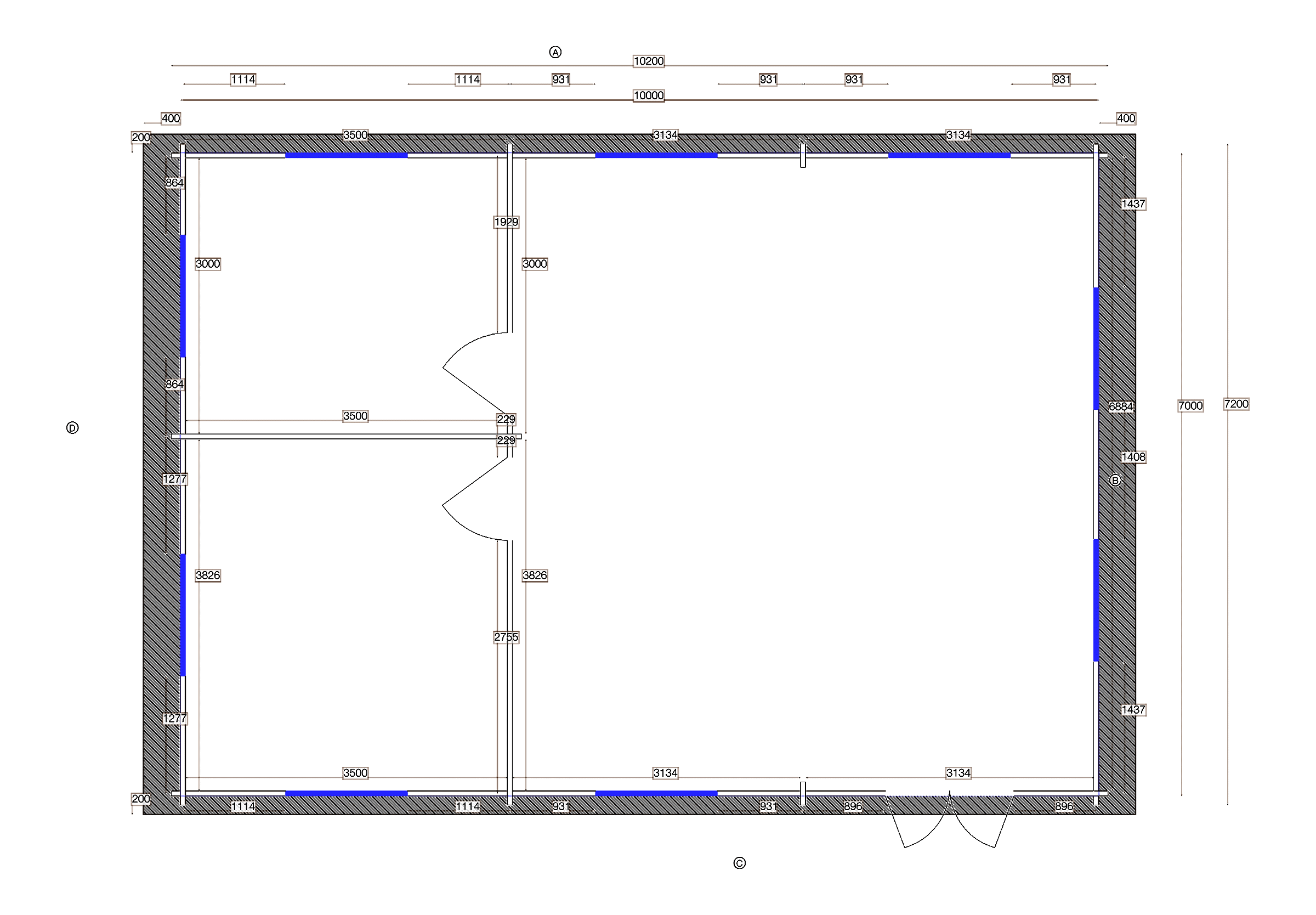

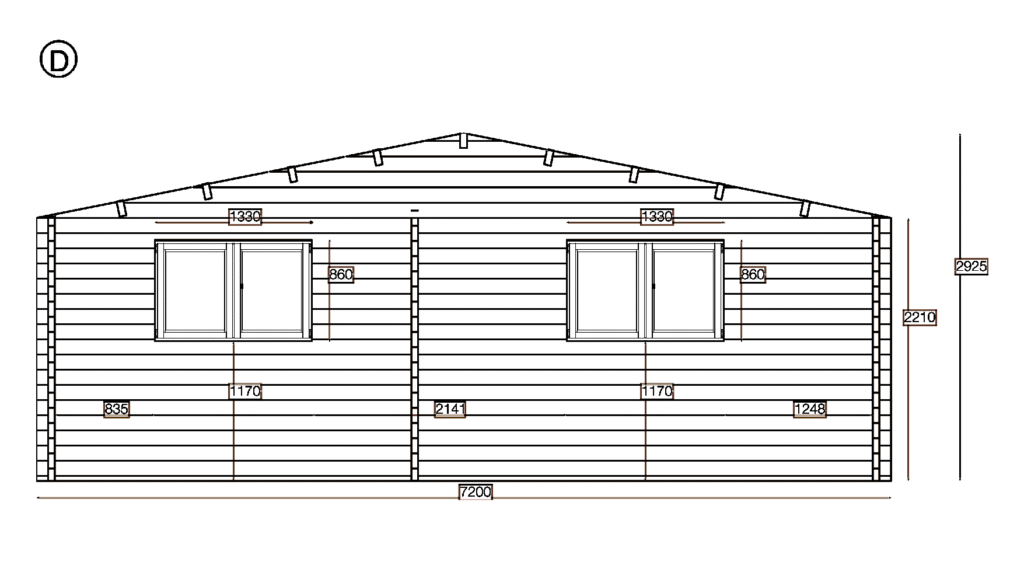

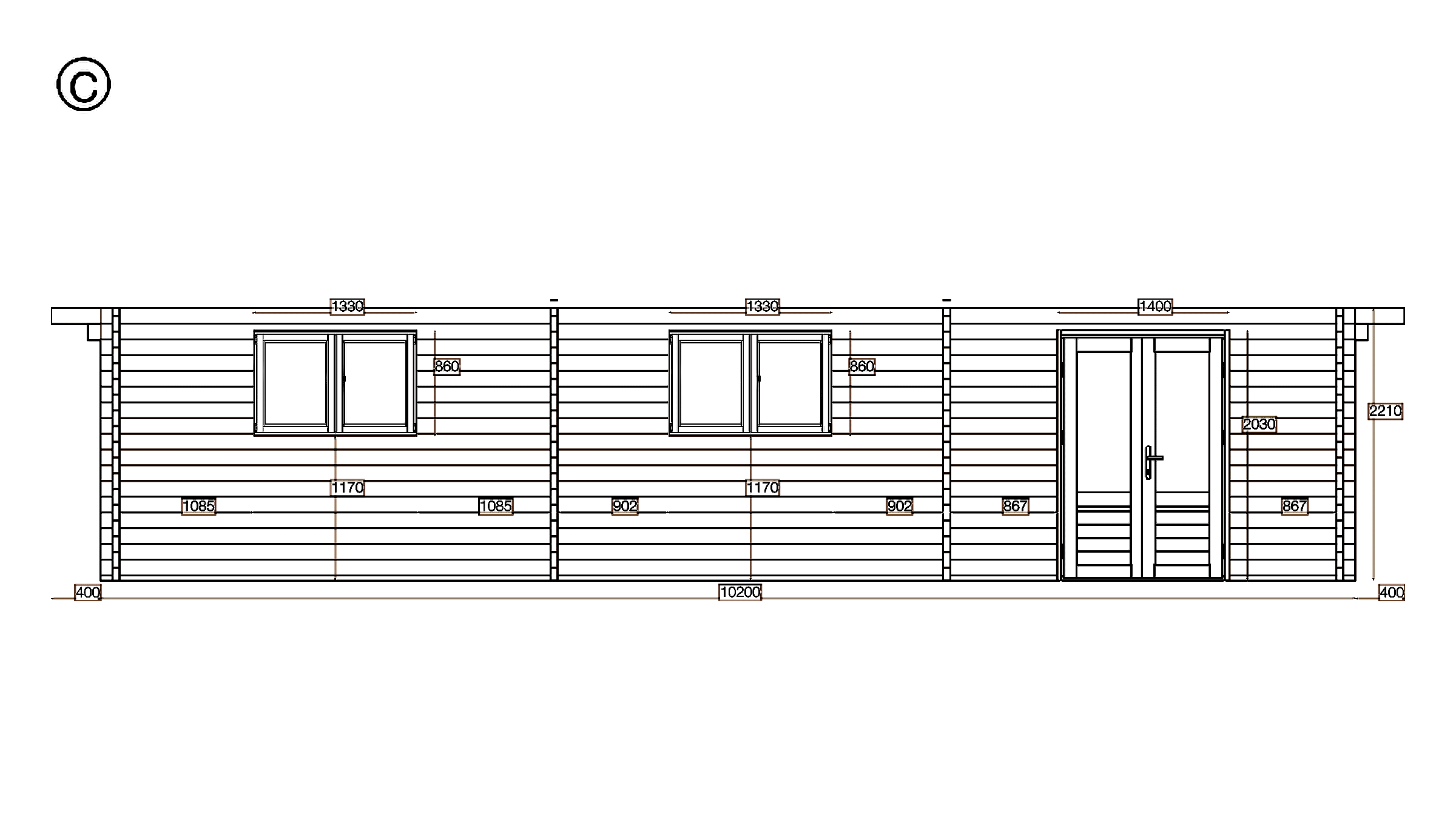

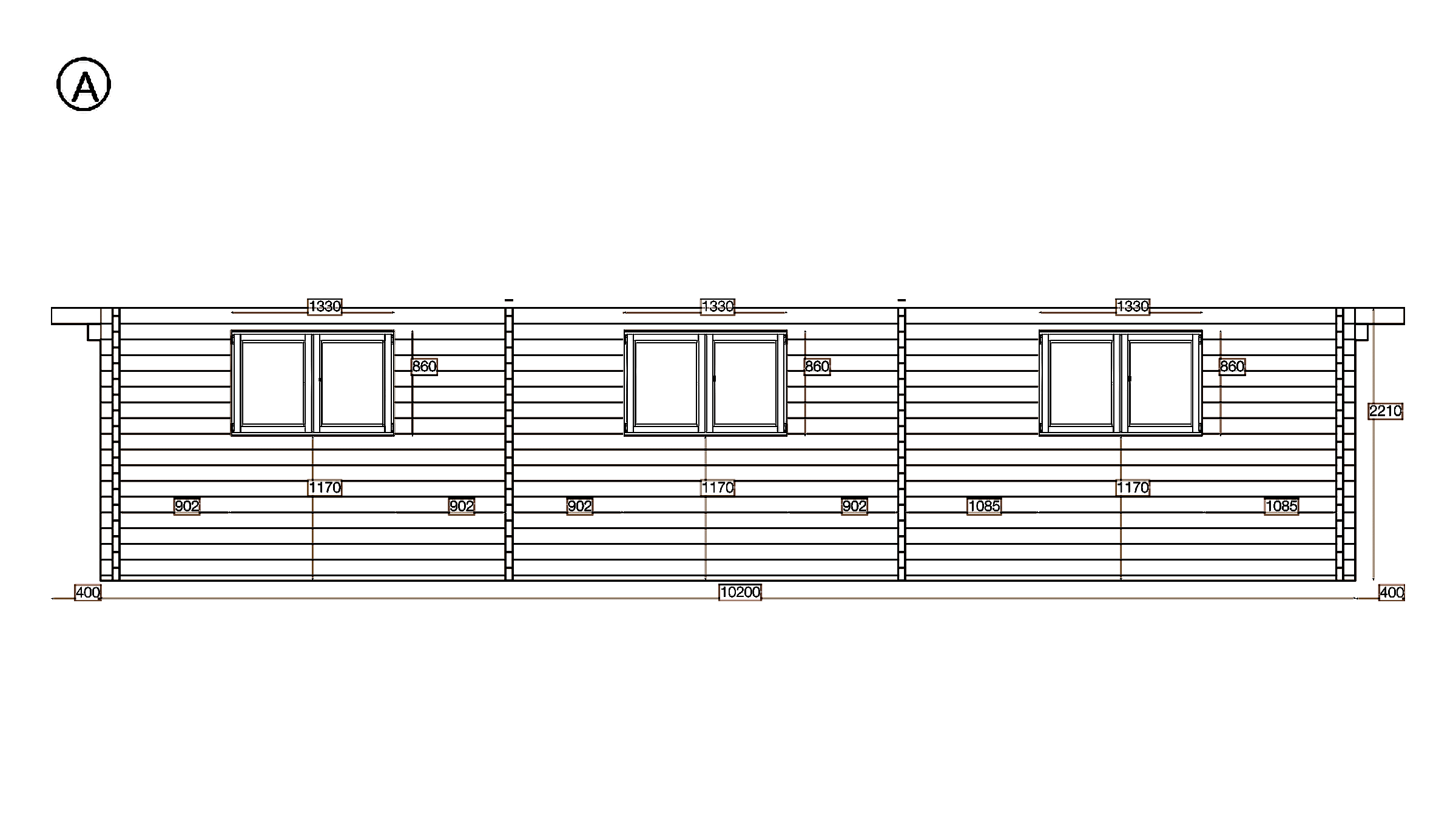

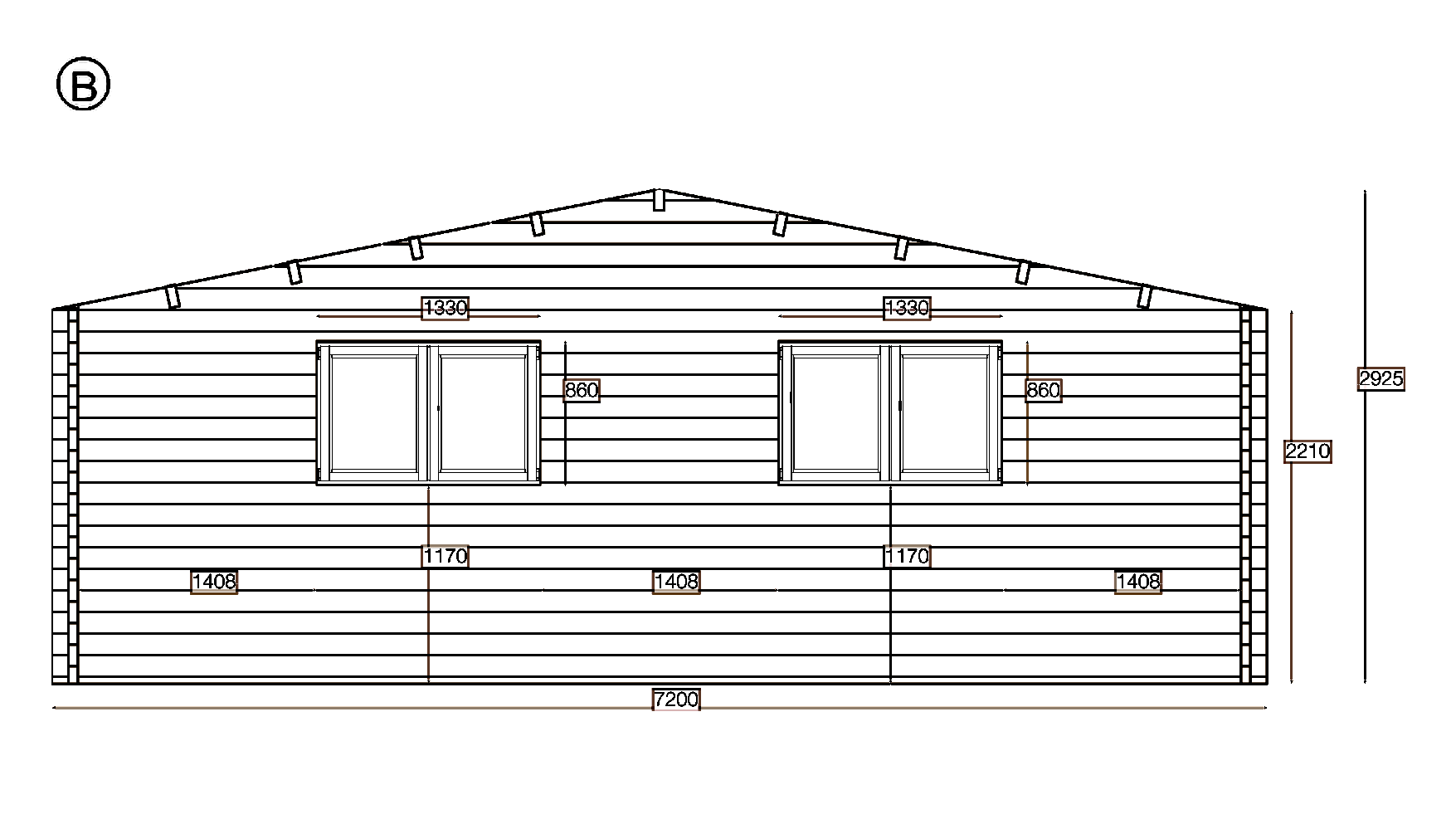

The letters A to D on the floor plan mark the four sides; each elevation shows one side with its dimensions. Open a drawing to see it at full size.
