Eurodita timber building project

Apex Garden Office 2.8x3.8

A timber building drawn in the Eurodita design and estimating system: 3D views, a floor plan and four elevations with dimensions, and the figures of the building as drawn.

3D project view of Apex Garden Office 2.8x3.8 with 28mm solid log walls and an apex roof
3D view of the building as drawn. The final specification is confirmed in the written quotation.
Inside area8.8 m²
Overall footprint2756 × 3756 mm
Wall configuration28 mm log
Roof geometryApex, 8.3°

Specification

Technical data

The figures below come from the project drawing of this building.

Dimensions

Inside area
8.8 m²
Overall dimensions
2756 × 3756 mm
Internal dimensions
2500 × 3500 mm
Wall thickness
28 mm
Project reference
LOGAPX-250x350-028-P2810
Inner walls
None

Height and roof

Sidewall height
2300 mm
Ridge height
2500 mm
Roof type
Apex
Roof pitch
8.3°
Roof area
12.6 m²

Floor and roof

Floor bearers
100x60mm
Floorboards
28 mm
Roof boards
19 mm
Roof purlins
28x100mm × 3

Windows and doors

Window and door schedule

Windows1 × Garden type (IV45) timber window1330x1510mm
Windows1 × Garden type (IV45) timber window1330x990mm
Doors1 × Garden type (IV45) timber double door, fully glazed1400x2030mm

Drawings

Floor plan and elevations

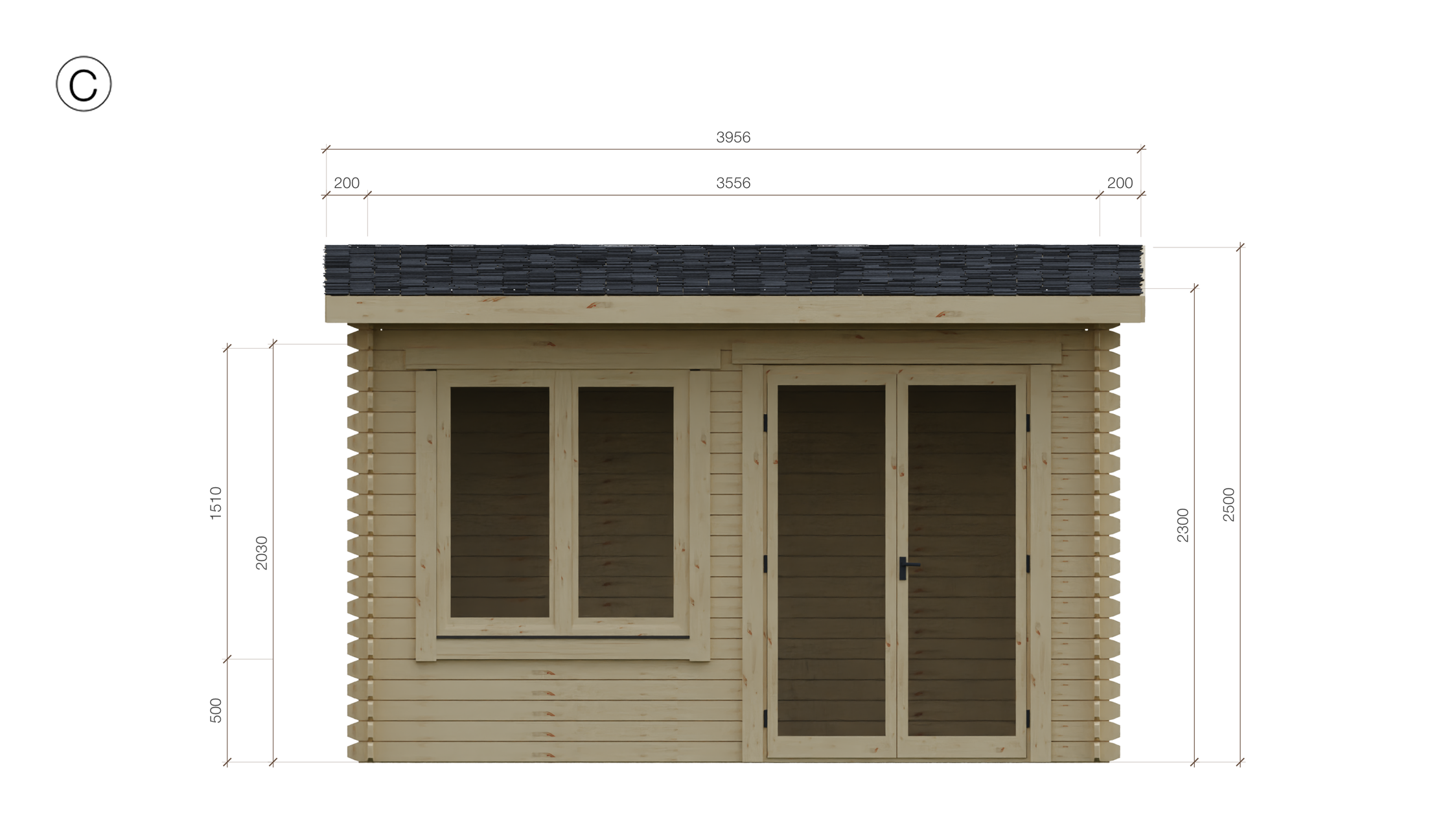

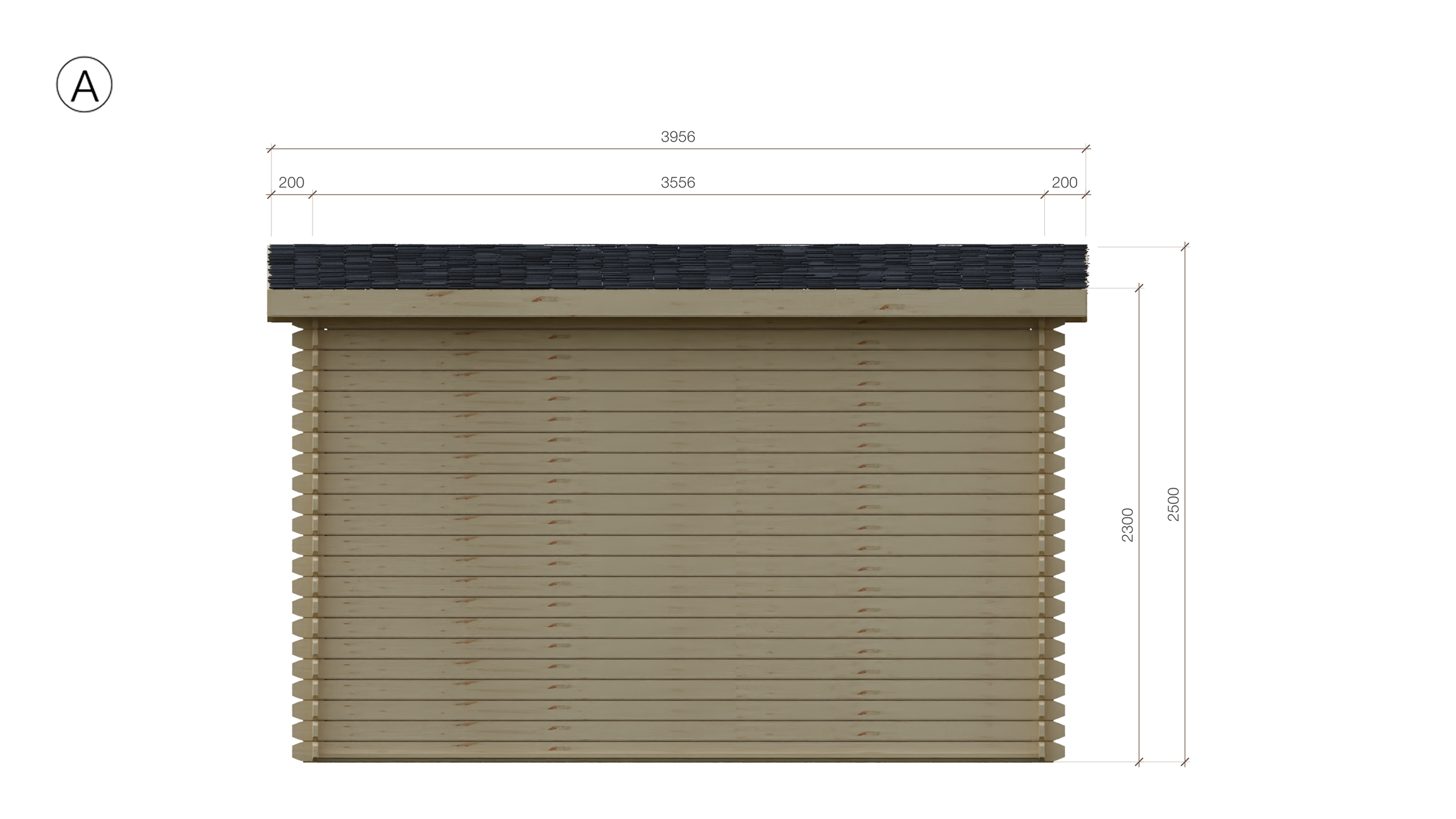

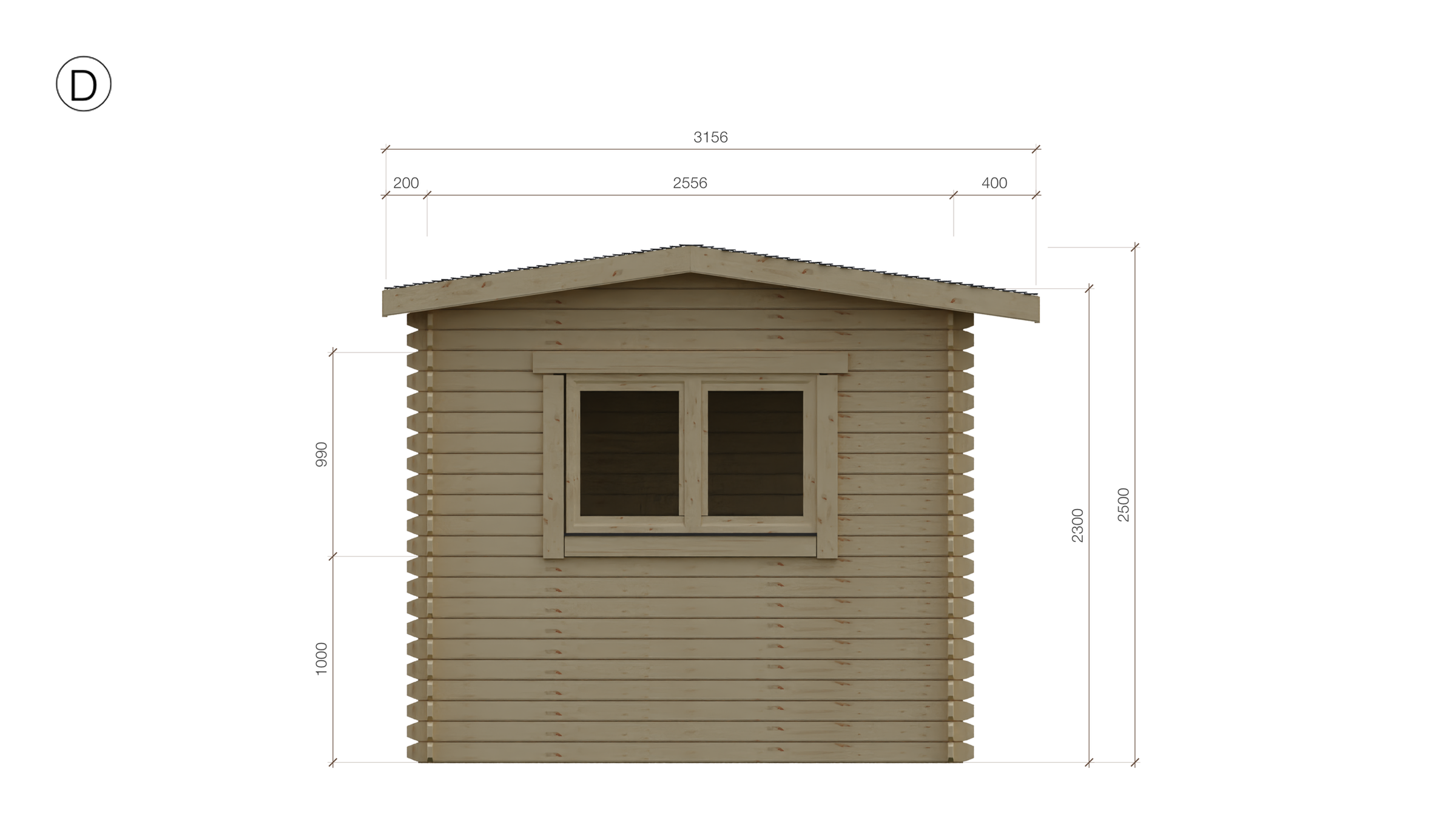

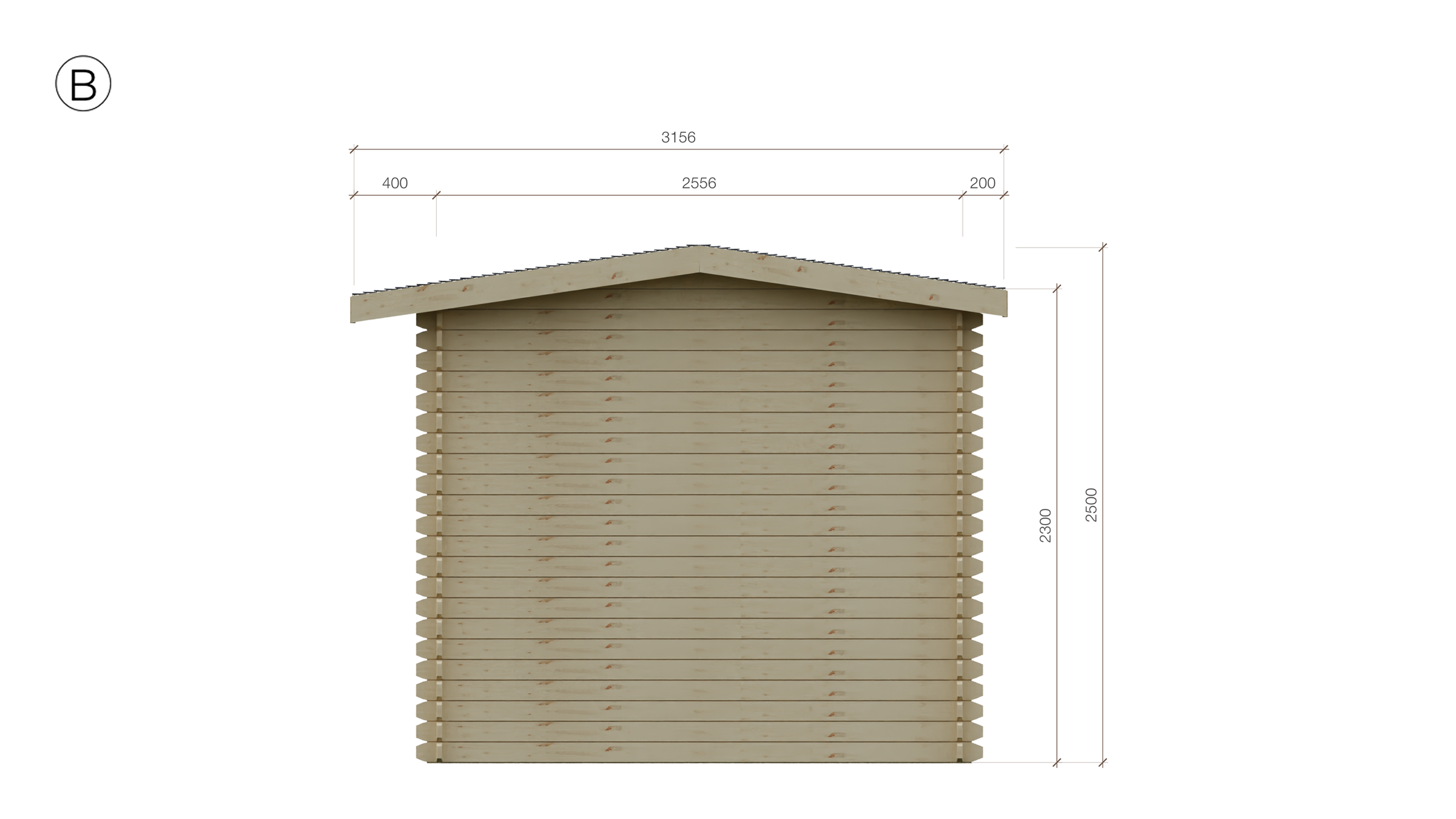

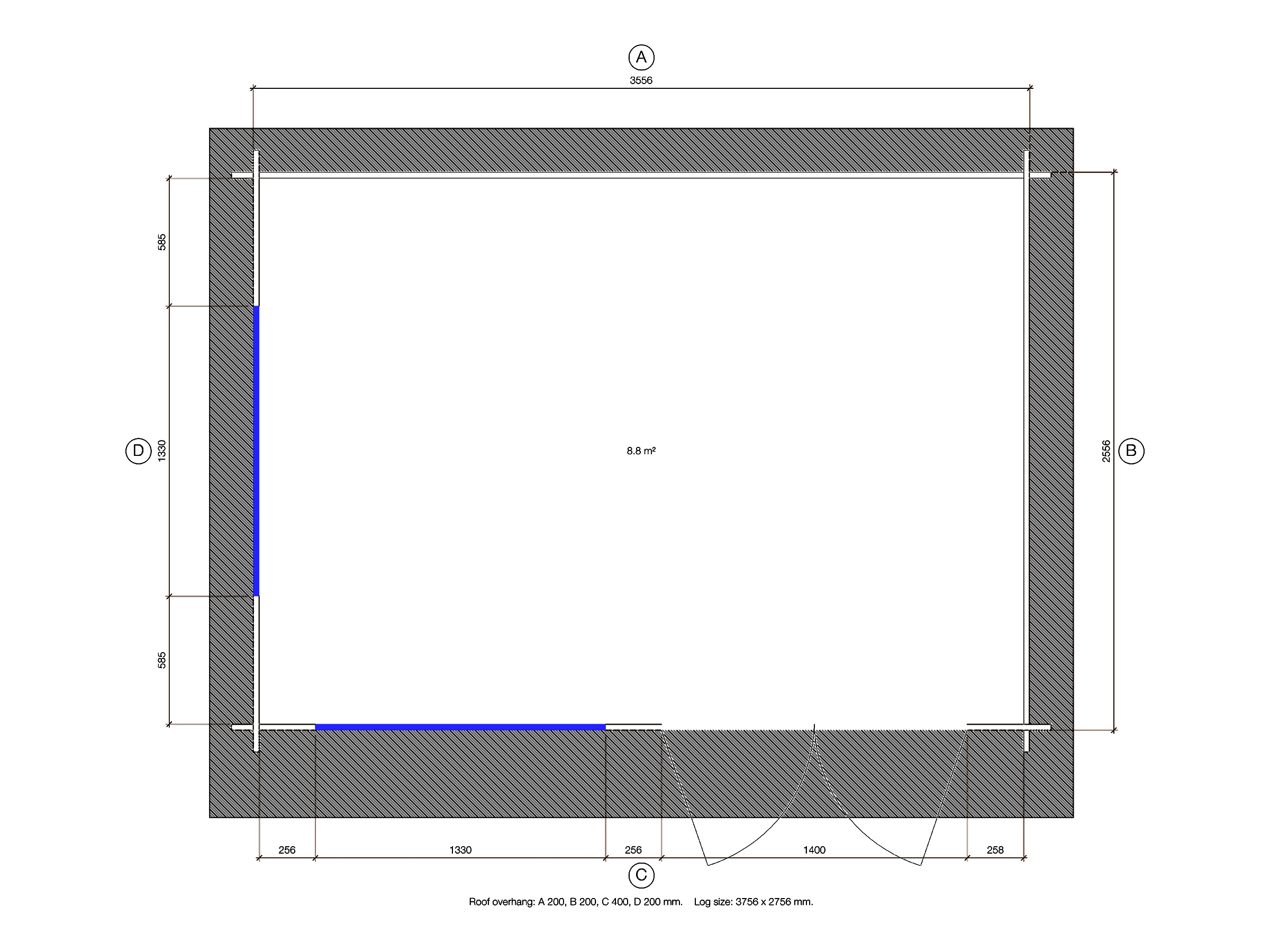

The letters A to D on the floor plan mark the four sides; each elevation shows one side with its dimensions. Open a drawing to see it at full size.
