Workshop Log Cabin 3x3m, 28mm Chalet Roof
Delivery is agreed individually with each client. Markets and languages
For private buyers the supply route is confirmed project by project.
At a glance

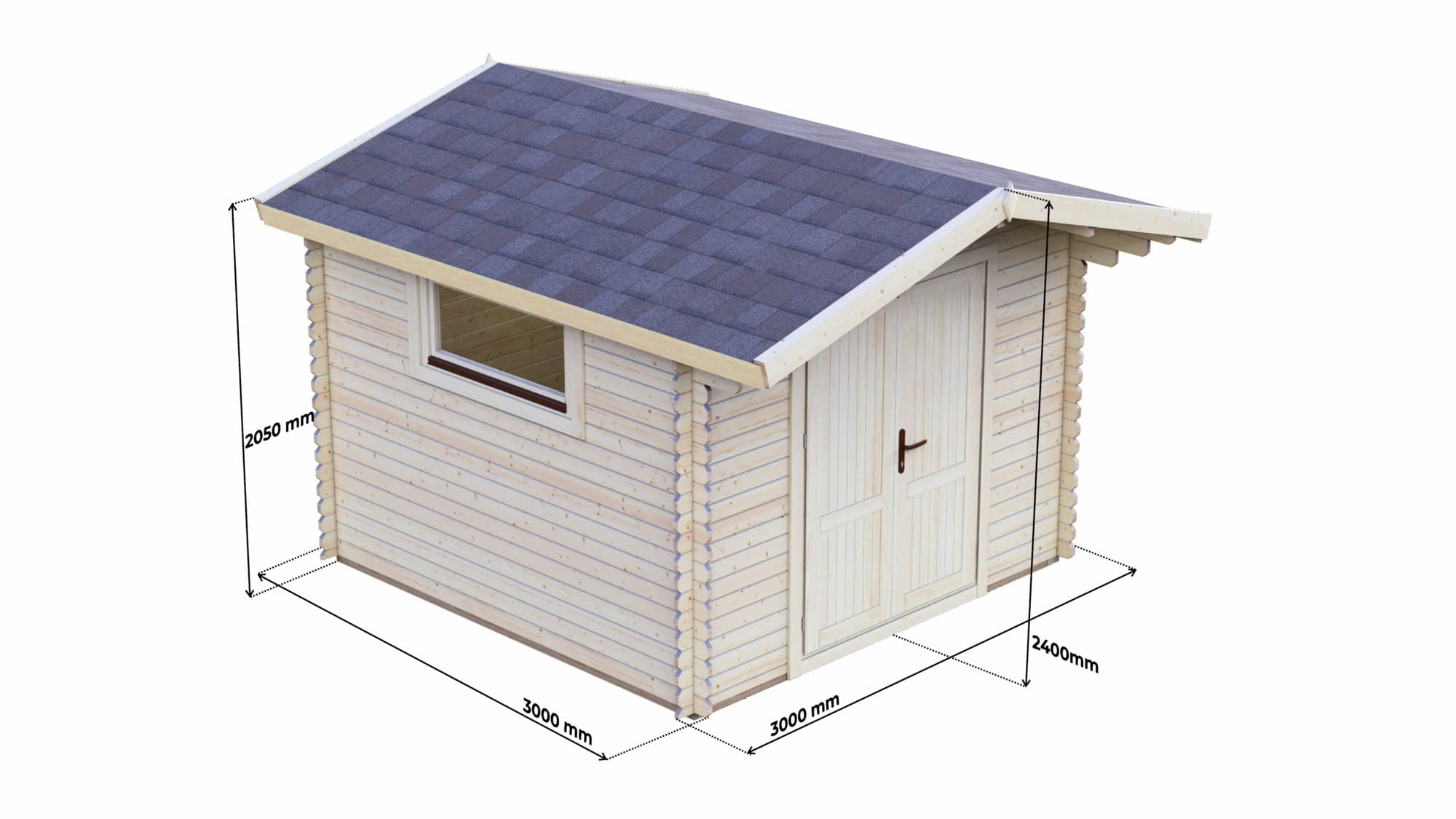

Workshop Log Cabin 3x3m Chalet Roof is a workshop log cabin with a chalet roof, supplied as a building kit. It measures 3 x 3 m externally, an external footprint of 9 m². The ridge height is 245 cm and the eaves height 205 cm. It is listed with the garden workshops.
Read the full description
Layout

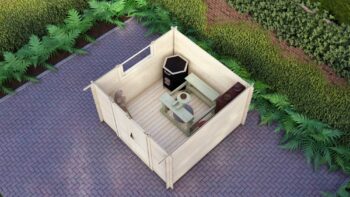

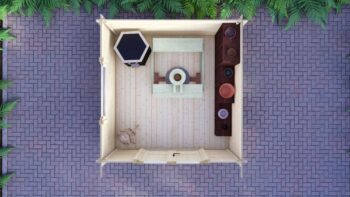

The plan drawing shows one room without inner walls.
Walls
The wall logs are solid, of the 28 x 100 mm profile: each log is 28 mm thick and 100 mm high. Wall logs are supplied untreated by default. The profiles are set out on wall thickness and glulam profiles.
Doors and windows
Windows are made by Eurodita in timber. See windows and doors.
Technical data sheet
Specification recorded for Workshop Log Cabin 3x3m, 28mm Chalet Roof. Dimensions are the building's external dimensions. A row appears only where a figure is recorded for this model.
| Building | |
|---|---|
| External dimensions | 3 x 3 m |
| External footprint area | 9 m² |
| Eaves height | 205 cm |
| Ridge height | 245 cm |
| Base | External footprint 3 x 3 m. Base type and size are confirmed for the specific model and site. |
| Structure | |
| Wall profile | 28 x 100 mm as standard |
| Other wall options | A solid log model can be made in any of the 28, 34, 44, 58 and 70 mm profiles; the profile is confirmed in the written quotation. |
| Construction | Interlocking tongue and groove joints |
| Timber | Northern European timber |
| Storm brace and anchor set | Included |
| Floor | |
| Floor bearers | Impregnated as standard |
| Floor boards | 28 mm |
| Roof | |
| Roof type | Chalet |
| Roof boards | 19 mm tongue and groove boards |
| Doors and windows | |
| Doors | Single glazed timber door |
| Windows | Garden type (IV45) timber window, tilt and turn, 4-6-4 mm double glazing |
| Scope of these figures | |
| Insulation | Eurodita supplies the timber structure prepared for insulation where required, not the insulation material. |
| Performance | These dimensions establish no thermal, fire, structural or certification performance. |
Add-ons & Customisation
Options for this model (branding, wall thickness, openings, insulation preparation, partitions, veranda) are listed on What is in a Eurodita kit and confirmed per order.
How an Order Is Agreed
Scope is confirmed in the written quotation. Details: Reading a Eurodita quotation.
Need this in a different size?
Size, layout and the positions of doors and windows can be changed for an order. Send a sketch or a drawing. From a complete sketch to a 3D view, drawings and a price within one working day.
Supply
The kit is supplied EXW from the Eurodita factory. Installation and how it is organised is agreed per project.
For trade buyers
Dealers, distributors and private-label brands can carry this model in their own range.
Compared with similar models
Workshop Log Cabin 3x3m Apex Roof
| This model | Apex Roof | |
|---|---|---|
| Ridge height | 245 cm | 240 cm |
| Eaves height | 205 cm | 220 cm |
| Roof | Chalet roof | Apex roof |
Workshop Log Cabin 3x3m Pent Roof
| This model | Pent Roof | |
|---|---|---|
| Ridge height | 245 cm | 240 cm |
| Eaves height | 205 cm | 220 cm |
| Roof | Chalet roof | Pent roof |
