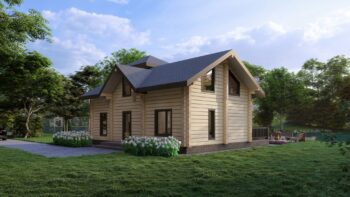

Two storey Glulam log house Greenhaven

Technical data sheet

Specification recorded for Two storey Glulam log house Greenhaven. Dimensions are the building's external dimensions. A row appears only where a figure is recorded for this model.

Building
External dimensions11.45 x 8.23 m
External footprint area94 m²
Eaves height265 cm
Ridge height735 cm
Storeys2
BaseExternal footprint 11.45 x 8.23 m. Base type and size are confirmed for the specific model and site.
Structure
Wall profile options70 x 130 mm, 88 x 260 mm, 135 x 260 mm, 180 x 260 mm or 220 x 260 mm glulam, chosen per project and budget
Corner systemDovetail corner system available on the 88 to 220 mm glulam profiles, not on 70 x 130 mm
ConstructionInterlocking tongue and groove joints
TimberGlued-laminated timber
Storm brace and anchor setIncluded
Floor
Floor bearersImpregnated as standard
Floor boards28 mm
Roof
Roof boards19 mm tongue and groove boards
Doors and windows
DoorsDouble-Glazed Timber Joinery, Insulated Profile
WindowsDouble-Glazed Timber Joinery, Insulated Profile
Scope of these figures
InsulationEurodita supplies the timber structure prepared for insulation where required, not the insulation material.
PerformanceThese dimensions establish no thermal, fire, structural or certification performance.

Download technical data sheet (PDF) Wall profile reference

Add-ons & Customisation

Options for this model (branding, wall thickness, openings, insulation preparation, partitions, veranda) are listed on What is in a Eurodita kit and confirmed per order.

Need this in a different size?

This model is supplied as a 11.45 x 8.23 m footprint. If your customer needs a different layout, send a drawing. Eurodita will confirm whether the qualified bespoke route and factory scope fit the exact project. Partner branding is agreed per order.

  1. 1 Send a drawing A hand sketch can start the review. Mark known window and door positions, wall thickness and heights; Eurodita confirms any missing technical inputs.
  2. 2 Confirm the quotation scope If the enquiry fits, pricing and any CAD/3D or technical material are prepared to the agreed scope.
  3. 3 Review the agreed scope Revisions follow the quotation and project scope until written sign-off.

CAD/3D quotation material is prepared to the qualified project scope. Availability and timing are confirmed during qualification. Partner branding is applied where agreed; required manufacturer, legal and traceability information is retained.

Send a bespoke brief

Dimensions, wall thickness and opening positions are confirmed per project at quote stage. Bespoke production timing is confirmed at quotation stage. See published projects for built examples with dimensions and drawings, or review the rest of the glulam houses range.

About This Two storey Glulam log house Greenhaven

Product Overview

Rising energy costs demand better building solutions. The Greenhaven two-storey glulam log house addresses thermal specification challenges with 180mm Northern European timber walls and premium double-glazed joinery. Measuring 11.45 x 8.23 metres, this residential-style cabin suits contractors and developers requiring project-specific energy review for discerning clients.

Layout & Configuration

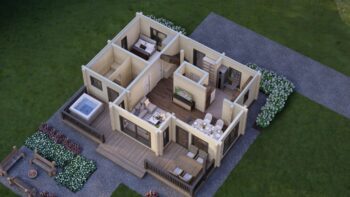

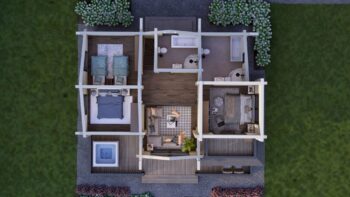

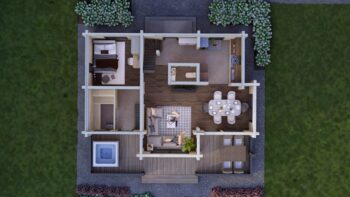

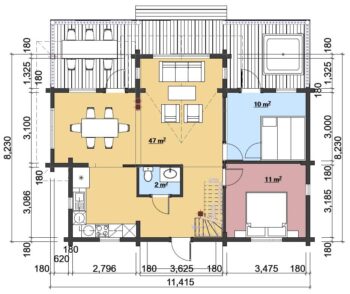

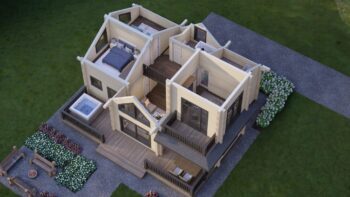

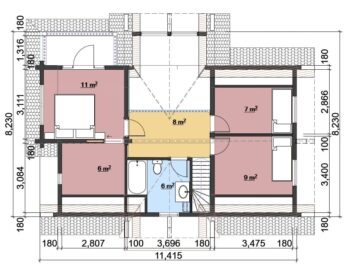

The generous ground floor accommodates multiple living zones with flexible partition arrangements. Upper level configuration maximises the 265cm eaves height and 735cm ridge height, creating comfortable bedroom spaces with practical storage solutions. Open-plan possibilities allow dealers to customise layouts for specific client requirements.

Timber & Construction

Northern European timber delivers exceptional thermal mass through 180mm laminated timber walls. Strong interlocking tongue-and-groove joints help reduce thermal weak points while ensuring assembly stability. Double-glazed timber joinery features insulated profiles throughout, maintaining project-specific thermal specification across the entire building envelope.

Floor & Roof

Robust 28mm floor boards rest on pressure-treated bearers for long-term stability and moisture resistance. The roof system incorporates 19mm tongue-and-groove boards with integrated storm bracing, providing weather-tight performance. This engineered approach ensures structural reliability while maintaining thermal continuity throughout the building fabric.

Customisation Options

Wall thickness upgrades, additional insulation layers, and premium glazing specifications accommodate specific thermal requirements. Interior partition kits enable flexible room configurations, while veranda extensions expand living space. Technical modifications support local authority review and client preferences across European markets.

Manufacturing & Delivery

Eurodita processes 150,000 m³ of timber annually. Glulam production timing is confirmed per order according to project specification. Bespoke modifications integrate directly with established production workflows, ensuring consistent quality and reliable project scheduling.

Private Label Partnership

Private-label capabilities allow trade partners to present products under their own branding. Branded technical documentation, detailed 3D visualisations, and showroom display programmes support professional presentations. This partnership approach enables dealers to maintain client relationships while accessing proven manufacturing expertise.

Product, order and after-sales conditions are confirmed in writing for each project in the quotation, order confirmation and applicable product documentation. Please contact Eurodita for the documentation relevant to your confirmed order.

What should dealers verify before quoting Two storey Glulam log house Greenhaven?

Eurodita supplies Two storey Glulam log house Greenhaven as a B2B private-label glulam house for dealers, developers and project teams. Before quoting, confirm whether the project uses the listed wall profile or another Eurodita glulam profile route, 88mm, 135mm, 180mm or 220mm, plus layout changes, documentation scope, EXW Kaunas logistics and local-authority review needs. Check Glulam Houses, private-label manufacturing, shipping policy and documentation status before client commitments.

B2B Order Framework

Scope is confirmed in the written quotation. Details: Reading a Eurodita quotation.

Private-label scope

Branding on packaging and documents, agreed per order.

Production planning

Production scope confirmed in the written quotation.

Commercial terms

Price, quantity and payment quoted per order.

Technical documents

Drawings and specifications listed in the order documentation.

Configuration review

Dimensions, openings and wall profile reviewed before quotation.

Dispatch terms

EXW Kaunas as standard; delivered options per market and order.
