At a glance

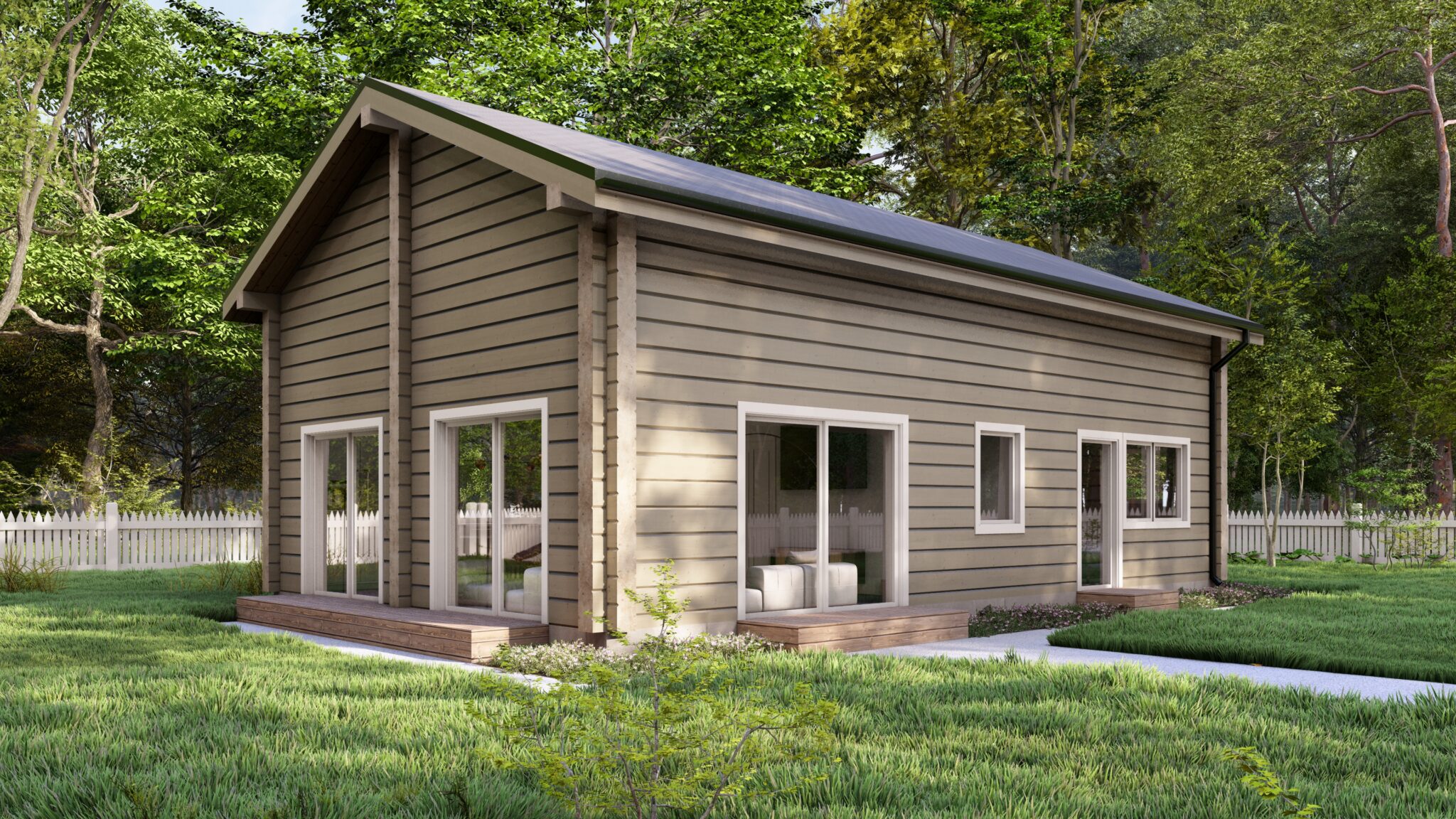

Two Storey Glulam Log House Arvika 12x7.5m is a two-storey glulam log house with an apex roof, supplied as a building kit. It measures 12 x 7.5 m externally, an external footprint of 90 m². The ridge height is 621 cm and the eaves height 269 cm. It is listed with the glulam houses.

Read the full description

Layout

The plan drawings show, on the ground floor, an open living room with a kitchen area, the stair, a corridor, a bathroom, a utility room and one bedroom; on the upper floor, one bedroom, a bathroom and an open gallery. The upper floor covers part of the building; the living room is open to the roof.

Walls

The walls are glulam wall logs of the 220 x 260 mm profile: each log is 220 mm thick and 260 mm high. A glulam model can be made in any glulam profile. The glulam is glued, profiled and CNC machined at the Eurodita factory. The profiles are set out on wall thickness and glulam profiles.

Doors and windows

Doors and windows are made by Eurodita in timber. See windows and doors.

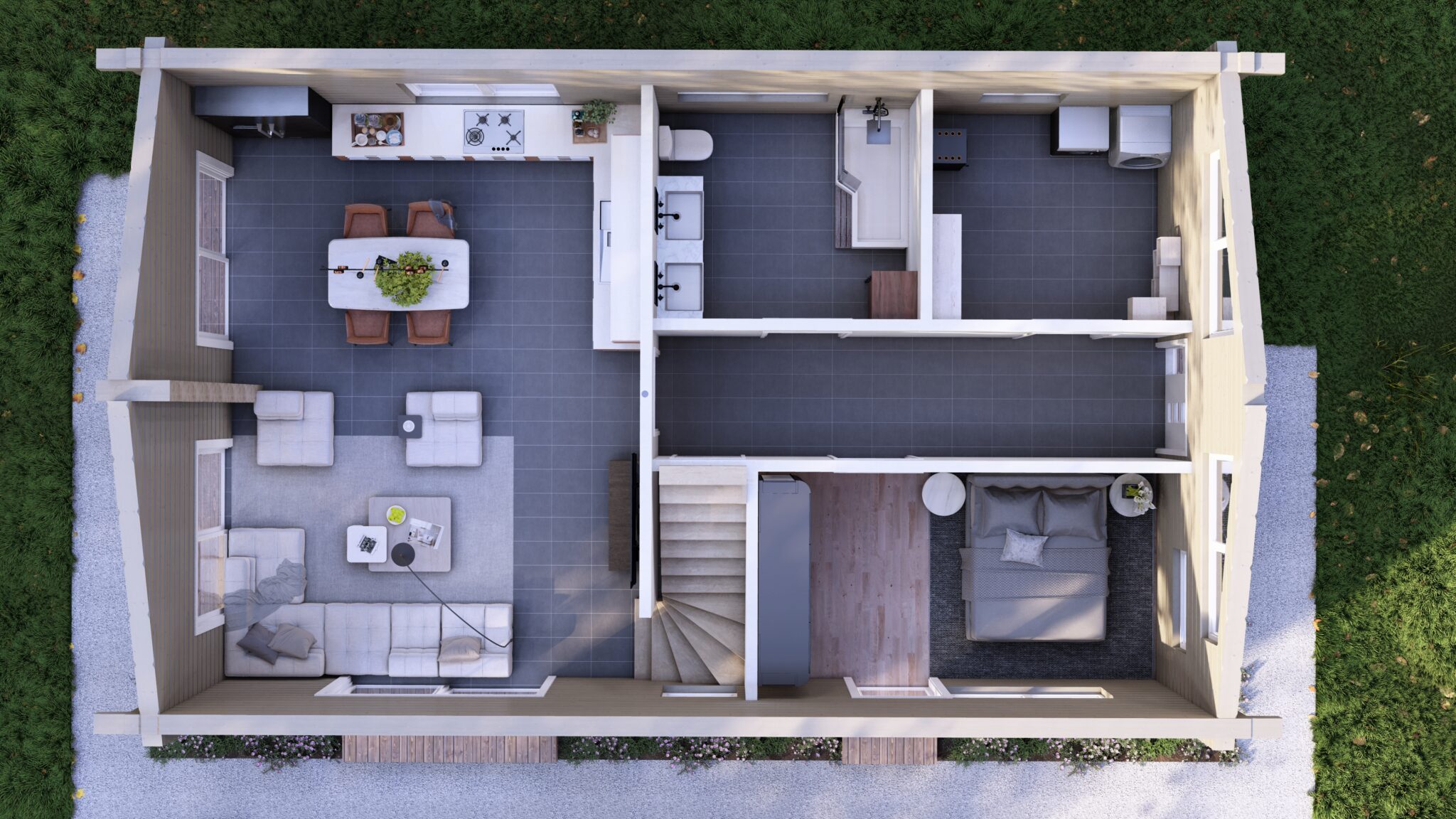

Floor plan, ground floor

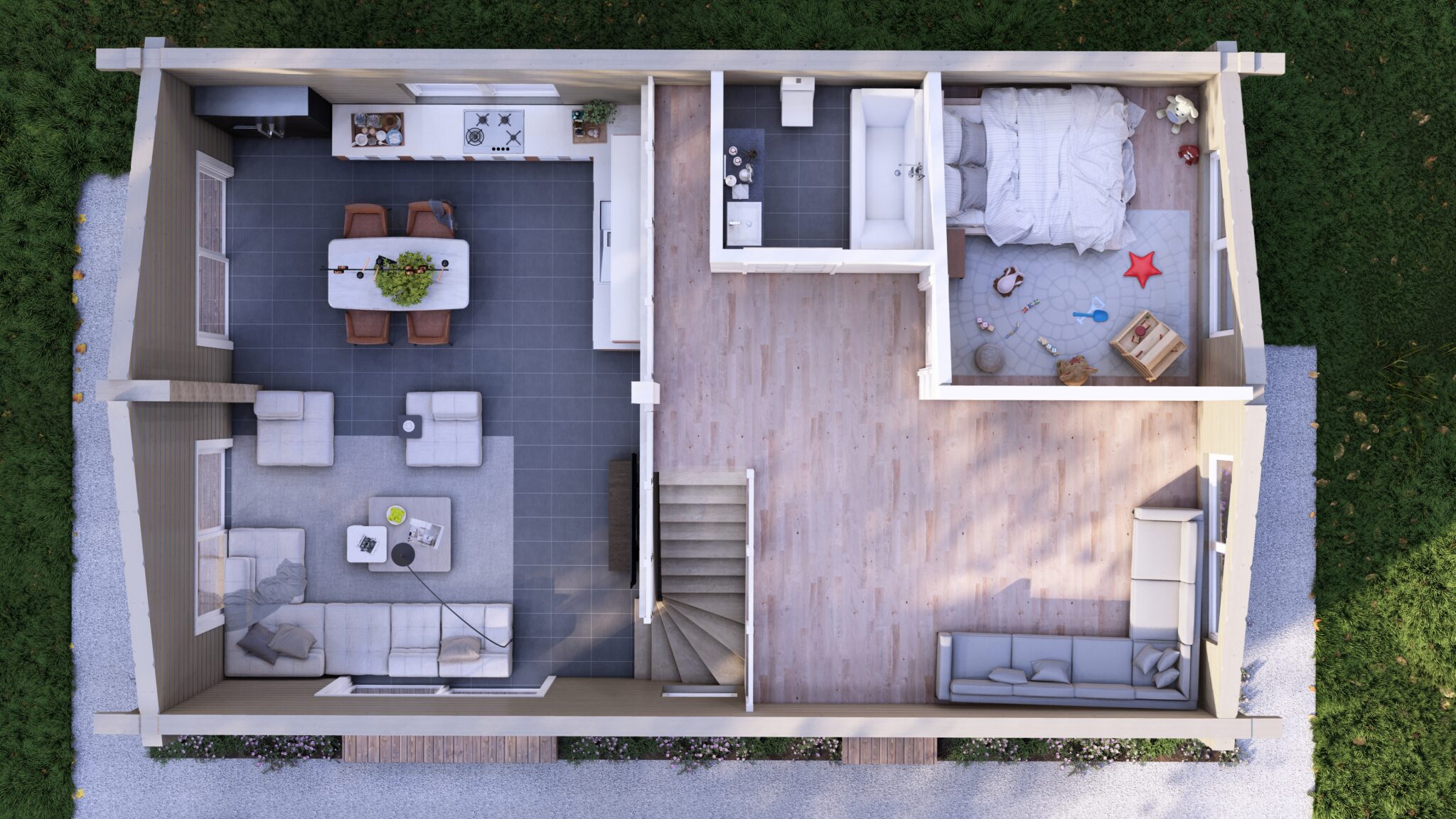

Floor plan, upper floor

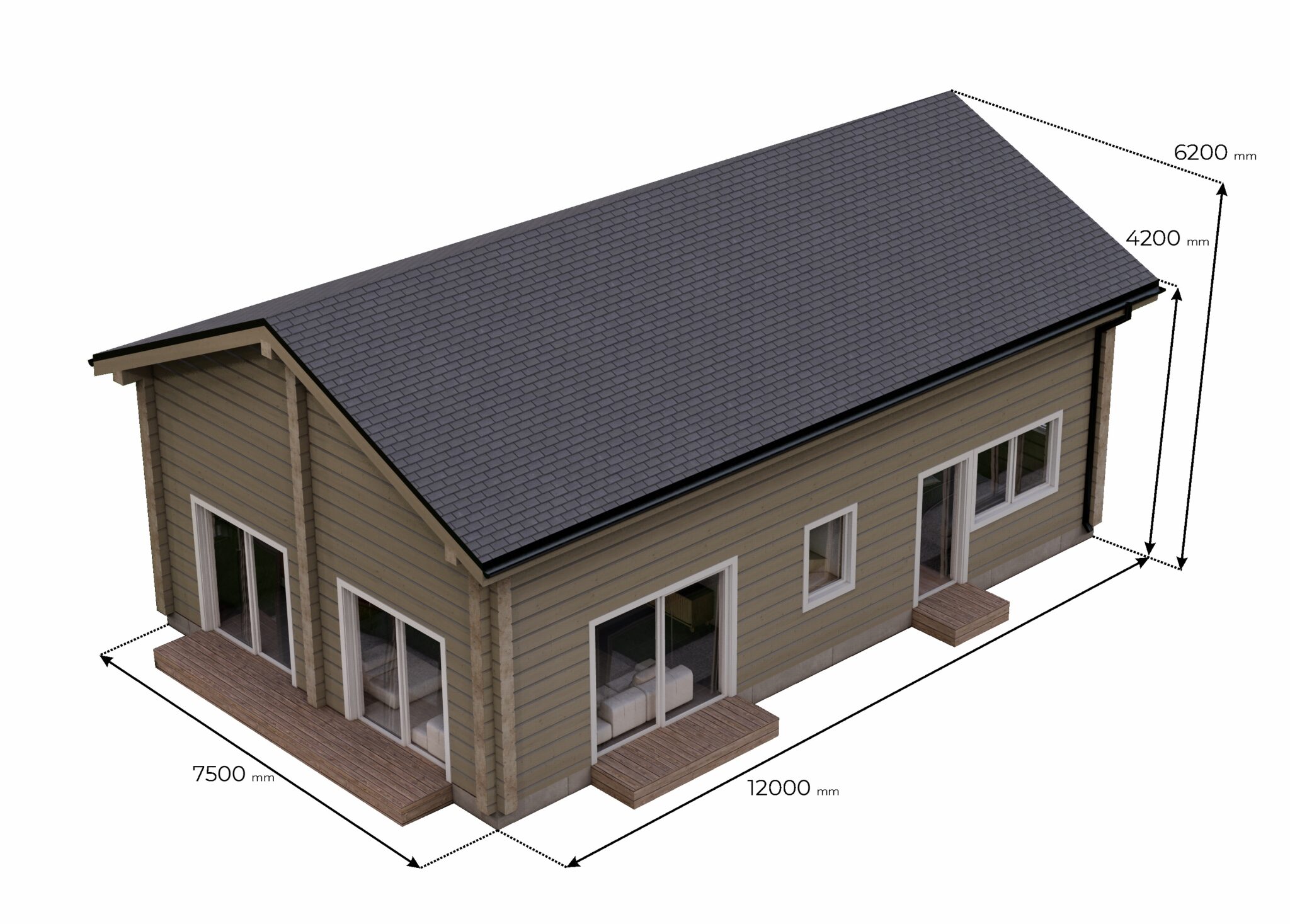

Dimension drawing

Technical data sheet

Specification recorded for Two Storey Glulam Log House Arvika 12x7.5m, 220mm. Dimensions are the building's external dimensions. A row appears only where a figure is recorded for this model.

Building
External dimensions	12 x 7.5 m
External footprint area	90 m²
Eaves height	269 cm
Ridge height	621 cm
Storeys	2
Base	External footprint 12 x 7.5 m. Base type and size are confirmed for the specific model and site.
Structure
Wall profile options	70 x 130 mm, 88 x 260 mm, 135 x 260 mm, 180 x 260 mm or 220 x 260 mm glulam, chosen per project and budget
Corner system	Dovetail corner system available on the 88 to 220 mm glulam profiles, not on 70 x 130 mm
Construction	Interlocking tongue and groove joints
Timber	Glued-laminated timber
Floor
Floor bearers	Impregnated as standard
Floor boards	28 mm
Roof
Roof form	Apex
Roof boards	19 mm tongue and groove boards
Doors and windows
Doors	Residential type (IV68) timber door, 5-point locking, 4-16-4 mm double glazing
Windows	Residential type (IV68) timber window, tilt and turn, 4-16-4 mm double glazing
Scope of these figures
Insulation	Eurodita supplies the timber structure prepared for insulation where required, not the insulation material.
Performance	These dimensions establish no thermal, fire, structural or certification performance.

Download technical data sheet (PDF) Wall profile reference

Add-ons & Customisation

Options for this model (branding, wall thickness, openings, insulation preparation, partitions, veranda) are listed on What is in a Eurodita kit and confirmed per order.

Enquiry

Two Storey Glulam Log House Arvika 12x7.5m, 220mm

70 / 88 / 135 / 180 / 220mm, 12 x 7.5 m external, valid for 30 days

Request a quote

Two Storey Glulam Log House Arvika 12x7.5m, 220mmRequest a quote

How an Order Is Agreed

Scope is confirmed in the written quotation. Details: Reading a Eurodita quotation.

Need this in a different size?

Size, layout and the positions of doors and windows can be changed for an order. Send a sketch or a drawing. From a complete sketch to a 3D view, drawings and a price within one working day.

Send a bespoke brief DrafTimber Published projects

Supply

The kit is supplied EXW from the Eurodita factory. Installation and how it is organised is agreed per project.
