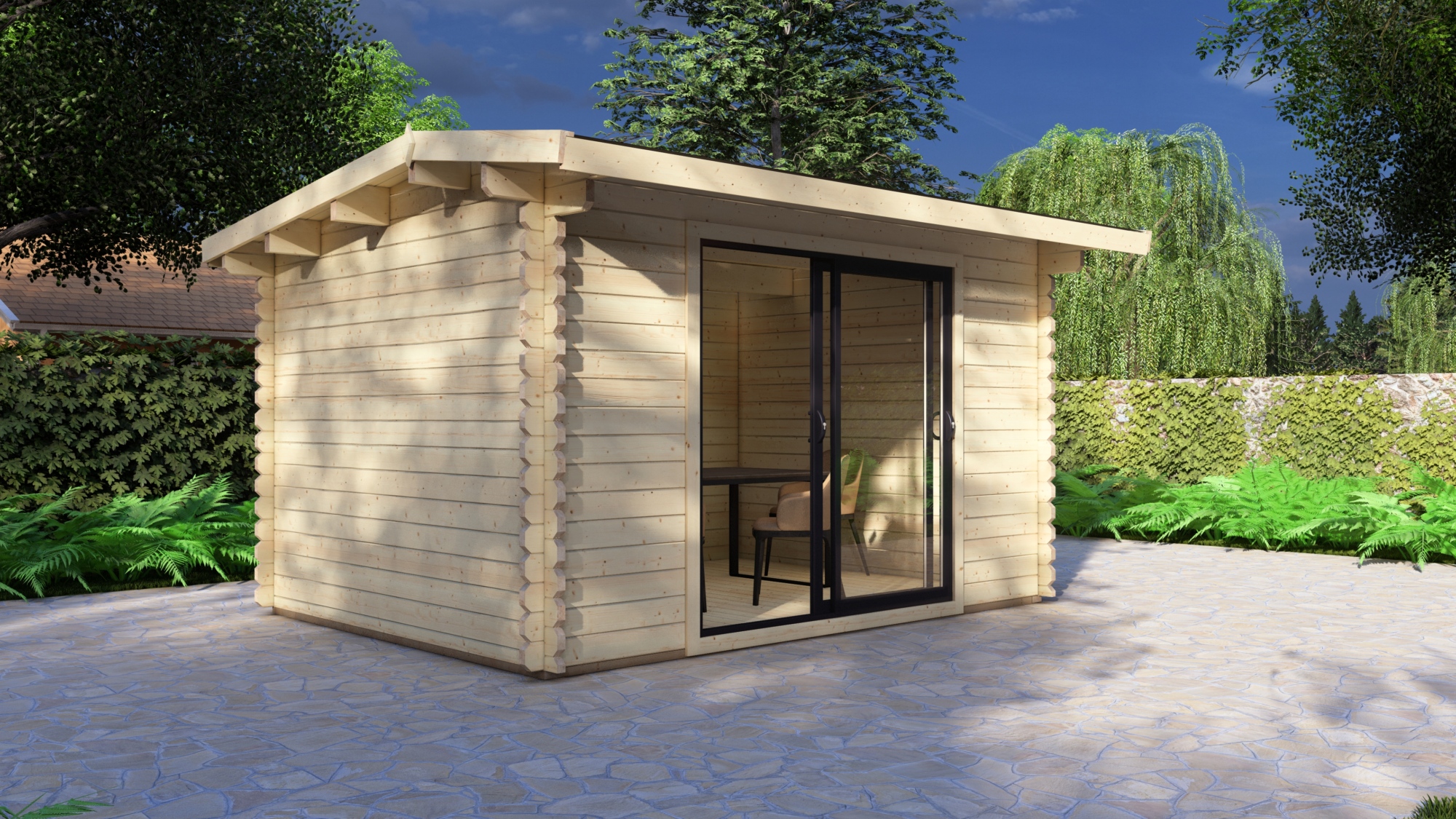

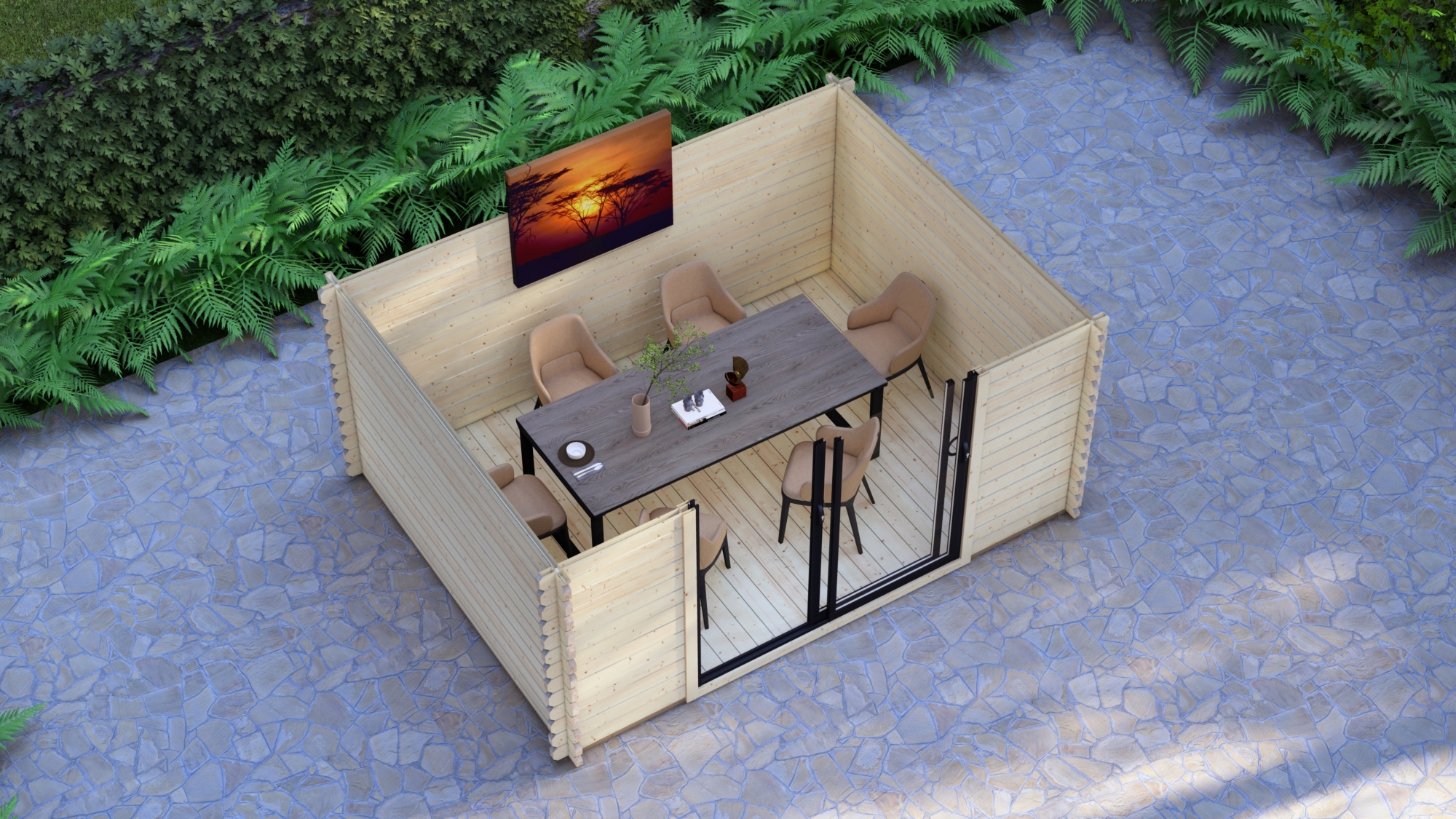

Modern Log Cabin 4×3m, Alu Sliding Doors, Long Ridge Roof
Limited outdoor workspace constrains business flexibility and property utilization. This 4×3m modern log cabin delivers a professional solution with aluminium sliding doors and long ridge roofing.
Technical data sheet
Specification recorded for Modern Log Cabin 4×3m, Alu Sliding Doors, Long Ridge Roof. Dimensions are the building's external dimensions. A row appears only where a figure is recorded for this model.
| Building | |
|---|---|

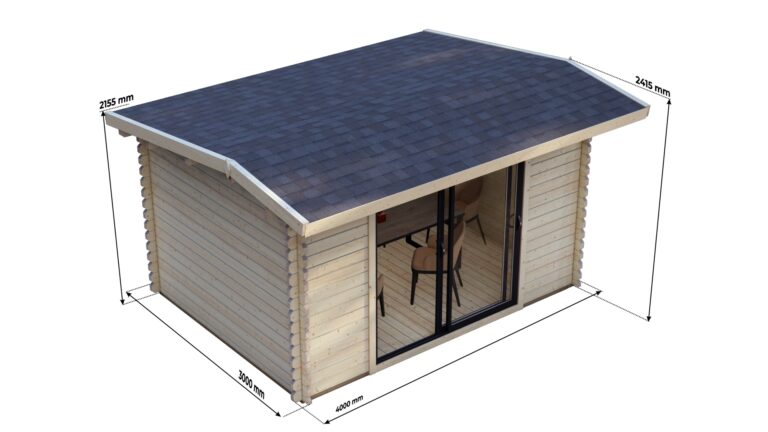

| External dimensions | 4 x 3 m |
| External footprint area | 12 m² |
| Eaves height | 215 cm |
| Ridge height | 241 cm |
| Storeys | 1 |
| Base | External footprint 4 x 3 m. Base type and size are confirmed for the specific model and site. |
| Structure | |
| Wall profile | 44 x 130 mm as standard |
| Other wall options | Other approved solid wall profiles can be specified to suit the project and budget. |
| Construction | Interlocking tongue and groove joints |
| Timber | Northern European timber |
| Storm brace and anchor set | Included |
| Floor | |
| Floor bearers | Impregnated as standard |
| Floor boards | 28 mm |
| Roof | |
| Roof type | Long Ridge Roof |
| Roof boards | 19 mm tongue and groove boards |
| Doors and windows | |

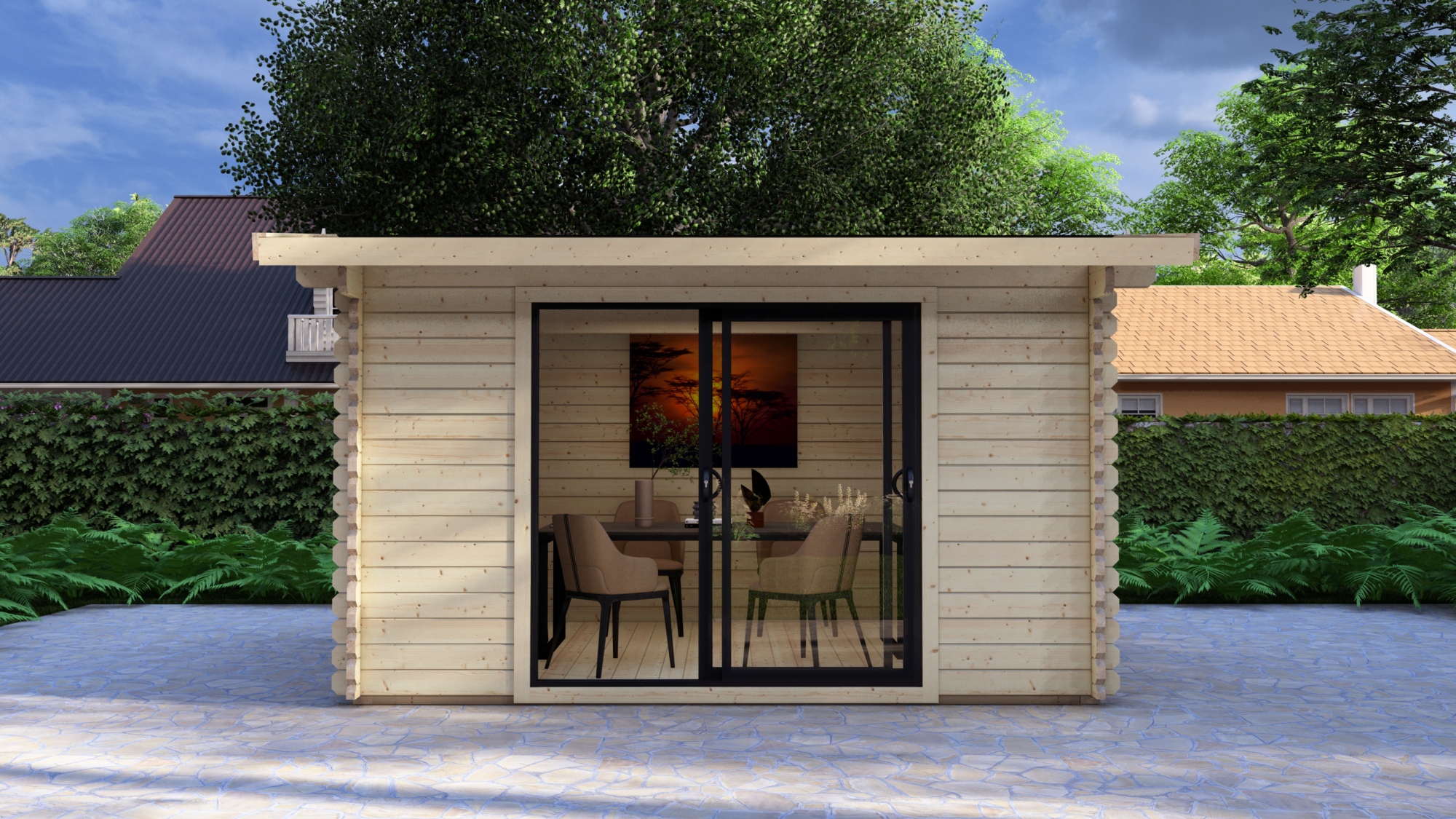

| Doors | Double glazed Aluminium Sliding Door |
| Aluminium sliding systems | Sourced from a specialist manufacturer and supplied as part of the project. |
| Scope of these figures | |
| Insulation | Eurodita supplies the timber structure prepared for insulation where required, not the insulation material. |
| Performance | These dimensions establish no thermal, fire, structural or certification performance. |
Add-ons & Customisation
Options for this model (branding, wall thickness, openings, insulation preparation, partitions, veranda) are listed on What is in a Eurodita kit and confirmed per order.
Need this in a different size?
This model is supplied as a 4 x 3 m footprint. If your customer needs a different layout, send a drawing. Eurodita will confirm whether the qualified bespoke route and factory scope fit the exact project. Partner branding is agreed per order.
- 1 Send a drawing A hand sketch can start the review. Mark known window and door positions, wall thickness and heights; Eurodita confirms any missing technical inputs.
- 2 Confirm the quotation scope If the enquiry fits, pricing and any CAD/3D or technical material are prepared to the agreed scope.
- 3 Review the agreed scope Revisions follow the quotation and project scope until written sign-off.
CAD/3D quotation material is prepared to the qualified project scope. Availability and timing are confirmed during qualification. Partner branding is applied where agreed; required manufacturer, legal and traceability information is retained.
Send a bespoke briefDimensions, wall thickness and opening positions are confirmed per project at quote stage. Bespoke production timing is confirmed at quotation stage. See published projects for built examples with dimensions and drawings, or review the rest of the modern log cabins with aluminium sliding doors range.
About This Modern Log Cabin 4×3m, Alu Sliding Doors, Long Ridge Roof
Product Overview
Limited outdoor workspace constrains business flexibility and property utilization. This 4×3m modern log cabin delivers a professional solution with aluminium sliding doors and long ridge roofing. Designed for trade partners serving clients requiring dedicated garden-building layouts, dealer-specified workspaces, or contemporary garden rooms that complement modern architectural styles.
Practical Applications
Designed for dealer ranges covering garden workspaces, studios, display cabins, or client meeting spaces where insulation, heating, foundation, and local-use requirements are specified by the project. The sliding door configuration supports natural light and efficient access while keeping the cabin format suitable for private-label B2B catalogues.
Timber & Construction
Constructed from Northern European timber with 44mm wall thickness as standard. Interlocking tongue-and-groove joints support a stable cabin shell, while double-glazed aluminium sliding doors provide a contemporary, low-maintenance opening system for dealer and trade projects.
Technical Specifications
External dimensions measure 4×3 metres with 215cm eaves height extending to 241cm ridge height. Floor system incorporates 28mm tongue-and-groove boards over structural joists. Roof construction features 19mm tongue-and-groove boards beneath quote-confirmed roof covering, engineered for long ridge configuration providing maximum internal volume.
Customisation Options
Available bespoke options may include alternative wall profiles, insulation packages, additional aluminium windows, partition choices, veranda details, and dealer branding, depending on the project. Eurodita provides technical data for dealer and project review before specification is confirmed.
Manufacturing & Delivery
Manufactured at Eurodita's Kaunas facility for B2B private-label partners. Standard log cabin production is planned within the confirmed order schedule; bespoke modifications, shipping terms, and documentation are agreed per order, with EXW from Kaunas as the baseline commercial route.
Private Label Partnership
Private-label capability supports dealer branding across documentation, specification sheets, and client-facing materials where agreed. Eurodita can provide CAD, 3D, product specification, and available technical data for dealer presentations and project review.
Warranty & Support
Product, order and after-sales conditions are confirmed in writing for each project in the quotation, order confirmation and applicable product documentation. Please contact Eurodita for the documentation relevant to your confirmed order. Assembly documentation and technical support are provided for dealer and project teams, with site-specific installation responsibilities confirmed per order.
Trade pricing for verified B2B partners
What should dealers confirm before quoting Modern Log Cabin 4×3m, Alu Sliding Doors, Long Ridge Roof?
Before quoting Modern Log Cabin 4×3m, Alu Sliding Doors, Long Ridge Roof, dealers should confirm destination market, intended end use, site base assumptions, door and glazing package, confirmed wall profile, finish or treatment route, branding and packing needs, order quantity, accessories, local-authority review and logistics. Final specification, scope and release timing should be agreed with Eurodita at quote stage for the Modern Aluminium range, private-label manufacturing and shipping coordination.
