Mobile Log Home 1 Bed 8x5m
Technical data sheet
Specification recorded for Mobile Log Home 1 Bed 8x5m. Dimensions are the building's external dimensions. A row appears only where a figure is recorded for this model.
| Building | |
|---|---|

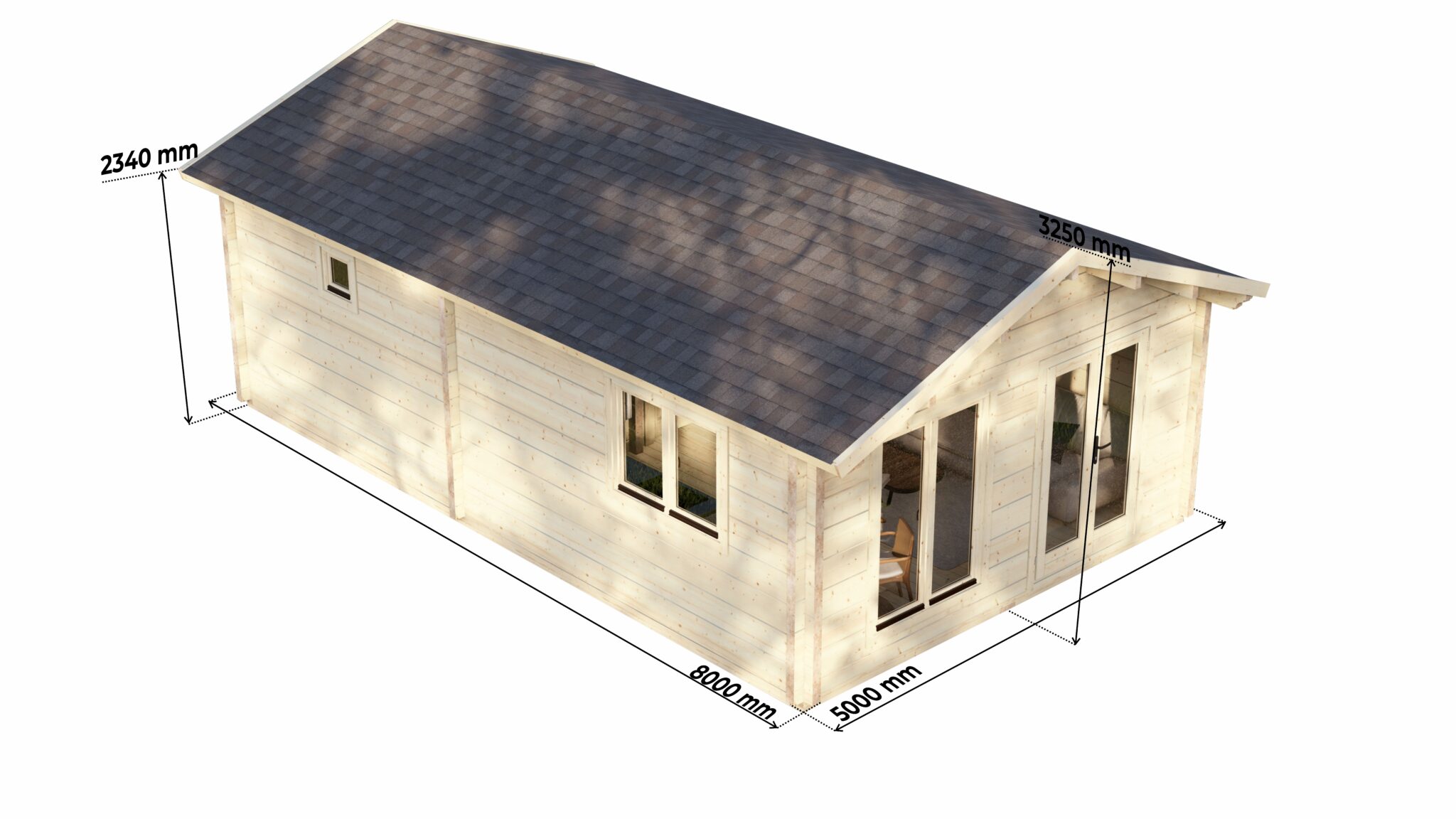

| External dimensions | 8 x 5 m |
| External footprint area | 40 m² |
| Eaves height | 234 cm |
| Ridge height | 325 cm |
| Storeys | 1 |
| Base | External footprint 8 x 5 m. Base type and size are confirmed for the specific model and site. |
| Structure | |
| Wall profile options | 70 x 130 mm, 88 x 260 mm, 135 x 260 mm, 180 x 260 mm or 220 x 260 mm glulam, chosen per project and budget |
| Corner system | Dovetail corner system available on the 88 to 220 mm glulam profiles, not on 70 x 130 mm |
| Construction | Interlocking tongue and groove joints |
| Timber | Glued-laminated timber |
| Storm brace and anchor set | Included |
| Floor | |
| Floor bearers | 13.5 x 13.5 cm glulam |
| Floor boards | 28 mm |
| Roof | |
| Roof type | Apex |
| Roof form | Apex |
| Roof boards | 19 mm tongue and groove boards |
| Doors and windows | |
| Doors | Double-Glazed Timber Joinery, Insulated Profile |
| Windows | Double-Glazed Timber Joinery, Insulated Profile |
| Scope of these figures | |
| Insulation | Eurodita supplies the timber structure prepared for insulation where required, not the insulation material. |
| Performance | These dimensions establish no thermal, fire, structural or certification performance. |
Add-ons & Customisation
Options for this model (branding, wall thickness, openings, insulation preparation, partitions, veranda) are listed on What is in a Eurodita kit and confirmed per order.
Need this in a different size?
This model is supplied as a 8 x 5 m footprint. If your customer needs a different layout, send a drawing. Eurodita will confirm whether the qualified bespoke route and factory scope fit the exact project. Partner branding is agreed per order.
- 1 Send a drawing A hand sketch can start the review. Mark known window and door positions, wall thickness and heights; Eurodita confirms any missing technical inputs.
- 2 Confirm the quotation scope If the enquiry fits, pricing and any CAD/3D or technical material are prepared to the agreed scope.
- 3 Review the agreed scope Revisions follow the quotation and project scope until written sign-off.
CAD/3D quotation material is prepared to the qualified project scope. Availability and timing are confirmed during qualification. Partner branding is applied where agreed; required manufacturer, legal and traceability information is retained.
Send a bespoke briefDimensions, wall thickness and opening positions are confirmed per project at quote stage. Bespoke production timing is confirmed at quotation stage. See published projects for built examples with dimensions and drawings, or review the rest of the mobile log homes range.
About This Mobile Log Home 1 Bed 8x5m
Product Overview
This one-bedroom mobile log home delivers 40m² of living space within a 8x5m footprint configured around UK Caravan Sites Act 1968 (as amended by SI 2006/2374) dimensional criteria for dealer and local-authority review. The design targets couples, single occupants, and granny annexe applications. The full-height 325cm ridge construction provides generous interior volume while remaining within transportable dimensions.
Layout & Configuration

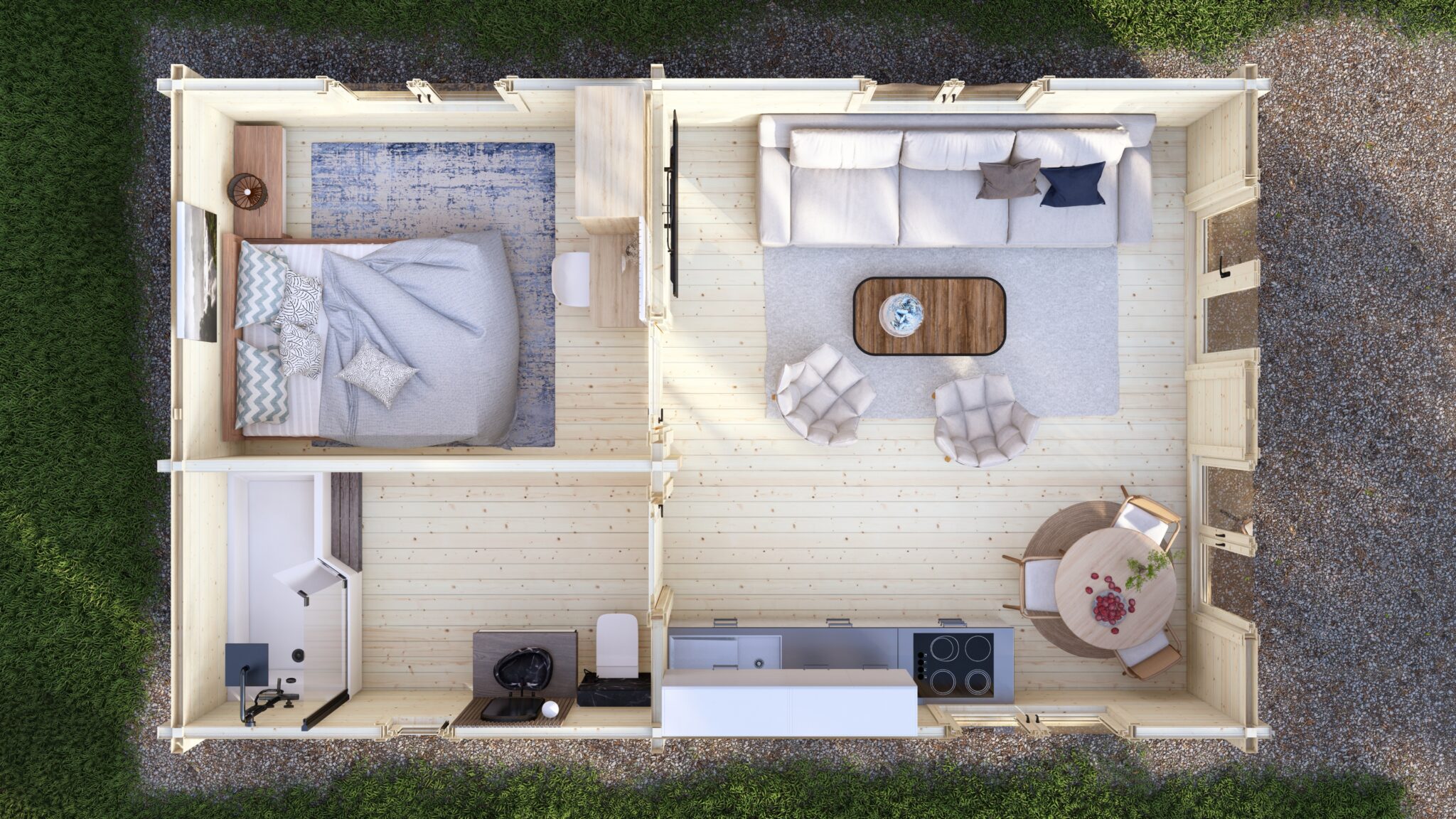

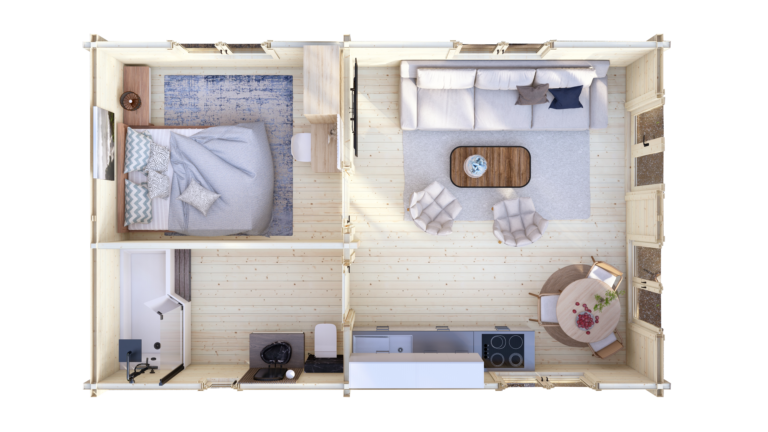

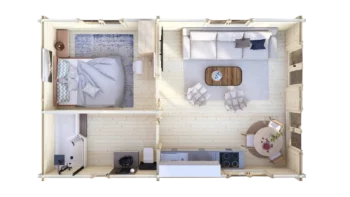

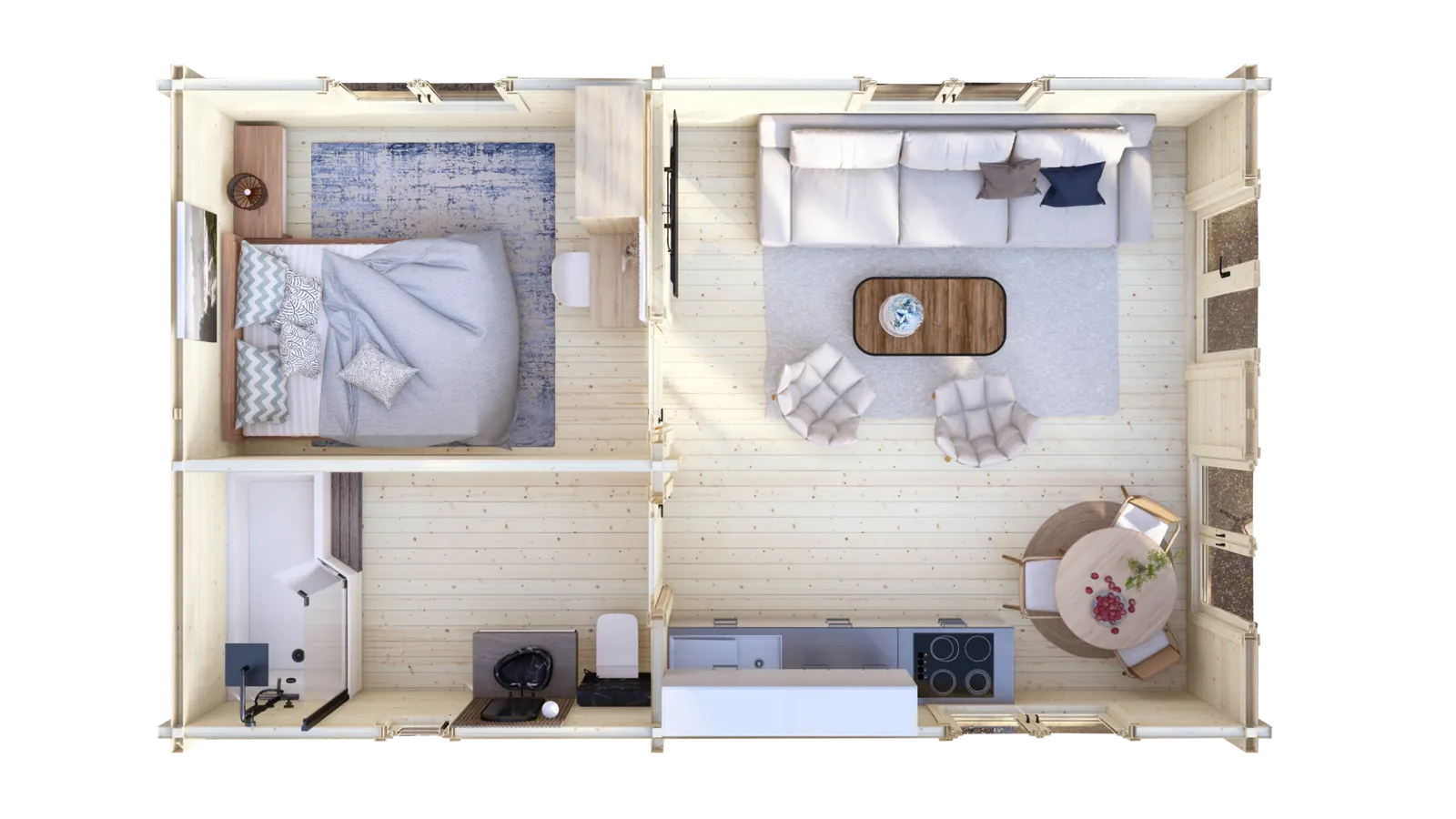

Internal configuration features dedicated bedroom quarters, integrated kitchen facilities, and separate sanitary accommodation. Open-plan living maximises the available floor area while maintaining distinct functional zones. The 234cm eaves height ensures comfortable headroom throughout, with sloped ceiling areas creating additional storage opportunities above partition walls.
Timber & Construction
Northern European timber forms 88mm thick exterior walls using precision-machined tongue-and-groove profiles for assembly integrity. Double-glazed timber joinery incorporates insulated door and window frames throughout. The interlocking joint system supports the planned insulation route and project weather-exposure review for extended-season project deployment.
Floor & Roof
Pressure-treated 13.5x13.5cm glulam floor bearers support 28mm floor boarding specified for project-use requirements. Roof construction utilises 19mm tongue-and-groove boards with integrated storm bracing systems. This specification supports assembly stability during transport planning and provides long-term durability under installation conditions.
Customisation Options
Wall thickness upgrades accommodate project-specific insulation requirements for northern European climates. Additional insulation packages, triple-glazing options, and internal partition modifications adapt the design to specific project requirements. Veranda extensions and custom door configurations support varied site applications and local planning constraints.
Manufacturing & Delivery
Production at Eurodita's Kaunas facility uses CNC machinery and kiln-dried Northern European timber components. Mobile home production timing is confirmed per order according to project specification. Bespoke modifications are reviewed at quote stage and routed into the confirmed production plan.
Private Label Partnership
Private-label manufacturing incorporates dealer branding across documentation, assembly guides, and customer communications. Partner programmes include 3D visualisation tools, showroom display models, and co-branded marketing materials. Technical specification sheets and warranty documentation reflect partner identity while maintaining Eurodita manufacturing standards.
Warranty & Support
Product, order and after-sales conditions are confirmed in writing for each project in the quotation, order confirmation and applicable product documentation. Please contact Eurodita for the documentation relevant to your confirmed order. Pressure-treated foundation elements resist moisture penetration and pest damage. Technical support includes detailed assembly documentation, component identification guides, and direct access to engineering consultation for site-specific installation challenges.
What should dealers verify before quoting Mobile Log Home 1 Bed 8x5m?
Eurodita manufactures Mobile Log Home 1 Bed 8x5m as an 88mm engineered glulam mobile log home for private-label B2B partners. Before quoting, dealers should confirm the project route against Eurodita's Mobile Log Homes B2B range, the BS 3632 project-review route where relevant, site-licence or local-authority checks, layout changes, services, documentation scope and EXW Kaunas logistics. Final specification suitability, siting route and approval remain with the dealer, site operator, local authority or appointed assessor.
