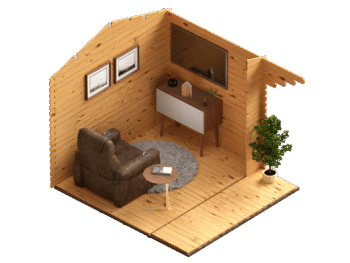

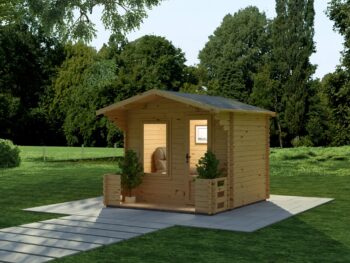

Log Shed MM004 2.5x2.8m
Log Shed MM004 2.5x2.8m is a log shed supplied as a building kit. It measures 2.5 x 2 m externally and has a terrace of 0.8 m; the external footprint without the terrace is 5 m².
Supplied to dealers, distributors and private-label brands; for private buyers the supply route is confirmed project by project.
Technical data sheet
Specification recorded for Log Shed MM004 2.5x2.8m. Dimensions are the building's external dimensions. A row appears only where a figure is recorded for this model.
| Building | |
|---|---|
| External dimensions | 2.5 x 2 m |
| Terrace | 0.8 m, in addition to the building's external dimensions |
| Eaves height | 185 cm |
| Ridge height | 220 cm |
| Base | External footprint 2.5 x 2 m, with the 0.8 m terrace in addition. Base type and size are confirmed for the specific model and site. |
| Structure | |
| Wall profile | 19 x 100 mm as standard |
| Other wall options | A solid log model can be made in any of the 28, 34, 44, 58 and 70 mm profiles; the profile is confirmed in the written quotation. |
| Construction | Interlocking tongue and groove joints |
| Timber | Northern European timber |
| Storm brace and anchor set | Included |
| Floor | |
| Floor bearers | Not supplied with this model |
| Floor boards | Not supplied with this model |
| Roof | |
| Roof boards | 19 mm tongue and groove boards |
| Doors and windows | |
| Doors | Single glazed |
| Windows | Single glazed |
| Scope of these figures | |
| Insulation | Eurodita supplies the timber structure prepared for insulation where required, not the insulation material. |
| Performance | These dimensions establish no thermal, fire, structural or certification performance. |
Add-ons & Customisation
Options for this model (branding, wall thickness, openings, insulation preparation, partitions, veranda) are listed on What is in a Eurodita kit and confirmed per order.
Need this in a different size?
This model is supplied as a 2.5 x 2 m footprint. If you need a different size or layout, send a drawing. Eurodita will confirm whether the bespoke route and the factory scope fit the project. Partner branding is agreed per order.
- 1 Send a drawing A hand sketch can start the review. Mark known window and door positions, wall thickness and heights; Eurodita confirms any missing technical inputs.
- 2 Confirm the quotation scope If the enquiry fits, pricing and any CAD/3D or technical material are prepared to the agreed scope.
- 3 Review the agreed scope Revisions follow the quotation and project scope until written sign-off.
CAD/3D quotation material is prepared to the qualified project scope. Availability and timing are confirmed during qualification. Partner branding is applied where agreed; required manufacturer, legal and traceability information is retained.
Send a bespoke briefDimensions, wall thickness and opening positions are confirmed per project at quote stage. Bespoke production timing is confirmed at quotation stage. See published projects for built examples with dimensions and drawings, or review the rest of the garden sheds range.
About This Log Shed MM004 2.5x2.8m
The model
Log Shed MM004 2.5x2.8m is a log shed supplied as a building kit. It measures 2.5 x 2 m externally and has a terrace of 0.8 m; the external footprint without the terrace is 5 m². The ridge height is 220 cm and the eaves height 185 cm. It is listed with the garden sheds.
Walls
The wall logs are solid, of the 19 x 100 mm profile: each log is 19 mm thick and 100 mm high, with tongue and groove along its length and interlocking corner joints. Wall logs are supplied untreated by default. This model can also be made with 28, 34, 44, 58 or 70 mm wall logs, and the profile is confirmed in the written quotation. The profiles are set out on wall thickness and glulam profiles.
Floor and roof
The model is supplied without a floor. The roof is boarded with 19 mm tongue and groove boards. A storm brace and anchor set is included.
Doors and windows
Doors and windows are single-glazed timber joinery, made by Eurodita.
What can be changed
Size, layout and the positions of doors and windows can be changed for an order. Send a sketch or a drawing: the written quotation is prepared in the Eurodita design and estimator system, with 2D drawings and a 3D visualisation. Cable channels are machined in the wall logs where the order specifies them. More on bespoke orders.
Supply
The kit is quoted in writing and supplied EXW from the Eurodita factory. Installation and how it is organised is agreed per project; foundations, utilities and approvals stay with the local team of the buyer. What the kit holds is set out on What is in a Eurodita kit.
