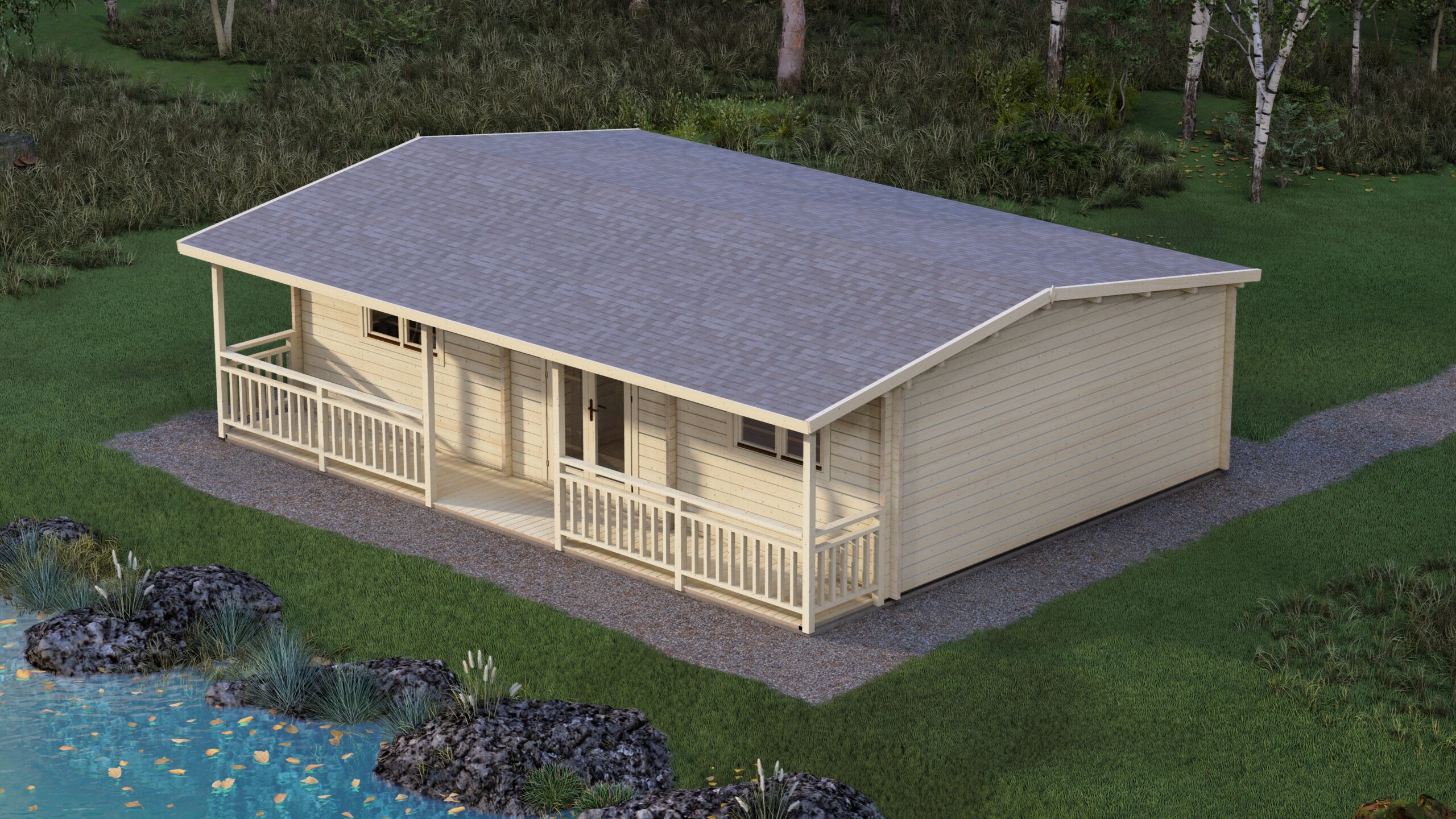

Log Cabin Stonepine 9.5×7.2m, 58mm
Designed for contractors and developers requiring a substantial two-bedroom project-specific layout, the Stonepine delivers 68.4 square metres of usable internal floor area with integral terrace.
Supplied to dealers, developers and private-label partners; larger homes are also supplied directly to private clients.
Technical data sheet
Specification recorded for Log Cabin Stonepine 9.5x7.2m, 58mm. Dimensions are the building's external dimensions. A row appears only where a figure is recorded for this model.

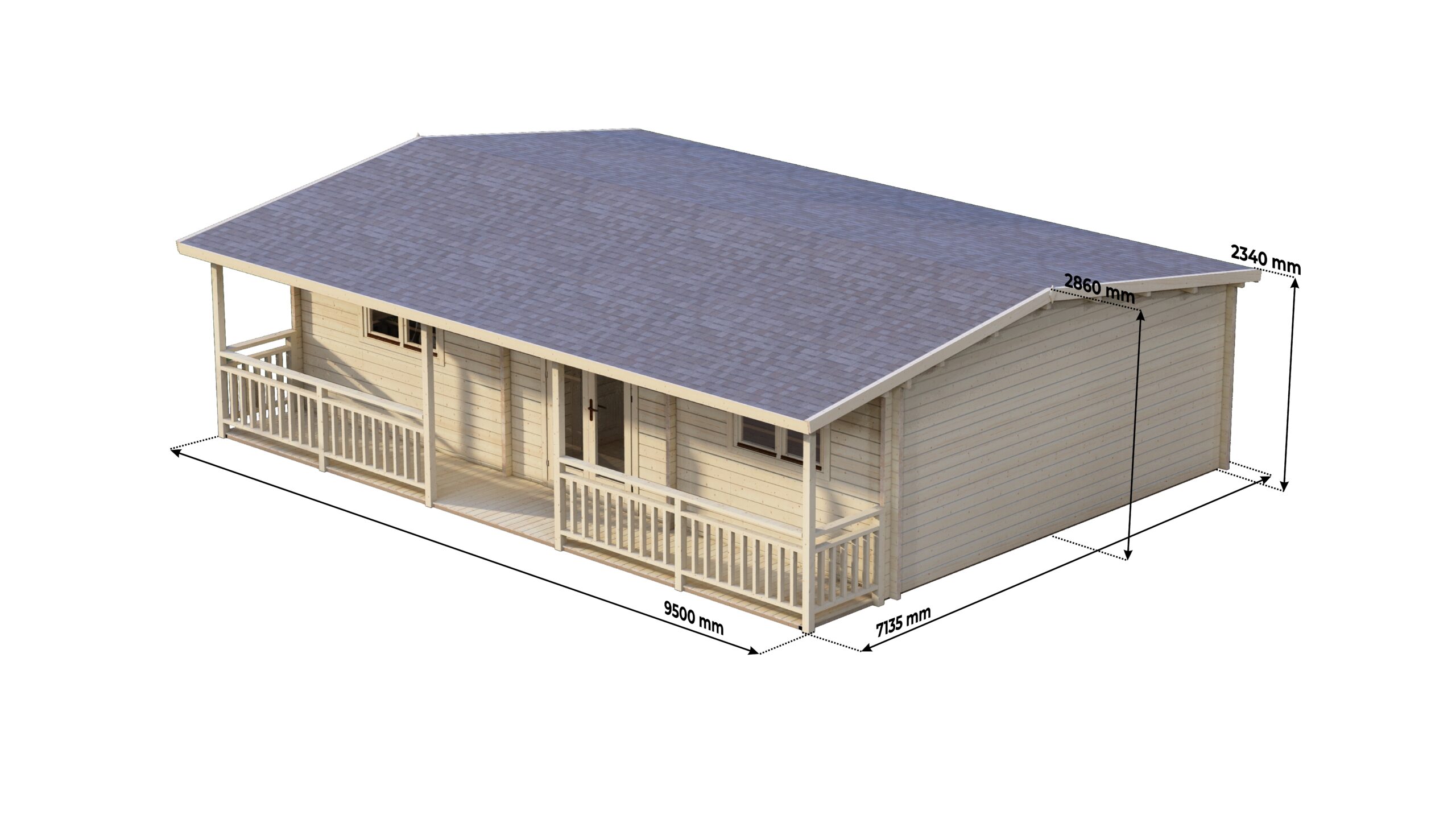

| Building | |
|---|---|
| External dimensions | 9.5 x 6 m |
| Terrace | 1.2 m, in addition to the building's external dimensions |
| Eaves height | 234 cm |
| Ridge height | 286 cm |
| Storeys | 1 |
| Base | External footprint 9.5 x 6 m, with the 1.2 m terrace in addition. Base type and size are confirmed for the specific model and site. |
| Structure | |
| Wall profile | 58 x 130 mm as standard |
| Other wall options | Other approved solid wall profiles can be specified to suit the project and budget. |
| Construction | Interlocking tongue and groove joints |
| Timber | Northern European timber |
| Storm brace and anchor set | Included |
| Floor | |
| Floor bearers | Impregnated as standard |
| Floor boards | 28 mm |
| Roof | |
| Roof boards | 19 mm tongue and groove boards |
| Doors and windows | |
| Doors | Double-Glazed Timber Joinery, Standard Profile |
| Windows | Double-Glazed Timber Joinery, Standard Profile |
| Scope of these figures | |
| Insulation | Eurodita supplies the timber structure prepared for insulation where required, not the insulation material. |
| Performance | These dimensions establish no thermal, fire, structural or certification performance. |
Add-ons & Customisation
Options for this model (branding, wall thickness, openings, insulation preparation, partitions, veranda) are listed on What is in a Eurodita kit and confirmed per order.
Need this in a different size?
This model is supplied as a 9.5 x 6 m footprint, 58 mm wall profile. If your customer needs a different layout, send a drawing. Eurodita will confirm whether the qualified bespoke route and factory scope fit the exact project. Partner branding is agreed per order.
- 1 Send a drawing A hand sketch can start the review. Mark known window and door positions, wall thickness and heights; Eurodita confirms any missing technical inputs.
- 2 Confirm the quotation scope If the enquiry fits, pricing and any CAD/3D or technical material are prepared to the agreed scope.
- 3 Review the agreed scope Revisions follow the quotation and project scope until written sign-off.
CAD/3D quotation material is prepared to the qualified project scope. Availability and timing are confirmed during qualification. Partner branding is applied where agreed; required manufacturer, legal and traceability information is retained.
Send a bespoke briefDimensions, wall thickness and opening positions are confirmed per project at quote stage. Bespoke production timing is confirmed at quotation stage. See published projects for built examples with dimensions and drawings, or review the rest of the 2 bedroom log cabins range.
About This Log Cabin Stonepine 9.5×7.2m, 58mm
Product Overview
Designed for contractors and developers requiring a substantial two-bedroom project-specific layout, the Stonepine delivers 68.4 square metres of usable internal floor area with integral terrace. This family-sized configuration suits extended-season use projects, combining 9.5x6m main structure with 1.2m covered outdoor area for comprehensive dealer-led development applications.
Layout & Configuration

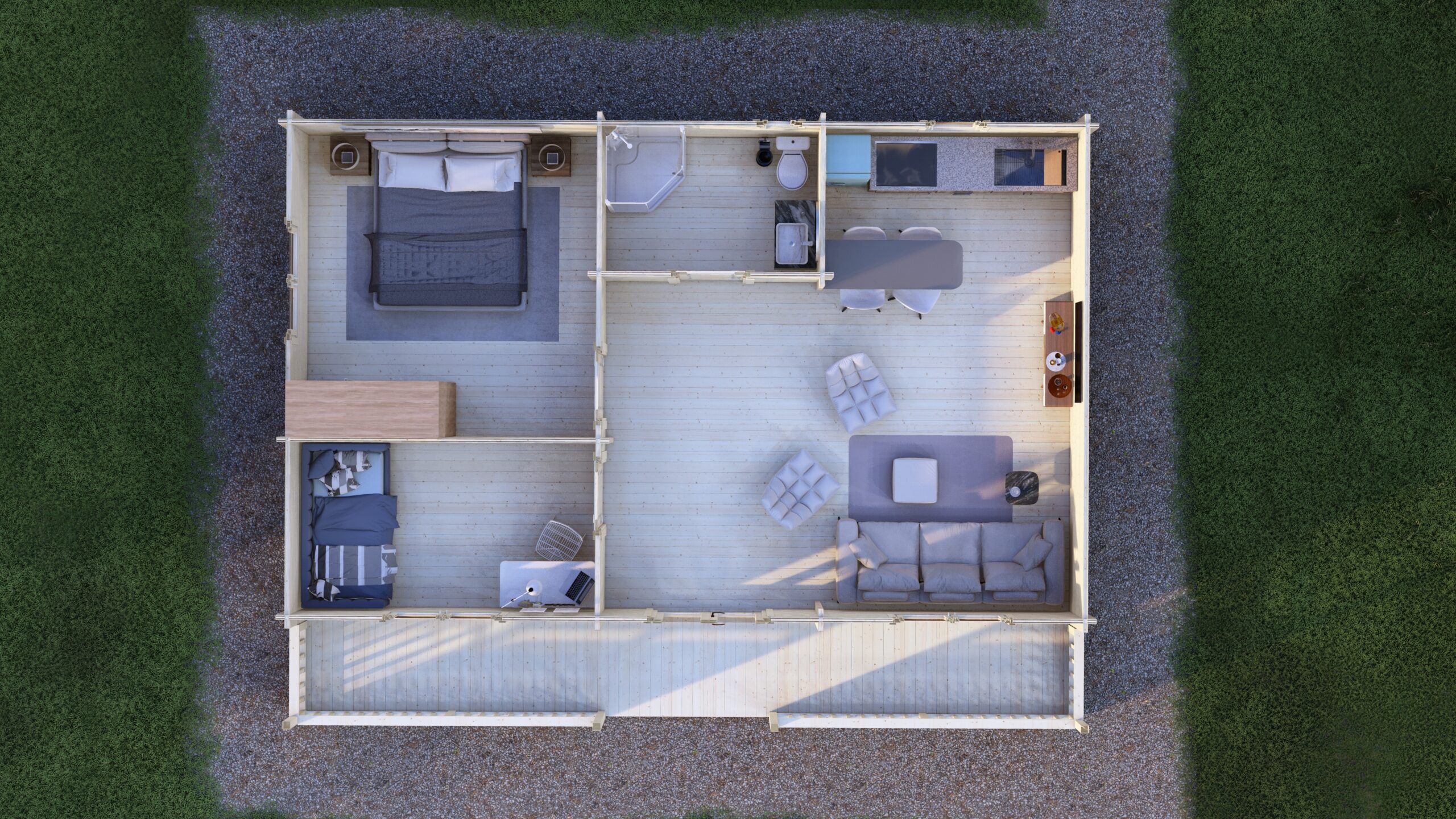

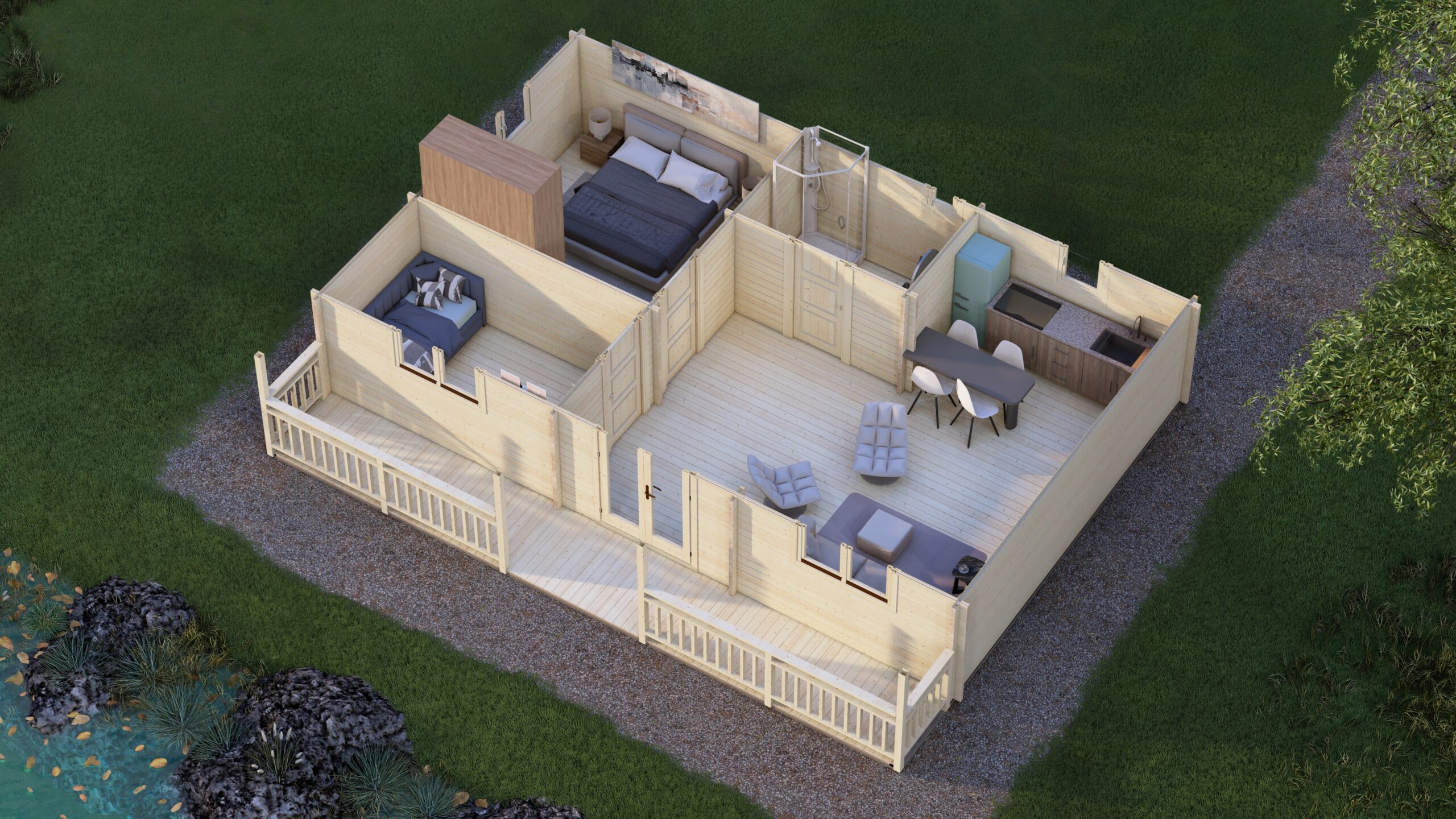

Open-plan interior maximises the generous footprint with flexible partition possibilities for two-bedroom configuration. 234cm eaves height provides comfortable ceiling clearance throughout, while the pitched roof design reaching 286cm ridge height creates potential for mezzanine installations or enhanced storage solutions within the primary living areas.
Timber & Construction
Northern European timber construction incorporates 58mm wall thickness for enhanced thermal specification and assembly stability. Strong interlocking tongue-and-groove joints ensure weather-tight assembly, while double-glazed timber joinery throughout maintains consistent material specification. Standard profile doors and windows provide reliable sealing performance for project-specific private-property applications.
Floor & Roof
28mm floor boards span pressure-treated bearers for moisture resistance and structural stability. Roof construction features 19mm tongue-and-groove boards providing solid deck foundation for weather-protection systems. Storm bracing components are included, with wind-exposure and loading suitability reviewed through project documentation where required for project-specific residential installations.
Customisation Options
Wall-thickness and insulation upgrades are confirmed at quotation stage for the product family, target use and destination-market review. Triple-glazed window specifications, insulation packages, and interior partition kits accommodate varied thermal requirements. Veranda extensions and covered terrace modifications enable tailored outdoor living configurations to match specific site requirements and planning constraints.
Manufacturing & Delivery
The Eurodita factory is dimensioned for 150,000 m³ of timber a year. Production allocation and the included material scope are confirmed in the written quotation. Freight route and final delivery timing are agreed per order in the written quotation. Eurodita standard terms are EXW from the Eurodita factory. Complete kit includes all structural components, joinery, and hardware for efficient contractor assembly and project completion.
Private Label Partnership
Private-label capability enables dealer branding across all documentation and client communications. 3D visualisation services support sales presentations, while comprehensive technical specifications facilitate planning applications. Any showroom or marketing-support materials are confirmed case by case for each dealer order.
What should dealers confirm before quoting Log Cabin Stonepine 9.5×7.2m, 58mm?
Eurodita supplies Log Cabin Stonepine 9.5×7.2m, 58mm as a private-label B2B residential log cabin with a 9.5x6m + 1.2m Terrace footprint and 58mm Northern European timber wall specification. Before quoting, dealers should confirm the quote stage package, layout, openings, selected wall or insulation scope, foundation interface, unloading access, EXW release or freight route from the Eurodita factory, private-label documentation, and local-authority planning or site-use review requirements.
Product, order and after-sales conditions are confirmed in writing for each project in the quotation, order confirmation and applicable product documentation. Please contact Eurodita for the documentation relevant to your confirmed order.
