Log Cabin Joshua 6x3m, 44mm

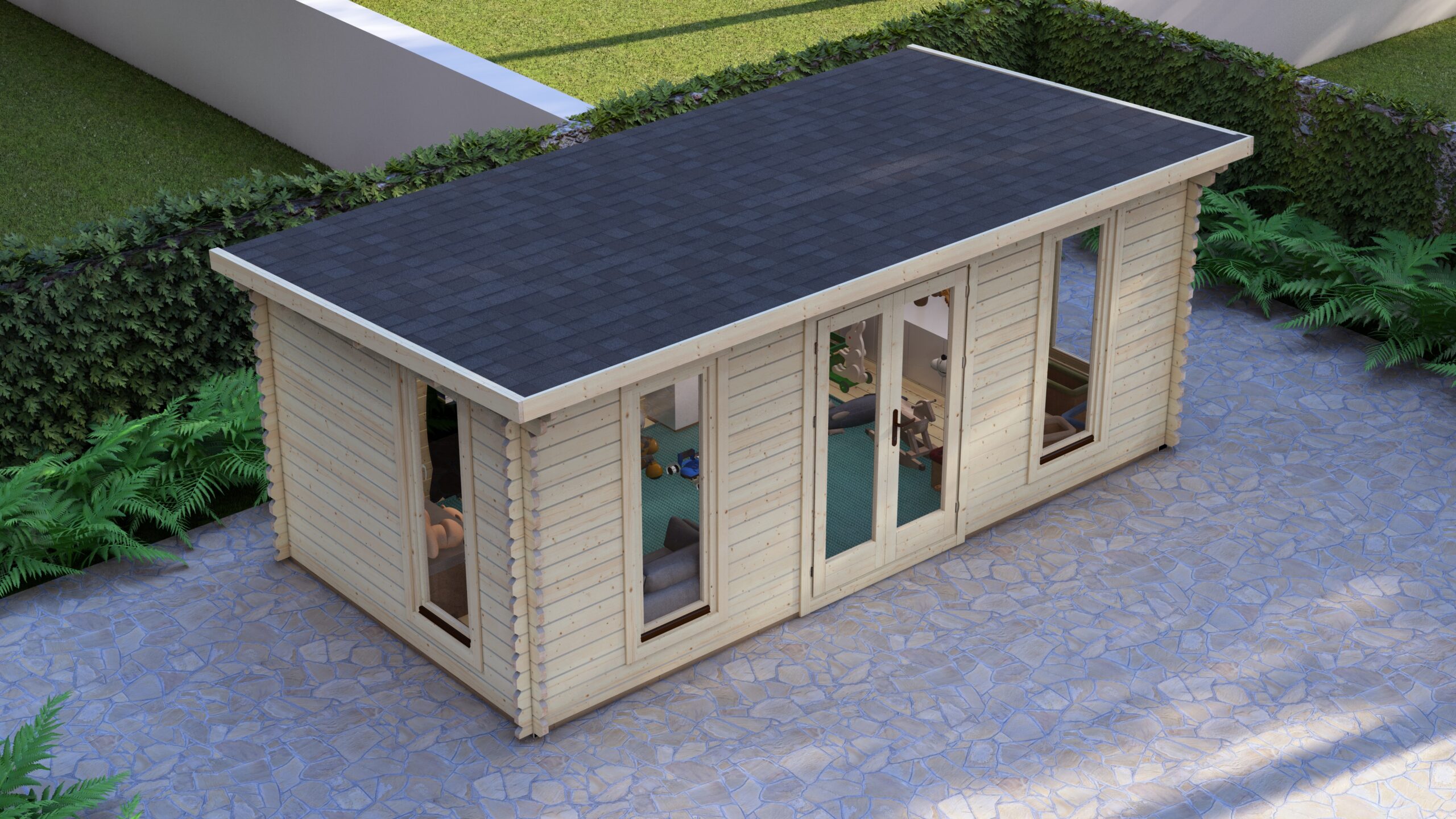

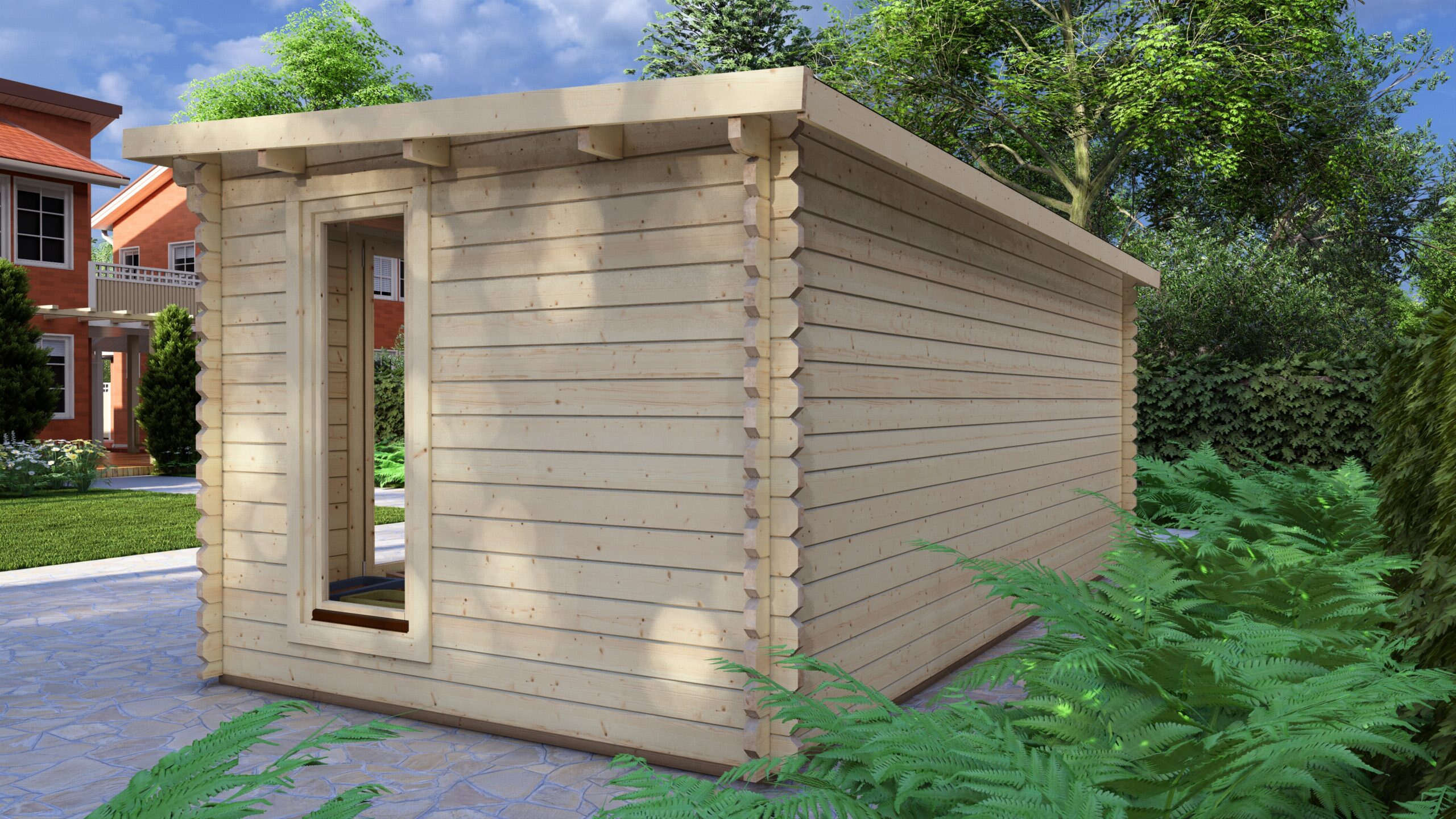

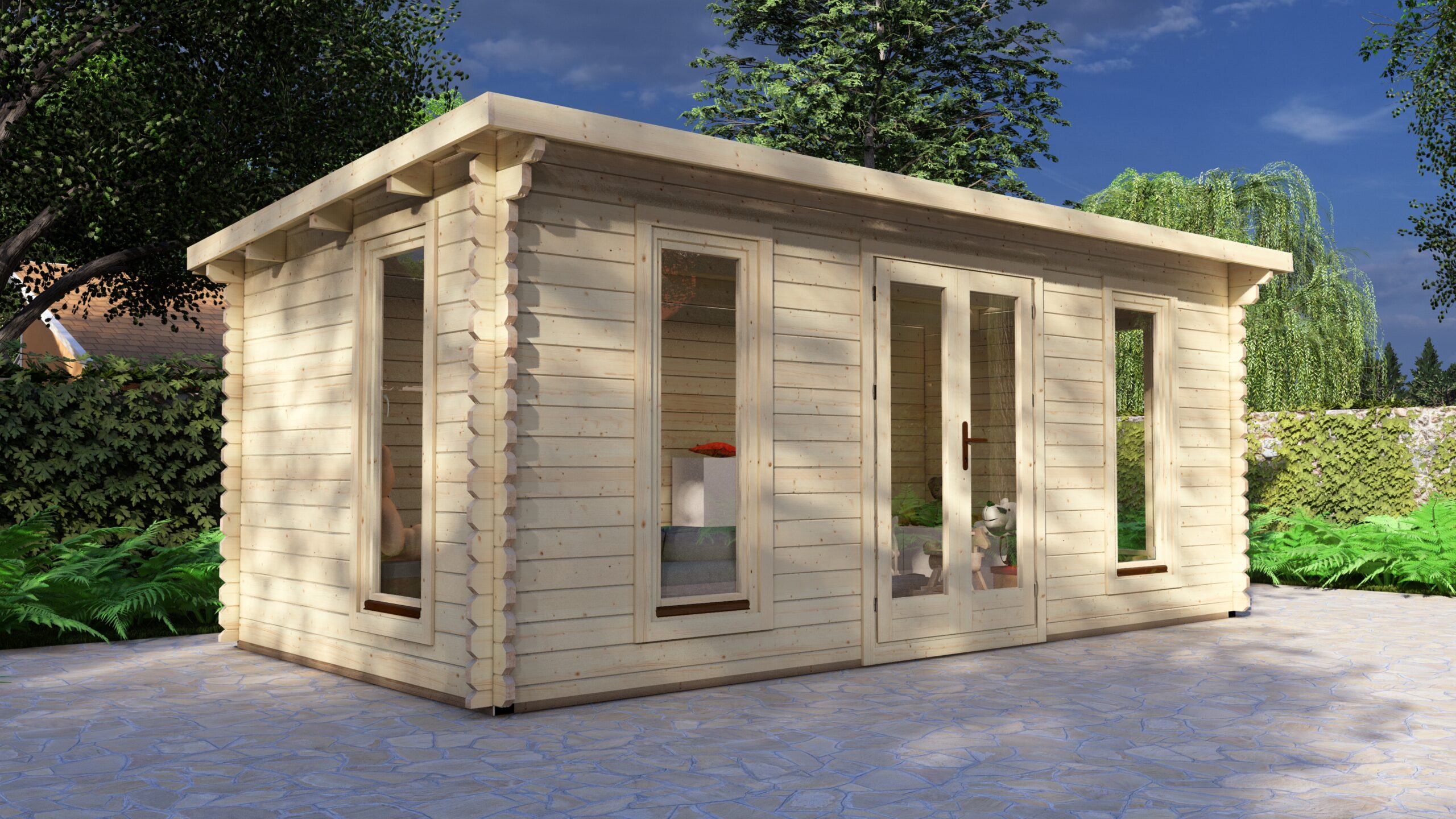

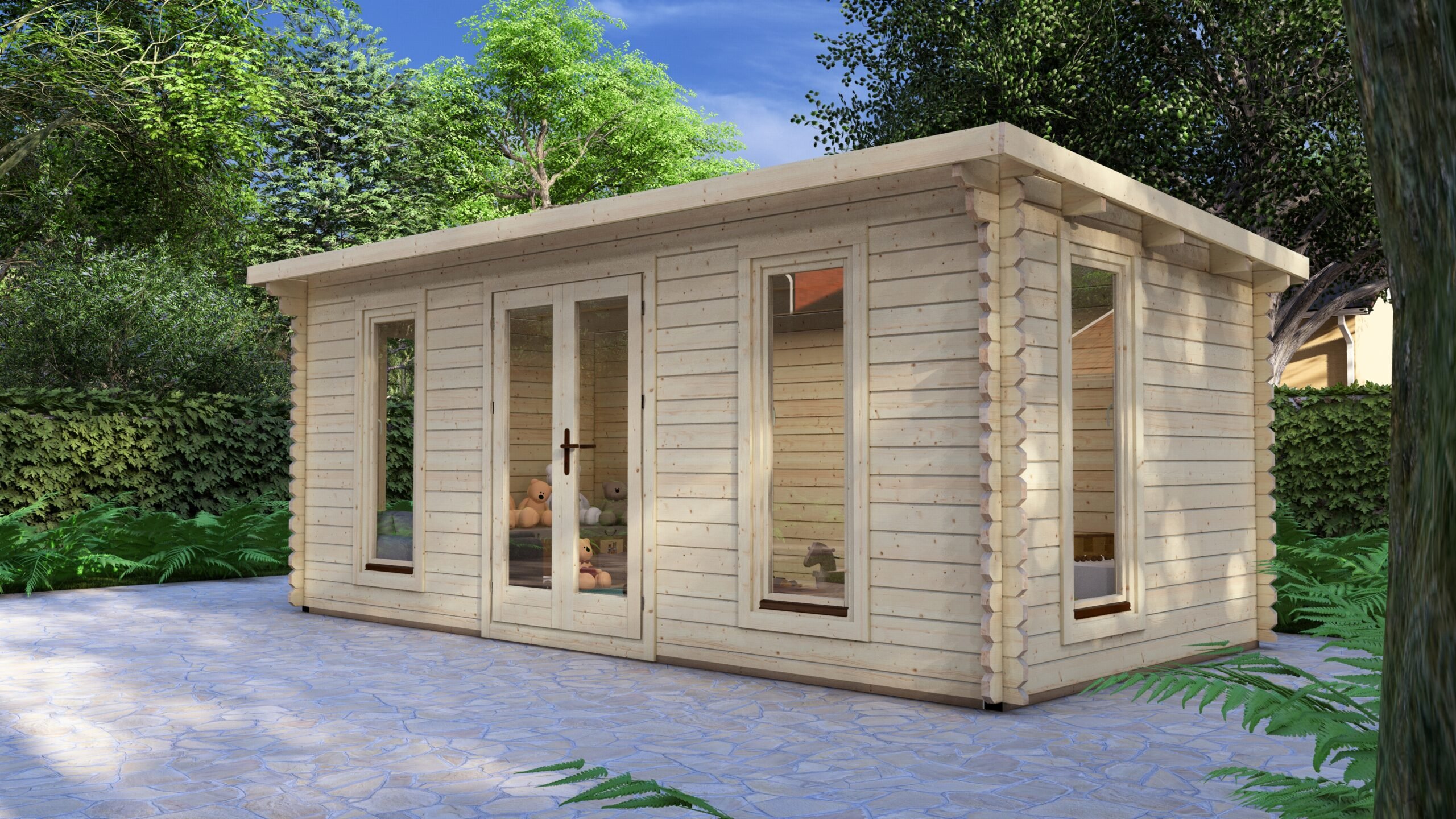

Log Cabin Joshua 6x3m is a garden log cabin supplied as a building kit. It measures 6 x 3 m externally, an external footprint of 18 m².
Supplied to dealers, distributors and private-label brands; for private buyers the supply route is confirmed project by project.
Technical data sheet
Specification recorded for Log Cabin Joshua 6x3m, 44mm. Dimensions are the building's external dimensions. A row appears only where a figure is recorded for this model.
| Building | |
|---|---|

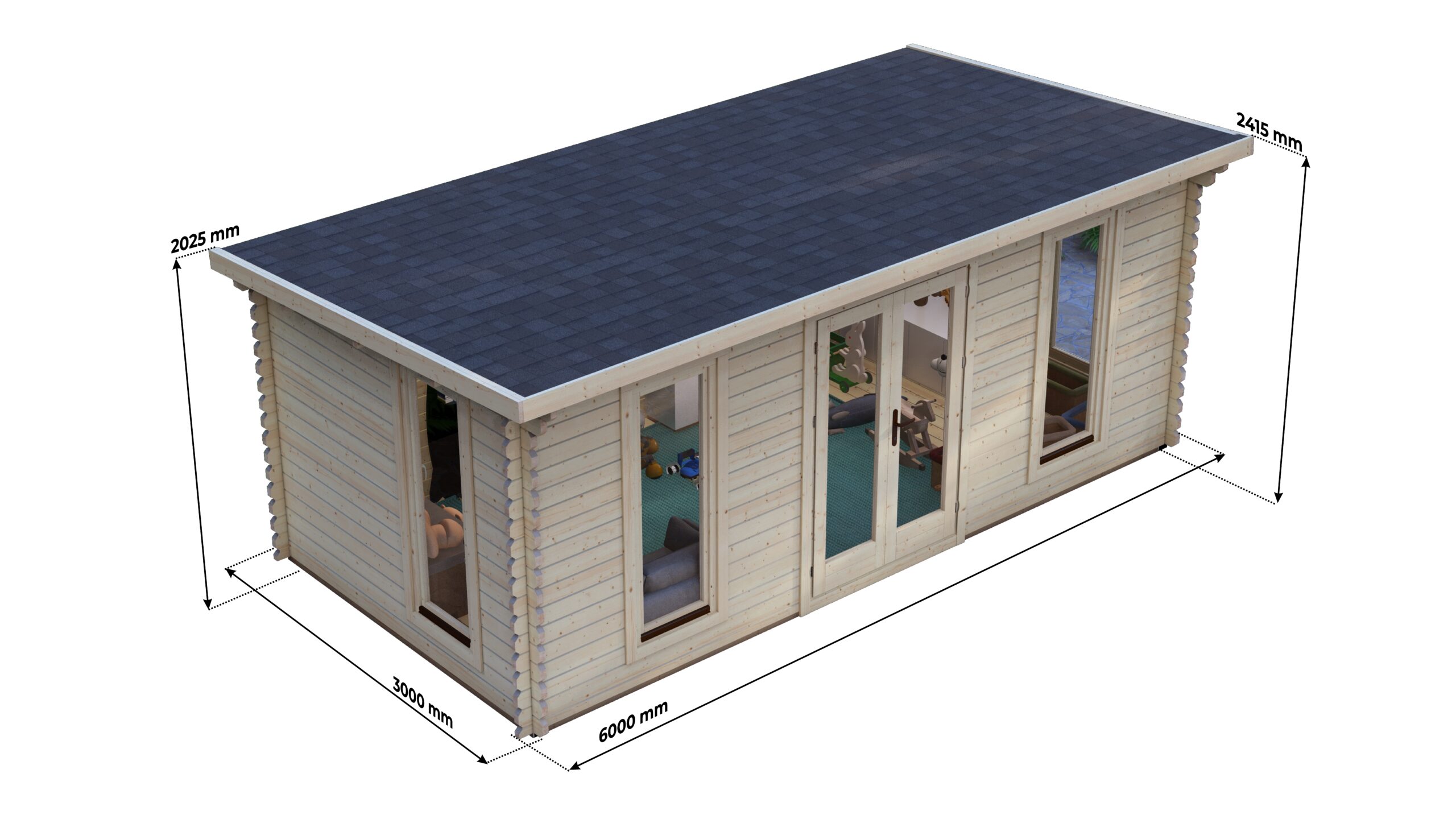

| External dimensions | 6 x 3 m |
| External footprint area | 18 m² |
| Eaves height | 202 cm |
| Ridge height | 241 cm |
| Storeys | 1 |
| Base | External footprint 6 x 3 m. Base type and size are confirmed for the specific model and site. |
| Structure | |
| Wall profile | 44 x 130 mm as standard |
| Other wall options | A solid log model can be made in any of the 28, 34, 44, 58 and 70 mm profiles; the profile is confirmed in the written quotation. |
| Construction | Interlocking tongue and groove joints |
| Timber | Northern European timber |
| Storm brace and anchor set | Included |
| Floor | |
| Floor bearers | Impregnated as standard |
| Floor boards | 28 mm |
| Roof | |
| Roof boards | 19 mm tongue and groove boards |
| Doors and windows | |
| Doors | Double-Glazed Timber Joinery, Standard Profile |
| Windows | Double-Glazed Timber Joinery, Standard Profile |
| Scope of these figures | |
| Insulation | Eurodita supplies the timber structure prepared for insulation where required, not the insulation material. |
| Performance | These dimensions establish no thermal, fire, structural or certification performance. |
Add-ons & Customisation
Options for this model (branding, wall thickness, openings, insulation preparation, partitions, veranda) are listed on What is in a Eurodita kit and confirmed per order.
Need this in a different size?
This model is supplied as a 6 x 3 m footprint, 44 mm wall profile. If you need a different size or layout, send a drawing. Eurodita will confirm whether the bespoke route and the factory scope fit the project. Partner branding is agreed per order.
- 1 Send a drawing A hand sketch can start the review. Mark known window and door positions, wall thickness and heights; Eurodita confirms any missing technical inputs.
- 2 Confirm the quotation scope If the enquiry fits, pricing and any CAD/3D or technical material are prepared to the agreed scope.
- 3 Review the agreed scope Revisions follow the quotation and project scope until written sign-off.
CAD/3D quotation material is prepared to the qualified project scope. Availability and timing are confirmed during qualification. Partner branding is applied where agreed; required manufacturer, legal and traceability information is retained.
Send a bespoke briefDimensions, wall thickness and opening positions are confirmed per project at quote stage. Bespoke production timing is confirmed at quotation stage. See published projects for built examples with dimensions and drawings, or review the rest of the wooden summer houses range.
About This Log Cabin Joshua 6x3m, 44mm
The model
Log Cabin Joshua 6x3m is a garden log cabin supplied as a building kit. It measures 6 x 3 m externally, an external footprint of 18 m². The ridge height is 241 cm and the eaves height 202 cm. It has one storey. It is listed with the wooden summer houses.
Layout

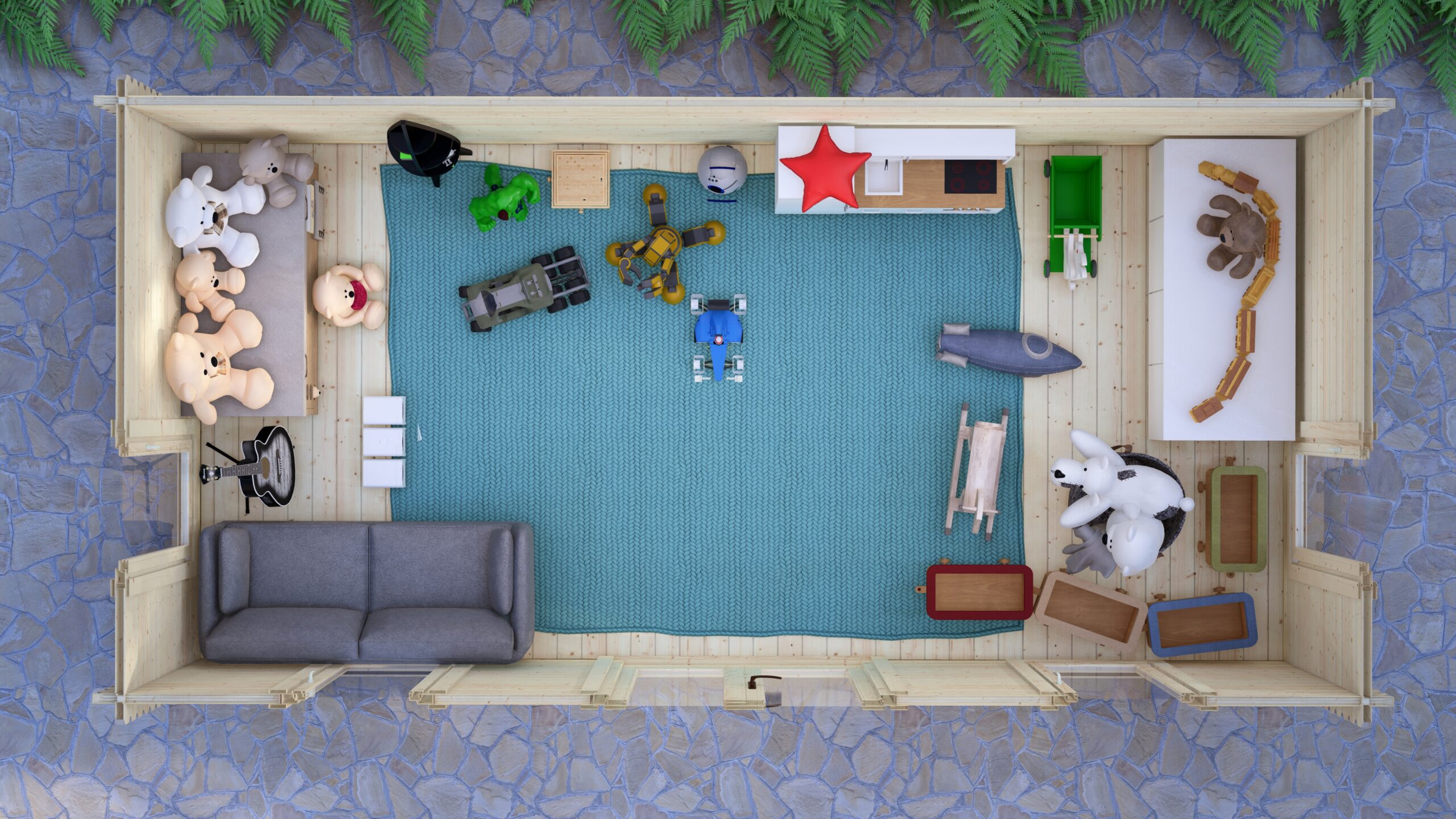

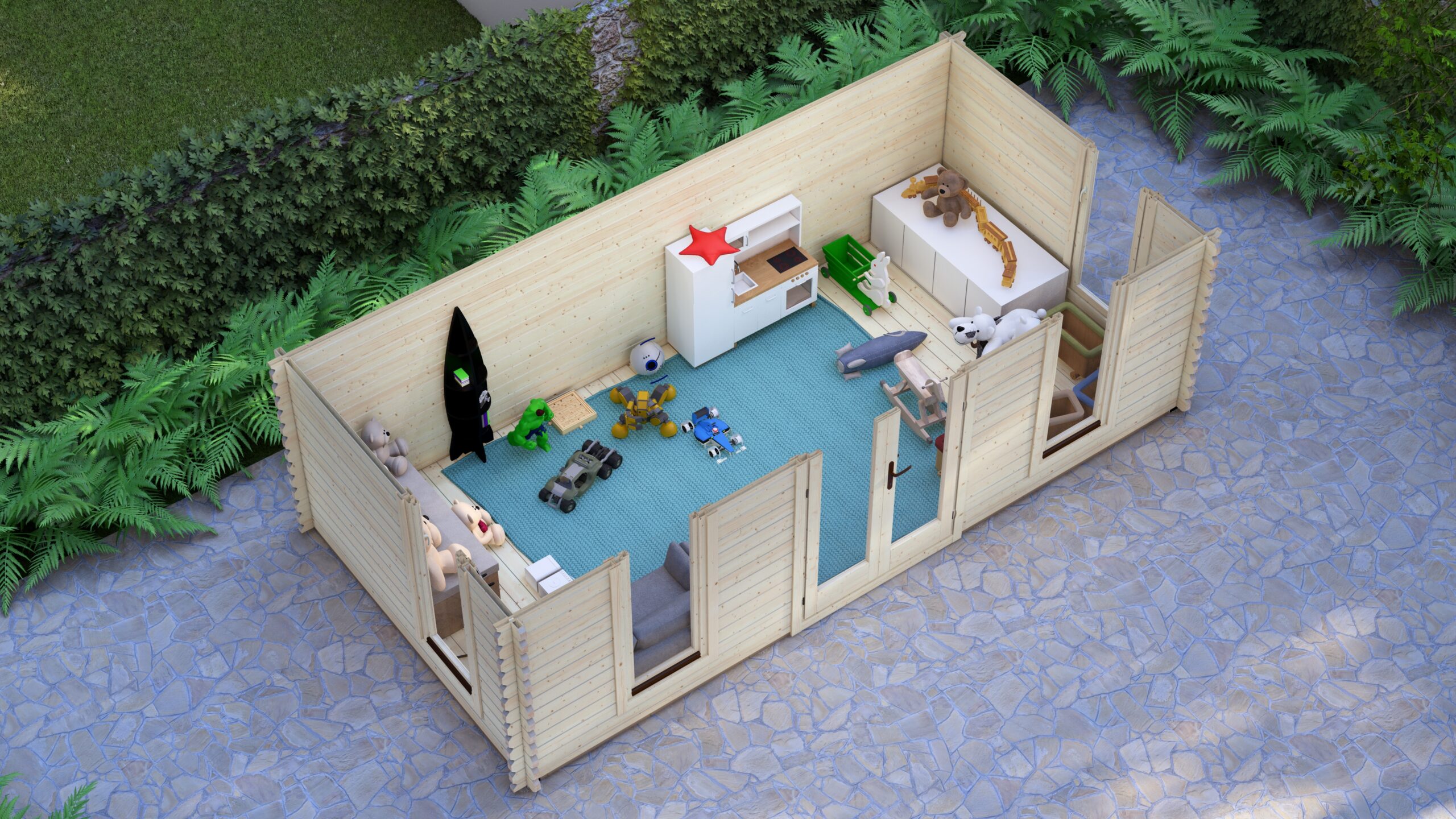

The plan drawing shows one room without inner walls.
Walls
The wall logs are solid, of the 44 x 130 mm profile: each log is 44 mm thick and 130 mm high, with tongue and groove along its length and interlocking corner joints. Wall logs are supplied untreated by default. This model can also be made with 28, 34, 58 or 70 mm wall logs, and the profile is confirmed in the written quotation. The profiles are set out on wall thickness and glulam profiles.
Floor and roof
The floor is 28 mm floorboards on floor bearers that are impregnated as standard. The roof is boarded with 19 mm tongue and groove boards. A storm brace and anchor set is included.

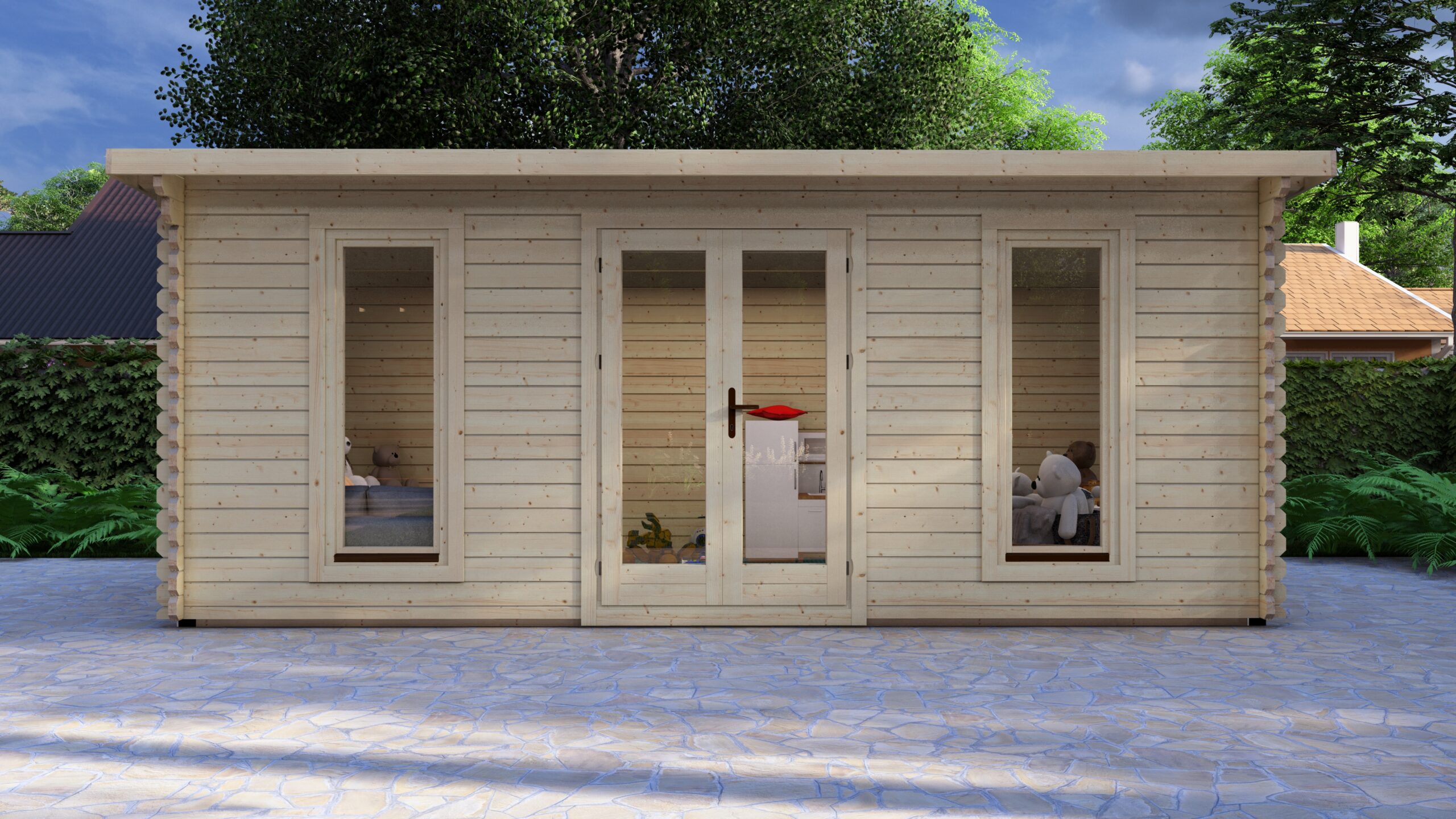

Doors and windows
Doors and windows are double-glazed timber joinery with a standard profile, made by Eurodita.
What can be changed
Size, layout and the positions of doors and windows can be changed for an order. Send a sketch or a drawing: the written quotation is prepared in the Eurodita design and estimator system, with 2D drawings and a 3D visualisation. Cable channels are machined in the wall logs where the order specifies them. More on bespoke orders.
Supply
The kit is quoted in writing and supplied EXW from the Eurodita factory. Installation and how it is organised is agreed per project; foundations, utilities and approvals stay with the local team of the buyer. What the kit holds is set out on What is in a Eurodita kit.
