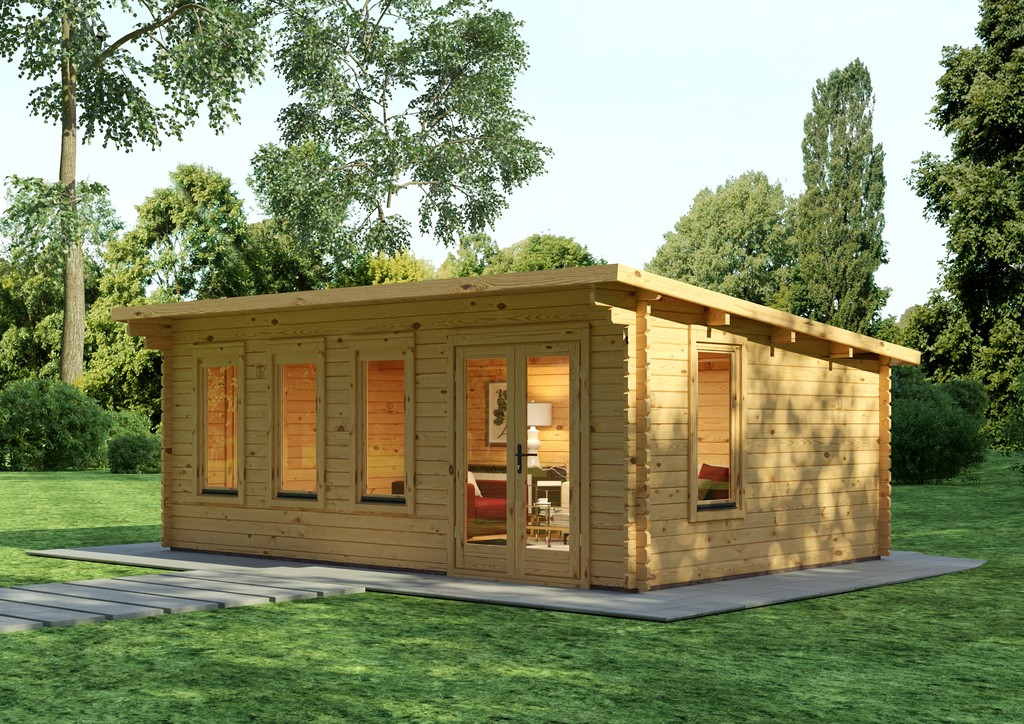

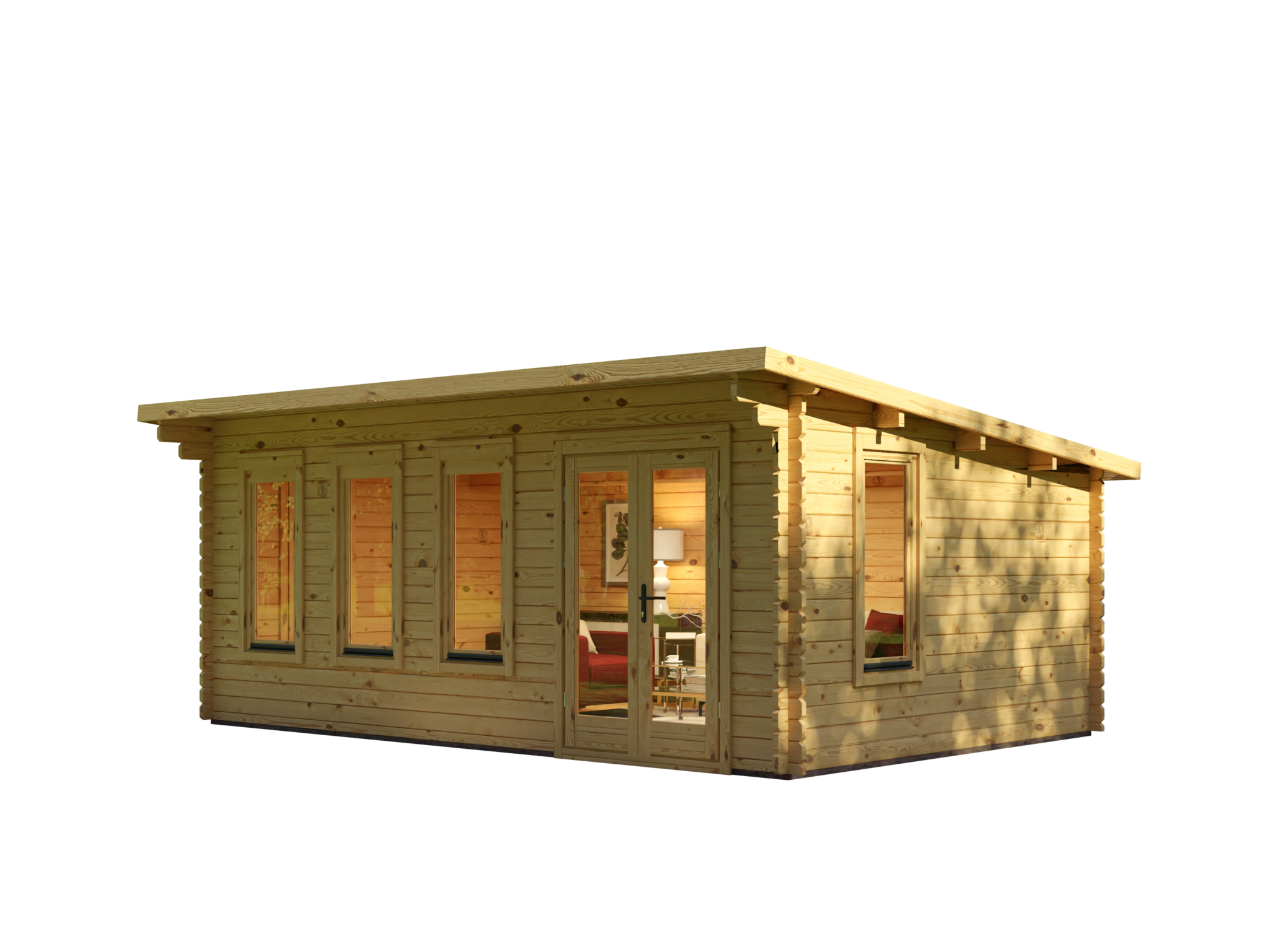

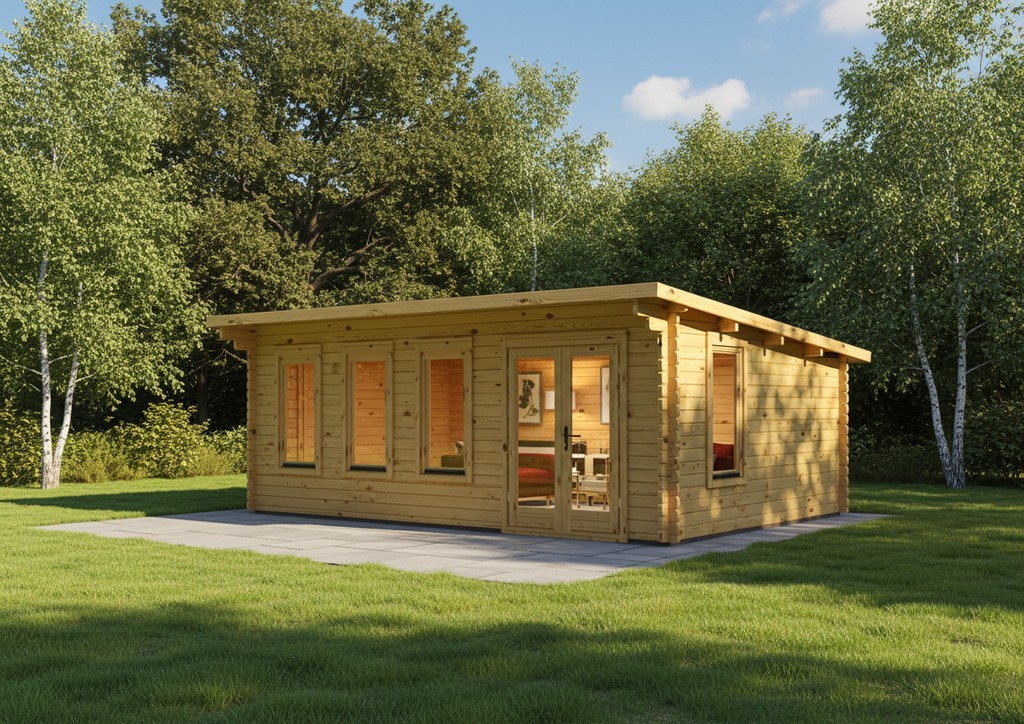

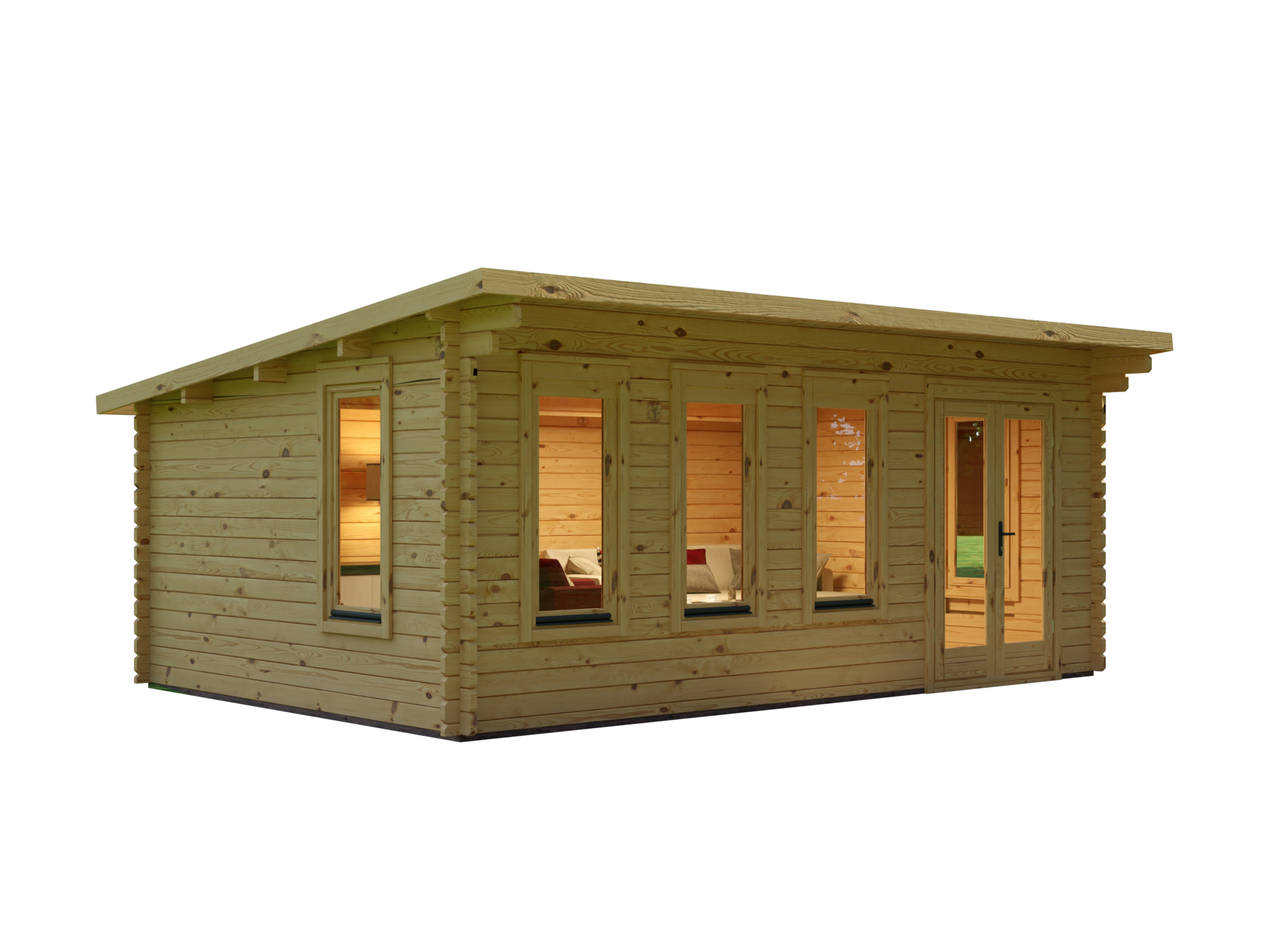

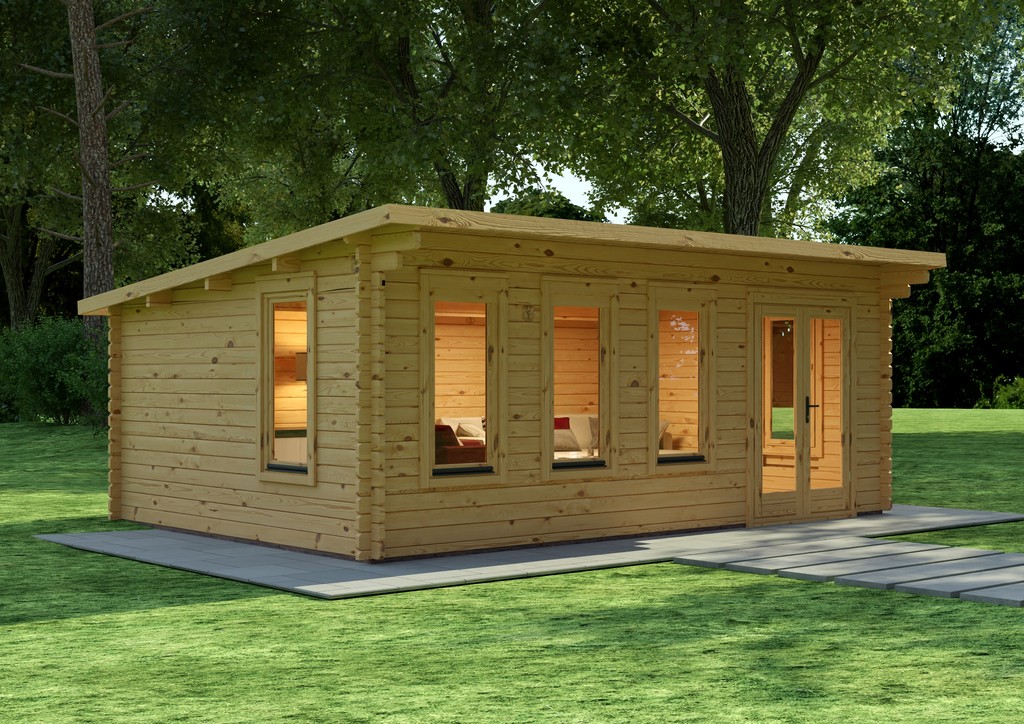

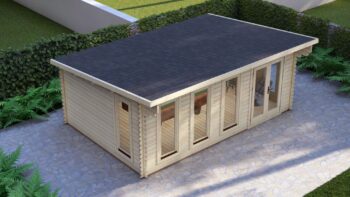

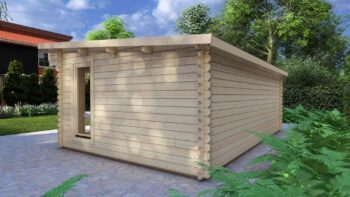

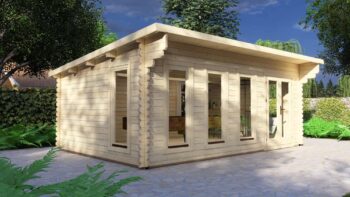

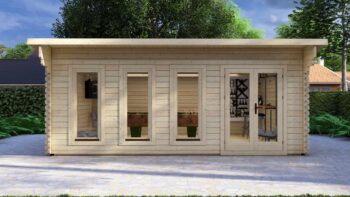

Log Cabin Dylan 6x4m, 44mm
The Dylan 6x4m log cabin delivers substantial interior space within a compact footprint. Built with 44mm Northern European timber walls, this garden cabins suits customers requiring extended-season or project-specific thermal specification.
Technical data sheet
Specification recorded for Log Cabin Dylan 6x4m, 44mm. Dimensions are the building's external dimensions. A row appears only where a figure is recorded for this model.
| Building | |
|---|---|

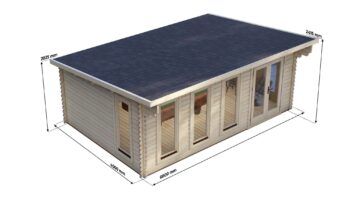

| External dimensions | 6 x 4 m |
| External footprint area | 24 m² |
| Eaves height | 202 cm |
| Ridge height | 241 cm |
| Storeys | 1 |
| Base | External footprint 6 x 4 m. Base type and size are confirmed for the specific model and site. |
| Structure | |
| Wall profile | 44 x 130 mm as standard |
| Other wall options | Other approved solid wall profiles can be specified to suit the project and budget. |
| Construction | Interlocking tongue and groove joints |
| Timber | Northern European timber |
| Storm brace and anchor set | Included |
| Floor | |
| Floor bearers | Impregnated as standard |
| Floor boards | 28 mm |
| Roof | |
| Roof type | Apex |
| Roof boards | 19 mm tongue and groove boards |
| Doors and windows | |
| Doors | Double-Glazed Timber Joinery, Standard Profile |
| Windows | Double-Glazed Timber Joinery, Standard Profile |
| Scope of these figures | |
| Insulation | Eurodita supplies the timber structure prepared for insulation where required, not the insulation material. |
| Performance | These dimensions establish no thermal, fire, structural or certification performance. |
Add-ons & Customisation
Options for this model (branding, wall thickness, openings, insulation preparation, partitions, veranda) are listed on What is in a Eurodita kit and confirmed per order.
Need this in a different size?
This model is supplied as a 6 x 4 m footprint, 44 mm wall profile. If your customer needs a different layout, send a drawing. Eurodita will confirm whether the qualified bespoke route and factory scope fit the exact project. Partner branding is agreed per order.
- 1 Send a drawing A hand sketch can start the review. Mark known window and door positions, wall thickness and heights; Eurodita confirms any missing technical inputs.
- 2 Confirm the quotation scope If the enquiry fits, pricing and any CAD/3D or technical material are prepared to the agreed scope.
- 3 Review the agreed scope Revisions follow the quotation and project scope until written sign-off.
CAD/3D quotation material is prepared to the qualified project scope. Availability and timing are confirmed during qualification. Partner branding is applied where agreed; required manufacturer, legal and traceability information is retained.
Send a bespoke briefDimensions, wall thickness and opening positions are confirmed per project at quote stage. Bespoke production timing is confirmed at quotation stage. See published projects for built examples with dimensions and drawings, or review the rest of the garden log cabins range.
About This Log Cabin Dylan 6x4m, 44mm
Product Overview
The Dylan 6x4m log cabin delivers substantial interior space within a compact footprint. Built with 44mm Northern European timber walls, this garden cabins suits customers requiring extended-season or project-specific thermal specification. Contractors and developers specify this model for garden offices, workshops, and seasonal accommodation applications where consistent indoor climate control remains essential.
Layout & Configuration

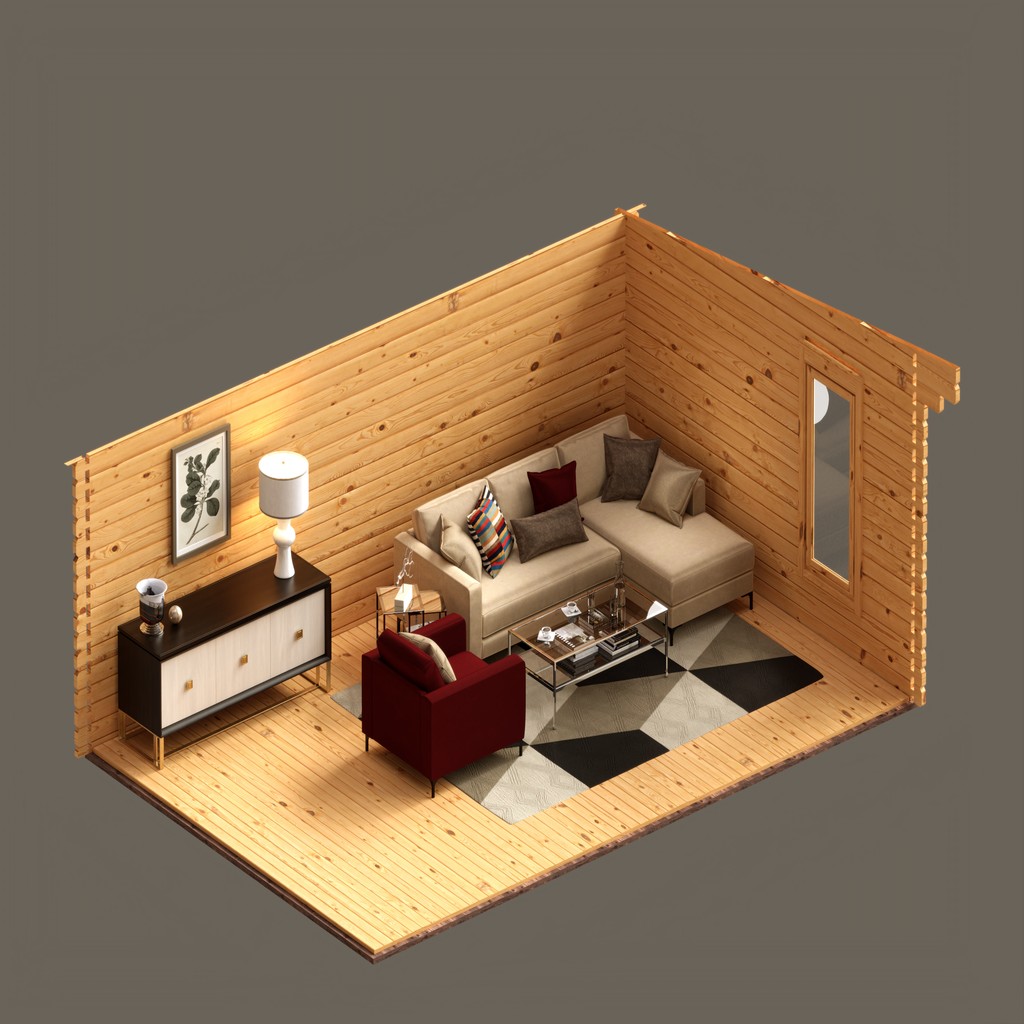

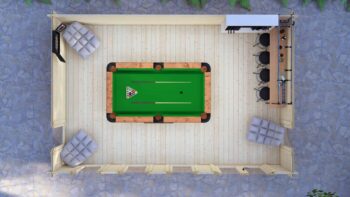

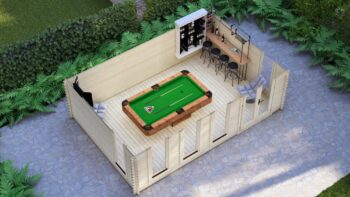

Single-room interior configuration provides 24 square metres of usable floor area. The 202cm eaves height supports comfortable headroom throughout, while the apex design creates additional vertical space. Standard double-glazed door and window placement allows flexible furniture arrangement and optimal natural light distribution for workspace or leisure applications.
Timber & Construction
Northern European timber construction incorporates interlocking tongue-and-groove joints throughout the 44mm wall system. This assembly method helps reduce thermal weak points while maintaining assembly stability. Double-glazed timber joinery with standard profile frames supports consistent insulation performance. The dense grain structure of Northern European timber delivers specified dimensional stability and thermal mass.
Floor & Roof
Floor system includes 28mm floorboards supported by pressure-treated bearers for moisture protection. Roof assembly features 19mm tongue-and-groove boarding that creates a solid deck for weather membrane application. Storm bracing components ensure structural stability in high-wind conditions while maintaining the timber frame's natural movement characteristics.
Customisation Options
Wall-thickness and insulation upgrades are confirmed at quotation stage for the product family, target use and destination-market review. Triple-glazing specification available for extreme climate applications. Internal partition kits create separate room configurations when required. Veranda extensions integrate with the main structure using matching timber profiles and construction methods for seamless architectural continuity.
Manufacturing & Delivery
The Eurodita factory is dimensioned for 150,000 m³ of timber a year. Freight route and final delivery timing are agreed per order in the written quotation. Eurodita standard terms are EXW from the Eurodita factory. Product, order and after-sales conditions are confirmed in writing for each project in the quotation, order confirmation and applicable product documentation. Please contact Eurodita for the documentation relevant to your confirmed order.
Private Label Partnership
Private-label manufacturing supports dealer brand positioning with customised documentation and technical specifications. 3D visualisation services assist customer presentations and design development processes. Showroom display programmes include sample timber panels, hardware specifications, and marketing materials. Branded assembly guides maintain consistent quality standards across distribution networks.
What should dealers confirm before quoting Log Cabin Dylan 6x4m, 44mm?
Eurodita supplies Log Cabin Dylan 6x4m, 44mm as a private-label B2B garden cabin with a 6x4m footprint and 44mm Northern European timber wall specification. Before quoting, dealers should confirm the quote stage package, wall profile, glazing/openings, roof and floor options, finish or treatment route, packaging, unloading access, EXW release or freight route from the Eurodita factory, private-label documentation, and local-authority planning or site-use review requirements.
Warranty & Support
Product, order and after-sales conditions are confirmed in writing for each project in the quotation, order confirmation and applicable product documentation. Please contact Eurodita for the documentation relevant to your confirmed order.
