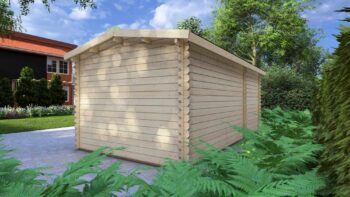

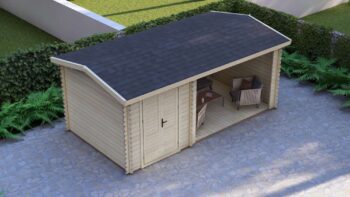

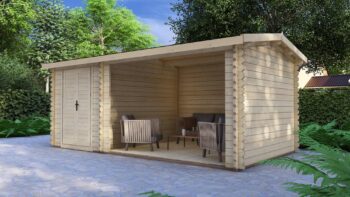

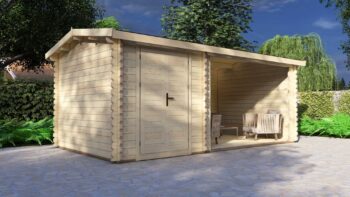

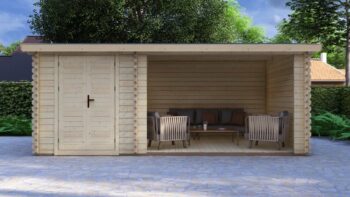

Log Cabin Charlie 5.7×3.1m, 44mm, Appex
The Charlie 5.7×3.1m delivers project-specific thermal specification for accommodation-project developers and garden building retailers. This 44mm log cabin incorporates double-glazed timber joinery throughout, supporting insulation specification.
Technical data sheet
Specification recorded for Log Cabin Charlie 5.7×3.1m, 44mm, Appex. Dimensions are the building's external dimensions. A row appears only where a figure is recorded for this model.
| Building | |
|---|---|

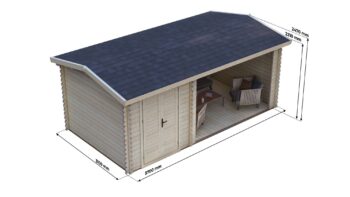

| External dimensions | 5.7 x 3.1 m |
| Eaves height | 221 cm |
| Ridge height | 247 cm |
| Base | External footprint 5.7 x 3.1 m. Base type and size are confirmed for the specific model and site. |
| Structure | |
| Wall profile | 44 x 130 mm as standard |
| Other wall options | Other approved solid wall profiles can be specified to suit the project and budget. |
| Construction | Interlocking tongue and groove joints |
| Timber | Northern European timber |
| Storm brace and anchor set | Included |
| Floor | |
| Floor bearers | Impregnated as standard |
| Floor boards | 28 mm |
| Roof | |
| Roof boards | 19 mm tongue and groove boards |
| Doors and windows | |
| Doors | Double-Glazed Timber Joinery, Standard Profile |
| Windows | Double-Glazed Timber Joinery, Standard Profile |
| Scope of these figures | |
| Insulation | Eurodita supplies the timber structure prepared for insulation where required, not the insulation material. |
| Performance | These dimensions establish no thermal, fire, structural or certification performance. |
Add-ons & Customisation
Need this in a different size?
This model is supplied as a 5.7 x 3.1 m footprint, 44 mm wall profile. If your customer needs a different layout, send a drawing. Eurodita will confirm whether the qualified bespoke route and factory scope fit the exact project. Partner branding is agreed per order.
- 1 Send a drawing A hand sketch can start the review. Mark known window and door positions, wall thickness and heights; Eurodita confirms any missing technical inputs.
- 2 Confirm the quotation scope If the enquiry fits, pricing and any CAD/3D or technical material are prepared to the agreed scope.
- 3 Review the agreed scope Revisions follow the quotation and project scope until written sign-off.
CAD/3D quotation material is prepared to the qualified project scope. Availability and timing are confirmed during qualification. Partner branding is applied where agreed; required manufacturer, legal and traceability information is retained.
Send a bespoke briefDimensions, wall thickness and opening positions are confirmed per project at quote stage. Bespoke production timing is confirmed at quotation stage. See published projects for built examples with dimensions and drawings, or review the rest of the summer house log cabins range.
About This Log Cabin Charlie 5.7×3.1m, 44mm, Appex
Product Overview
The Charlie 5.7×3.1m delivers project-specific thermal specification for accommodation-project developers and garden building retailers. This 44mm log cabin incorporates double-glazed timber joinery throughout, supporting insulation specification. The compact footprint suits varied plot sizes while maximizing usable interior space for extended-season use or premium garden office applications.
Layout & Configuration

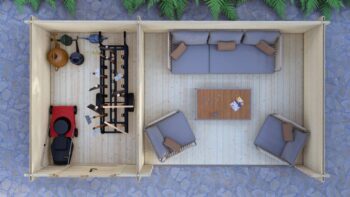

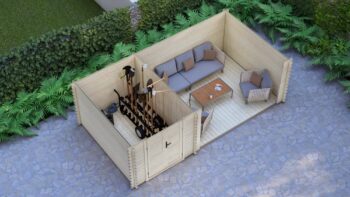

Interior configuration provides flexible open-plan space with 221cm eaves height extending to 247cm ridge height. The apex roof design creates additional headroom while maintaining assembly stability. Double-glazed timber doors and windows optimize natural light distribution, creating project-specific work or leisure environments, with seasonal suitability confirmed by specification.
Timber & Construction
Northern European timber construction features precision-milled 44mm wall profiles with strong interlocking tongue and groove joints. Double-glazed timber joinery utilizes standard profiles for consistent thermal specification and weather resistance. The precision construction methodology supports minimal settling while maintaining structural stability across varying weather conditions.
Floor & Roof
Floor system incorporates 28mm floor boards over pressure-treated bearers for enhanced durability and moisture resistance. Roof construction features 19mm tongue and groove boards with integrated storm bracing, providing structural resilience against wind-exposure requirements reviewed in project documentation while maintaining thermal specification throughout the building envelope.
Customisation Options
Wall thickness upgrades accommodate enhanced insulation requirements for extended-season use. Triple-glazing options further improve thermal specification while partition kits enable internal room division. Veranda extensions integrate directly with existing structure, expanding usable outdoor space while maintaining architectural consistency and assembly stability.
Manufacturing & Delivery
Eurodita processes 150,000 m³ of timber annually. Freight route and final delivery timing are agreed per order in the written quotation. Eurodita's standard terms are EXW from Kaunas. Bespoke modifications accommodate specific project requirements while maintaining quality standards and delivery commitments for trade partners.
Private Label Partnership
Private-label manufacturing capability enables dealer branding across documentation and marketing materials. 3D visualization services support customer presentations while branded assembly instructions maintain partner identity. Showroom display programmes provide sales support tools, enhancing partner market positioning and customer engagement throughout the sales process.
What should dealers confirm before quoting Log Cabin Charlie 5.7×3.1m, 44mm, Appex?
Eurodita supplies Log Cabin Charlie 5.7×3.1m, 44mm, Appex as a private-label B2B garden cabin / summer house with a 5.7x3.1m footprint and 44mm Northern European timber wall specification. Before quoting, dealers should confirm the quote stage package, wall profile, glazing/openings, roof and floor options, finish or treatment route, packaging, unloading access, EXW release or freight route from Kaunas, private-label documentation, and local-authority planning or site-use review requirements.
Product, order and after-sales conditions are confirmed in writing for each project in the quotation, order confirmation and applicable product documentation. Please contact Eurodita for the documentation relevant to your confirmed order.
Explore Similar Products
B2B Order Framework
Scope is confirmed in the written quotation and order documentation.
Private-label scope
Branding for packaging and relevant customer-facing documents is agreed per order.
Production planning
Production timing is confirmed in the written quotation and order acknowledgement for the selected model and specification.
Commercial terms
Price, quantity, payment and any volume conditions are quoted for the specific order.
Technical documents
The drawings, specifications and customer-facing documents included in the order are listed in the order documentation.
Configuration review
Dimensions, layout, openings, wall profile and other requested changes are reviewed before they are accepted into the quotation.
Dispatch terms
EXW Kaunas is the standard basis. Any delivered option is agreed for the specific market and order.
How a B2B Order Moves Forward
Specification
Share the model or drawing, destination, quantity and required configuration. Missing technical inputs are confirmed before quotation.
Manufacturing scope
Only the model, options, documentation and branding listed in the accepted order move into production.
Checking and packing
Completed order components are checked and packed against the agreed order scope before factory dispatch.
Dispatch terms
Orders are dispatched from Kaunas under the agreed collection or logistics terms. This does not promise carrier or final-mile delivery performance.
