Log Cabin Adam 4x3m, 44mm
Delivery is agreed individually with each client. Markets and languages
For private buyers the supply route is confirmed project by project.
At a glance

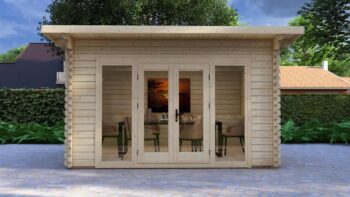

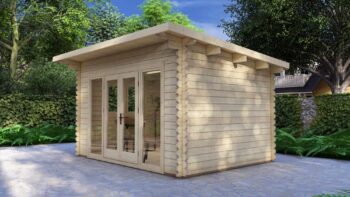

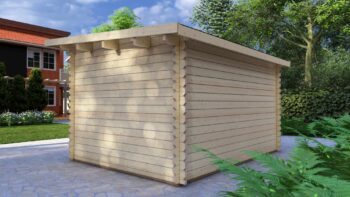

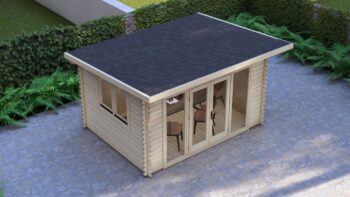

Log Cabin Adam 4x3m is a garden log cabin supplied as a building kit. It measures 4 x 3 m externally, an external footprint of 12 m². The ridge height is 241 cm and the eaves height 215 cm. It has one storey. It is listed with the wooden summer houses.
Read the full description
Layout

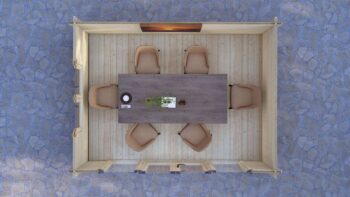

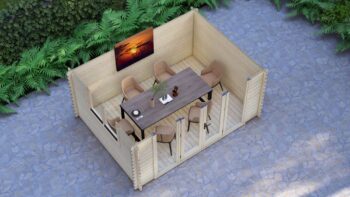

The plan drawing shows one room without inner walls.
Walls
The wall logs are solid, of the 44 x 130 mm profile: each log is 44 mm thick and 130 mm high. Wall logs are supplied untreated by default. The profiles are set out on wall thickness and glulam profiles.
Doors and windows
Doors and windows are made by Eurodita in timber. See windows and doors.
Technical data sheet

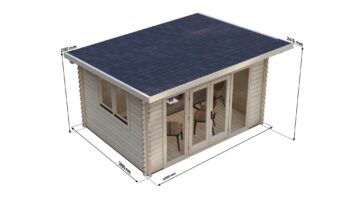

Specification recorded for Log Cabin Adam 4x3m, 44mm. Dimensions are the building's external dimensions. A row appears only where a figure is recorded for this model.
| Building | |
|---|---|
| External dimensions | 4 x 3 m |
| External footprint area | 12 m² |
| Eaves height | 215 cm |
| Ridge height | 241 cm |
| Storeys | 1 |
| Base | External footprint 4 x 3 m. Base type and size are confirmed for the specific model and site. |
| Structure | |
| Wall profile | 44 x 130 mm as standard |
| Other wall options | A solid log model can be made in any of the 28, 34, 44, 58 and 70 mm profiles; the profile is confirmed in the written quotation. |
| Construction | Interlocking tongue and groove joints |
| Timber | Northern European timber |
| Storm brace and anchor set | Included |
| Floor | |
| Floor bearers | Impregnated as standard |
| Floor boards | 28 mm |
| Roof | |
| Roof boards | 19 mm tongue and groove boards |
| Doors and windows | |
| Doors | Garden type (IV45) timber door, 5-point locking, 4-6-4 mm double glazing |
| Windows | Garden type (IV45) timber window, tilt and turn, 4-6-4 mm double glazing |
| Scope of these figures | |
| Insulation | Eurodita supplies the timber structure prepared for insulation where required, not the insulation material. |
| Performance | These dimensions establish no thermal, fire, structural or certification performance. |
Add-ons & Customisation
Options for this model (branding, wall thickness, openings, insulation preparation, partitions, veranda) are listed on What is in a Eurodita kit and confirmed per order.
How an Order Is Agreed
Scope is confirmed in the written quotation. Details: Reading a Eurodita quotation.
Need this in a different size?
Size, layout and the positions of doors and windows can be changed for an order. Send a sketch or a drawing. From a complete sketch to a 3D view, drawings and a price within one working day.
Supply
Supplied EXW from the Eurodita factory. We supply the kit with assembly drawings; installation is not part of our supply.
For trade buyers
Dealers, distributors and private-label brands can carry this model in their own range.
Compared with similar models
Log Cabin Brookhaven 4x3m
| This model | Brookhaven 4x3m | |
|---|---|---|
| Ridge height | 241 cm | 234 cm |
| Eaves height | 215 cm | 208 cm |
| Wall logs | 44 x 130 mm | 44 x 130 mm |
Log Cabin Nicholas 4x3m
| This model | Nicholas 4x3m | |
|---|---|---|
| Ridge height | 241 cm | 250 cm |
| Eaves height | 215 cm | 221 cm |
| Wall logs | 44 x 130 mm | 34 x 100 mm |
Log Cabin Oliver 4.0x3.0m
| This model | Oliver 4.0x3.0m | |
|---|---|---|
| Ridge height | 241 cm | 247 cm |
| Eaves height | 215 cm | 221 cm |
| Wall logs | 44 x 130 mm | 44 x 130 mm |
Frequently asked questions
What is a summer house?
A summer house is a wooden garden building for leisure use. Eurodita summer houses are log cabin kits from 3 x 2 m to 6 x 3 m, external dimensions, catalogued in 28, 34 and 44 mm solid wall logs; a solid log model can be made in 28, 34, 44, 58 or 70 mm.
Do you need planning permission for a summer house?
In England, a summer house incidental to the house can fall under Class E of the General Permitted Development Order 2015: single storey, eaves no higher than 2.5 m, height no more than 4 m with a dual-pitched roof, 2.5 m within 2 m of the boundary, or 3 m otherwise. Your local planning authority confirms the position.
How do you build a summer house from a kit?
A Eurodita summer house arrives as a flat packed kit of CNC-cut timber components, machined in Lithuania from northern European spruce and pine. The base is provided locally, and installation is not part of our supply. Electrical systems are not part of the standard supply and are installed on site by local qualified trades.
Can you insulate a summer house?
Yes, with insulation sourced locally: the structure of a Eurodita summer house is prepared for insulation; insulation material is not supplied as standard. For a cavity wall, the twin skin range has garden cabins of 4 x 3 m, 5 x 4 m and 6 x 4 m whose walls are two log skins with a cavity for insulation.
