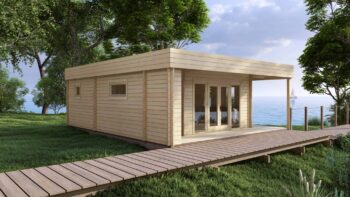

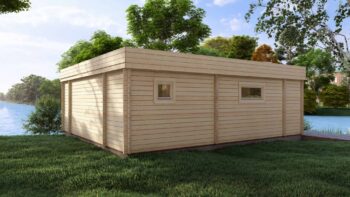

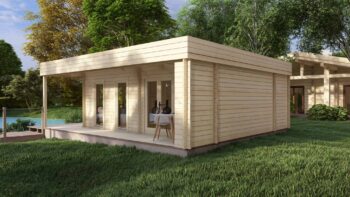

Log Cabin 7.9×6.9m, 44mm
This 7.9 x 6.9 metre log cabin is a larger 44mm cabin configuration for dealer quotations, project-specific layouts and trade portfolio review.
Technical data sheet
Specification recorded for Log Cabin 7.9x6.9m, 44mm. Dimensions are the building's external dimensions. A row appears only where a figure is recorded for this model.
| Building | |
|---|---|

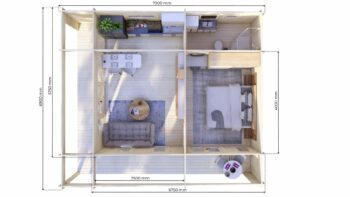

| External dimensions | 7.9 x 6.9 m |
| External footprint area | 54.5 m² |

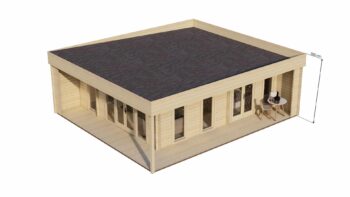

| Ridge height | 280 cm |
| Storeys | 1 |
| Base | External footprint 7.9 x 6.9 m. Base type and size are confirmed for the specific model and site. |
| Structure | |
| Wall profile | 44 x 130 mm as standard |
| Other wall options | Other approved solid wall profiles can be specified to suit the project and budget. |
| Construction | Interlocking tongue and groove joints |
| Timber | Northern European timber |
| Storm brace and anchor set | Included |
| Floor | |
| Floor bearers | Impregnated as standard |
| Floor boards | 28 mm |
| Roof | |
| Roof boards | 19 mm tongue and groove boards |
| Doors and windows | |
| Doors | Double-Glazed Timber Joinery, Insulated Profile |
| Windows | Double-Glazed Timber Joinery, Insulated Profile |
| Scope of these figures | |
| Insulation | Eurodita supplies the timber structure prepared for insulation where required, not the insulation material. |
| Performance | These dimensions establish no thermal, fire, structural or certification performance. |
Add-ons & Customisation
Options for this model (branding, wall thickness, openings, insulation preparation, partitions, veranda) are listed on What is in a Eurodita kit and confirmed per order.
Need this in a different size?
This model is supplied as a 7.9 x 6.9 m footprint, 44 mm wall profile. If your customer needs a different layout, send a drawing. Eurodita will confirm whether the qualified bespoke route and factory scope fit the exact project. Partner branding is agreed per order.
- 1 Send a drawing A hand sketch can start the review. Mark known window and door positions, wall thickness and heights; Eurodita confirms any missing technical inputs.
- 2 Confirm the quotation scope If the enquiry fits, pricing and any CAD/3D or technical material are prepared to the agreed scope.
- 3 Review the agreed scope Revisions follow the quotation and project scope until written sign-off.
CAD/3D quotation material is prepared to the qualified project scope. Availability and timing are confirmed during qualification. Partner branding is applied where agreed; required manufacturer, legal and traceability information is retained.
Send a bespoke briefDimensions, wall thickness and opening positions are confirmed per project at quote stage. Bespoke production timing is confirmed at quotation stage. See published projects for built examples with dimensions and drawings, or review the rest of the garden offices range.
About This Log Cabin 7.9×6.9m, 44mm
Product Overview
This 7.9 x 6.9 metre log cabin is a larger 44mm cabin configuration for dealer quotations, project-specific layouts and trade portfolio review. The 44mm wall construction and double-glazed joinery are supplied as specification inputs for insulation, heating, ventilation and local-use review where relevant.

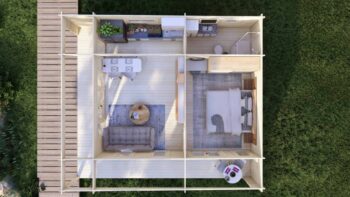

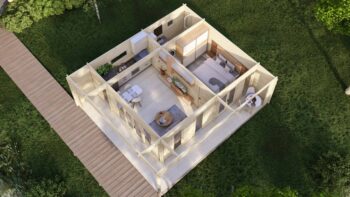

Layout & Configuration
The generous floor area accommodates flexible room division with multiple zones for work, display, storage, leisure, and utility functions. Standard configuration includes integrated door and window placement optimized for natural lighting. Interior height reaches 280cm at the ridge, creating spacious headroom throughout the primary usable areas.
Timber & Construction
Northern European timber construction incorporates interlocking tongue-and-groove joints for assembly stability and thermal continuity. All glazed elements feature insulated timber profiles with double-glazed units. The 44mm wall thickness is a single-wall specification (thermal performance is calculated per project) while maintaining the authentic log cabin aesthetic through visible timber grain.
Floor & Roof
Floor construction utilizes 28mm boards supported by pressure-treated bearers for moisture resistance and structural stability. Roof assembly incorporates 19mm tongue-and-groove boards with integrated storm bracing. This specification supports long-term structural performance under varying weather conditions while maintaining thermal specification.
Customisation Options
Wall-thickness and insulation upgrades are confirmed at quotation stage for the product family, target use and destination-market review. Interior partition kits enable room division according to specific requirements. Additional glazing options include triple-glazed units, while veranda extensions expand the usable outdoor space for hospitality applications.
Manufacturing & Delivery
The Eurodita factory is dimensioned for 150,000 m³ of timber a year. Freight route and final delivery timing are agreed per order in the written quotation. The Eurodita brand standard terms are EXW from the Eurodita factory. Bespoke modifications accommodate specific dimensional requirements while remaining subject to project-specific technical and local-authority review.
Private Label Partnership
Private-label manufacturing capability includes partner branding across all documentation and marketing materials. 3D visualization services support sales presentations while showroom display programmes provide physical product demonstrations. This partnership approach enables dealers to offer garden log cabin under their own brand identity.
What should dealers confirm before quoting Log Cabin 7.9×6.9m, 44mm?
Eurodita supplies Log Cabin 7.9×6.9m, 44mm as a private-label B2B garden cabin with a 7.9 x 6.9m footprint and 44mm Northern European timber wall specification. Before quoting, dealers should confirm the quote stage package, wall profile, glazing/openings, roof and floor options, finish or treatment route, packaging, unloading access, EXW release or freight route from the Eurodita factory, private-label documentation, and local-authority planning or site-use review requirements.
Warranty & Support
Product, order and after-sales conditions are confirmed in writing for each project in the quotation, order confirmation and applicable product documentation. Please contact Eurodita for the documentation relevant to your confirmed order. Comprehensive assembly documentation and technical support help qualified contractors or experienced builders review the product specification and installation sequence.
