Corner Log Cabin Benjamin 3x3m
Delivery is agreed individually with each client. Markets and languages
For private buyers the supply route is confirmed project by project.
At a glance

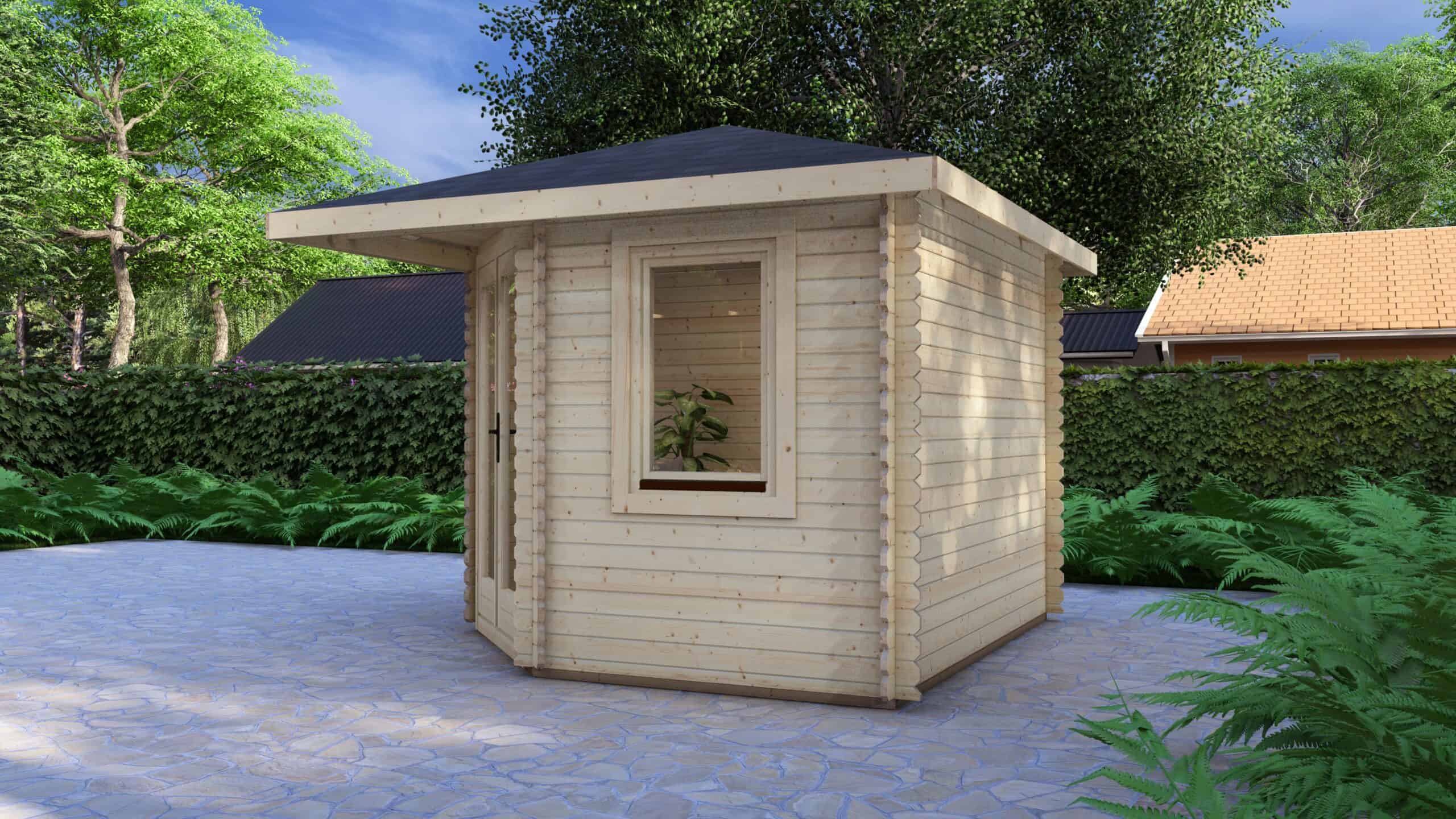

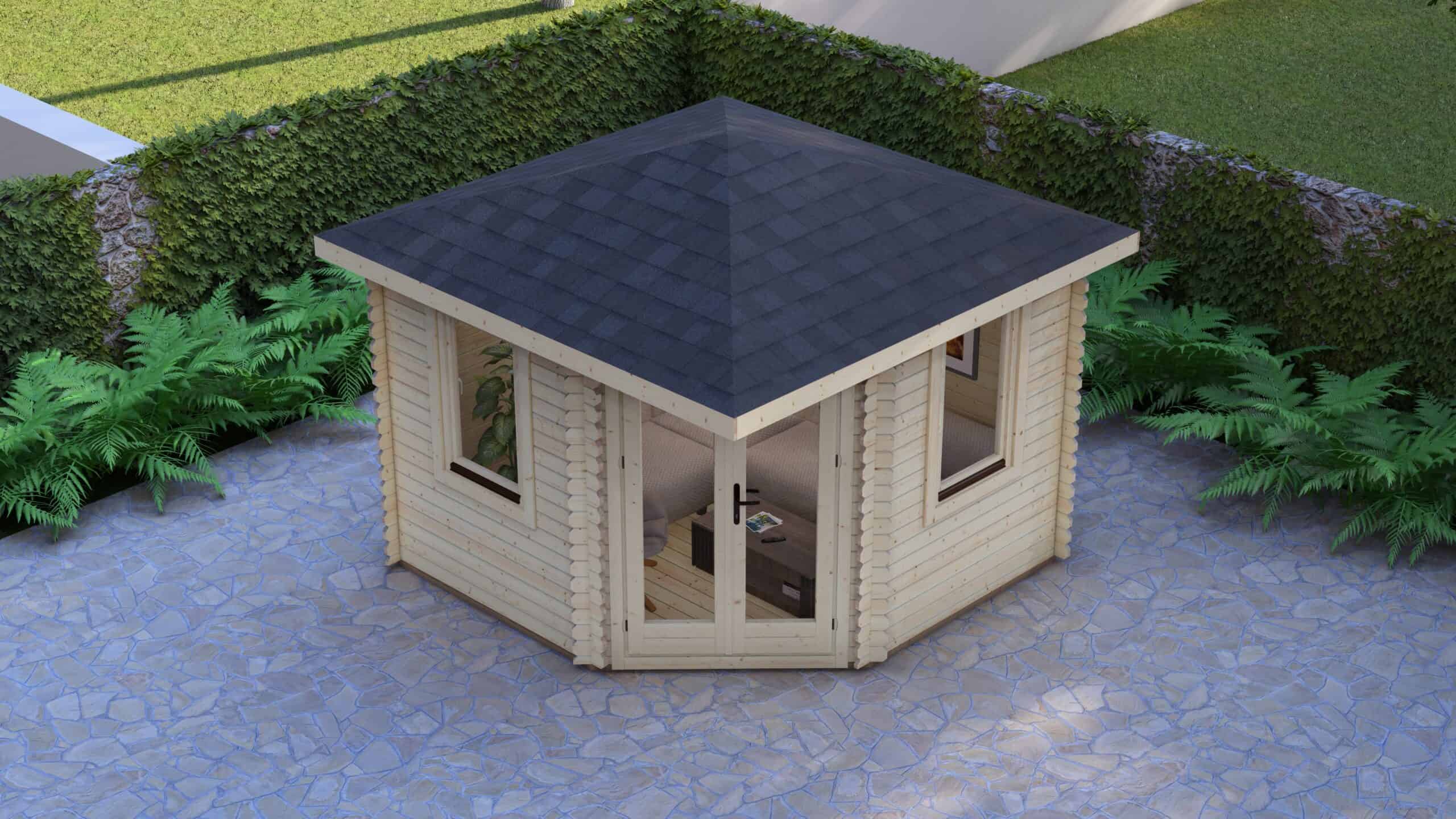

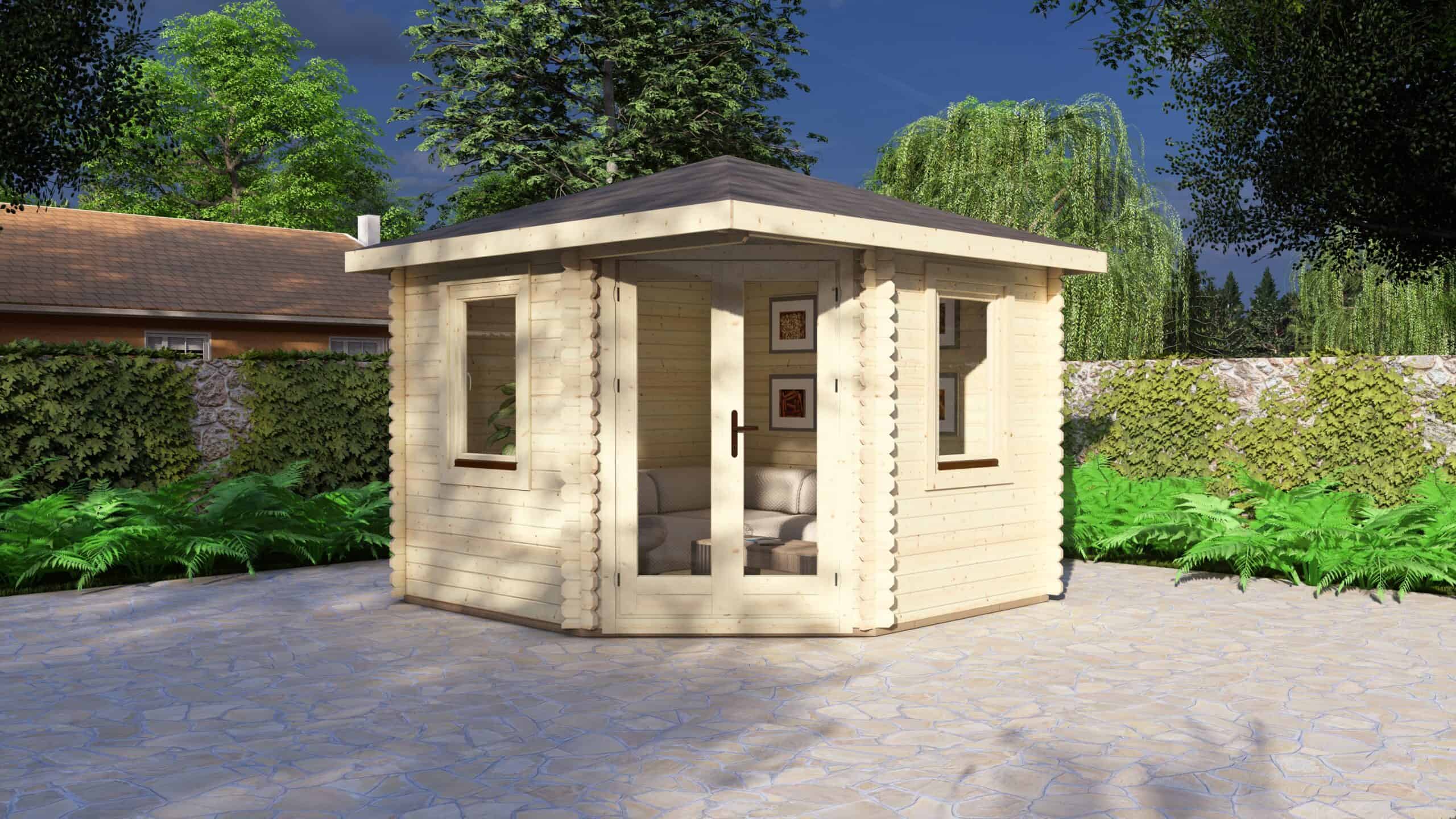

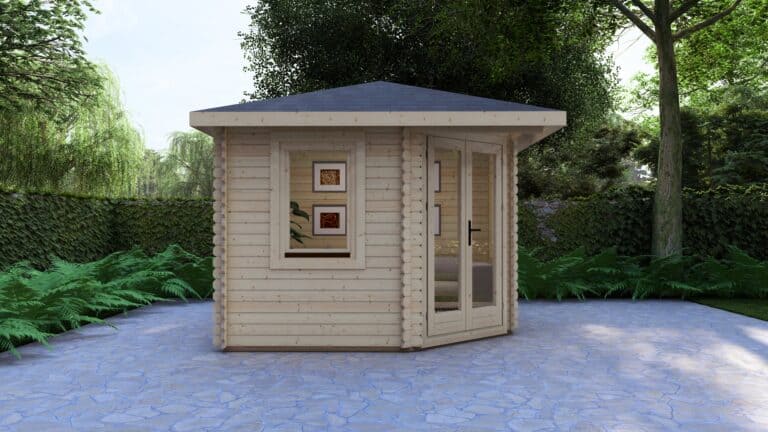

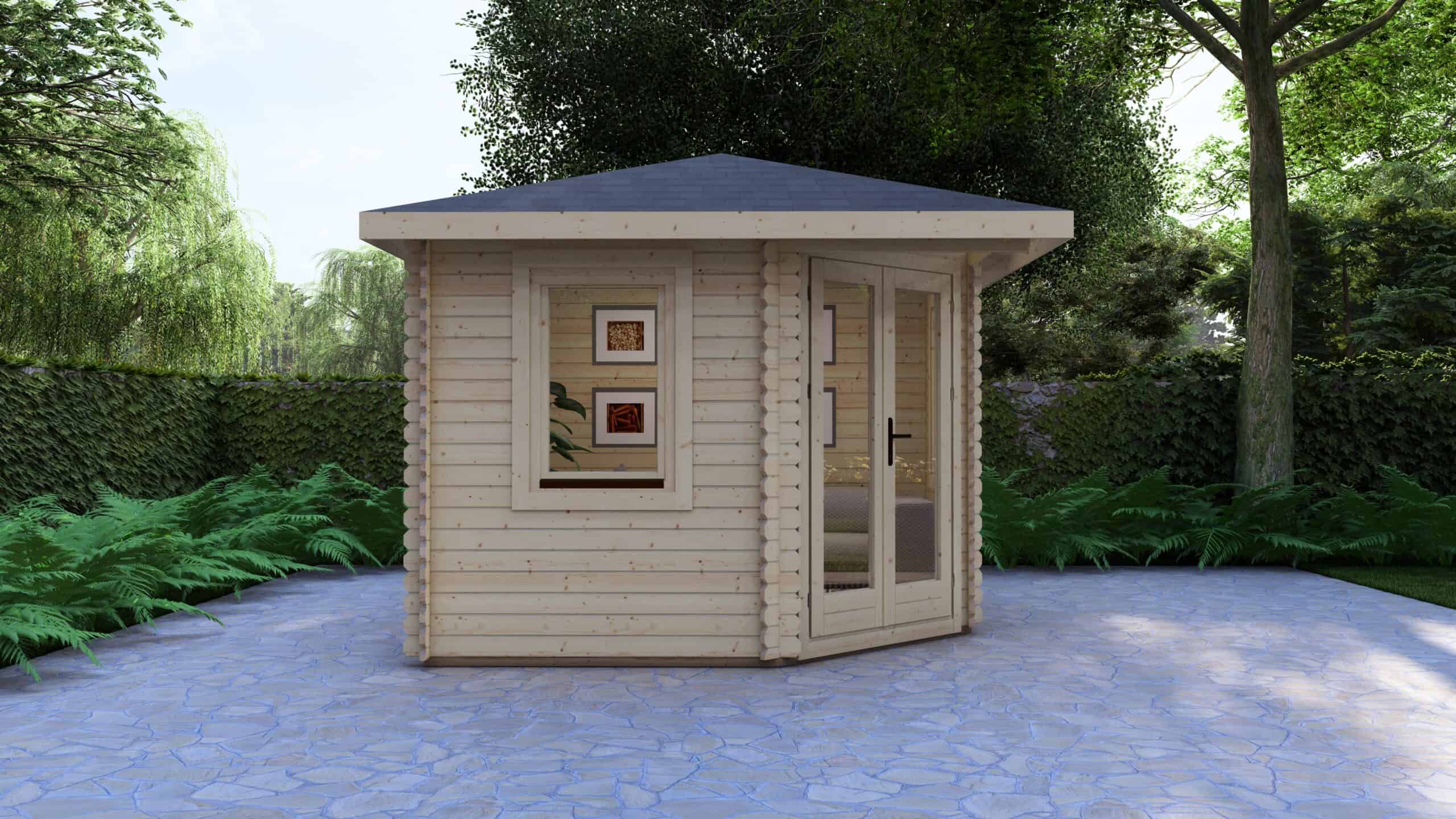

Corner Log Cabin Benjamin 3x3m is a corner log cabin supplied as a building kit. It measures 3 x 3 m externally, an external footprint of 9 m². The ridge height is 293 cm. It is listed with the corner summer houses.
Read the full description
Layout

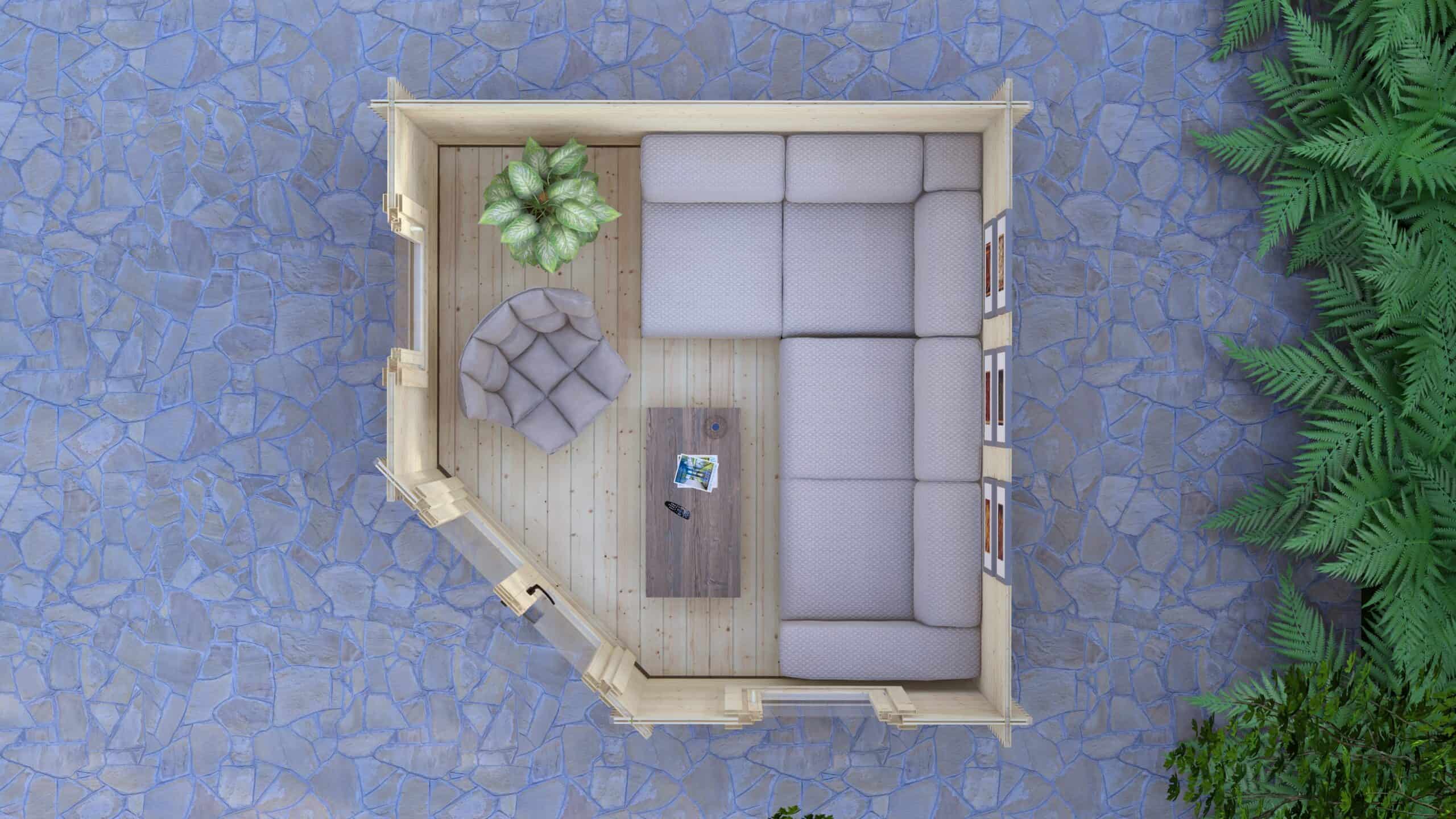

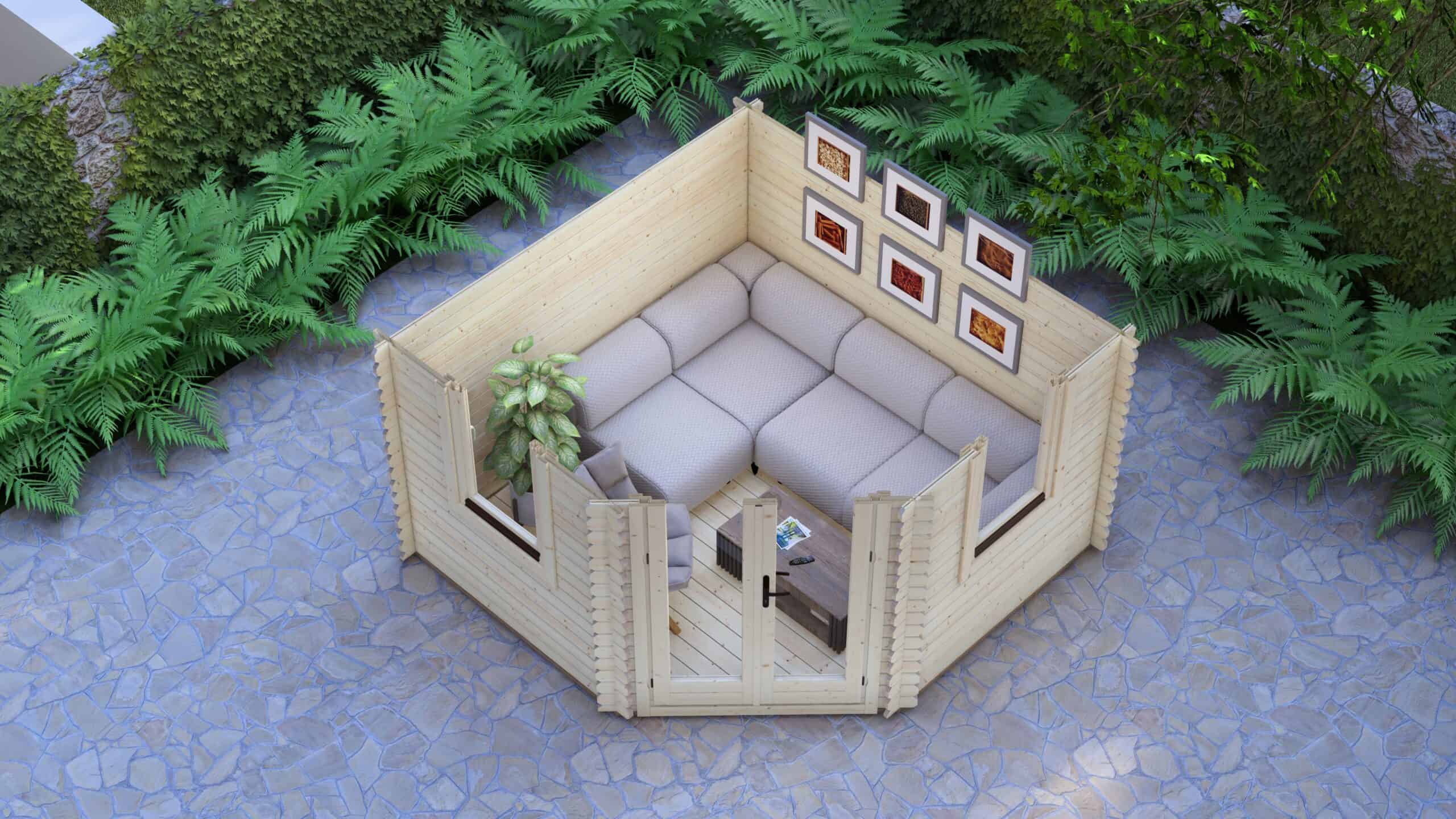

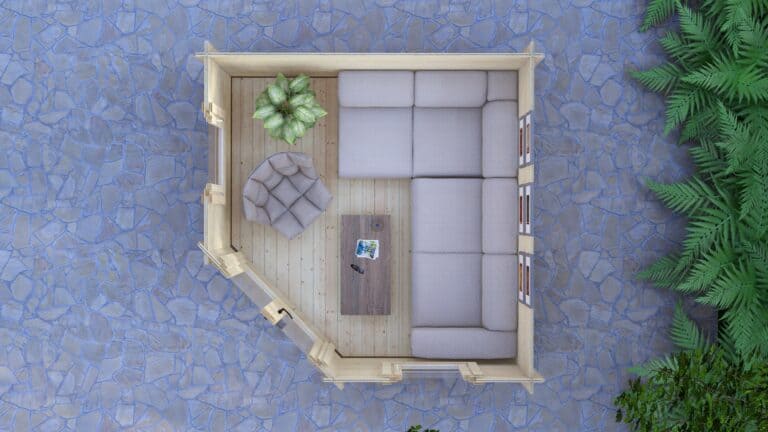

The plan drawing shows one five-sided room whose door stands in an angled wall across the front corner.
Walls
The wall logs are solid, of the 28 x 100 mm profile: each log is 28 mm thick and 100 mm high. Wall logs are supplied untreated by default. The profiles are set out on wall thickness and glulam profiles.
Doors and windows
Doors and windows are made by Eurodita in timber. See windows and doors.
Technical data sheet
Specification recorded for Corner Log Cabin Benjamin 3x3m. Dimensions are the building's external dimensions. A row appears only where a figure is recorded for this model.
| Building | |
|---|---|

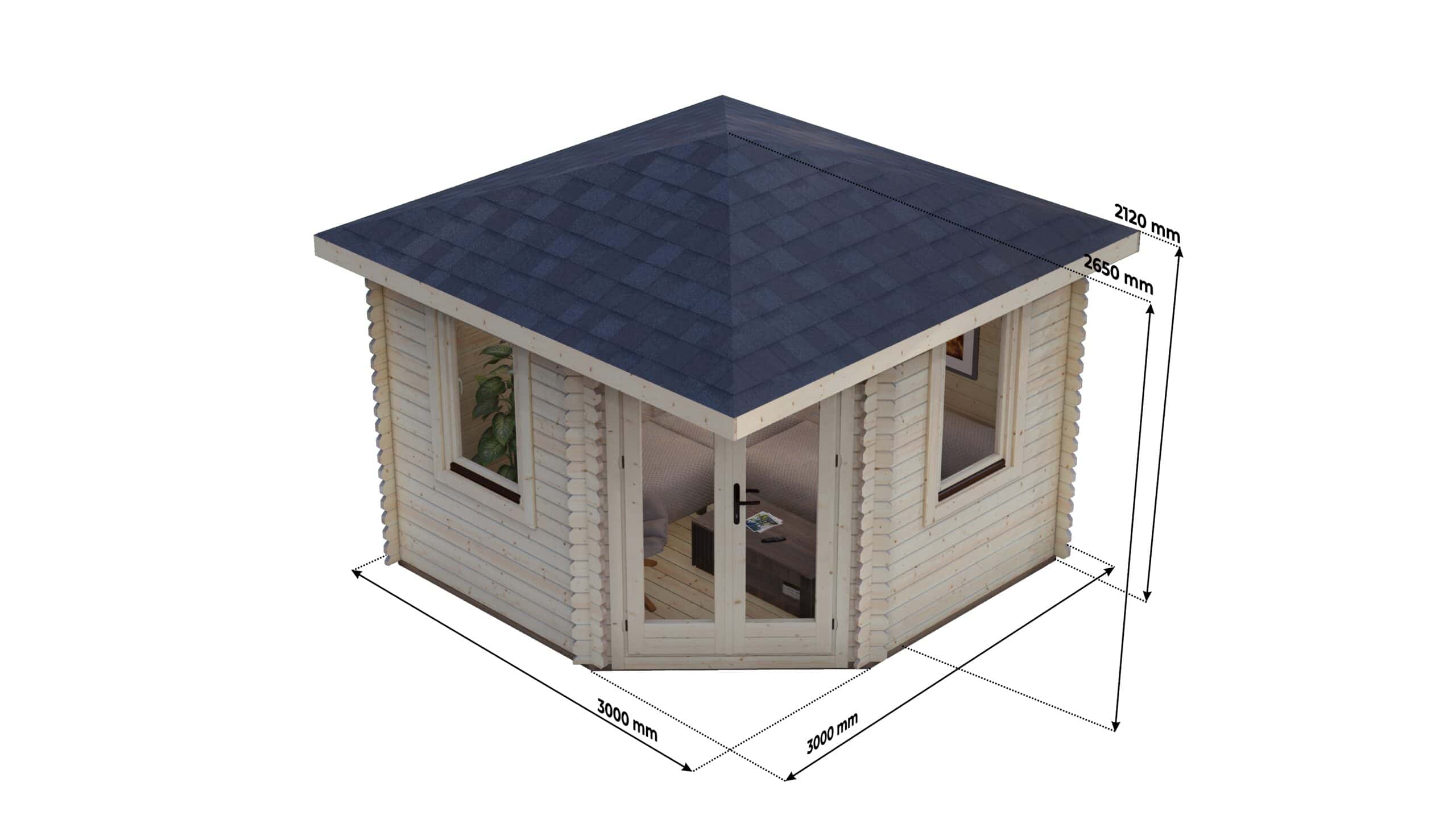

| External dimensions | 3 x 3 m |
| External footprint area | 9 m² |
| Ridge height | 293 cm |
| Base | External footprint 3 x 3 m. Base type and size are confirmed for the specific model and site. |
| Structure | |
| Wall profile options | 28 x 100 mm, 44 x 130 mm |
| Other wall options | A solid log model can be made in any of the 28, 34, 44, 58 and 70 mm profiles; the profile is confirmed in the written quotation. |
| Construction | Interlocking tongue and groove joints |
| Timber | Northern European timber |
| Storm brace and anchor set | Included |
| Floor | |
| Floor bearers | Impregnated as standard |
| Floor boards | 28 mm |
| Roof | |
| Roof boards | 19 mm tongue and groove boards |
| Doors and windows | |
| Doors | Garden type (IV45) timber door, 5-point locking, 4-6-4 mm double glazing |
| Windows | Garden type (IV45) timber window, tilt and turn, 4-6-4 mm double glazing |
| Scope of these figures | |
| Insulation | Eurodita supplies the timber structure prepared for insulation where required, not the insulation material. |
| Performance | These dimensions establish no thermal, fire, structural or certification performance. |
Add-ons & Customisation
Options for this model (branding, wall thickness, openings, insulation preparation, partitions, veranda) are listed on What is in a Eurodita kit and confirmed per order.
How an Order Is Agreed
Scope is confirmed in the written quotation. Details: Reading a Eurodita quotation.
Need this in a different size?
Size, layout and the positions of doors and windows can be changed for an order. Send a sketch or a drawing. From a complete sketch to a 3D view, drawings and a price within one working day.
Supply
Supplied EXW from the Eurodita factory. We supply the kit with assembly drawings; installation is not part of our supply.
For trade buyers
Dealers, distributors and private-label brands can carry this model in their own range.
Compared with similar models
Corner Log Cabin Alexander 3x3m
| This model | Alexander 3x3m | |
|---|---|---|
| Ridge height | 293 cm | 265 cm |
| Eaves height | not compared | 212 cm |
| Wall logs | 28 x 100 mm | 44 x 130 mm |
Corner Log Cabin Luke 3x3m
| This model | Luke 3x3m | |
|---|---|---|
| Ridge height | 293 cm | 240 cm |
| Eaves height | not compared | 210 cm |
| Wall logs | 28 x 100 mm | 44 x 130 mm |
Corner Log Cabin Michael 3x3m
| This model | Michael 3x3m | |
|---|---|---|
| Ridge height | 293 cm | 265 cm |
| Eaves height | not compared | 212 cm |
| Wall logs | 28 x 100 mm | 44 x 130 mm |
