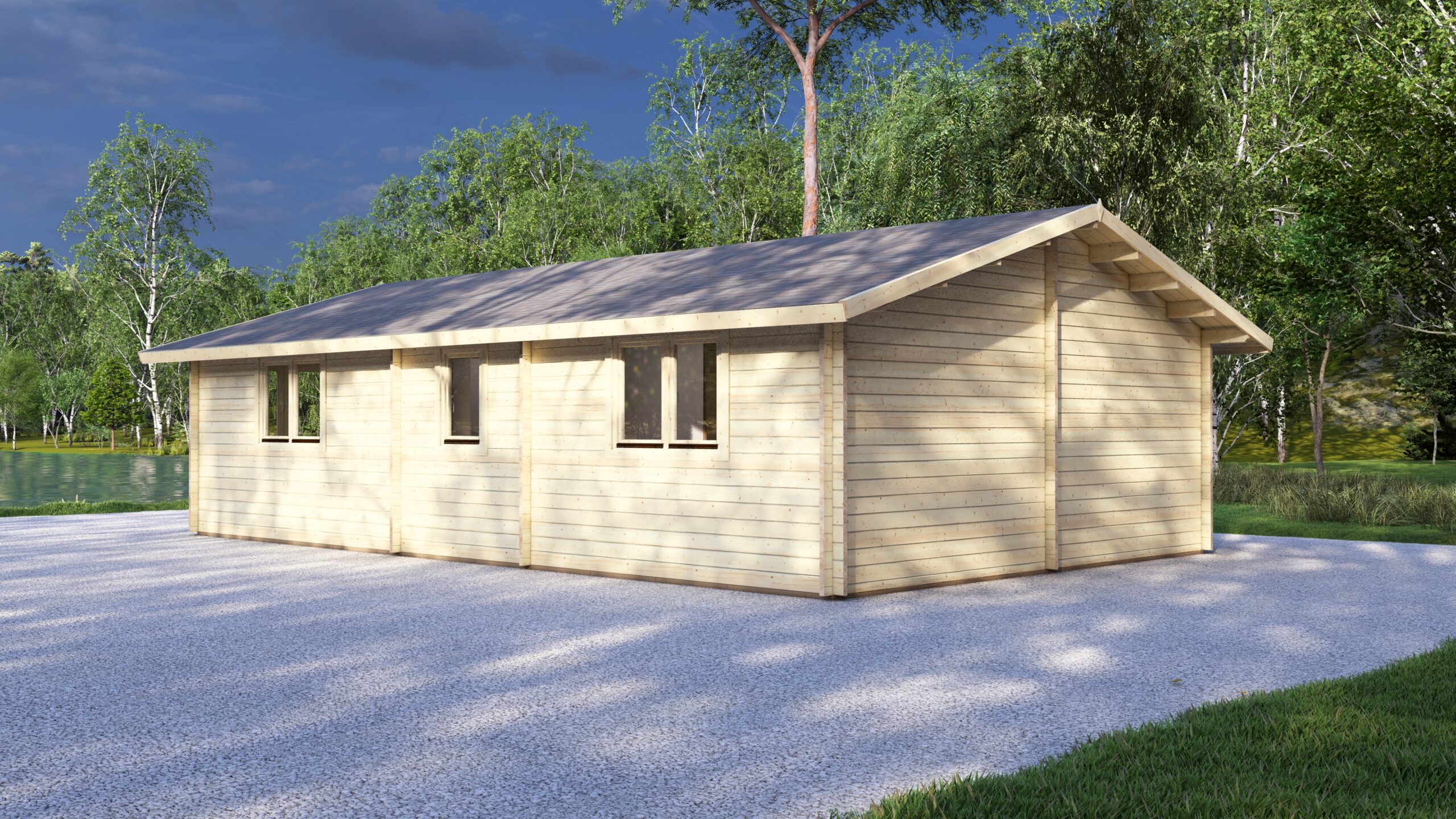

2 Bedroom Log Cabin 10x6m, 44mm
This 10 x 6 metre residential log cabin delivers substantial living space for families seeking a self-build solution.
Supplied to dealers, developers and private-label partners; larger homes are also supplied directly to private clients.
Technical data sheet
Specification recorded for 2 Bedroom Log Cabin 10x6m, 44mm. Dimensions are the building's external dimensions. A row appears only where a figure is recorded for this model.
| Building | |
|---|---|

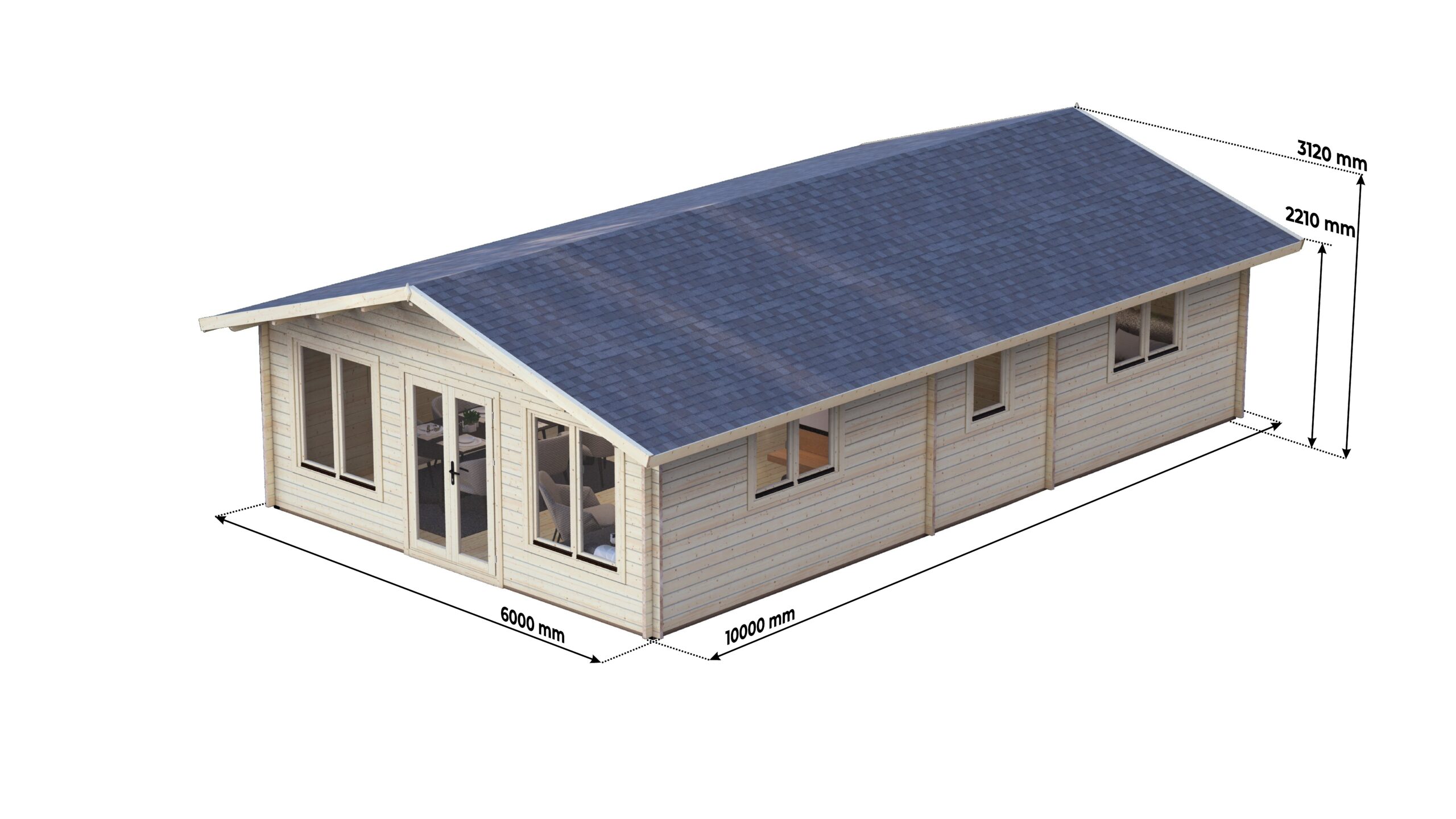

| External dimensions | 10 x 6 m |
| External footprint area | 60 m² |
| Eaves height | 221 cm |
| Ridge height | 312 cm |
| Storeys | 1 |
| Base | External footprint 10 x 6 m. Base type and size are confirmed for the specific model and site. |
| Structure | |
| Wall profile | 44 x 130 mm as standard |
| Other wall options | Other approved solid wall profiles can be specified to suit the project and budget. |
| Construction | Interlocking tongue and groove joints |
| Timber | Northern European timber |
| Storm brace and anchor set | Included |
| Floor | |
| Floor bearers | Impregnated as standard |
| Floor boards | 28 mm |
| Roof | |
| Roof boards | 19 mm tongue and groove boards |
| Doors and windows | |
| Doors | Double-Glazed Timber Joinery, Insulated Profile |
| Windows | Double-Glazed Timber Joinery, Insulated Profile |
| Scope of these figures | |
| Insulation | Eurodita supplies the timber structure prepared for insulation where required, not the insulation material. |
| Performance | These dimensions establish no thermal, fire, structural or certification performance. |
Add-ons & Customisation
Options for this model (branding, wall thickness, openings, insulation preparation, partitions, veranda) are listed on What is in a Eurodita kit and confirmed per order.
Need this in a different size?
This model is supplied as a 10 x 6 m footprint, 44 mm wall profile. If your customer needs a different layout, send a drawing. Eurodita will confirm whether the qualified bespoke route and factory scope fit the exact project. Partner branding is agreed per order.
- 1 Send a drawing A hand sketch can start the review. Mark known window and door positions, wall thickness and heights; Eurodita confirms any missing technical inputs.
- 2 Confirm the quotation scope If the enquiry fits, pricing and any CAD/3D or technical material are prepared to the agreed scope.
- 3 Review the agreed scope Revisions follow the quotation and project scope until written sign-off.
CAD/3D quotation material is prepared to the qualified project scope. Availability and timing are confirmed during qualification. Partner branding is applied where agreed; required manufacturer, legal and traceability information is retained.
Send a bespoke briefDimensions, wall thickness and opening positions are confirmed per project at quote stage. Bespoke production timing is confirmed at quotation stage. See published projects for built examples with dimensions and drawings, or review the rest of the 2 bedroom log cabins range.
About This 2 Bedroom Log Cabin 10x6m, 44mm
Product Overview
This 10 x 6 metre residential log cabin delivers substantial living space for families seeking a self-build solution. The two-bedroom configuration suits accommodation, holiday accommodation, or managed-site accommodation projects. Dealers can offer customers a complete timber kit with professional-grade construction materials and straightforward assembly requirements.
Layout & Configuration

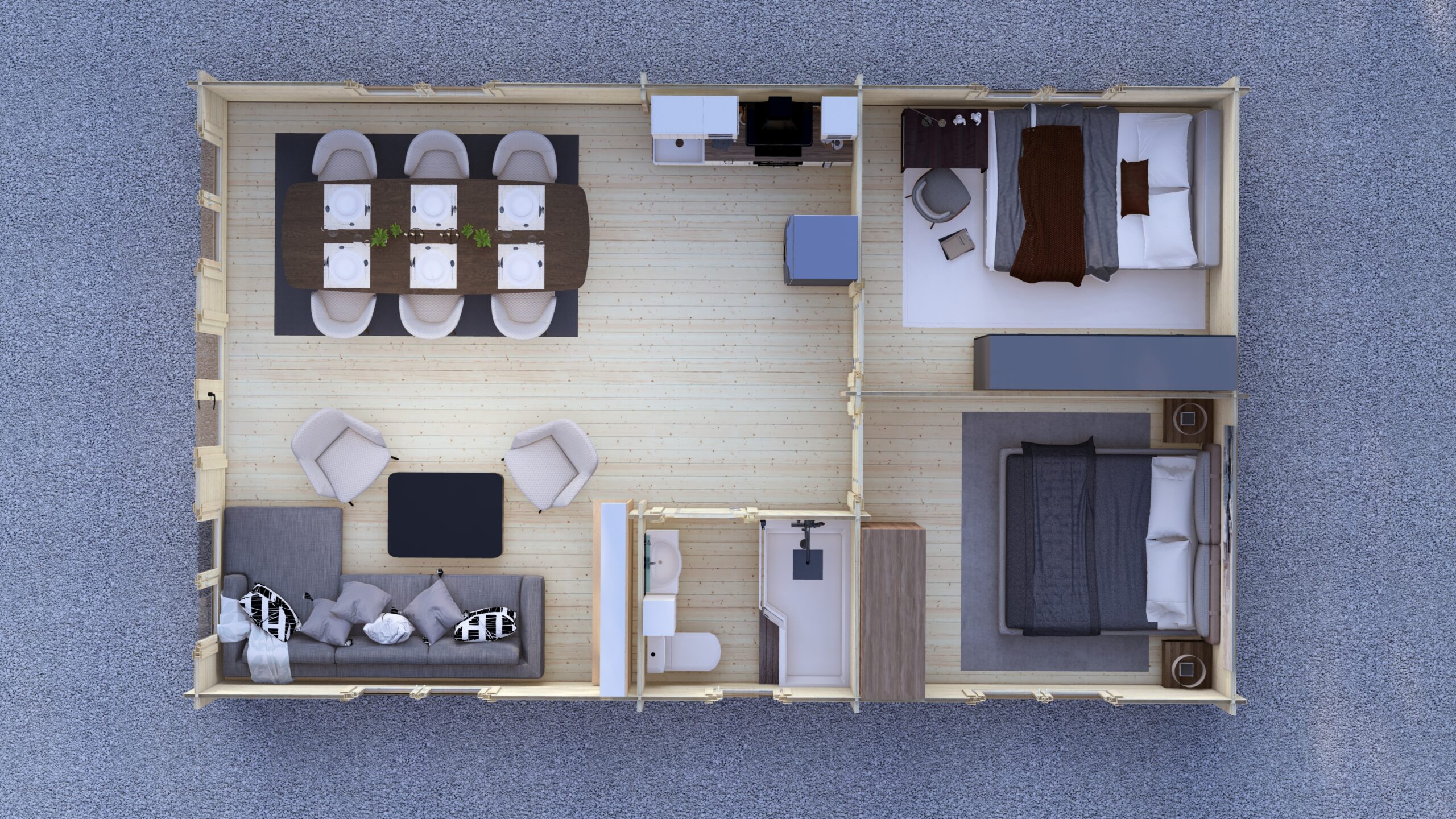

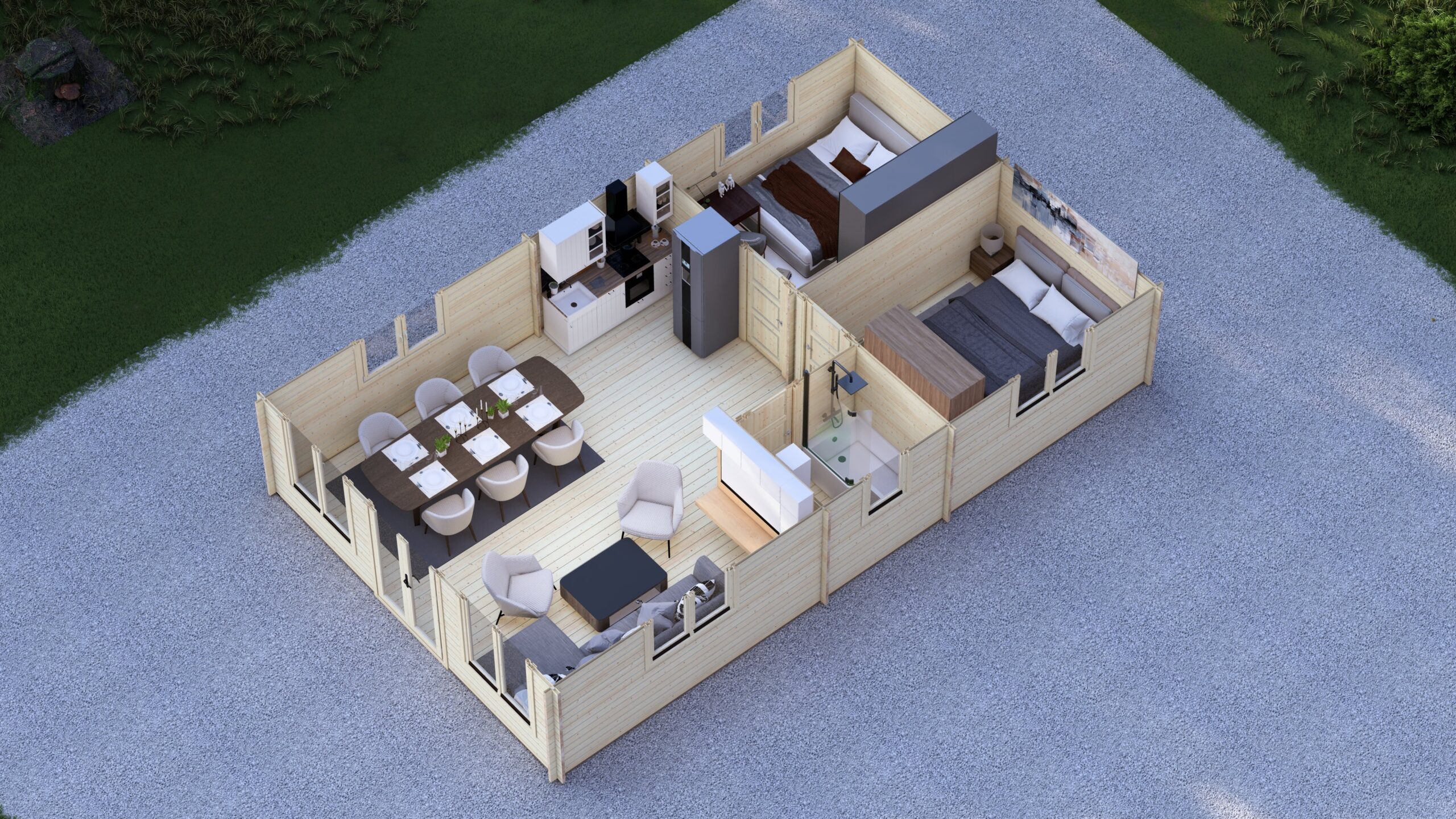

The interior arrangement incorporates two separate bedrooms alongside an open-plan living area. The 60 square metre footprint allows flexible room positioning and furniture placement. Standard height clearance of 2.21 metres at eaves supports comfortable headroom throughout, while the pitched roof design creates additional vertical space in central areas.
Timber & Construction
Northern European timber walls feature 44mm thickness with precision-milled tongue-and-groove joints supporting weather-tight assembly. All doors and windows incorporate double-glazed timber joinery with insulated profiles. The interlocking wall system helps reduce thermal weak points while maintaining assembly stability without mechanical fixings between courses.
Floor & Roof
The floor system uses 28mm tongue-and-groove boards supported by pressure-treated bearers. Roof construction features 19mm tongue-and-groove boarding providing a solid base for weather-protection materials. Storm bracing components support assembly stability, with wind-exposure and loading suitability reviewed through project documentation where required.
Customisation Options
Wall-thickness and insulation upgrades are confirmed at quotation stage for the product family, target use and destination-market review. Additional insulation packages include floor and roof systems for extended-season use. Partition kits enable room subdivision, while veranda extensions increase covered outdoor space. Triple-glazing options deliver project-specific thermal specification for northern European climates.
Manufacturing & Delivery
The Eurodita factory is dimensioned for 150,000 m³ of timber a year. Freight route and final delivery timing are agreed per order in the written quotation. Eurodita standard terms are EXW from the Eurodita factory. The facility handles bespoke modifications including dimensional changes, additional openings, and structural reinforcement requirements.
Private Label Partnership
Private-label programmes enable dealers to market cabins under their own branding. Eurodita provides branded assembly documentation, technical drawings, and 3D visualisation materials. Showroom support programmes include display models and point-of-sale materials. Partner training covers product specifications, assembly guidance, and customer consultation techniques.
What should dealers confirm before quoting 2 Bedroom Log Cabin 10x6m, 44mm?
Eurodita supplies 2 Bedroom Log Cabin 10x6m, 44mm as a private-label B2B residential log cabin with a 10 x 6m footprint and 44mm Northern European timber wall specification. Before quoting, dealers should confirm the quote stage package, layout, openings, selected wall or insulation scope, foundation interface, unloading access, EXW release or freight route from the Eurodita factory, private-label documentation, and local-authority planning or site-use review requirements.
Warranty & Support
Product, order and after-sales conditions are confirmed in writing for each project in the quotation, order confirmation and applicable product documentation. Please contact Eurodita for the documentation relevant to your confirmed order. All timber receives pressure treatment for enhanced durability and pest resistance. Assembly documentation includes detailed drawings, component schedules, and step-by-step instructions. Technical support assists with site preparation requirements and construction queries throughout the build process.
