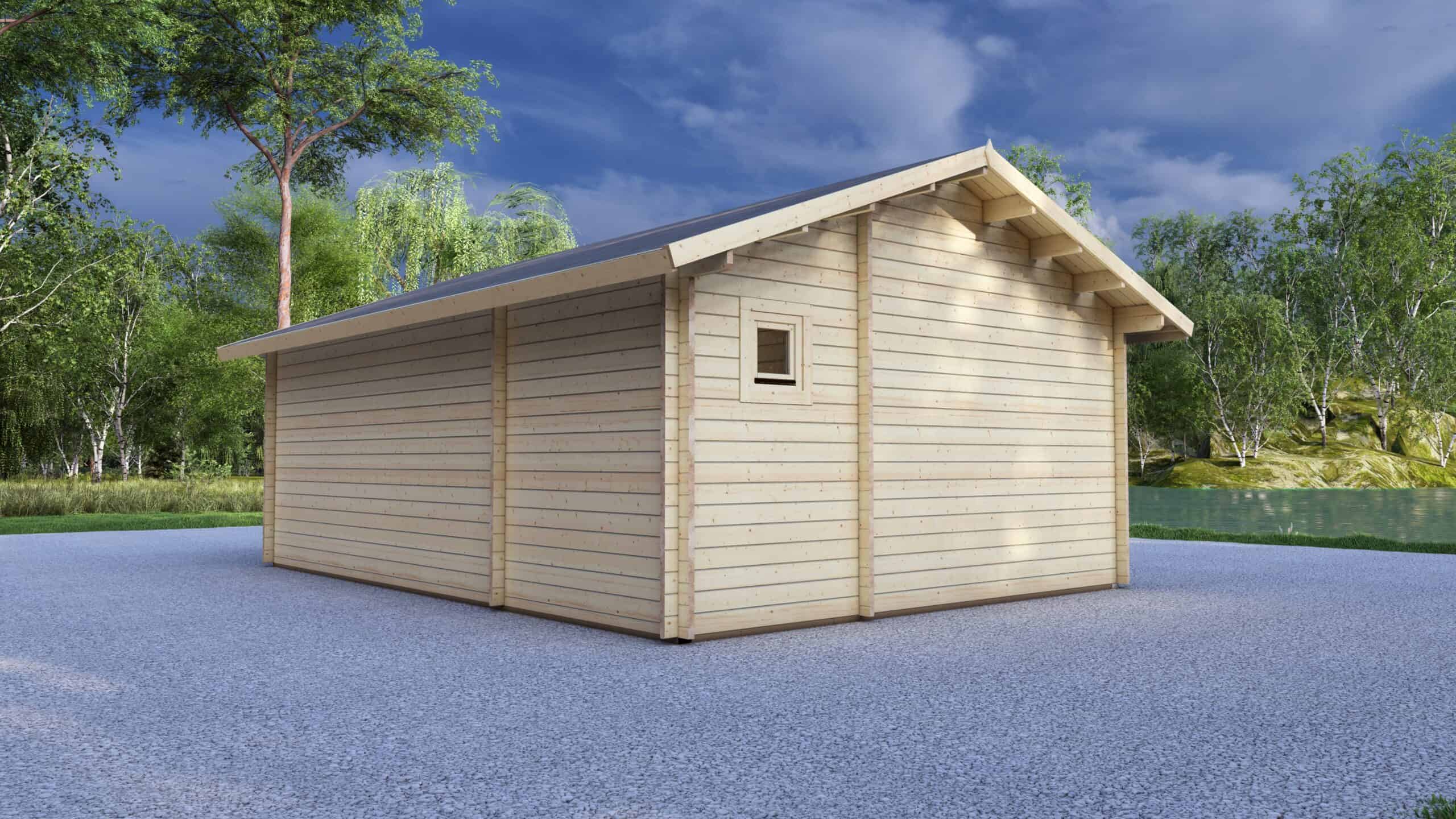

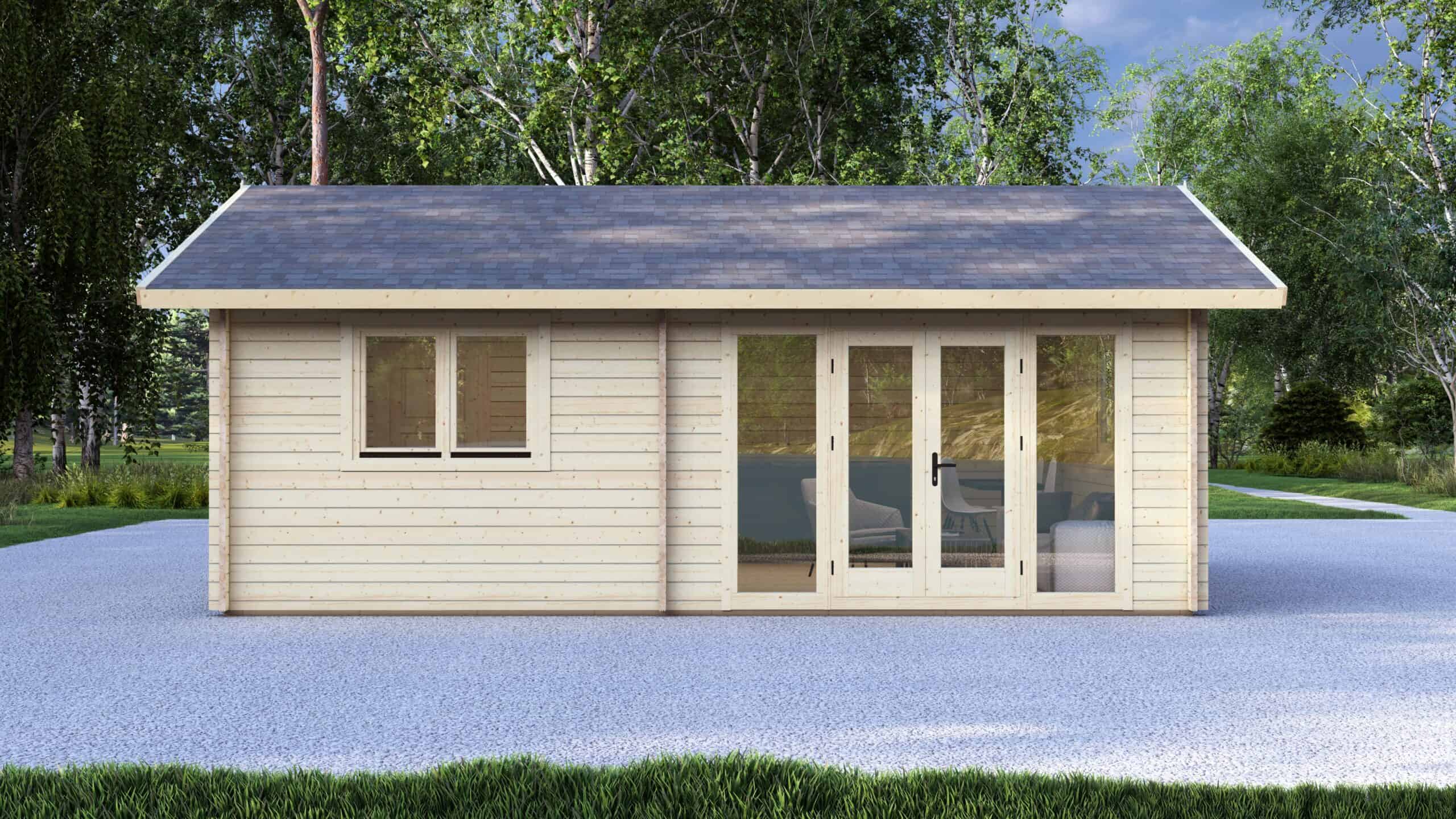

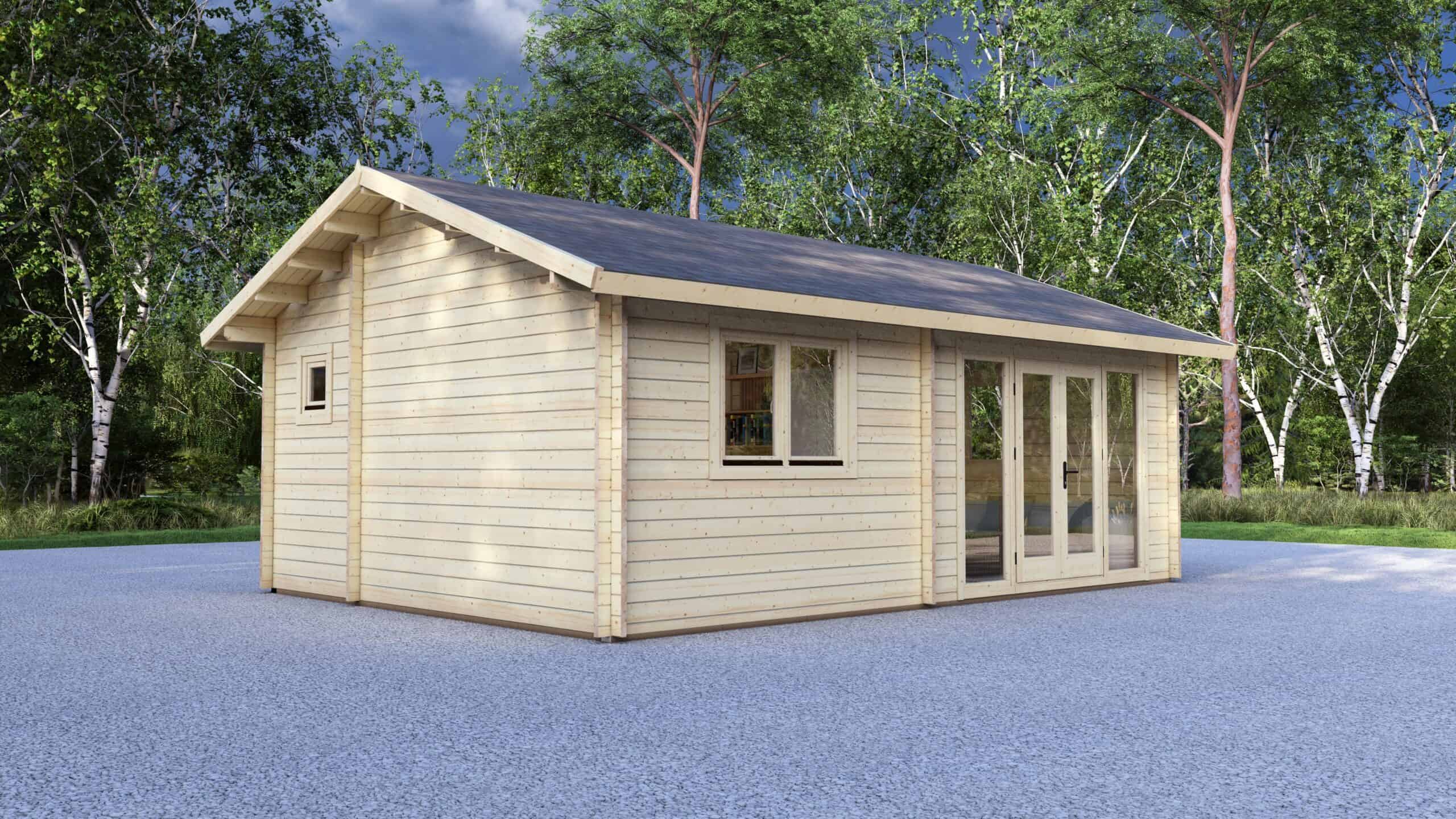

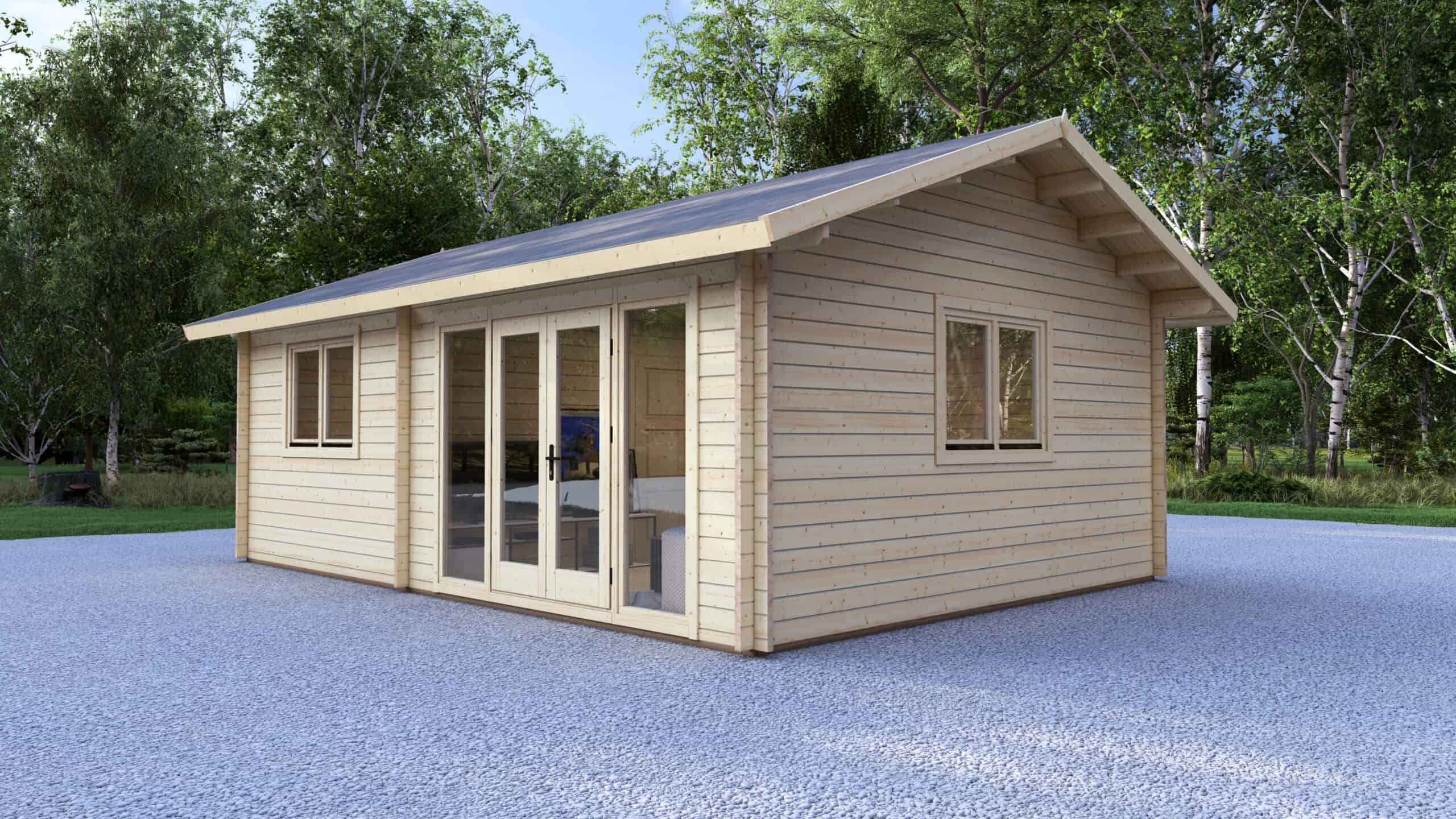

1 Bedroom Log Cabin 5x7m, 44mm
This 5x7m single-bedroom log cabin serves as a compact accommodation-style layout for small properties and development projects. The 44mm Northern European timber construction provides extended-season usability for compact accommodation briefs.
Supplied to dealers, developers and private-label partners; larger homes are also supplied directly to private clients.
Technical data sheet
Specification recorded for 1 Bedroom Log Cabin 5x7m, 44mm. Dimensions are the building's external dimensions. A row appears only where a figure is recorded for this model.
| Building | |
|---|---|

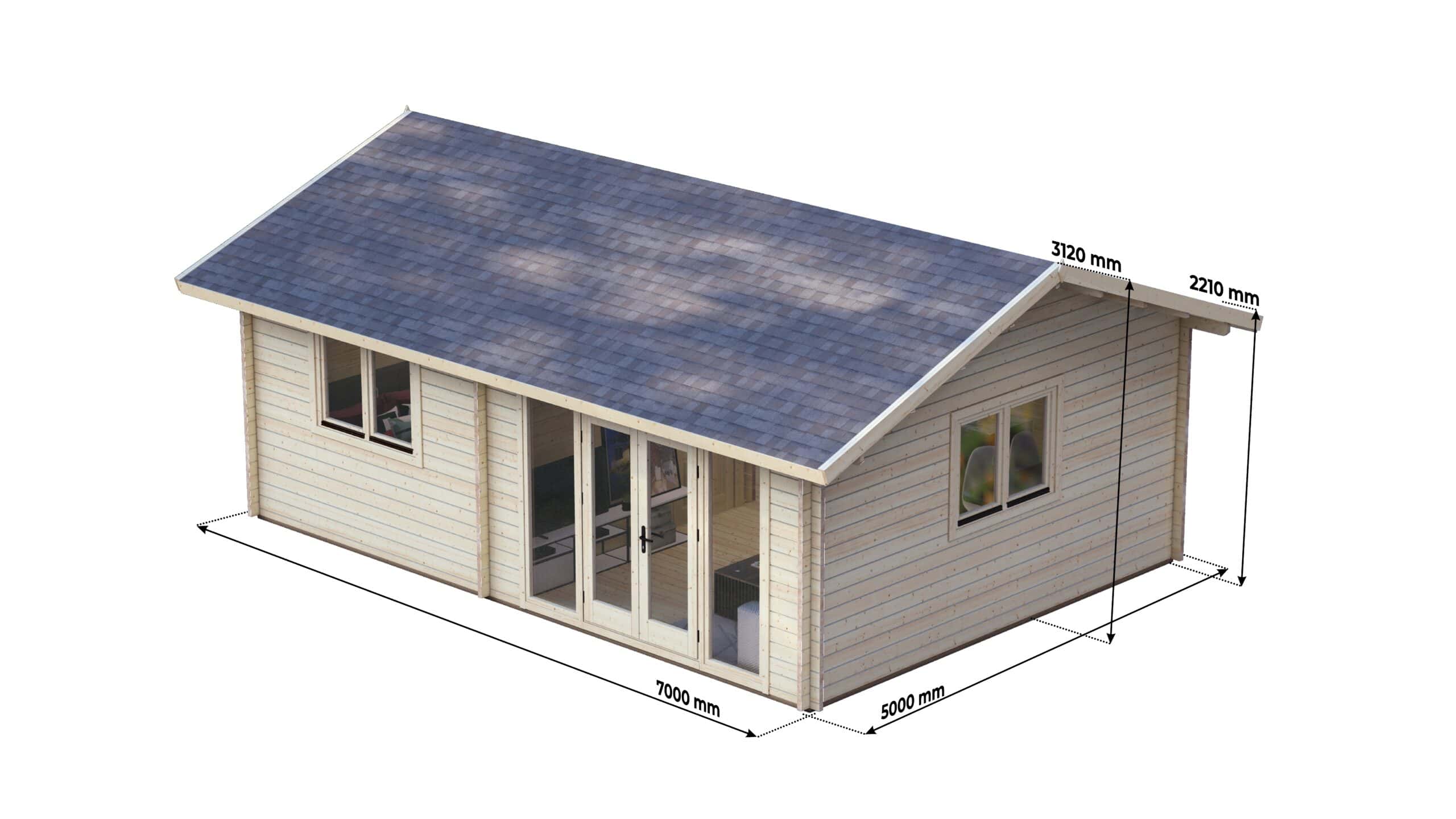

| External dimensions | 5 x 7 m |
| External footprint area | 35 m² |
| Eaves height | 221 cm |
| Ridge height | 312 cm |
| Storeys | 1 |
| Base | External footprint 5 x 7 m. Base type and size are confirmed for the specific model and site. |
| Structure | |
| Wall profile | 44 x 130 mm as standard |
| Other wall options | Other approved solid wall profiles can be specified to suit the project and budget. |
| Construction | Interlocking tongue and groove joints |
| Timber | Northern European timber |
| Storm brace and anchor set | Included |
| Floor | |
| Floor bearers | Impregnated as standard |
| Floor boards | 28 mm |
| Roof | |
| Roof boards | 19 mm tongue and groove boards |
| Doors and windows | |
| Doors | Double-Glazed Timber Joinery, Insulated Profile |
| Windows | Double-Glazed Timber Joinery, Insulated Profile |
| Scope of these figures | |
| Insulation | Eurodita supplies the timber structure prepared for insulation where required, not the insulation material. |
| Performance | These dimensions establish no thermal, fire, structural or certification performance. |
Add-ons & Customisation
Options for this model (branding, wall thickness, openings, insulation preparation, partitions, veranda) are listed on What is in a Eurodita kit and confirmed per order.
Need this in a different size?
This model is supplied as a 5 x 7 m footprint, 44 mm wall profile. If your customer needs a different layout, send a drawing. Eurodita will confirm whether the qualified bespoke route and factory scope fit the exact project. Partner branding is agreed per order.
- 1 Send a drawing A hand sketch can start the review. Mark known window and door positions, wall thickness and heights; Eurodita confirms any missing technical inputs.
- 2 Confirm the quotation scope If the enquiry fits, pricing and any CAD/3D or technical material are prepared to the agreed scope.
- 3 Review the agreed scope Revisions follow the quotation and project scope until written sign-off.
CAD/3D quotation material is prepared to the qualified project scope. Availability and timing are confirmed during qualification. Partner branding is applied where agreed; required manufacturer, legal and traceability information is retained.
Send a bespoke briefDimensions, wall thickness and opening positions are confirmed per project at quote stage. Bespoke production timing is confirmed at quotation stage. See published projects for built examples with dimensions and drawings, or review the rest of the 1 bedroom log cabins range.
About This 1 Bedroom Log Cabin 5x7m, 44mm
Product Overview
This 5x7m single-bedroom log cabin serves as a compact accommodation-style layout for small properties and development projects. The 44mm Northern European timber construction provides extended-season usability for compact accommodation briefs. Developers utilize this model for dealer-led compact accommodation ranges, rural retreats, and space-efficient project planning across European markets.

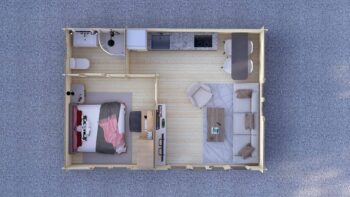

Layout & Configuration

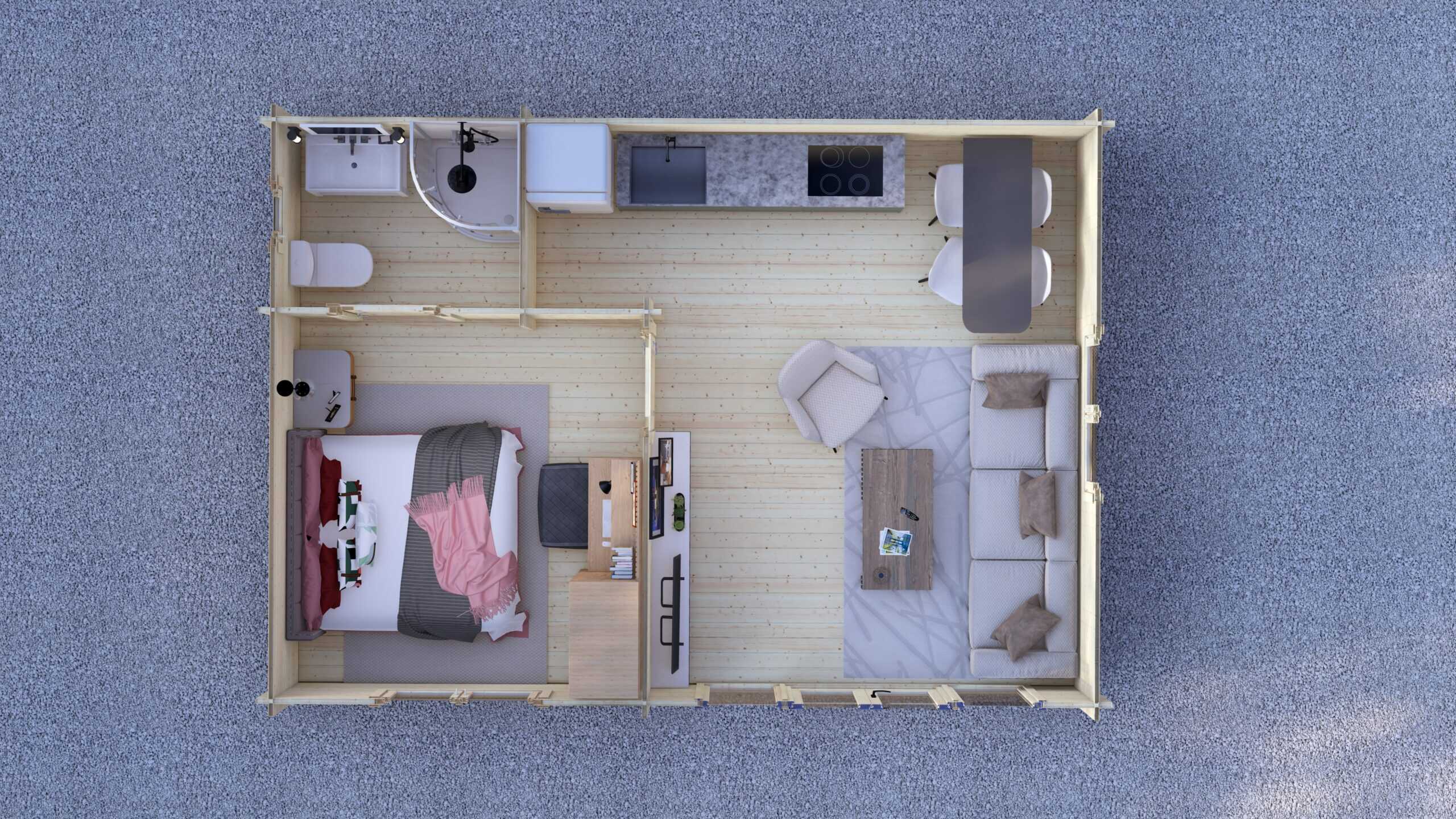

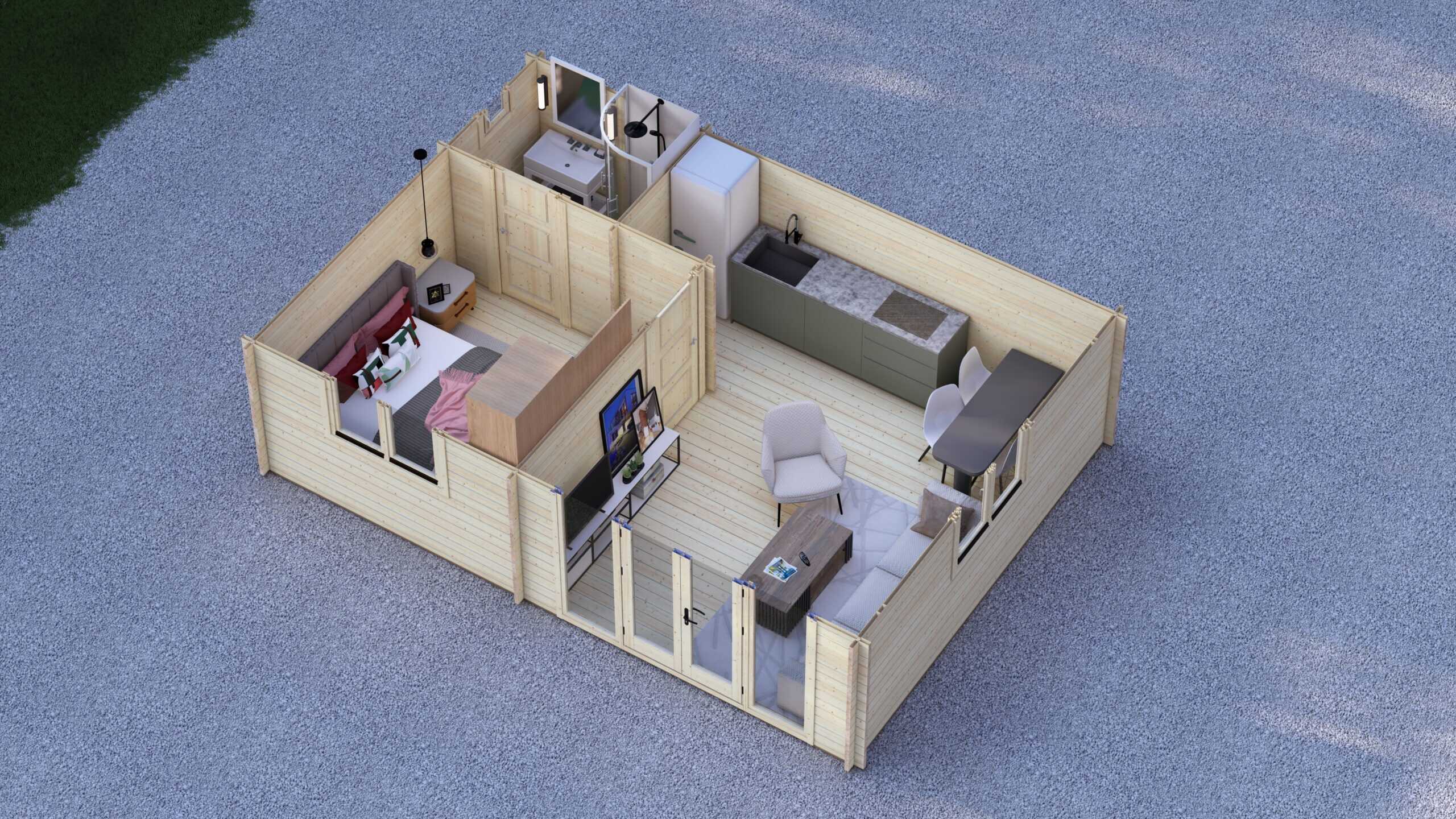

The interior delivers optimized space planning within 35 square metres of main room area. One dedicated bedroom accommodates two-person layout planning alongside an open-plan main room area. The 221cm eaves height ensures comfortable headroom throughout, while the ridge height reaches 312cm for excellent interior volume and natural lighting distribution.
Timber & Construction
Northern European timber forms the structural foundation through precision-milled 44mm wall logs. Strong interlocking tongue-and-groove joints help reduce assembly gaps while maintaining assembly stability. Double-glazed timber joinery incorporates insulated profiles for project-specific thermal specification. This construction methodology ensures long-term dimensional stability in varied European climates.
Floor & Roof
The foundation incorporates 28mm tongue-and-groove floor boards mounted on pressure-treated bearers for moisture resistance. Roof construction features 19mm tongue-and-groove boards providing structural decking for various covering materials. Storm bracing reinforces the frame against wind loads, ensuring project review against relevant structural requirements.
Customisation Options
Wall-thickness and insulation upgrades are confirmed at quotation stage for the product family, target use and destination-market review. Additional glazing configurations include triple-glazed windows for project-specific energy specification. Interior partition kits modify room layouts while veranda extensions expand usable space. These modifications help dealers adapt the specification to local market requirements, with regulatory checks confirmed by the dealer or project team.
Manufacturing & Delivery
The Eurodita factory is dimensioned for 150,000 m³ of timber a year. Freight route and final delivery timing are agreed per order in the written quotation. Eurodita standard terms are EXW from the Eurodita factory. The facility accommodates bespoke modifications including dimensional changes, upgraded specifications, and region-specific adaptations for diverse market requirements.
Private Label Partnership
Private-label capabilities include partner branding on assembly documentation, delivery schedules, and warranty certificates. Professional 3D visualization services support sales presentations and customer consultations. Showroom programmes provide display models for dealer locations, while technical training ensures proper installation and customer support across distribution networks.
Product, order and after-sales conditions are confirmed in writing for each project in the quotation, order confirmation and applicable product documentation. Please contact Eurodita for the documentation relevant to your confirmed order.
What should dealers confirm before quoting 1 Bedroom Log Cabin 5x7m 44mm?
Eurodita supplies 1 Bedroom Log Cabin 5x7m 44mm through its private-label timber building supply, with a 5 x 7m footprint and 44mm log walls. Before quoting, dealers should confirm openings, partition details, insulation scope, foundation interface, unloading access, EXW logistics route from the Eurodita factory and local authority review requirements. See the dealer granny annexe range and log cabin shipping and EXW release guidance before making client-facing commitments.
