Eurodita timber building project

Pent Summer House 3.2x6.2

A timber building drawn in the Eurodita design and estimating system: 3D views, a floor plan and four elevations with dimensions, and the figures of the building as drawn.

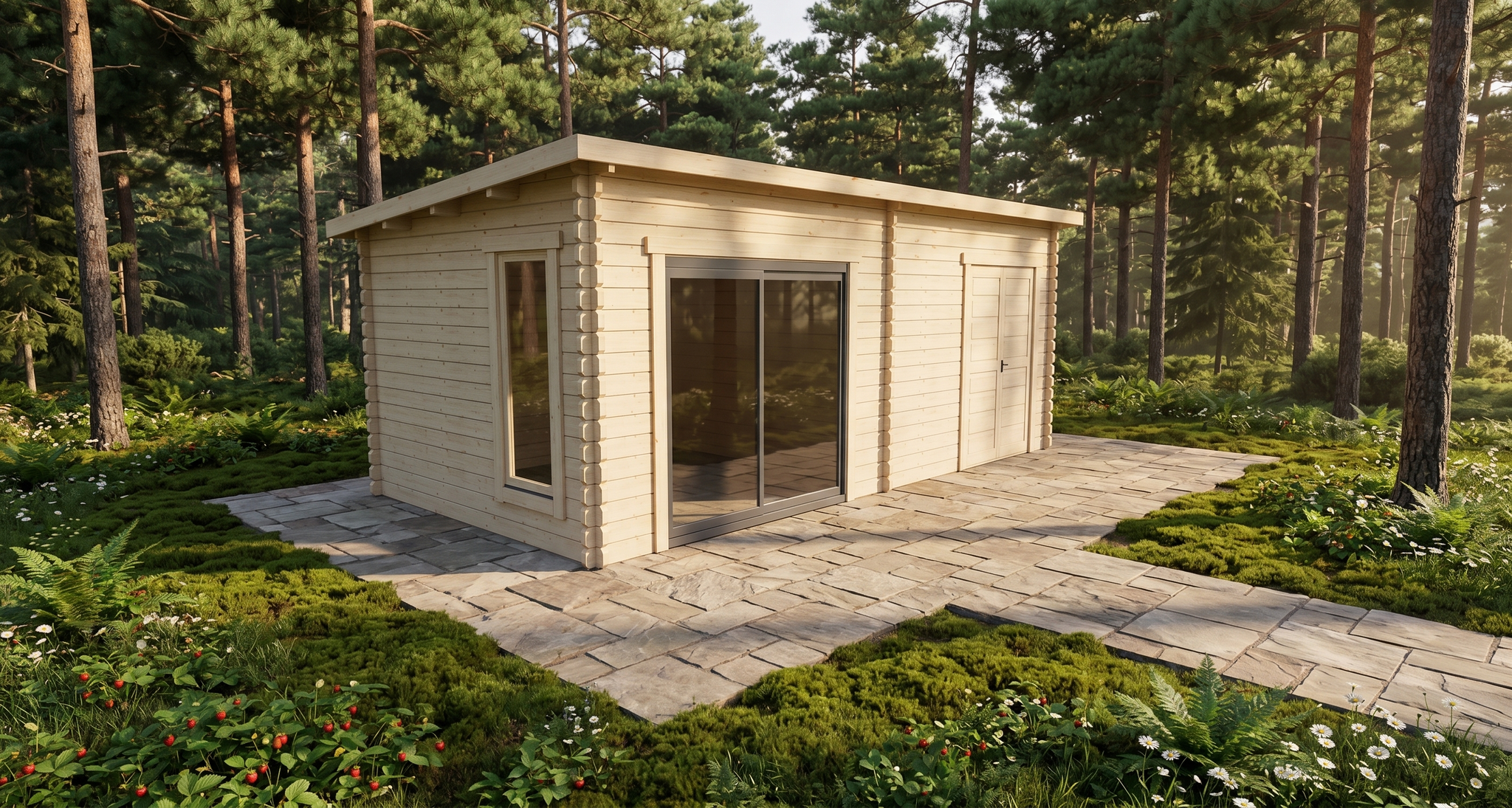

3D technical project visual for Pent Summer House 3.2x6.2.
3D view of the building as drawn. The final specification is confirmed in the written quotation.
Inside area17 m²
Overall footprint3160 × 6200 mm
Wall configuration44 mm log
Roof geometryPent, 4.9°

Specification

Technical data

The figures below come from the project drawing of this building.

Dimensions

Inside area
17 m²
Overall dimensions
3160 × 6200 mm
Internal dimensions
2872 × 5912 mm
Wall thickness
44 mm
Project reference
PSH-287x591-044

Height and roof

Sidewall height
2210 mm
Maximum/high-side roof height
2470 mm
Roof type
Pent
Roof pitch
4.9°
Roof area
21.6 m²

Floor and roof

Floor bearers
40x60mm
Floorboards
28 mm
Roof boards
19 mm
Roof purlins
44x130mm × 3

Windows and doors

Window and door schedule

Windows1 × Garden type (IV45) timber window700x1770mm
Doors1 × Aluminium sliding door Slide2000x2000mm
Doors1 × Garden type (IV45) timber double door, solid timber1400x2030mm

Drawings

Floor plan and elevations

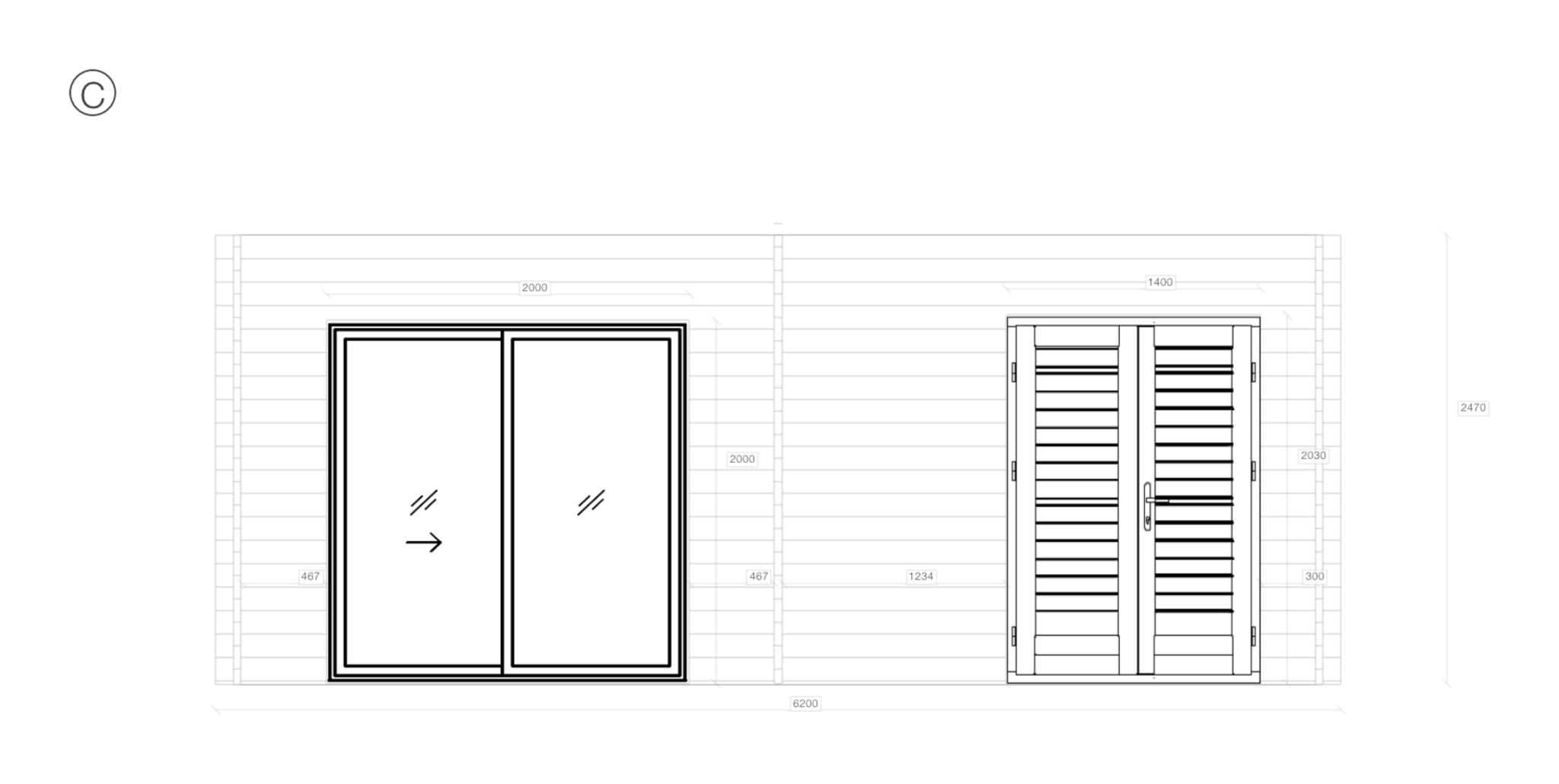

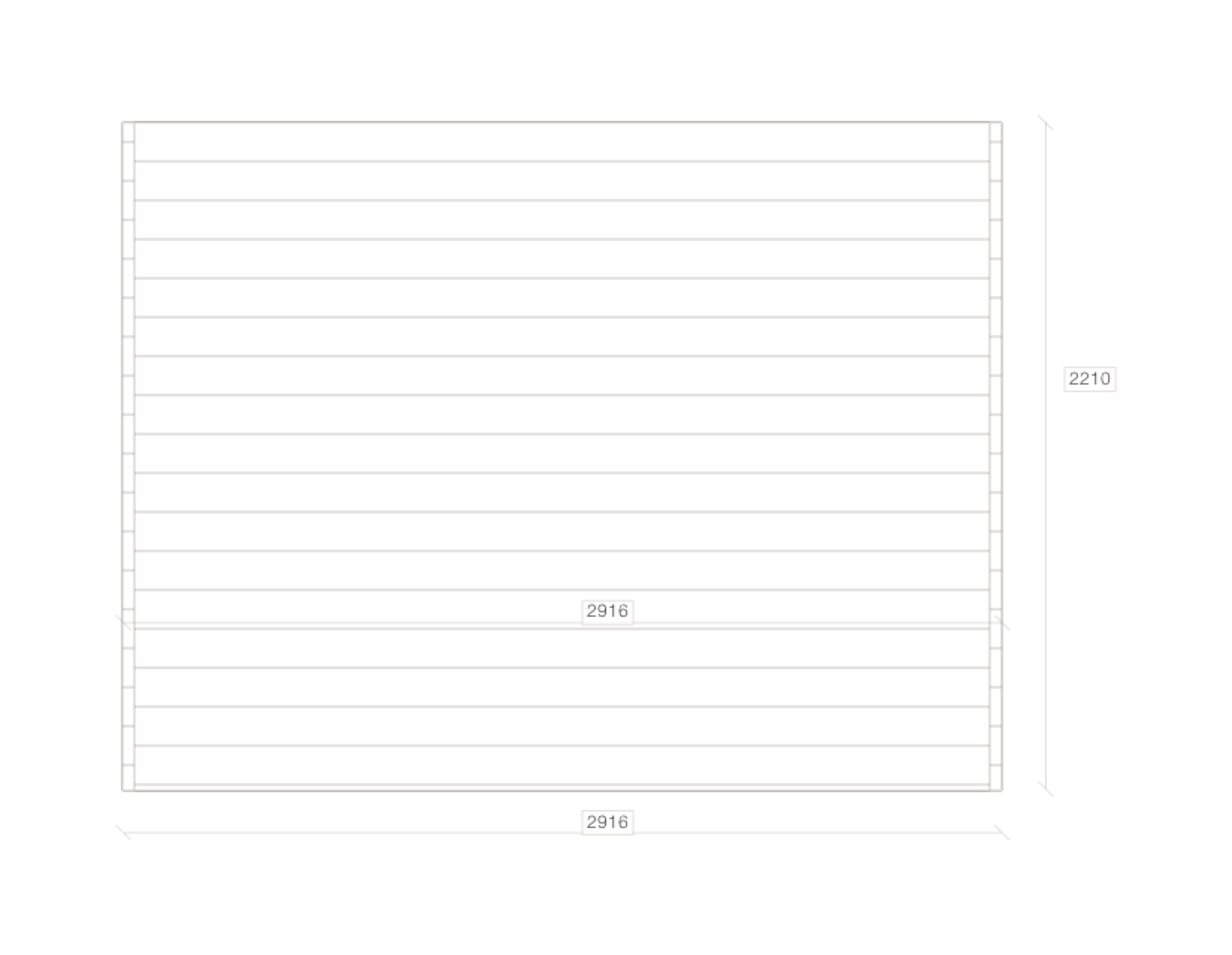

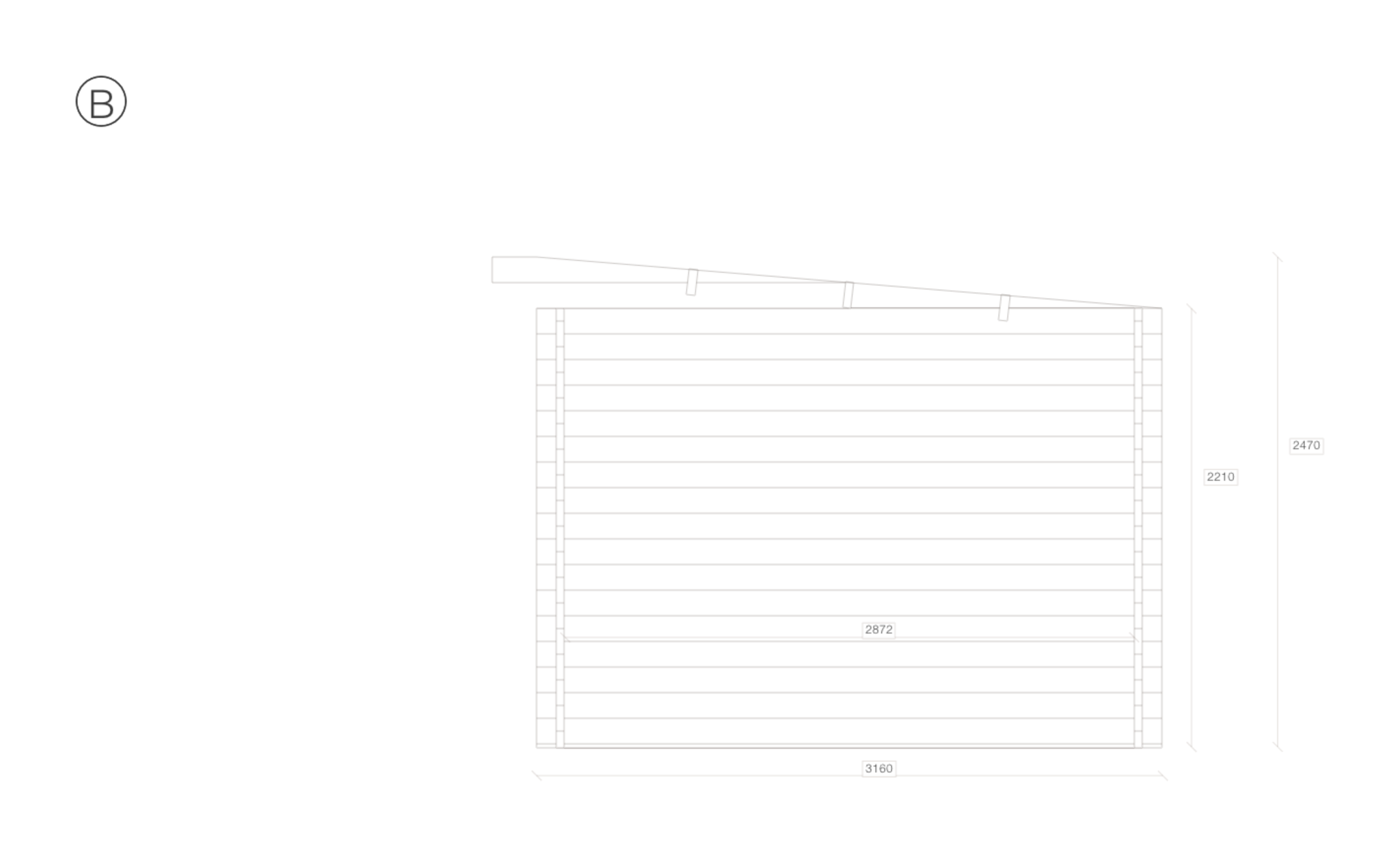

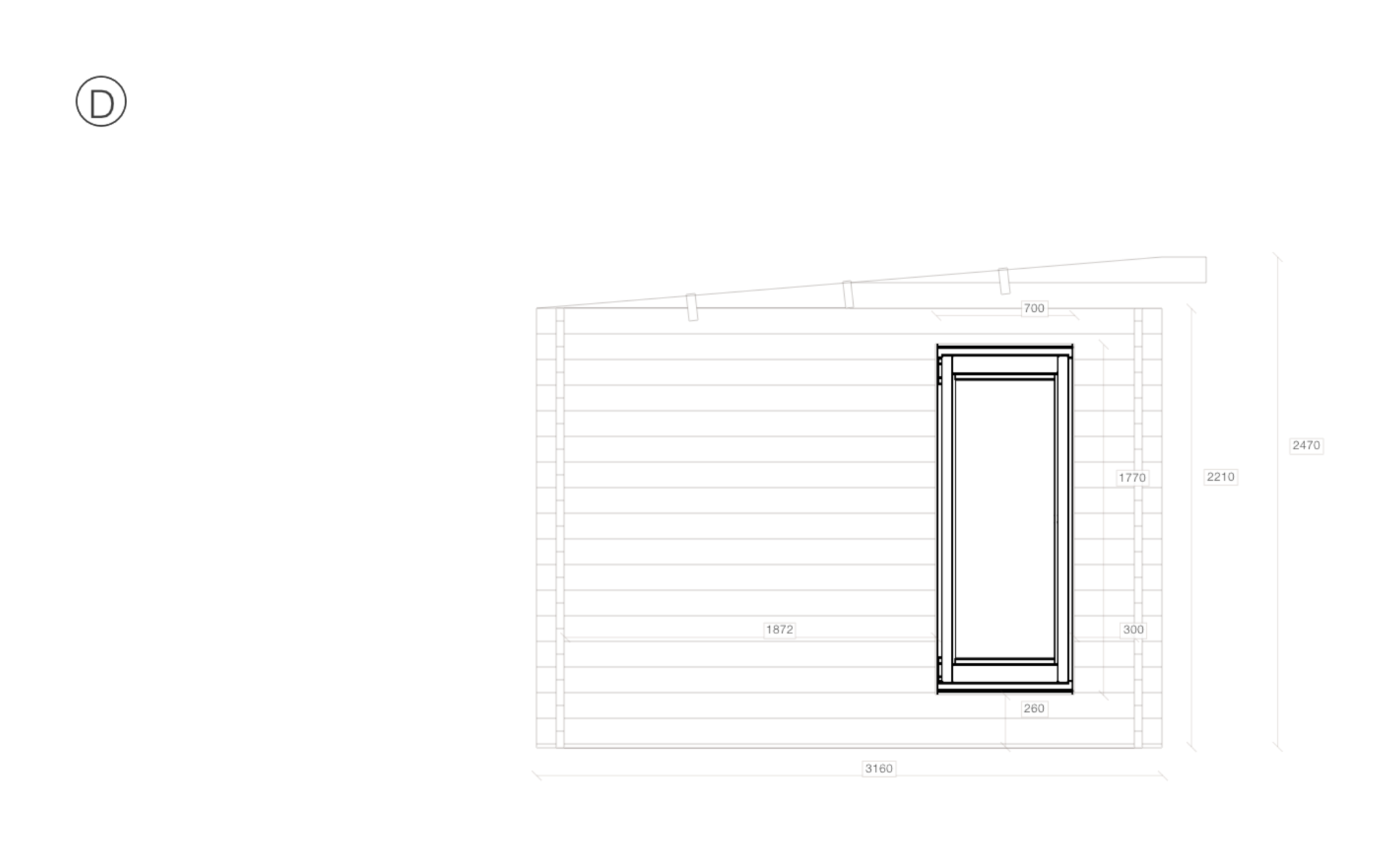

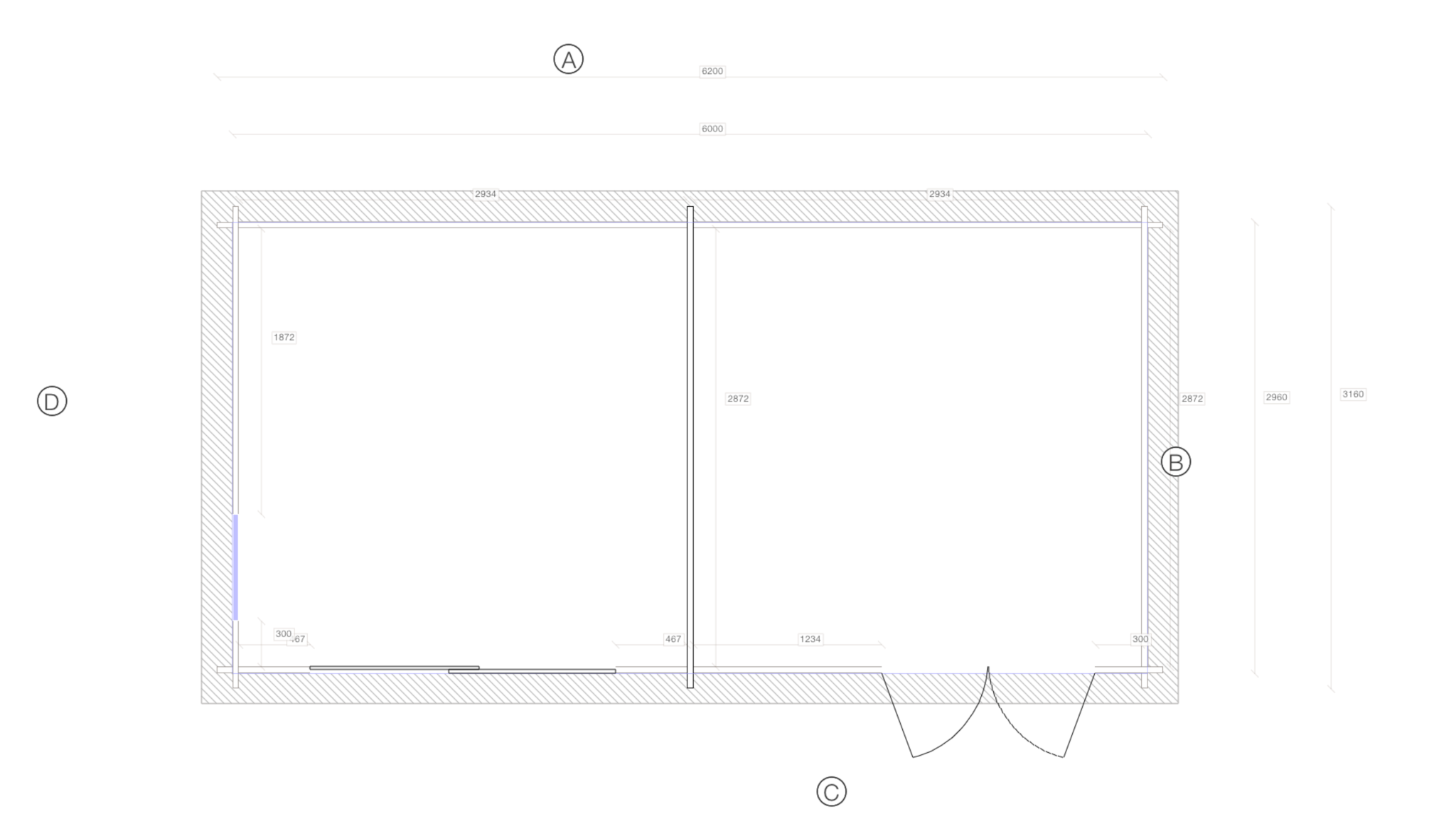

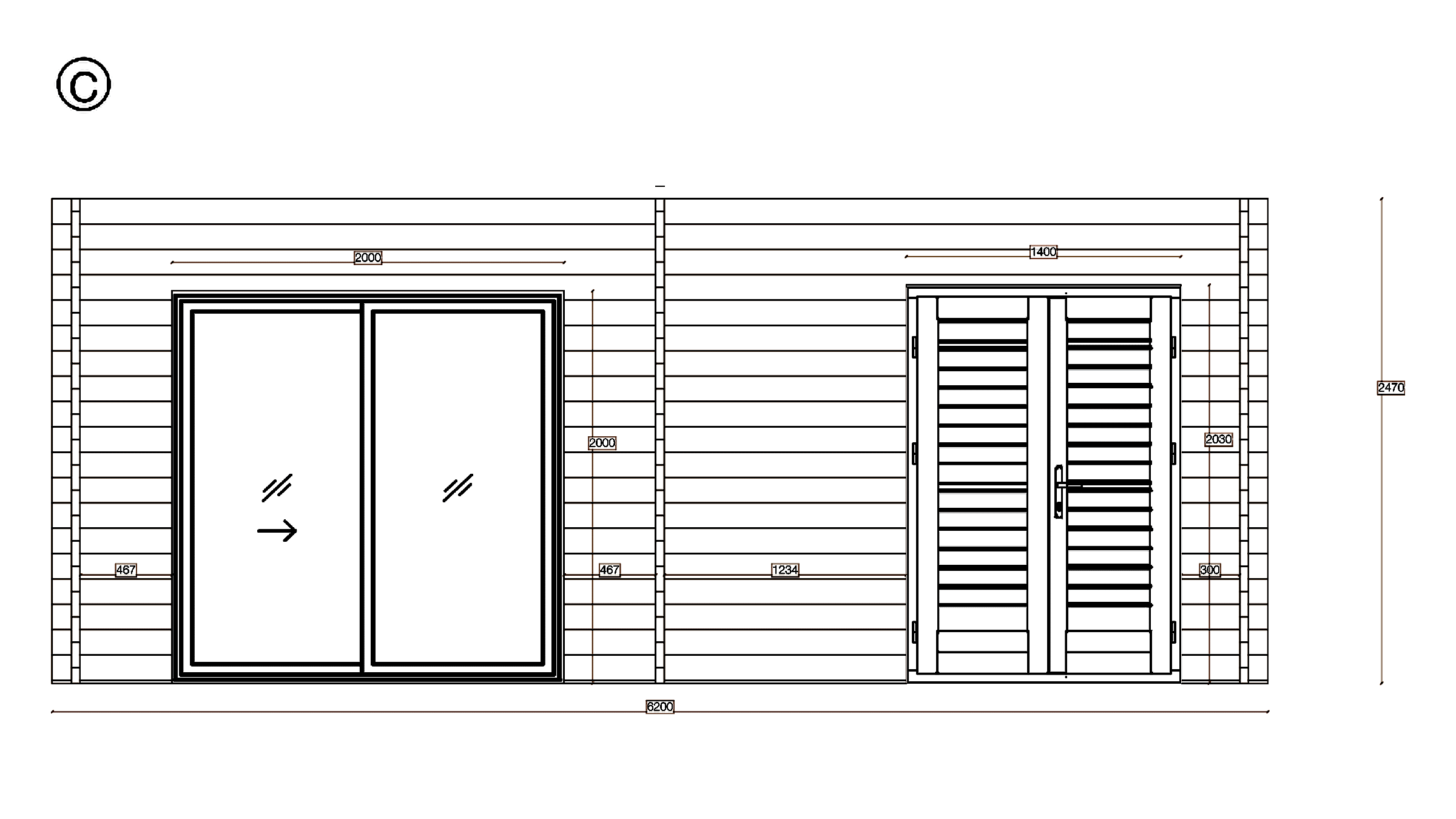

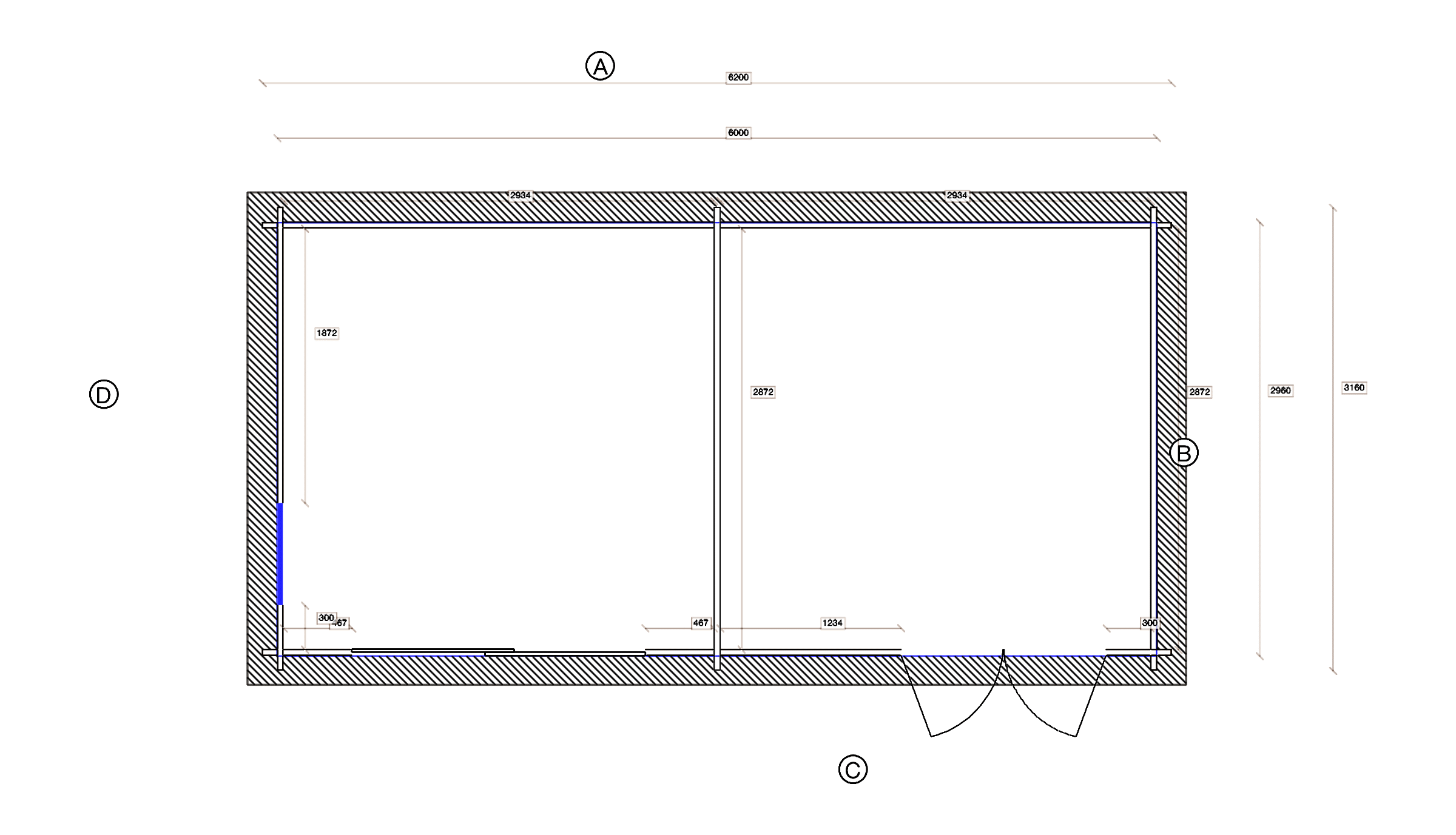

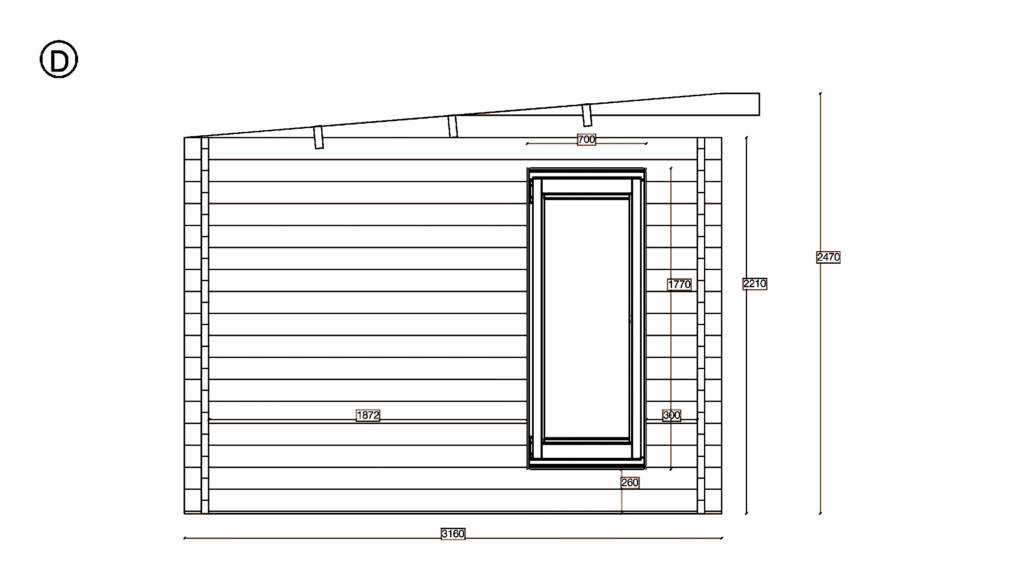

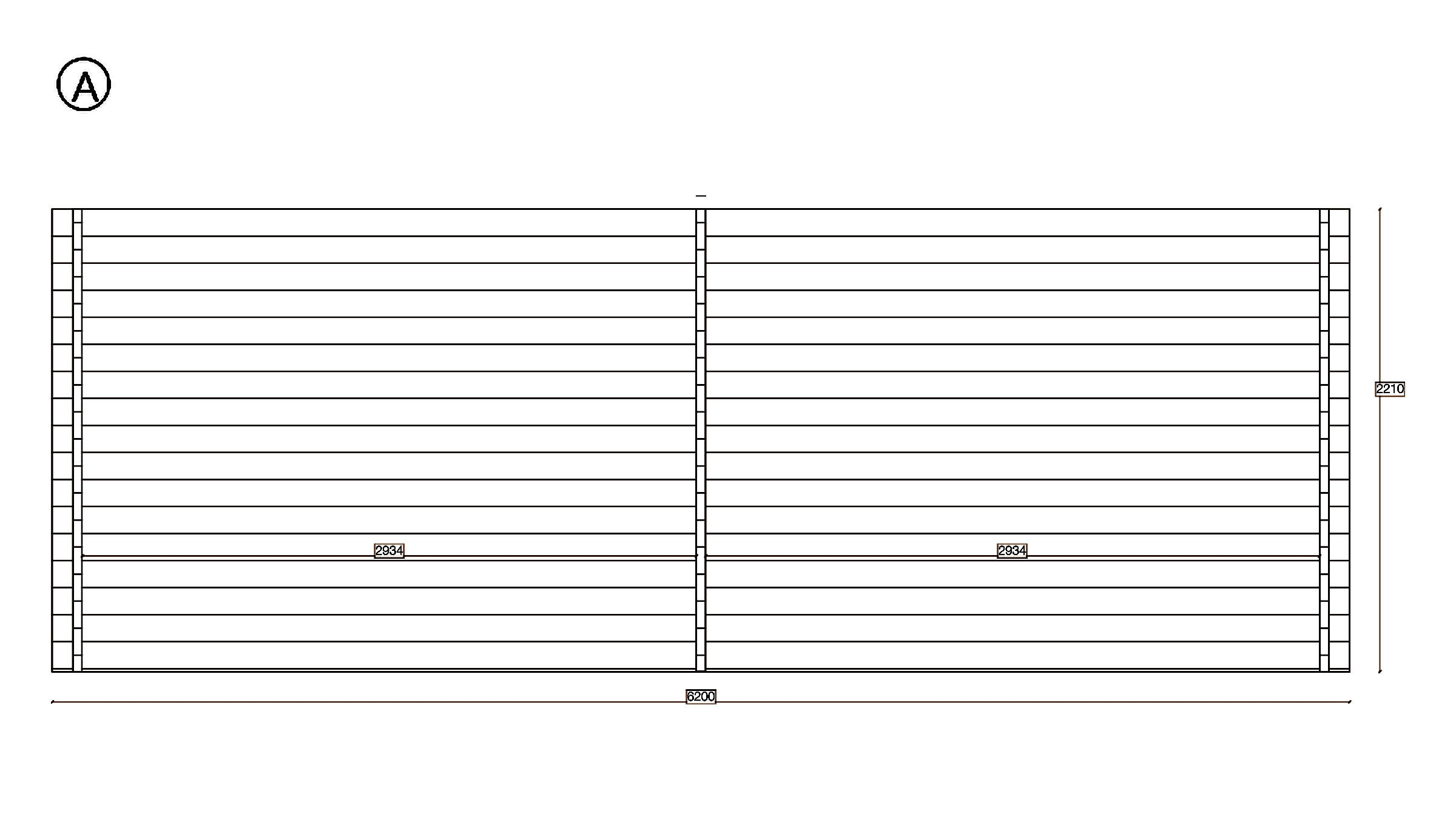

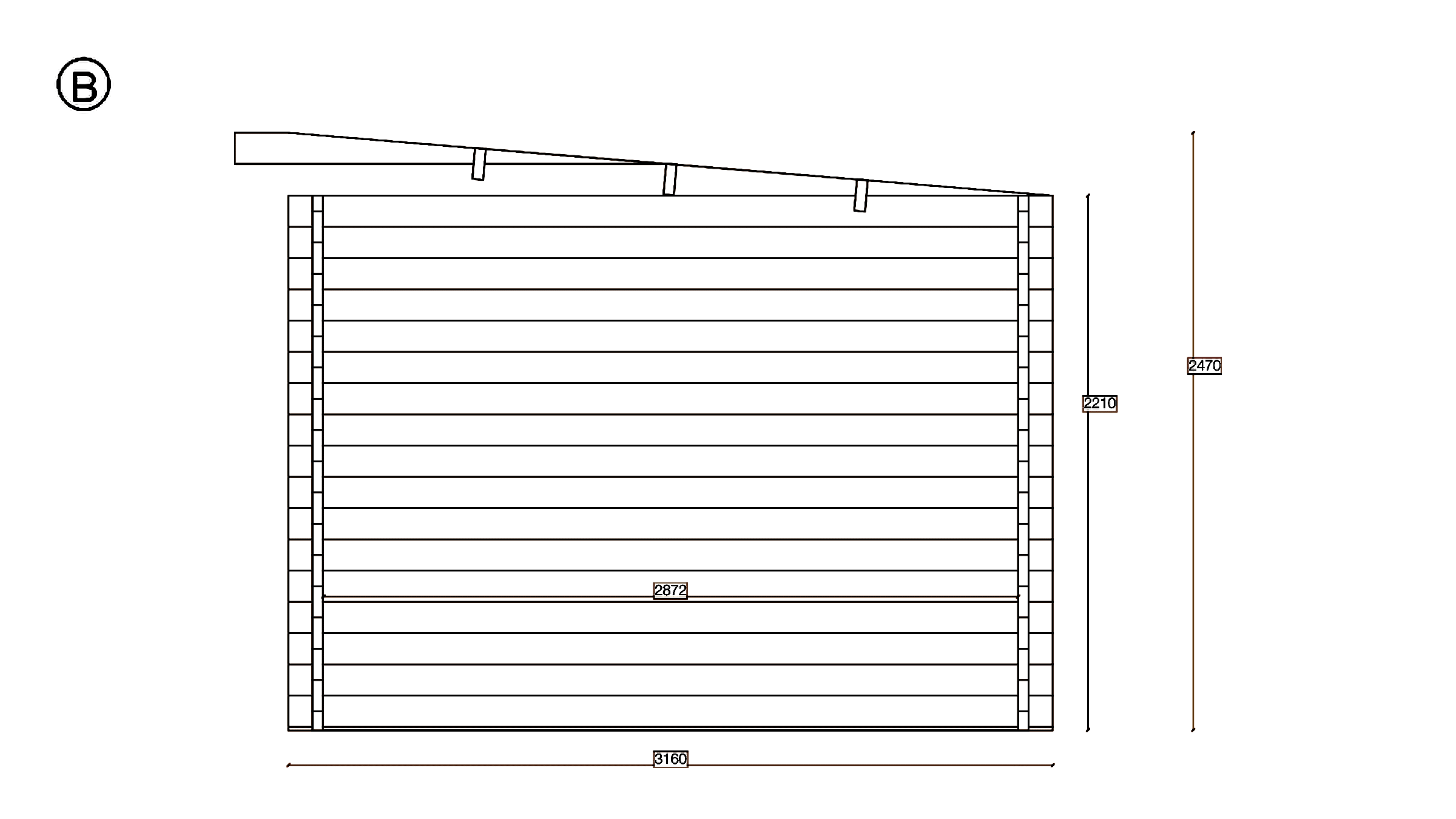

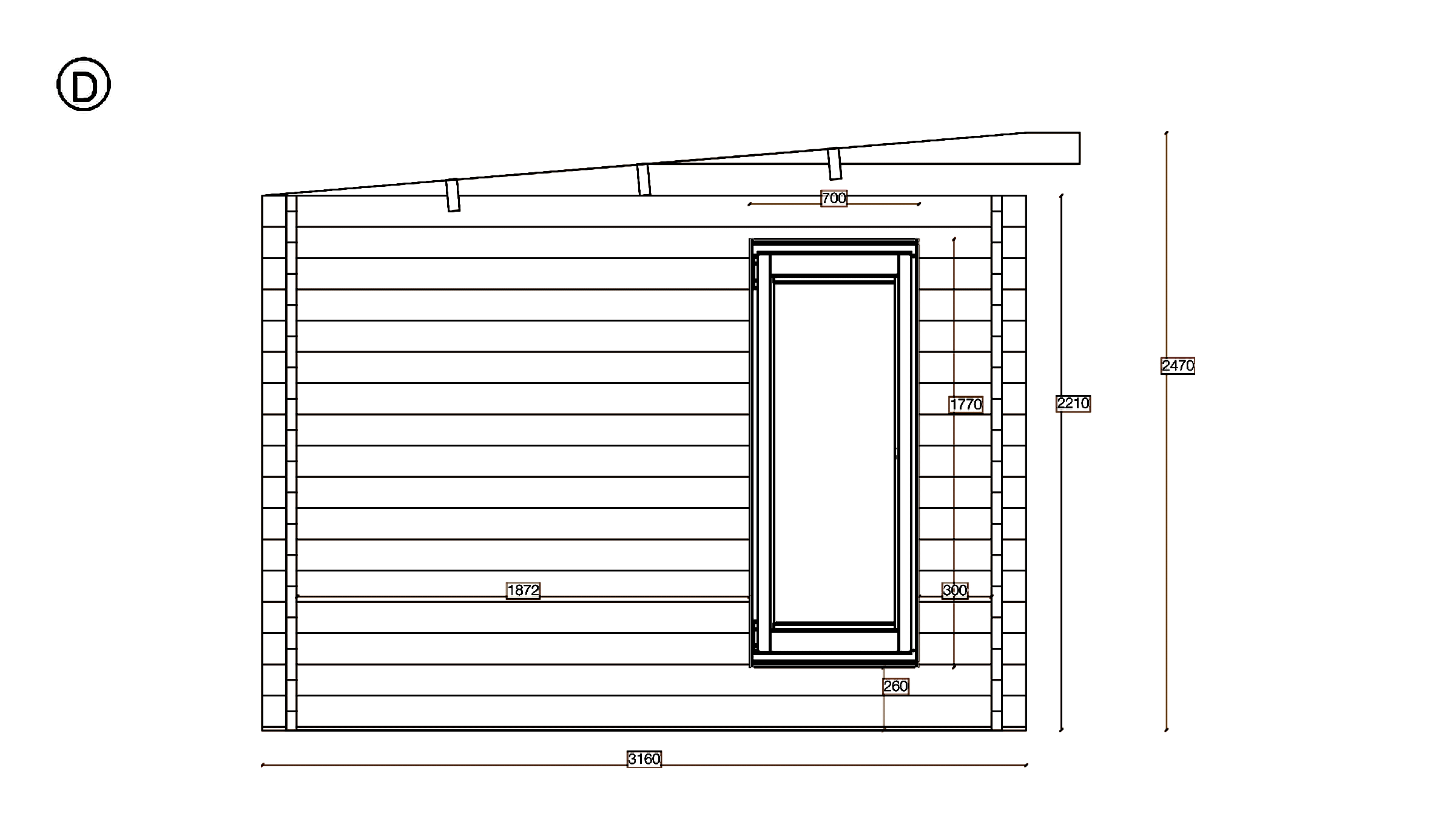

The letters A to D on the floor plan mark the four sides; each elevation shows one side with its dimensions. Open a drawing to see it at full size.
