Bespoke Design – Manufactured to Client Specifications
Design Overview

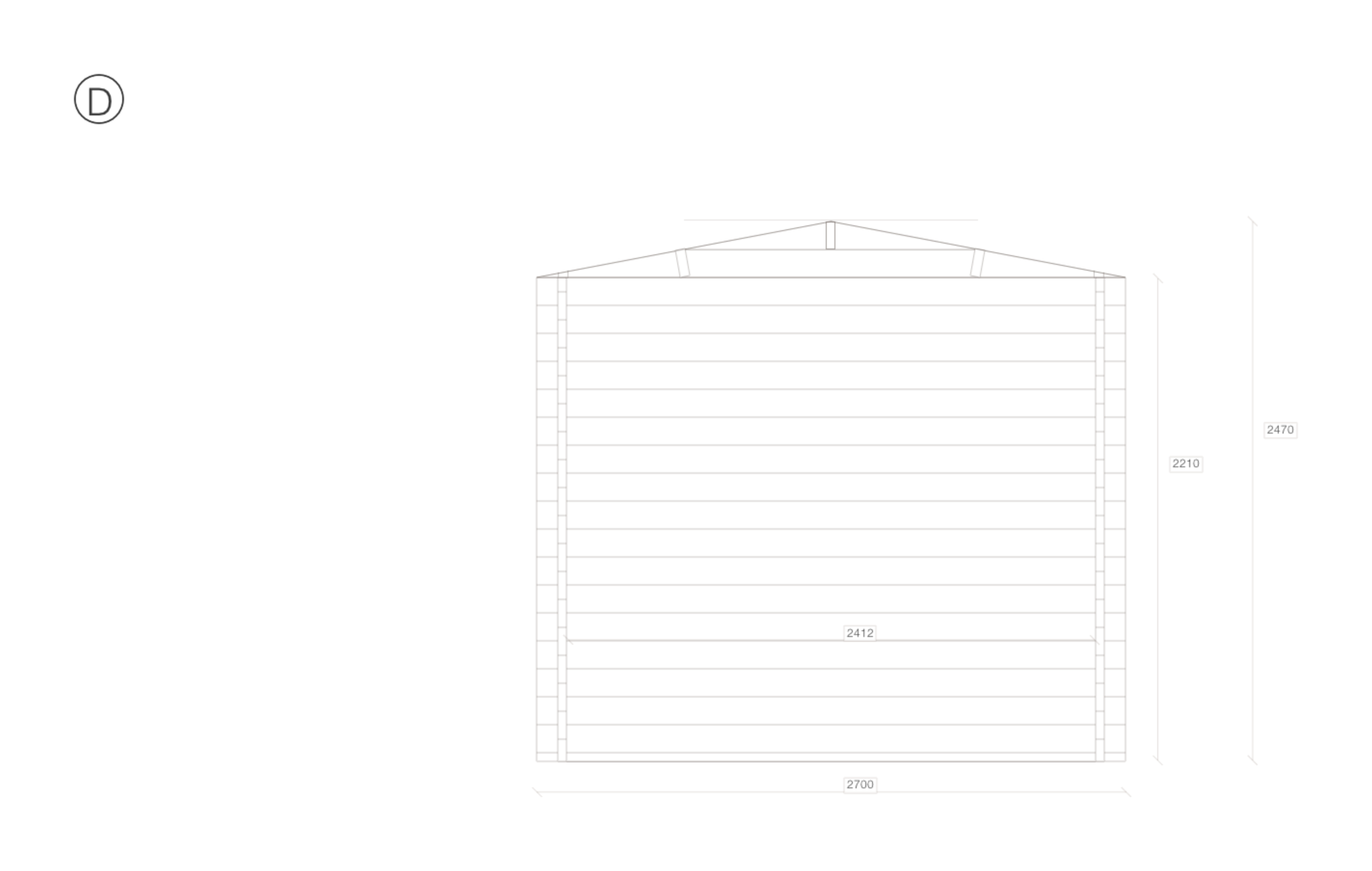

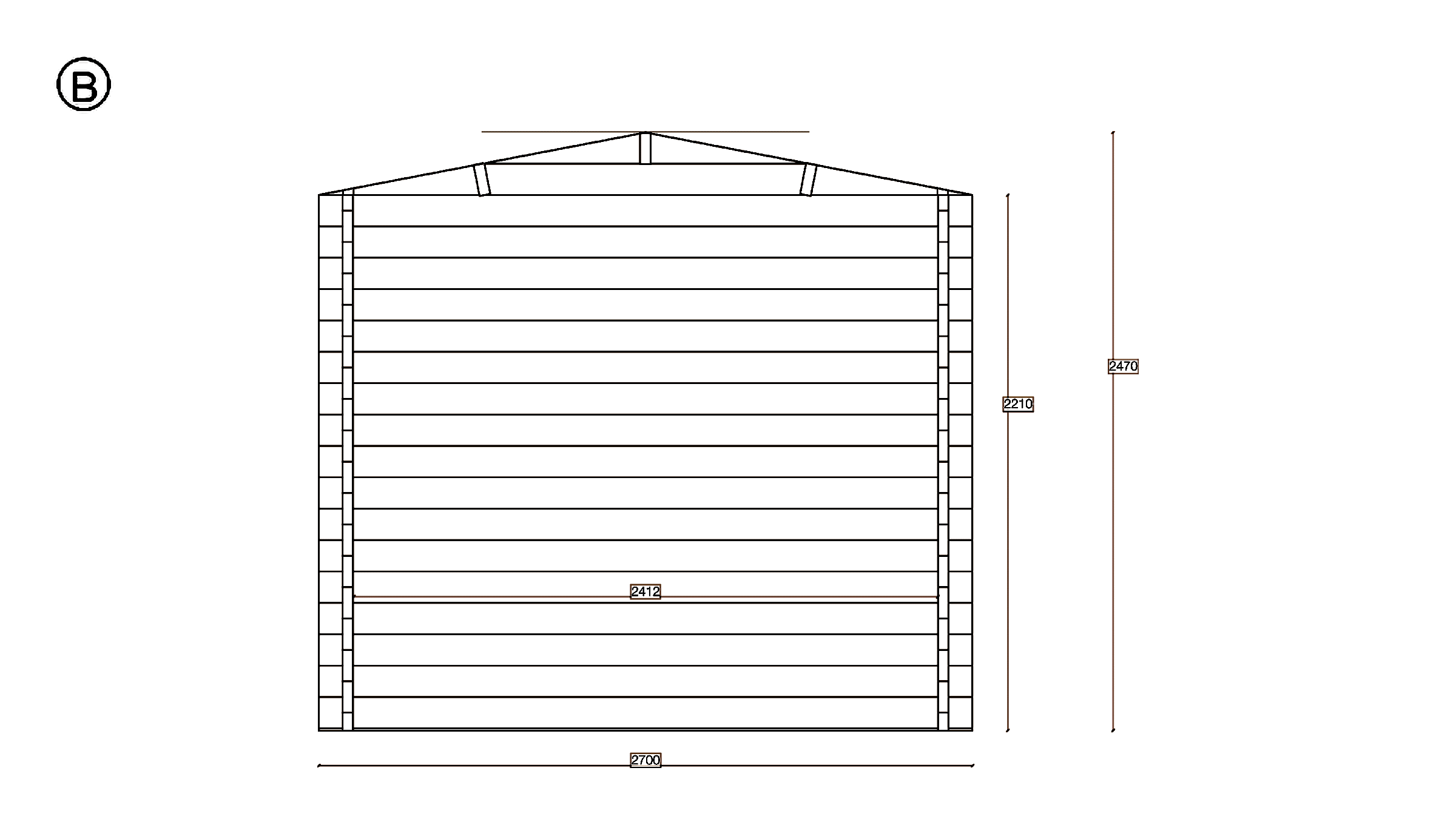

The Garden Room 2.4×4.8 is a bespoke timber structure delivering 11.6m² of clear interior space within a 2.7m x 5.1m footprint. The 44mm solid log walls frame an internal volume of 2.4m x 4.8m with 2210mm sidewalls and a ridge height of 2470mm under the apex (gable) roof. The design incorporates 1 window and 2 doors, positioned to the client’s layout brief, with the apex (gable) roof spanning 15.6m² above 40x60mm floor bearers. No off-the-shelf components are used in this garden room; every element is cut and machined to the project-specific measurements, delivering a truly bespoke result for the dealer and their end client.
Why This Configuration
The apex (gable) roof provides balanced aesthetics with symmetrical slopes meeting at a central ridge, creating a classic silhouette that integrates well with residential surroundings. At just 11.6°, the low-profile roof minimises visual impact, an advantage where planning height limits apply.
The 44mm wall profile is a common garden-building specification. Planning, permitted-development status and any local authority requirements must be checked against the project site, market and final use.

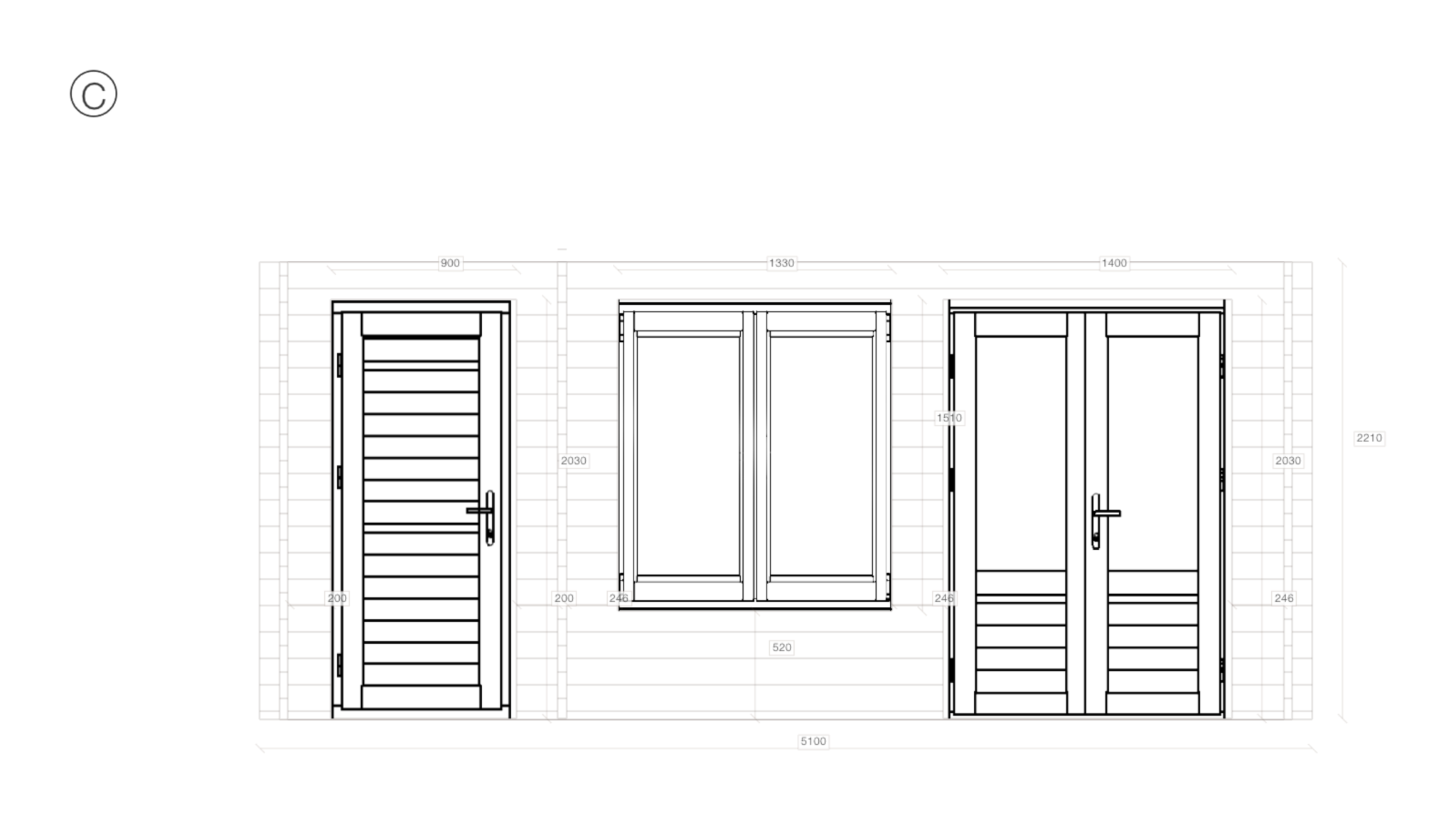

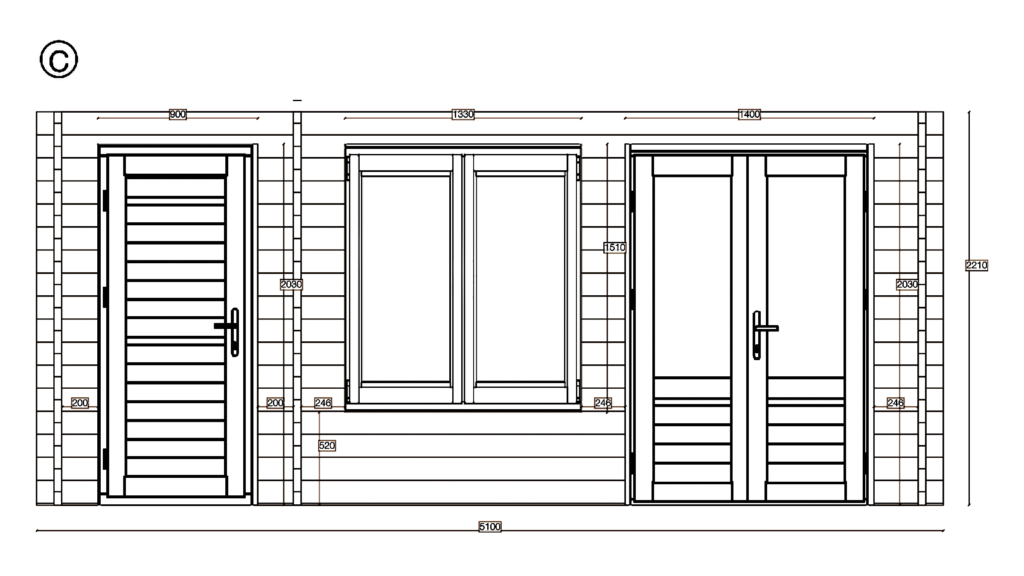

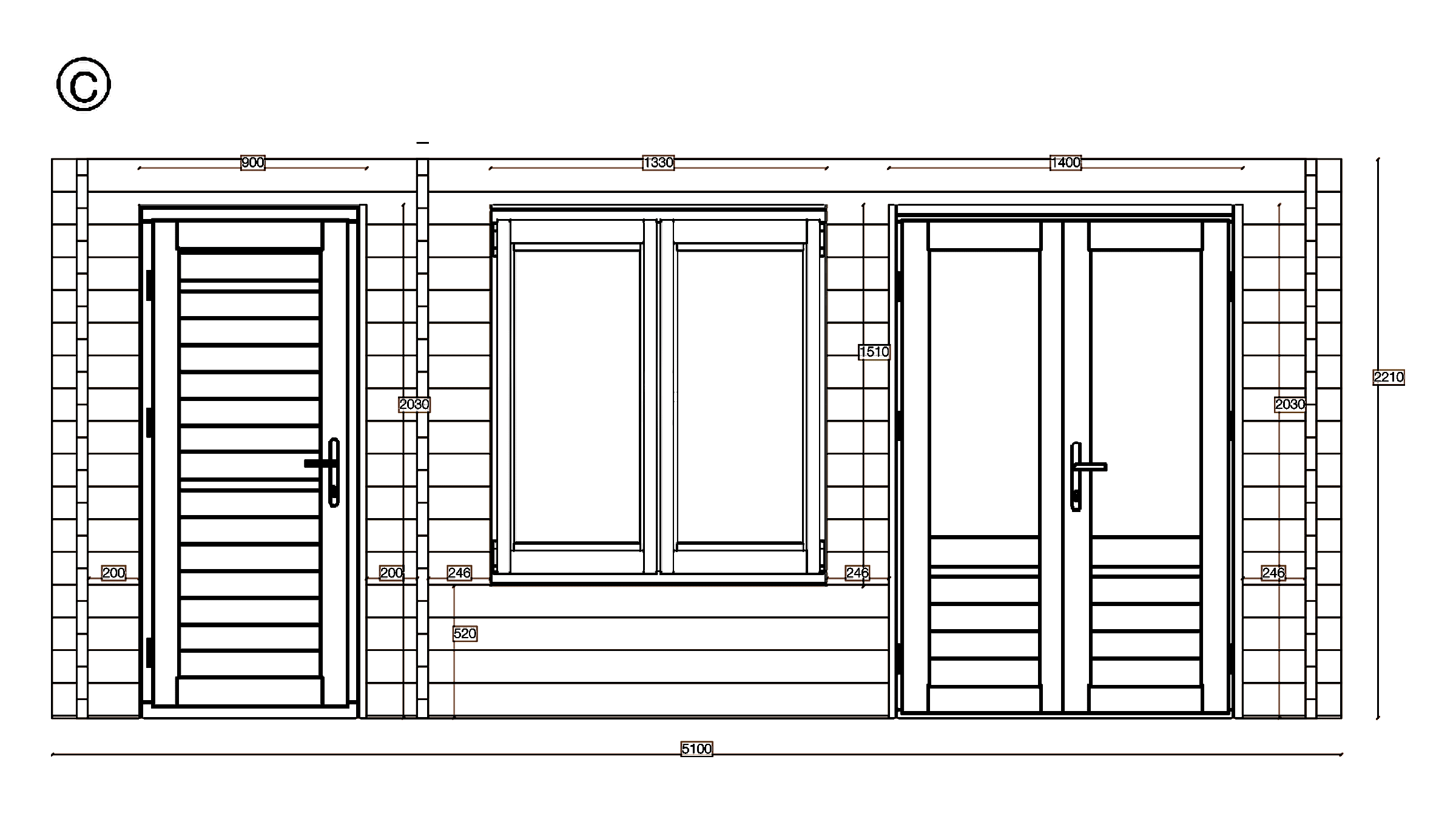

A single window provides controlled daylight while maximising uninterrupted wall area for improved thermal performance and privacy. The double-door entry creates a generous opening that accommodates furniture delivery, wheelchair access, and commercial foot traffic, adding versatility to the building’s potential use.

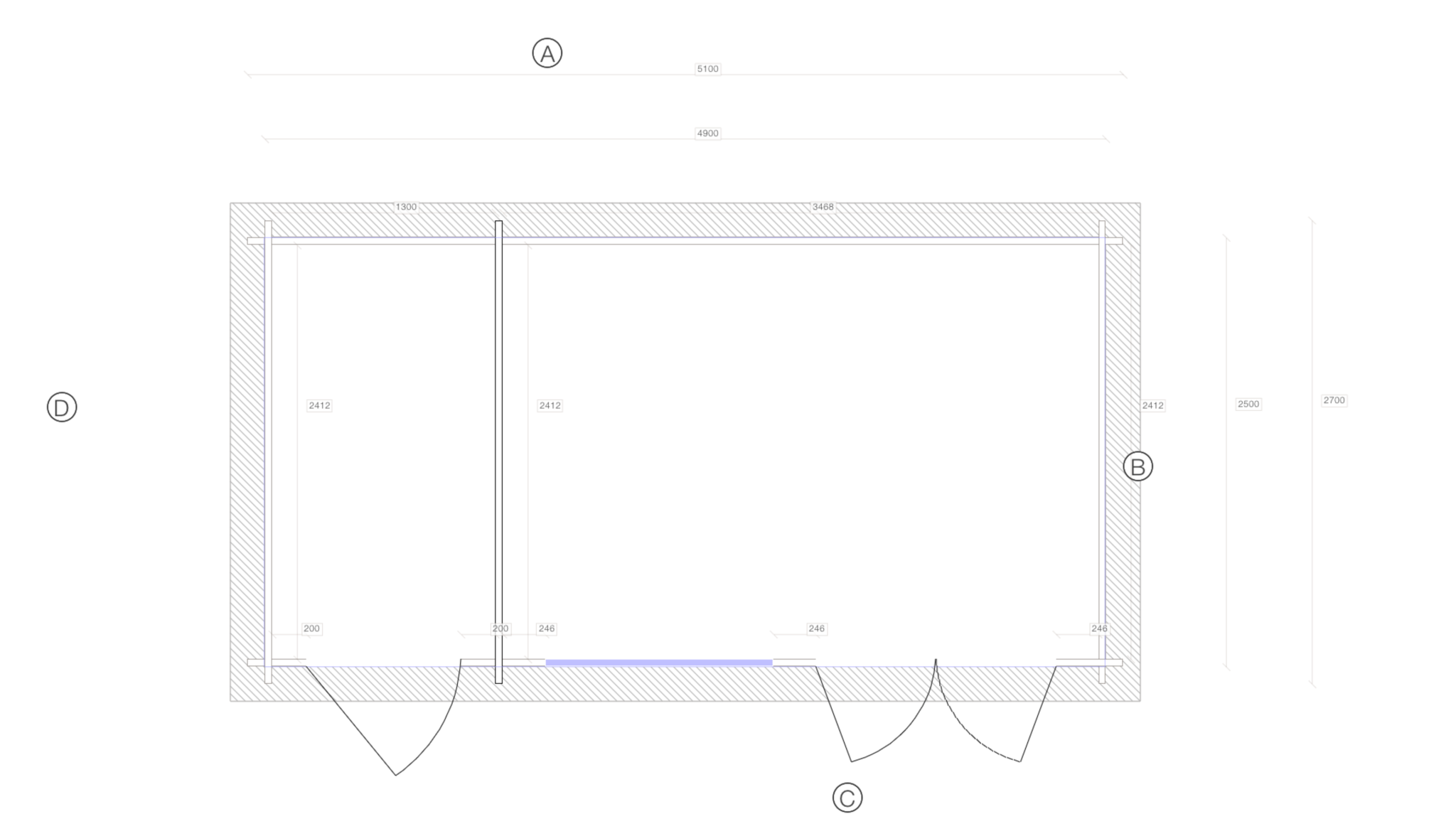

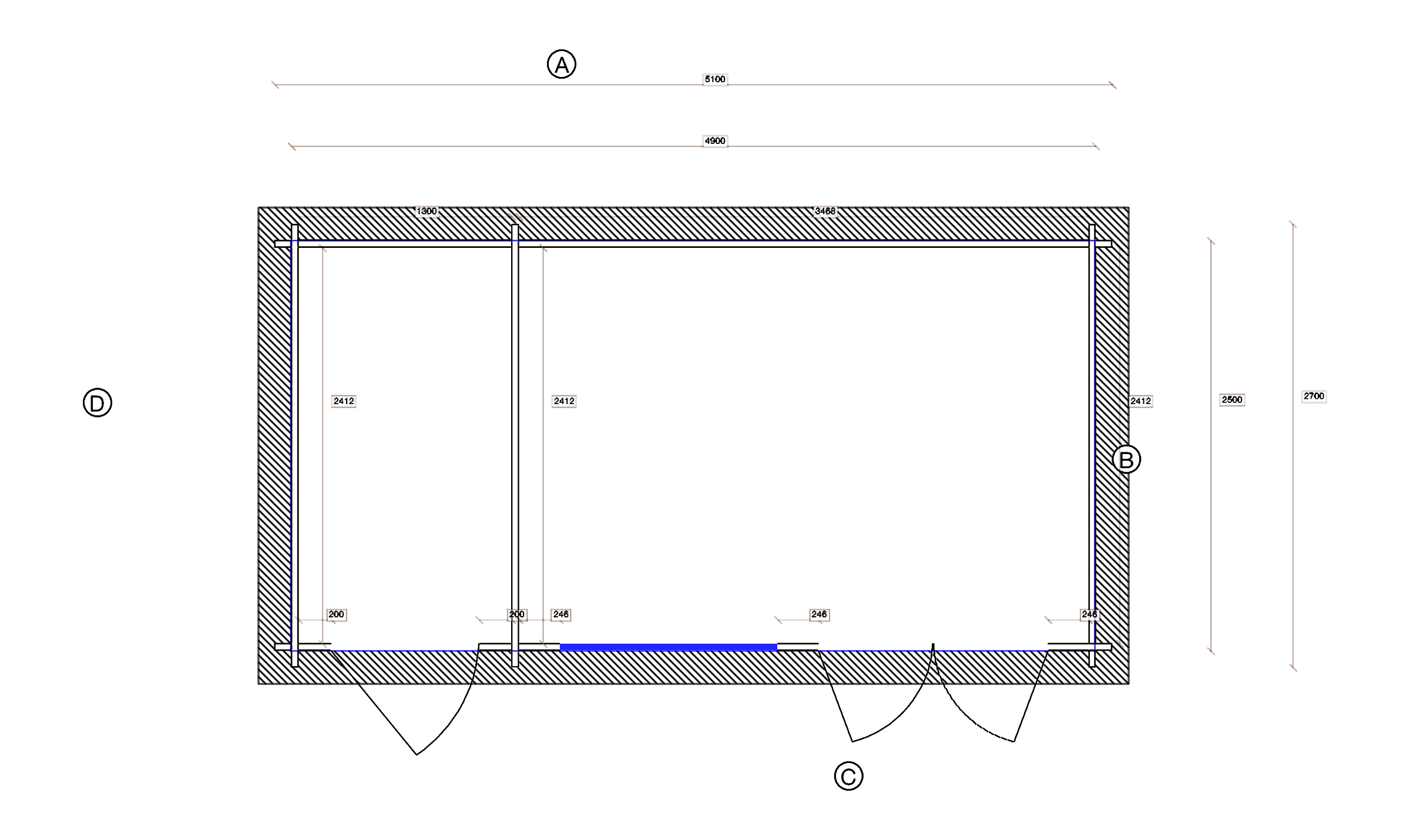

The deep 2.7m x 5.1m plan provides generous room depth, well-suited to open-plan living or configurations requiring clear span in the primary direction.
Materials & Construction
Constructed from 44mm solid log profiles milled from slow-grown northern European spruce, each wall section is tongue-and-groove machined for a tight wind-proof fit. The natural thermal mass of solid timber moderates interior temperature swings, keeping the space cooler in summer and warmer in winter. The honest, textured finish of genuine log construction requires no interior cladding and appeals to buyers seeking authentic timber character.
The floor system comprises 40x60mm pressure-treated bearers supporting 28mm tongue-and-groove floorboards. This combination provides a rigid, level deck capable of handling furnishing loads, underfloor insulation, and finished flooring overlays as required by the end user.
The roof structure is carried on 3 purlins of 44x130mm section, covered with 19mm boards to form a total roof area of 15.6m². The deck is supplied ready for the dealer’s choice of final covering – EPDM rubber membrane, bitumen shingles, or standing-seam metal are popular options that Eurodita can advise on.
Comparative performance is not inferred; it depends on the complete confirmed specification.
Certification and chain-of-custody documentation are confirmed for the applicable product scope in the order documentation.
Customisation Options
Every parameter of this 11.6m² design is open to modification. Eurodita operates as a pure bespoke manufacturer: the project shown here is a starting point, not a fixed product.
External dimensions can be adjusted freely – the current 2.7m x 5.1m footprint is not a constraint. Alternative wall specifications are confirmed by product family and project brief rather than by a single universal range. Solid-log profiles, glulam profiles and insulated twin-skin build-ups are quoted separately so the dealer can match the destination use, insulation package, glazing, installation route and local authority review.
The apex (gable) roof shown here can be changed to any supported type (apex, pent, or hip), and the pitch adjusted to suit local planning or aesthetic preferences. Sidewall height, ridge height, and overhang dimensions are all variable.
Window and door positions, sizes, types, and quantities are fully configurable. Glazing can be specified as standard double-glazed (45mm) or living-type (68mm) profiles, with optional painted finishes and crossbar detailing.
Internal partitions, electrical pre-wiring channels, additional insulation packages, and bespoke floor plans are available on request. Eurodita’s engineering team works directly with dealer partners to resolve any design requirement.
Private-Label & private-label Service
Eurodita offers full private-label manufacturing for this log cabin design. Every document, delivery note, and product label carries your brand – not ours. Your clients see your company name from quotation through to installation. This private-label service is available at no additional cost on all bespoke orders, making Eurodita the invisible manufacturer behind your timber building brand.
Ideal Use Cases
At 11.6m², this compact design is well-suited to garden offices, home studios, personal retreats, and secure storage buildings.Weather performance depends on the complete specification, manufacture and installation.Demand and commercial fit vary by market, buyer segment and project brief.
Accessibility compliance requires the confirmed opening, threshold, circulation and site design.
Delivery & Production
Every component of this 11.The production and dispatch schedule is confirmed for each order. Delivery is flat-packed on standard road-freight pallets. All 44mm wall sections, roof purlins, 28mm floor panels, pre-fitted windows, doors, and fasteners are included as a complete kit with numbered components and illustrated assembly instructions. Eurodita coordinates transport across Europe and the UK through long-standing haulage partners, delivering to dealer depots, construction sites, or end-client addresses.
Frequently Asked Questions
Can I customise the dimensions of the Garden Room 2.4×4.8?
Yes. Every dimension of this 11.6m2 log cabin is fully customisable. Eurodita manufactures to your exact floor plan; width, depth, wall height, and roof pitch can all be adjusted. Window and door positions, sizes, and types are also changeable. Contact us with your requirements for a bespoke quotation.
What wall thickness does the Garden Room 2.4×4.8 use?
This project record lists 44mm solid log walls for the shown design. Alternative wall specifications are confirmed by product family and project brief. Standard solid-log cabins use 28, 34, 44, 58 or 70mm profiles; glulam projects use 88, 135, 180 or 220mm profiles. Final use, insulation, glazing, installation and local authority review are confirmed per quote.
Is the Garden Room 2.4×4.All-season suitability is not established by dimensions or wall thickness alone; it must be confirmed from the complete specification, installation and local approval route.
Suitability for all-season or residential-style use is not confirmed from wall thickness alone. Eurodita supplies project data for dealer, client and local-authority review, including the selected wall profile, insulation, glazing, ventilation, foundation and services where relevant. Final marketing or approval claims should be confirmed for the destination market and project specification.
How is the Garden Room 2.4×4.8 delivered?
Eurodita supplies project kits from the Kaunas factory with components prepared for the confirmed specification. Standard terms are EXW Kaunas. If a delivered route is required, freight timing and delivery terms are agreed per quotation for the destination market, project size and access requirements.
Does Eurodita supply under my brand (private label)?
Yes. Eurodita is a private-label log cabin manufacturer for trade clients across the UK and EU. We offer two service levels: standard supply with neutral packaging and documentation, or full private-label production with your brand identity on technical drawings, parts lists, packaging labels, and delivery notes. Both levels include the same factory production, materials, and quality control as our catalog range. Private-label terms are agreed per account on order volume and product range. Contact our trade desk for a private-label proposal tailored to your product line.
This one was built to a drawing. Yours can be too.
This project was produced as a 11.6 m2 internal area, 44 mm wall profile, 2470 mm ridge height. Every published project on this page followed a project-specific brief. Send your drawing and Eurodita will confirm whether the qualified bespoke route fits your project. Partner branding is agreed per order.
CAD/3D quotation material is prepared to the qualified project scope. Availability and timing are confirmed during qualification. CAD/3D material and branding follow the agreed order scope.
Send a bespoke briefDimensions, wall thickness and opening positions are confirmed per project at quote stage. Bespoke production timing is confirmed in the written quotation and order. Catalogue models on the same wall profile and a comparable footprint: Log Cabin Adam 4x3m, 44mm, Log Cabin Oliver 4.0×3.0m, 44mm, Log Cabin Atlanta 3.8×3.2m, 44mm. Review the wider garden log cabins range, or see the other published projects with drawings and dimensions.
