Bespoke Design – Manufactured to Client Specifications
Design Overview

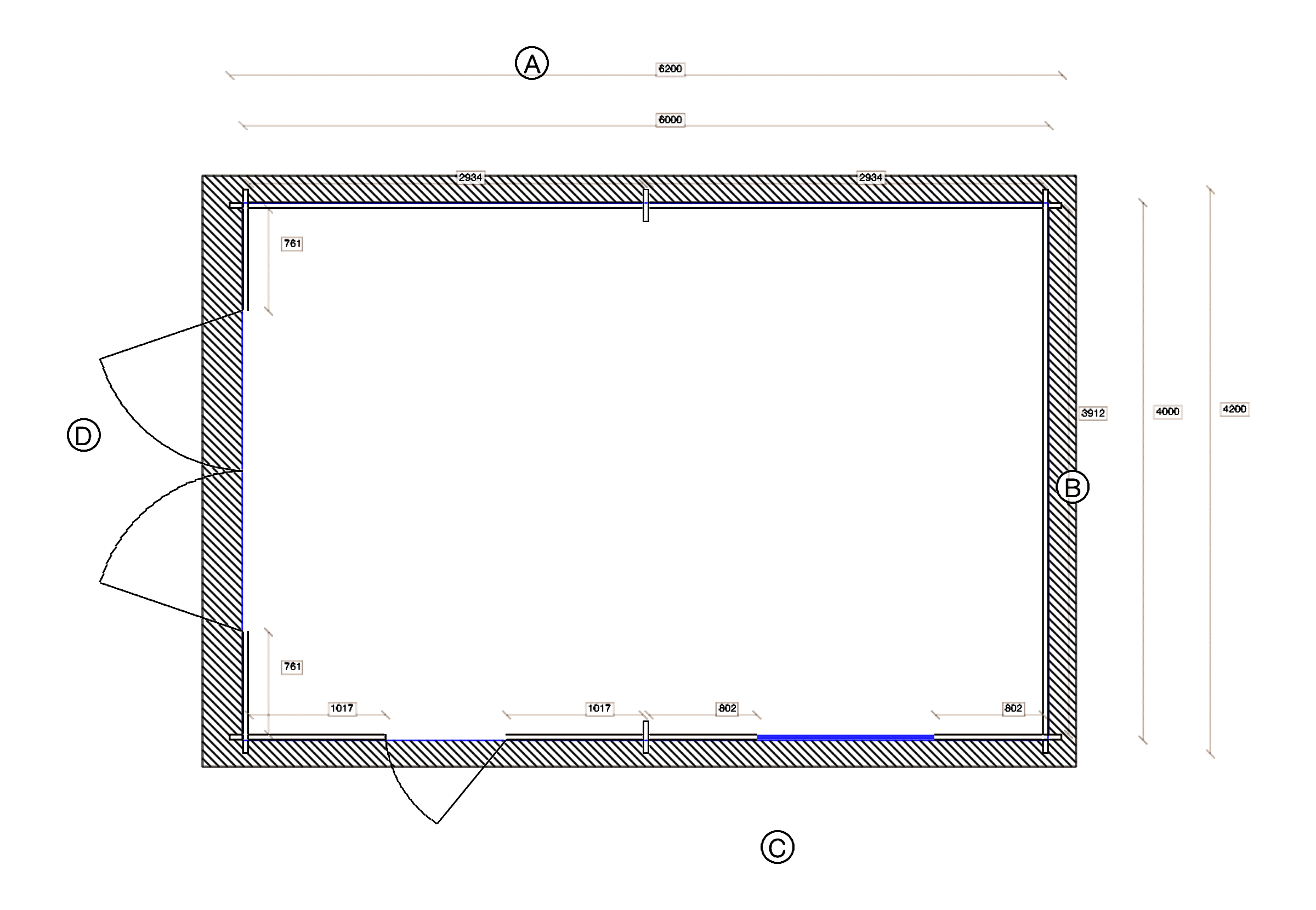

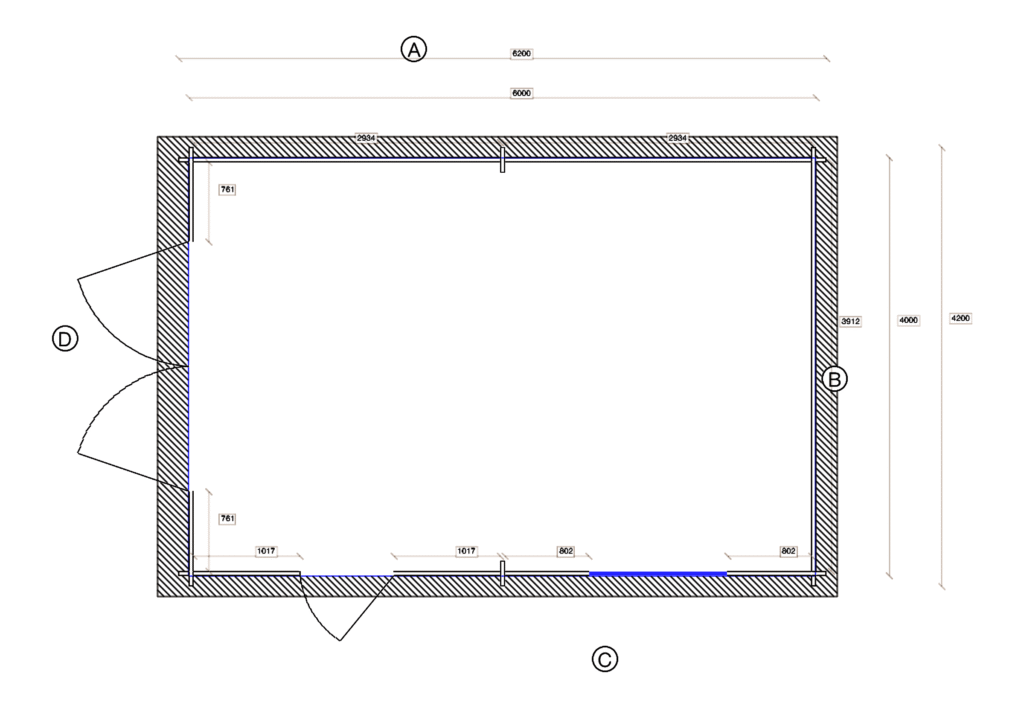

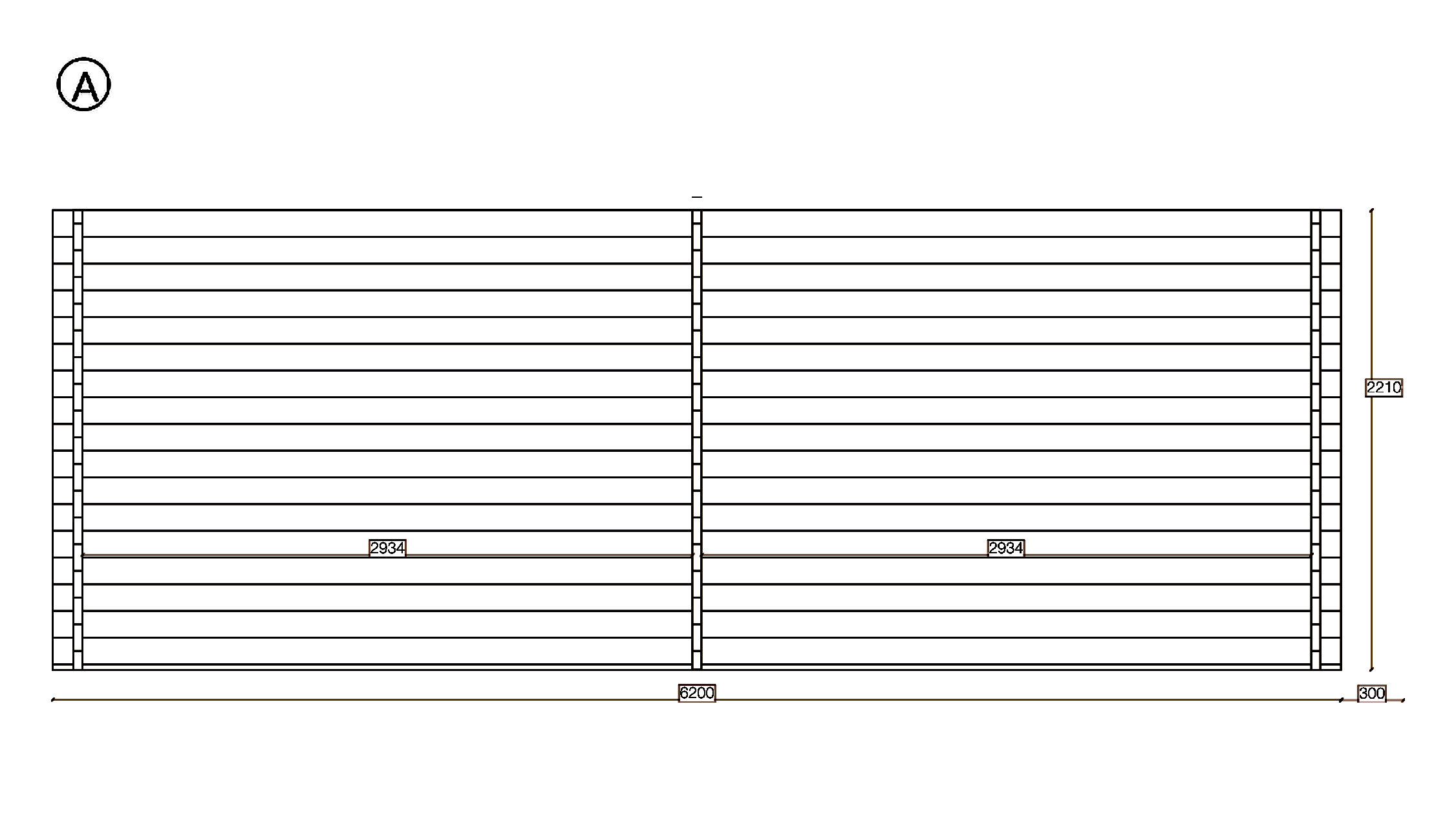

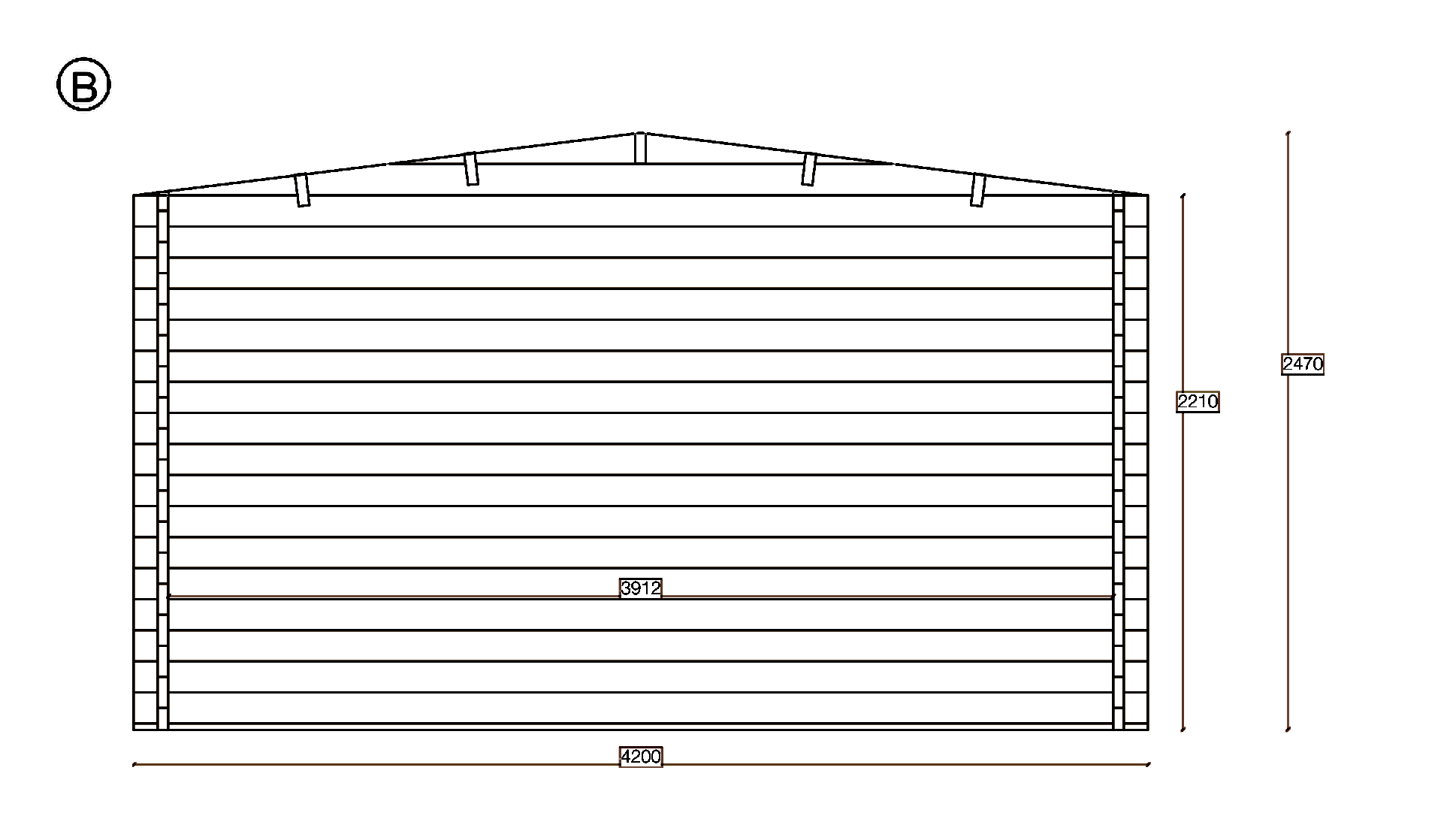

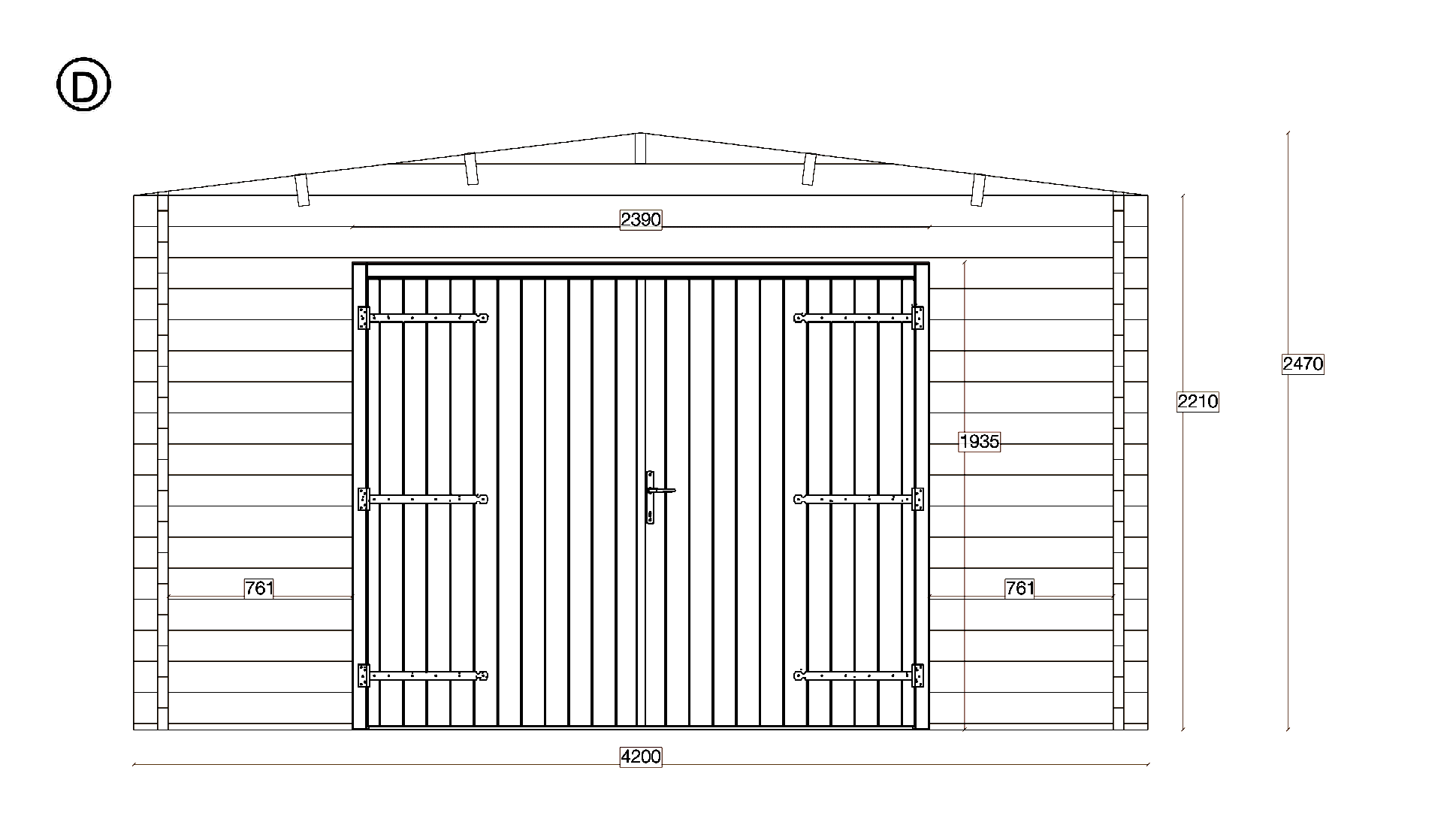

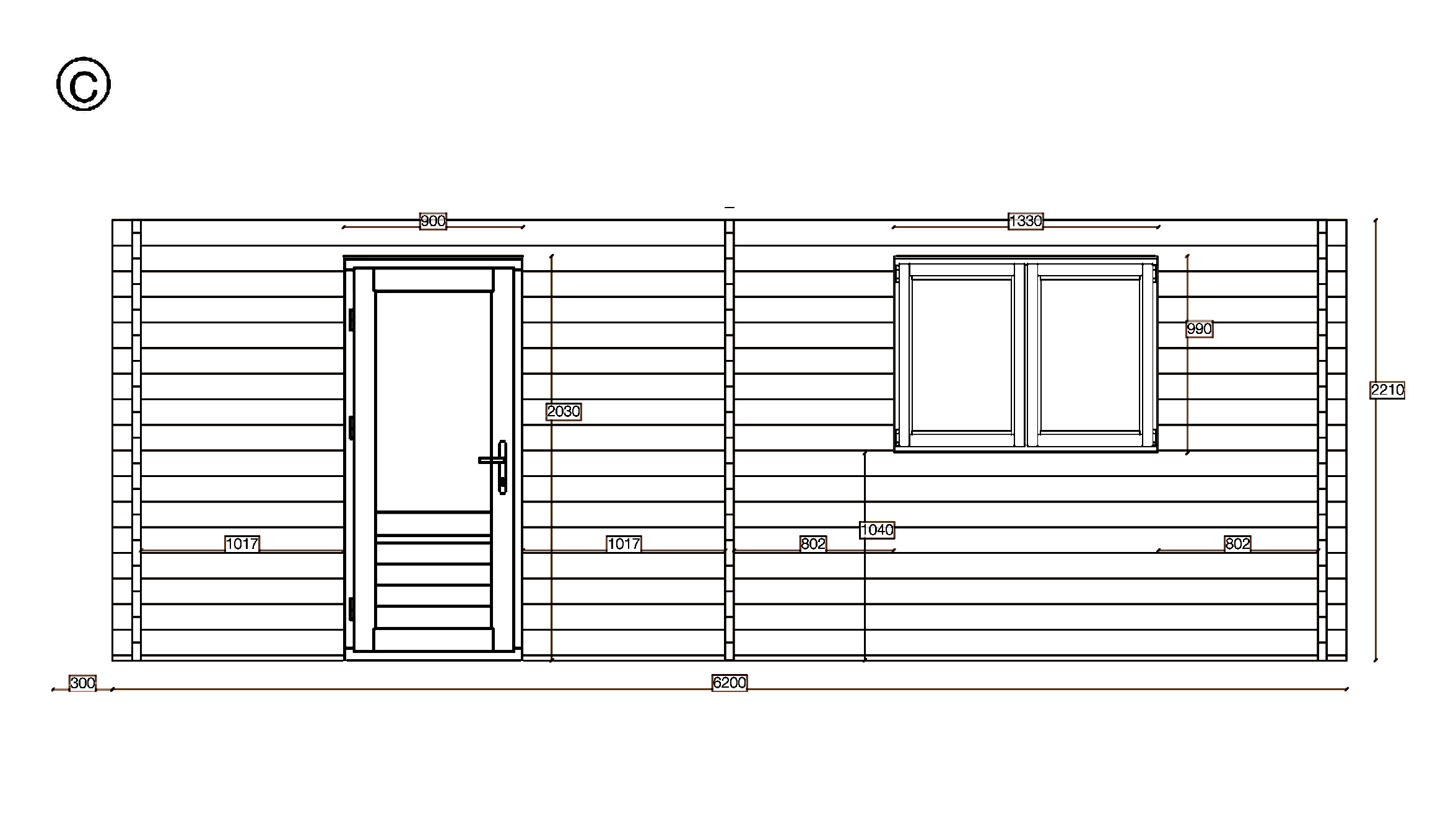

Manufactured to order, this versatile design encompasses 23.1m² of interior space within 4.2m x 6.2m external walls. The 44mm solid log walls frame an internal volume of 3.9m x 5.9m with 2210mm sidewalls and a ridge height of 2470mm under the apex (gable) roof. The design incorporates 1 window, a 2390x1935mm garage door and a single side door, positioned to the client’s layout brief, with the apex (gable) roof spanning 28.8m² above 40x60mm floor bearers. As with every Eurodita timber garage, all dimensions, materials, and configurations are manufactured to the dealer’s exact brief. No element is taken from stock; each piece is cut to order.
Why This Configuration
The apex (gable) roof provides balanced aesthetics with symmetrical slopes meeting at a central ridge, creating a classic silhouette that integrates well with residential surroundings. At just 7.3°, the low-profile roof minimises visual impact, an advantage where planning height limits apply.
The 44mm wall profile is a common garden-building specification. Planning, permitted-development status and any local authority requirements must be checked against the project site, market and final use.
A single window provides controlled daylight while maximising uninterrupted wall area for improved thermal performance and privacy. The garage door gives vehicle access and the single side door provides pedestrian entry, which is what defines this record as a garage rather than a summer house.
The deep 4.2m x 6.2m plan provides generous room depth, well-suited to open-plan living or configurations requiring clear span in the primary direction.
Materials & Construction
Constructed from 44mm solid log profiles milled from Northern European timber, each wall section is tongue-and-groove machined for a tight wind-proof fit. The natural thermal mass of solid timber moderates interior temperature swings, keeping the space cooler in summer and warmer in winter. The honest, textured finish of genuine log construction requires no interior cladding and appeals to buyers seeking authentic timber character.
The floor system comprises 40x60mm pressure-treated bearers supporting 28mm tongue-and-groove floorboards. This combination provides a rigid, level deck capable of handling furnishing loads, underfloor insulation, and finished flooring overlays as required by the end user.
The roof structure is carried on 5 purlins of 44x130mm section, covered with 19mm boards to form a total roof area of 28.8m². The deck is supplied ready for the dealer’s choice of final covering – EPDM rubber membrane, bitumen shingles, or standing-seam metal are popular options that Eurodita can advise on.
Comparative performance is not inferred; it depends on the complete confirmed specification.
Certification and chain-of-custody documentation are confirmed for the applicable product scope in the order documentation.
Customisation Options
Every parameter of this 23.1m² design is open to modification. Eurodita operates as a pure bespoke manufacturer: the project shown here is a starting point, not a fixed product.
The 4.2m x 6.2m footprint shown here is a project reference rather than a fixed size, and alternative dimensions are assessed for technical feasibility project by project. Wall thickness can move up or down from 44mm within the approved solid log and glulam profile families, and the wall profile can switch between solid log, glulam, or double-wall insulated construction.
The apex (gable) roof shown here can be changed to any supported type (apex, pent, or hip), and the pitch adjusted to suit local planning or aesthetic preferences. Sidewall height, ridge height, and overhang dimensions are all variable.
Window and door positions, sizes, types, and quantities are fully configurable. Glazing can be specified as standard double-glazed (45mm) or living-type (68mm) profiles, with optional painted finishes and crossbar detailing.
Internal partitions, electrical pre-wiring channels, additional insulation packages, and bespoke floor plans are available on request. Eurodita works directly with dealer partners to develop a sketch or drawing into a manufacturable, priced proposal, with feasibility confirmed for the specific design. Structural engineering and calculations are sourced from specialist partners, and the dealer’s project team handles the local building control route.
Private-Label Service
Eurodita offers private-label manufacturing for this log cabin design. Documents, delivery notes and product labels can carry your brand instead of ours, as agreed for the order. The terms of this private-label service are confirmed in the written quotation for each bespoke order, while your business sets its own prices and runs its own customer relationships.
Ideal Use Cases
The 23.1m² floor area places this design in the versatile mid-range: large enough for a self-contained home office, art studio, therapy room, or guest suite, yet compact enough to complement rather than dominate a residential garden. This size category covers the broadest range of buyer applications, making it a reliable portfolio item for dealer partners.
Accessibility compliance requires the confirmed opening, threshold, circulation and site design.
Delivery & Production
The production and dispatch schedule is confirmed for each order. The building is delivered flat-packed on a standard road-transport pallet, with every component numbered and accompanied by detailed assembly drawings. Wall sections, roof elements, floor panels, windows, doors, and all hardware are included. Eurodita coordinates transport across Europe and the UK through long-standing haulage partners, delivering to dealer depots, construction sites, or end-client addresses.
Frequently Asked Questions
Can I customise the dimensions of the Apex Log Garage 3.9×5.9?
Yes. Every dimension of this 23.1m² log cabin is fully customisable. Eurodita manufactures to your exact floor plan – width, depth, wall height, and roof pitch can all be adjusted. Window and door positions, sizes, and types are also changeable. Contact us with your requirements for a bespoke quotation.
What wall thickness does the Apex Log Garage 3.9×5.9 use?
This project record lists 44mm solid log walls for the shown design. Alternative wall specifications are confirmed by product family and project brief. Final use, insulation package, glazing, ventilation, installation and local authority review route are confirmed per dealer project before marketing or approval claims are made.
Is the Apex Log Garage 3.9×5.9 suitable for year-round use?
Suitability for all-season or residential-style use is not confirmed from wall thickness alone. Eurodita provides project technical data for dealer and project review; the final specification and local authority route are confirmed per market and project.
How is the Apex Log Garage 3.9×5.9 delivered?
This project is supplied as a precision-cut, flat-pack kit with numbered components for assembly by the dealer, installer or project team. Eurodita standard terms are EXW from Lithuania. Delivered options can be discussed per order for selected markets and projects.The production and dispatch schedule is confirmed for each order.
Does Eurodita supply under my brand (private label)?
Eurodita can manufacture selected timber-building product families for trade clients under agreed neutral or private-label documentation. Scope, branding, quantities and order documents are confirmed per account and project after the technical brief.
This one was built to a drawing. Yours can be too.
This project was produced as a 23.1 m2 internal area, 44 mm wall profile, 2470 mm ridge height. Every published project on this page followed a project-specific brief. Send your drawing and Eurodita will confirm whether the qualified bespoke route fits your project. Partner branding is agreed per order.
CAD/3D quotation material is prepared to the qualified project scope. Availability and timing are confirmed during qualification. CAD/3D material and branding follow the agreed order scope.
Send a bespoke briefDimensions, wall thickness and opening positions are confirmed per project at quote stage. Bespoke production timing is confirmed in the written quotation and order. Catalogue models on the same wall profile and a comparable footprint: Modern Log Cabin 5.9×4.0m, Aluminium Sliding Doors, Log Cabin Edward 6x4m, 44mm, Log Cabin Dylan 6x4m, 44mm. Review the wider wholesale log cabins range, or see the other published projects with drawings and dimensions.
