Eurodita timber building project
Apex Holiday Cabin 5.2x6.2
A timber building drawn in the Eurodita design and estimating system: 3D views, a floor plan and four elevations with dimensions, and the figures of the building as drawn.
Specification
Technical data
The figures below come from the project drawing of this building.
Dimensions
- Inside area
- 28.5 m²
- Overall dimensions
- 5200 × 6200 mm
- Internal dimensions
- 4860 × 5860 mm
- Wall thickness
- 70 mm
- Project reference
- GLAHC-486x586-070
Height and roof
- Sidewall height
- 2340 mm
- Ridge height
- 2860 mm
- Roof type
- Apex
- Roof pitch
- 11.6°
- Roof area
- 40.7 m²
Floor and roof
- Floor bearers
- 40x60mm
- Floorboards
- 28 mm
- Roof boards
- 19 mm
- Roof purlins
- 70x130mm × 7
Windows and doors
Window and door schedule
Drawings
Floor plan and elevations

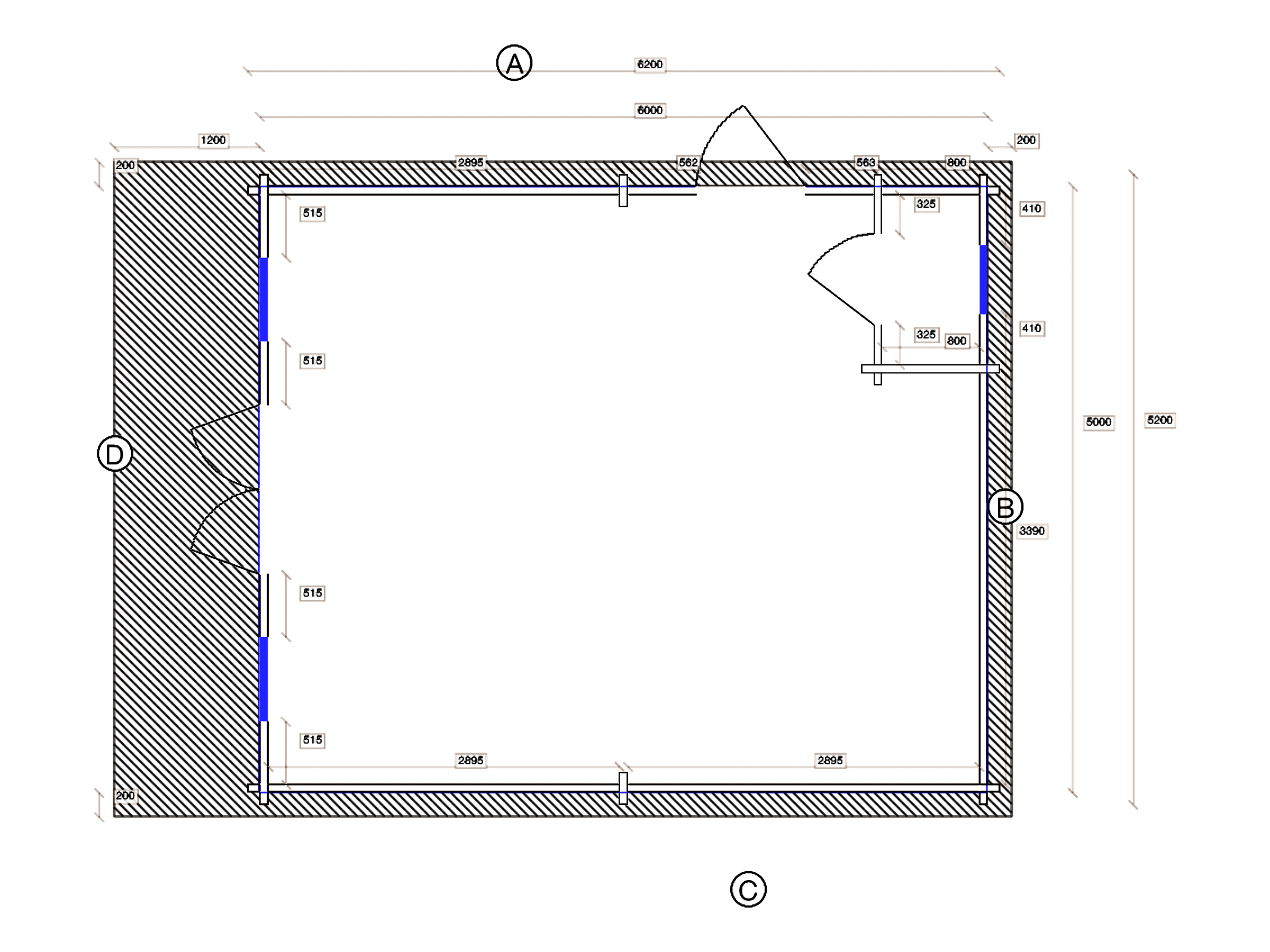

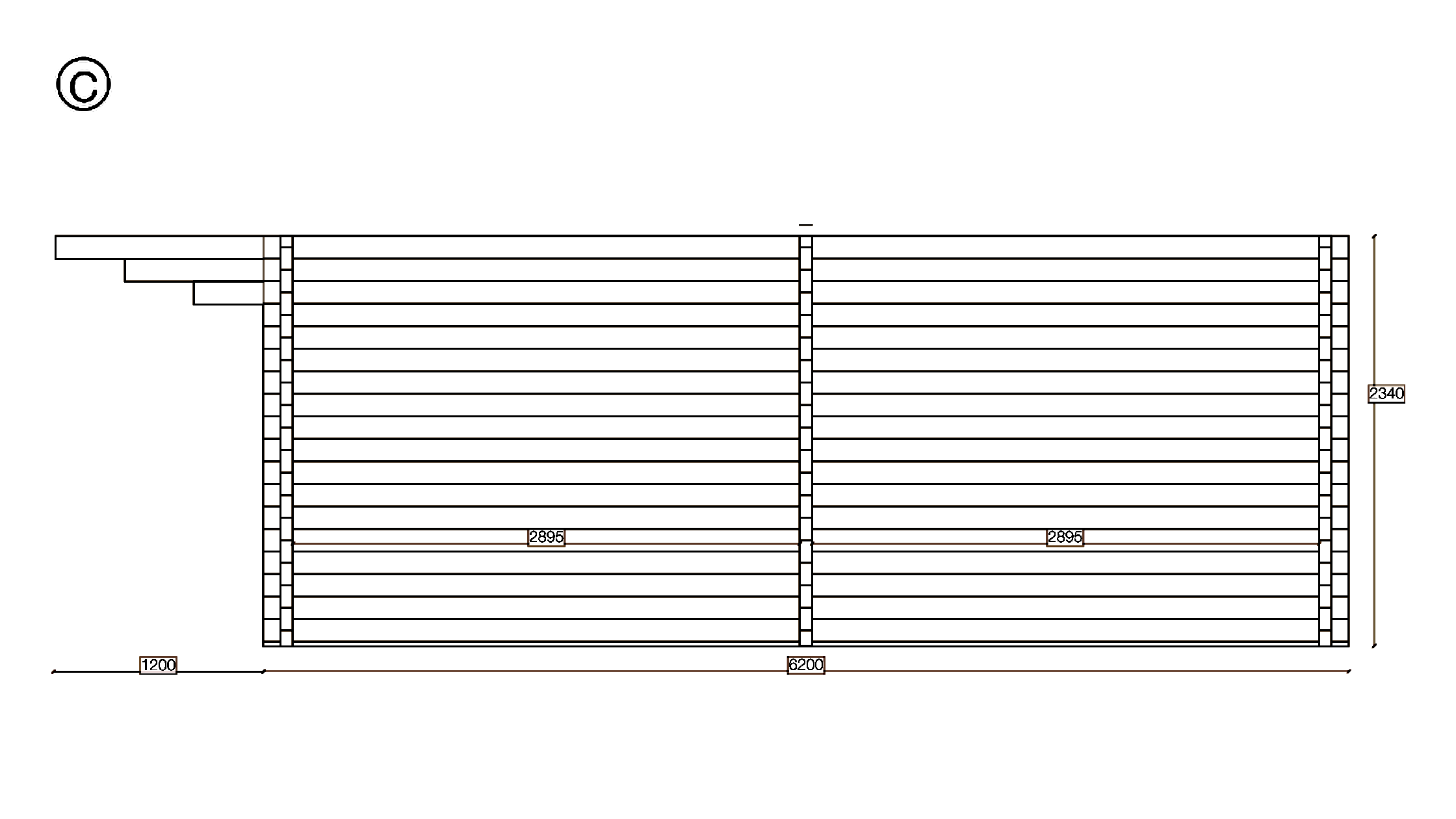

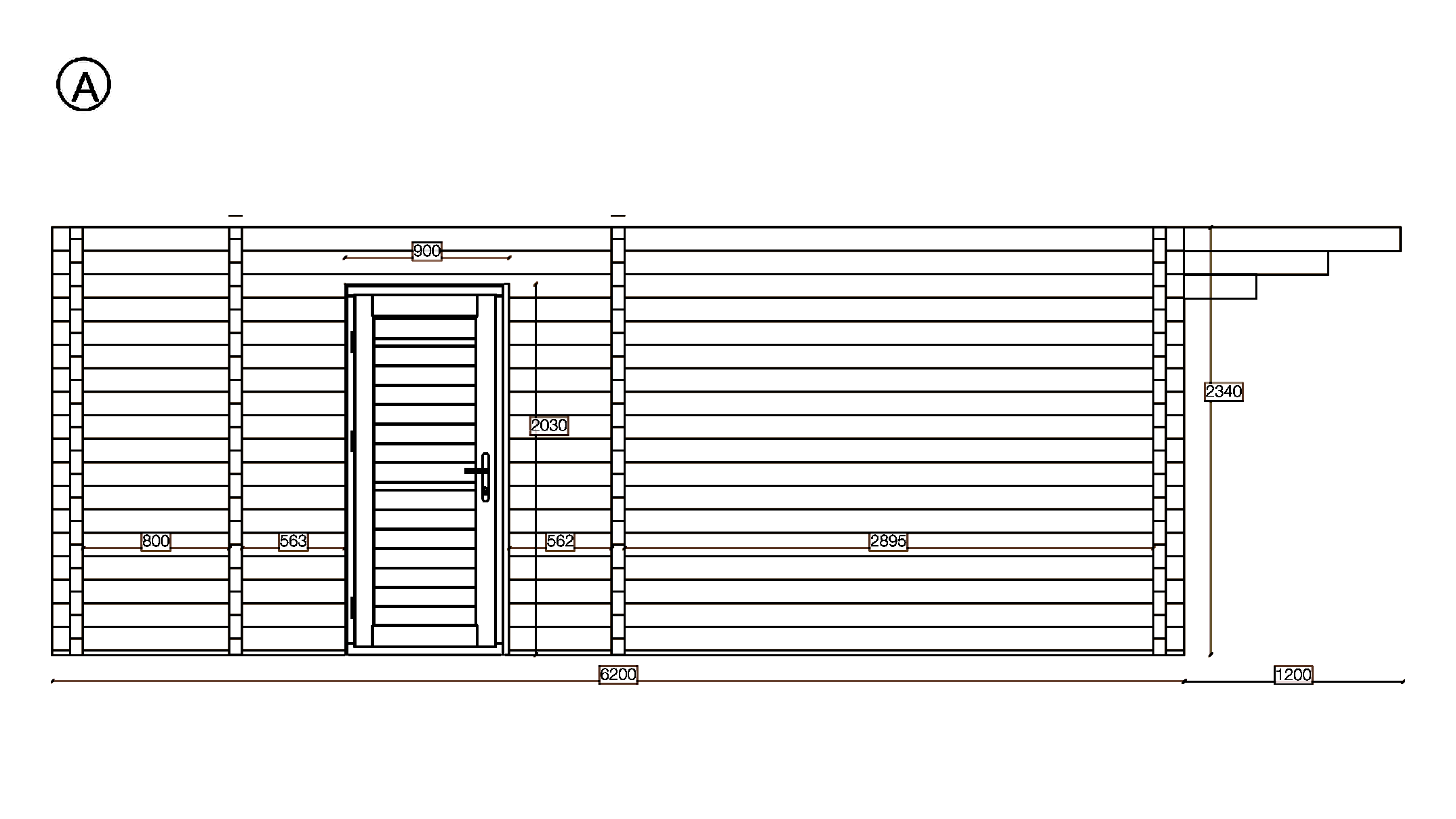

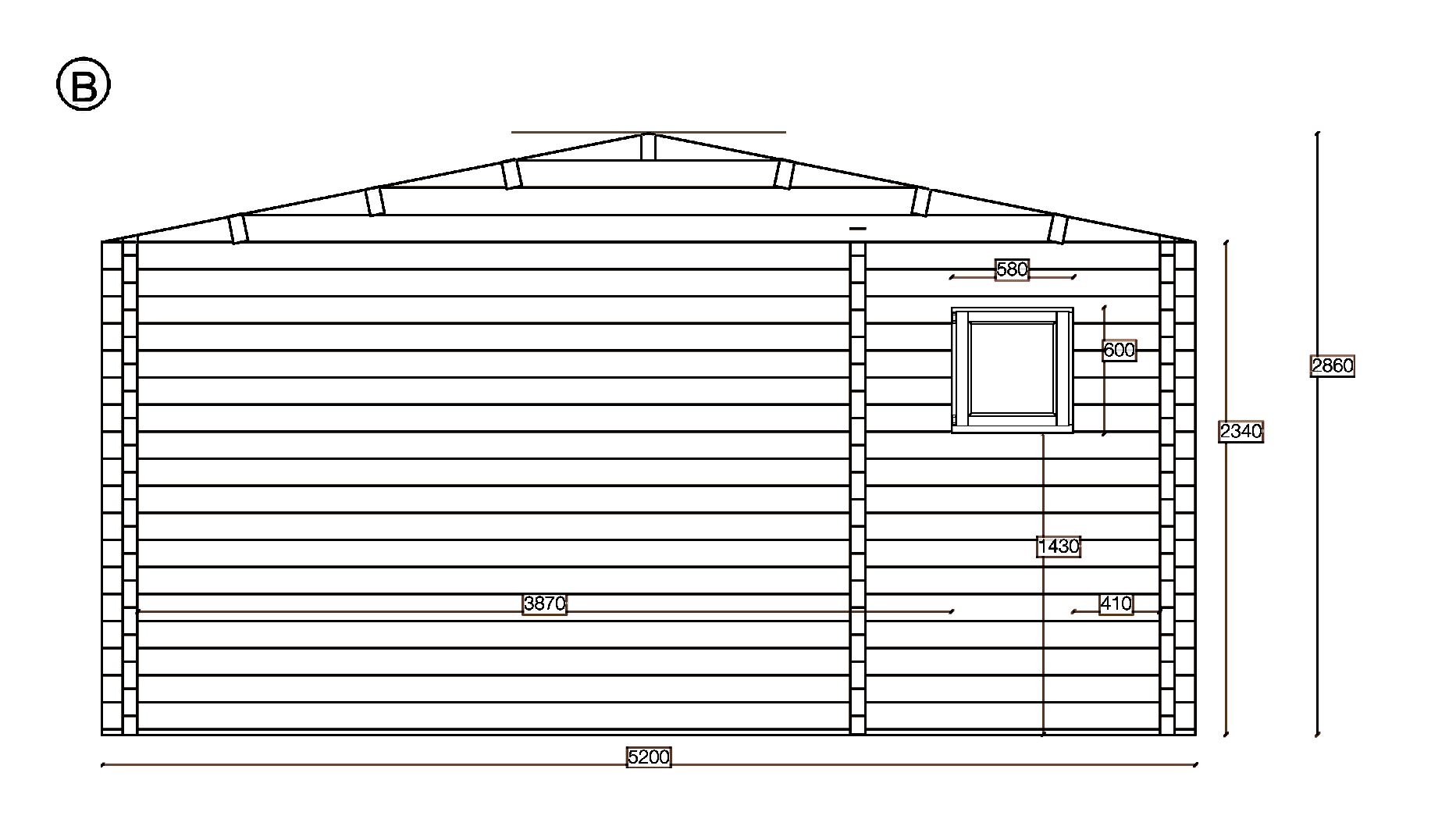

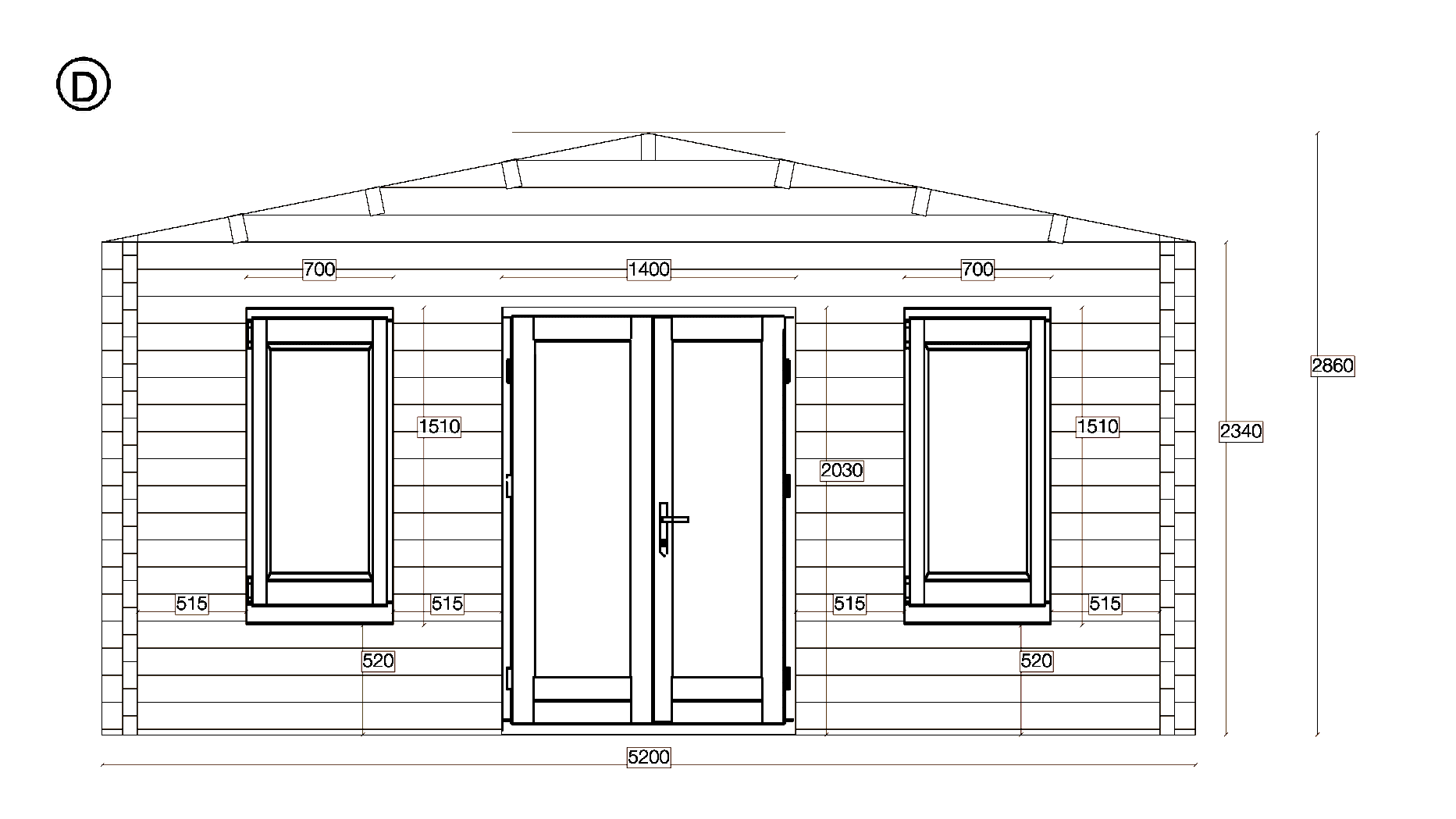

The letters A to D on the floor plan mark the four sides; each elevation shows one side with its dimensions. Open a drawing to see it at full size.
