Design Overview

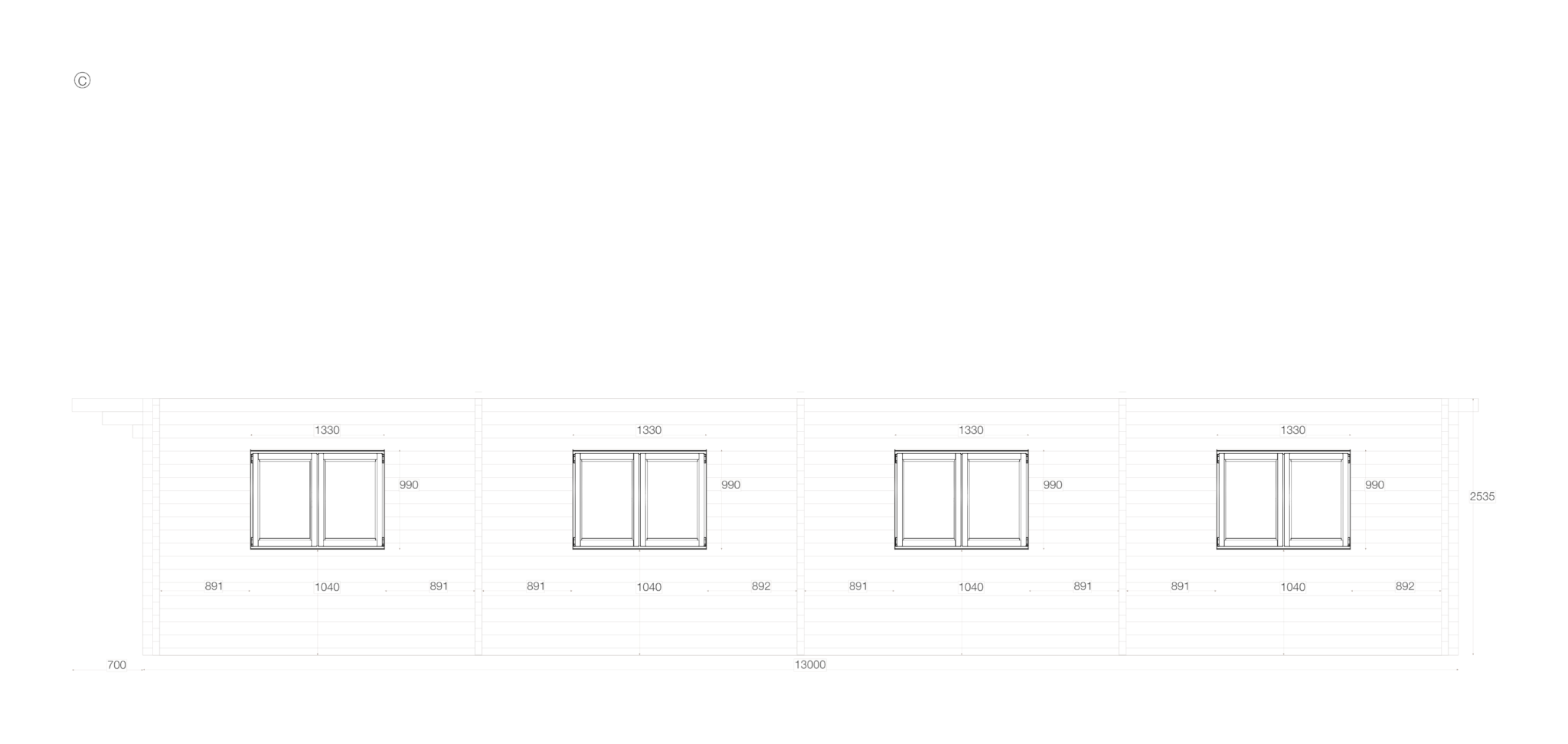

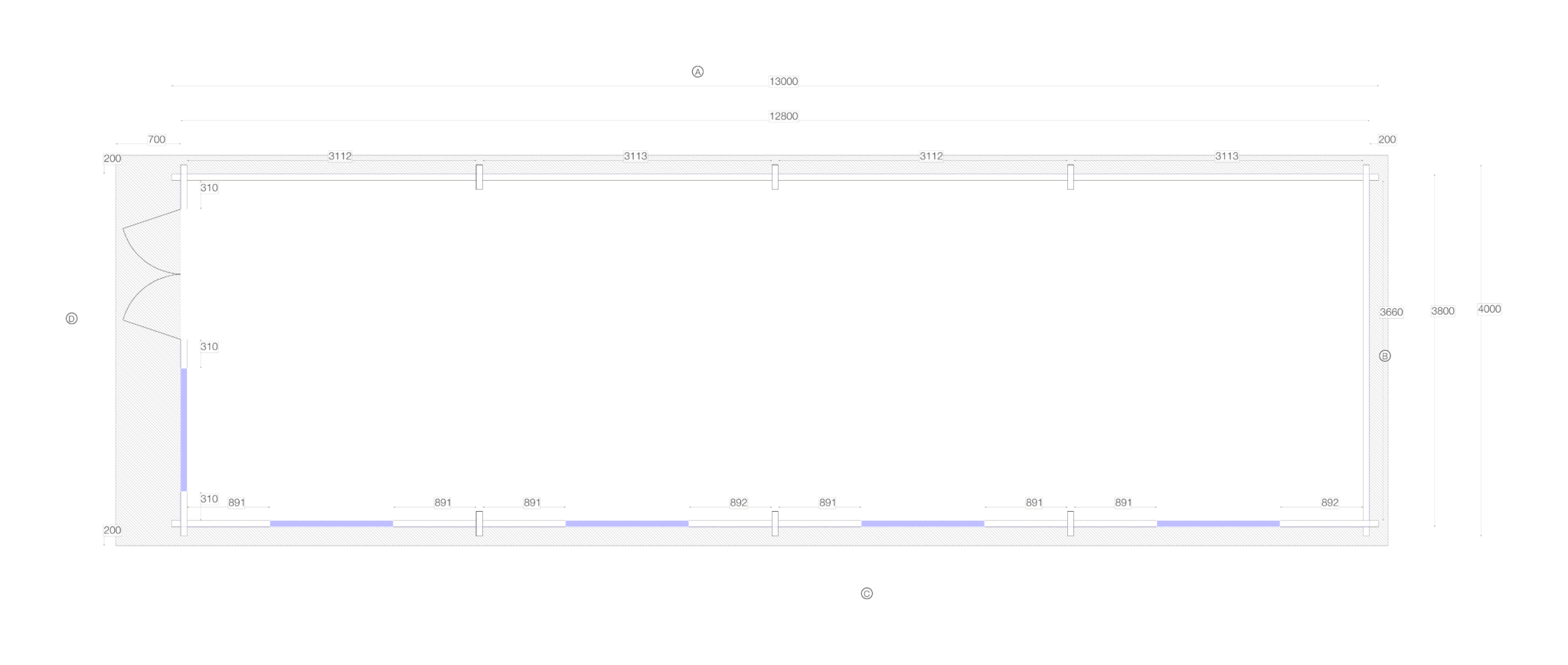

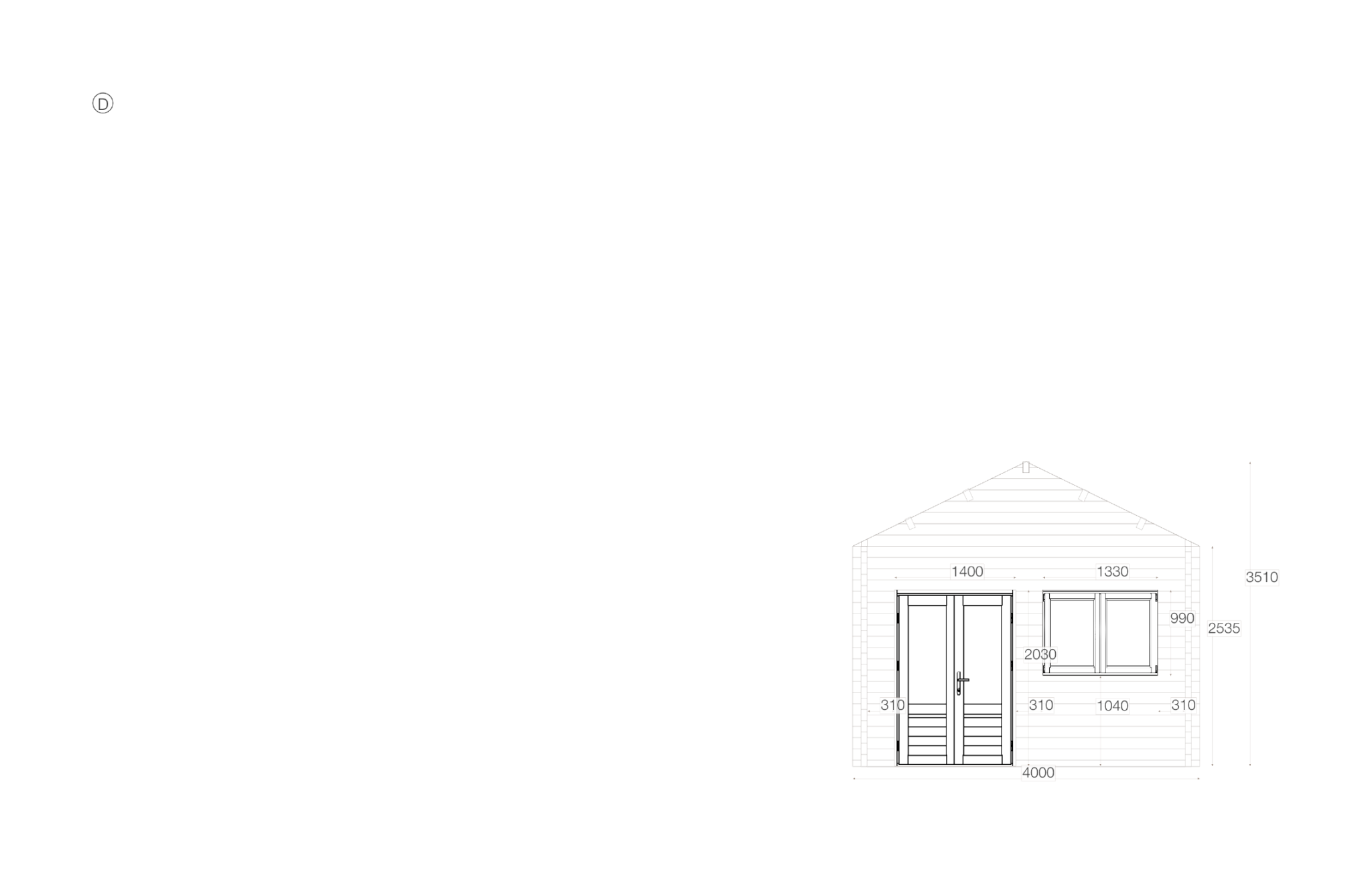

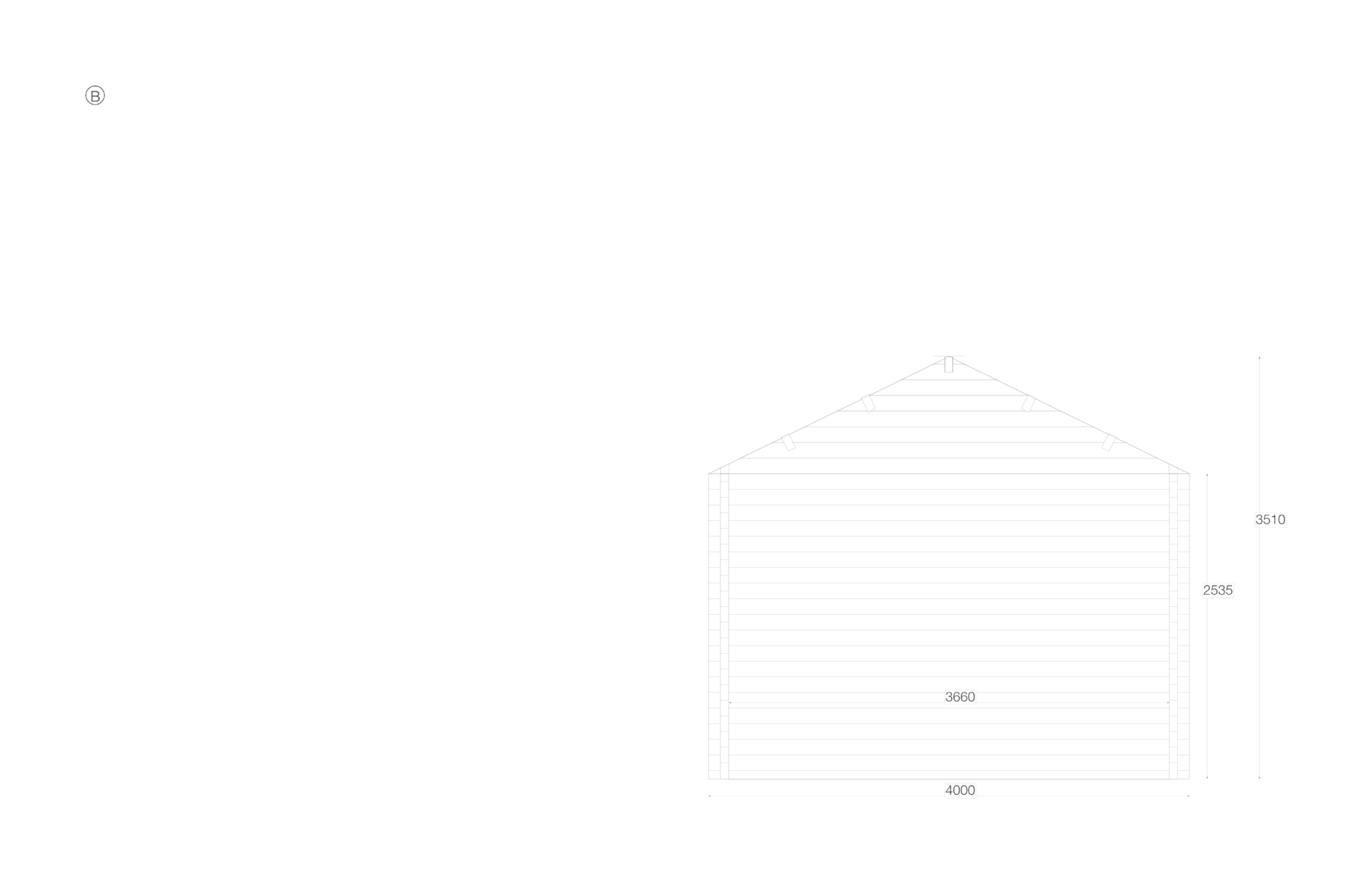

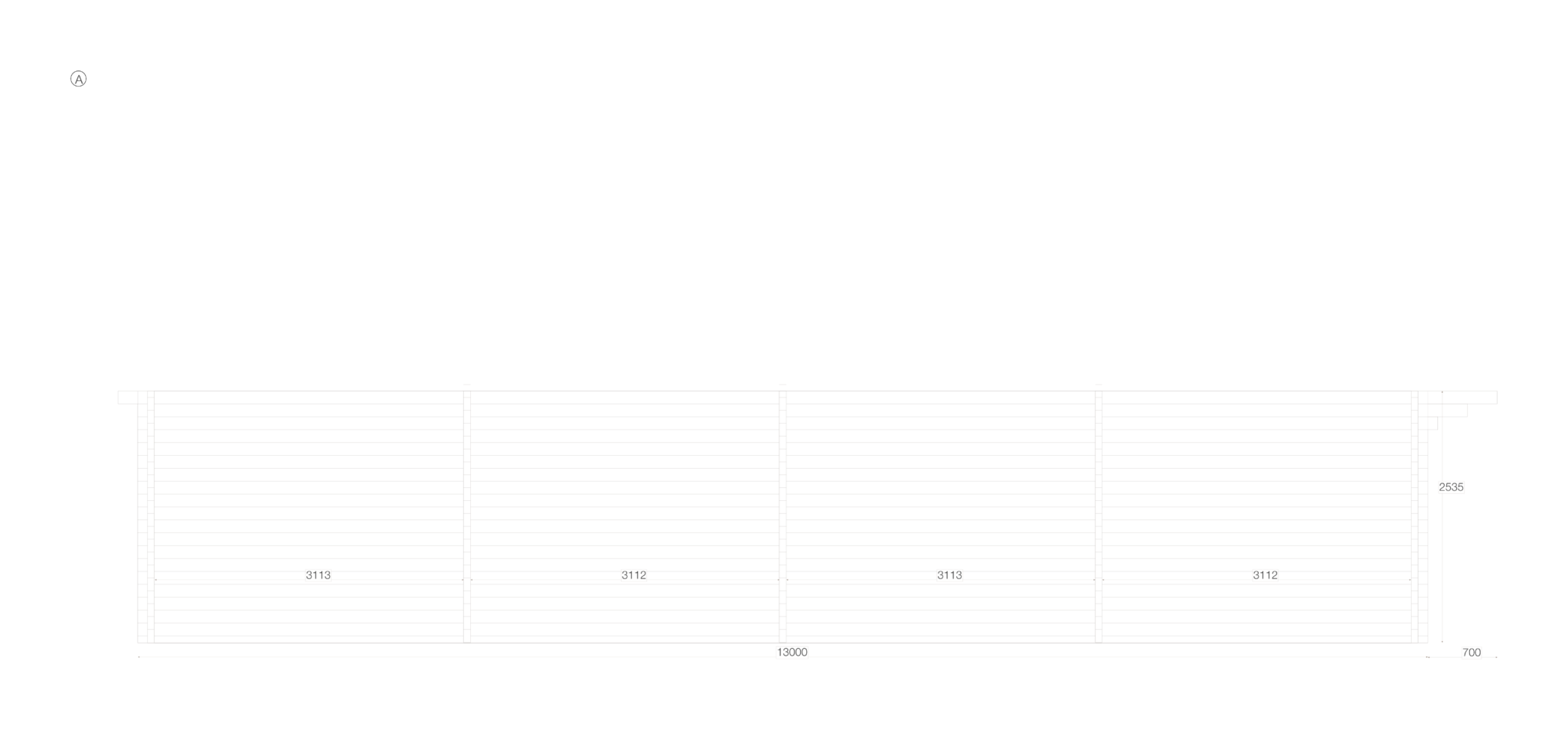

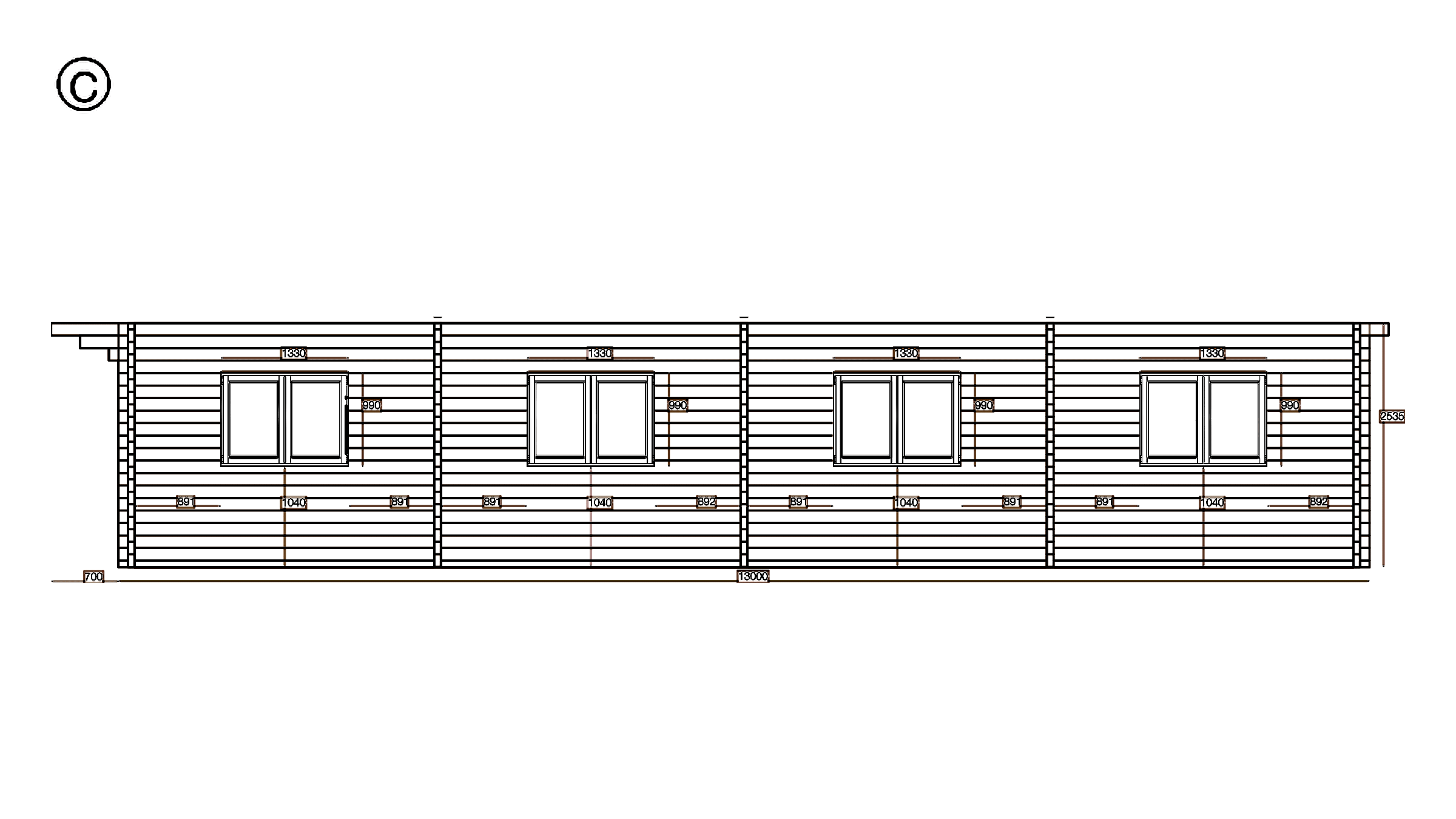

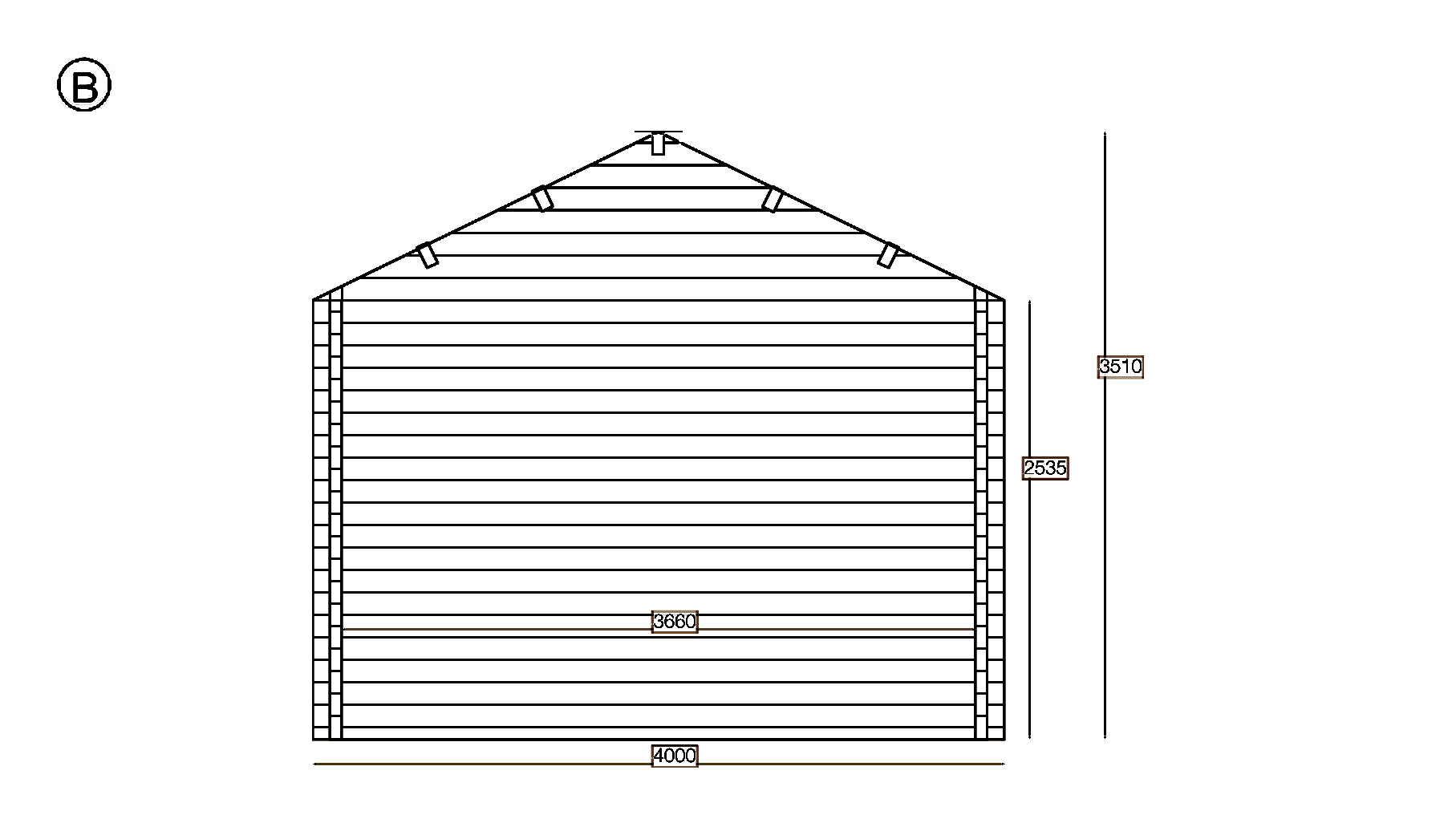

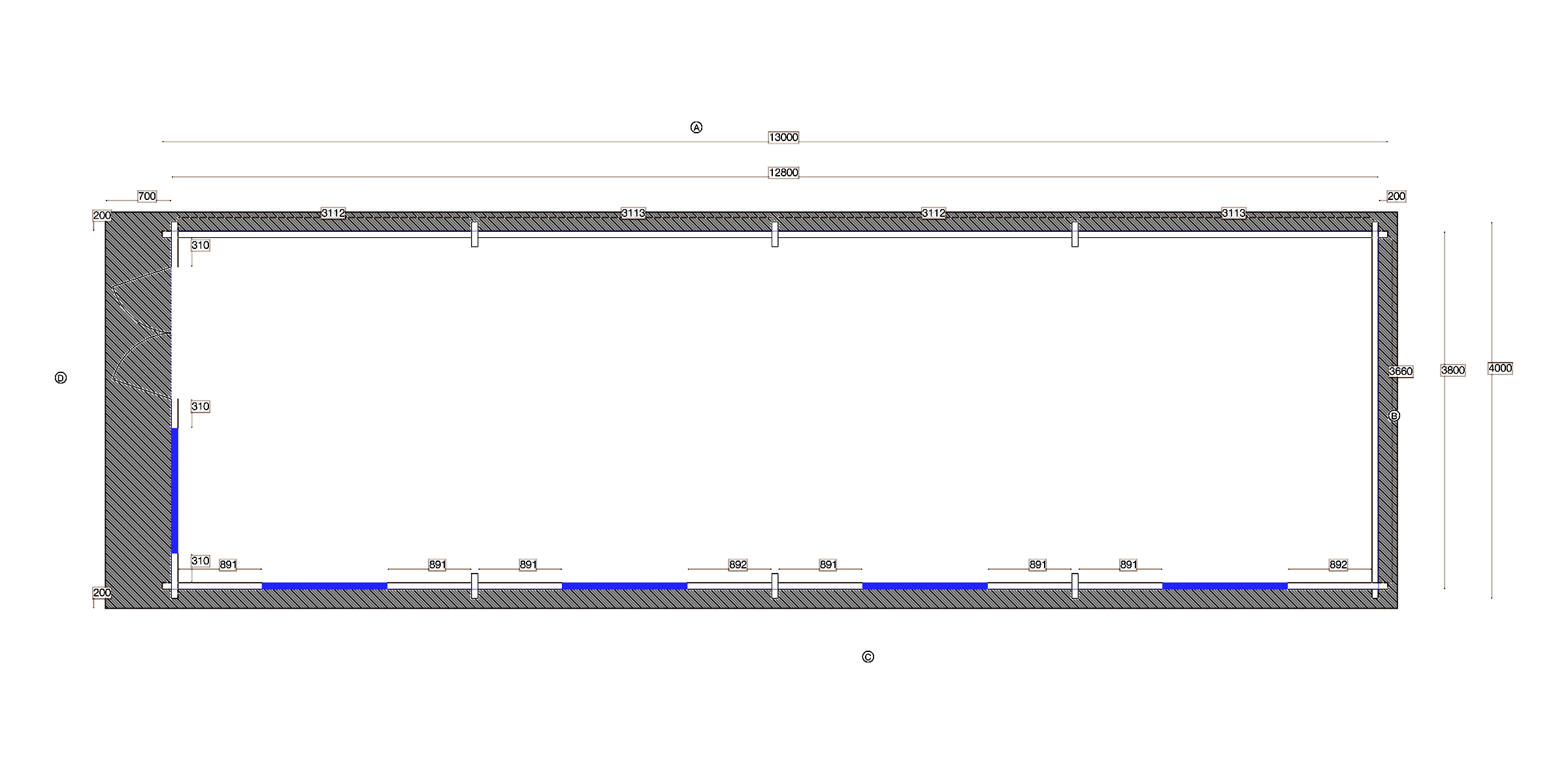

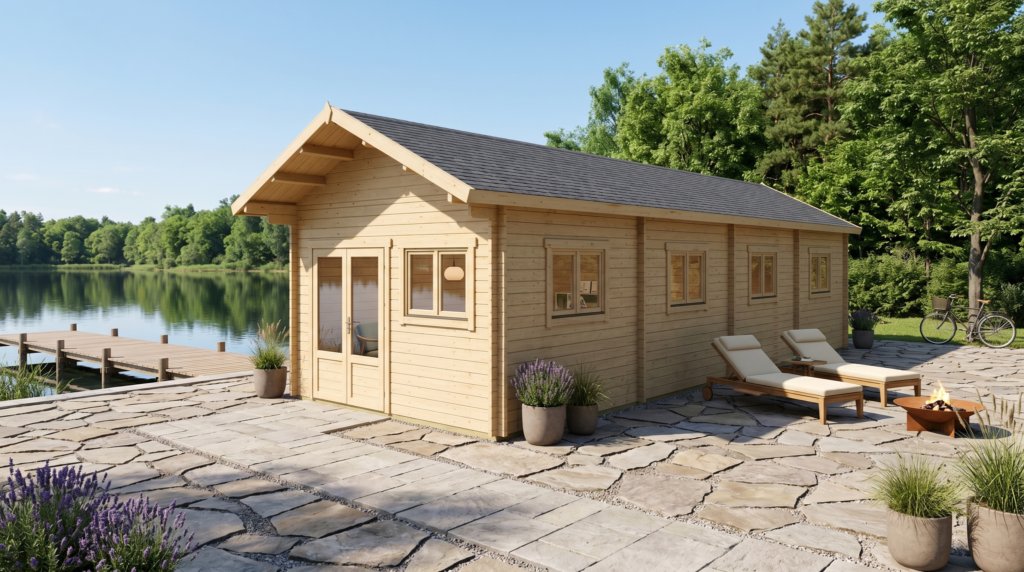

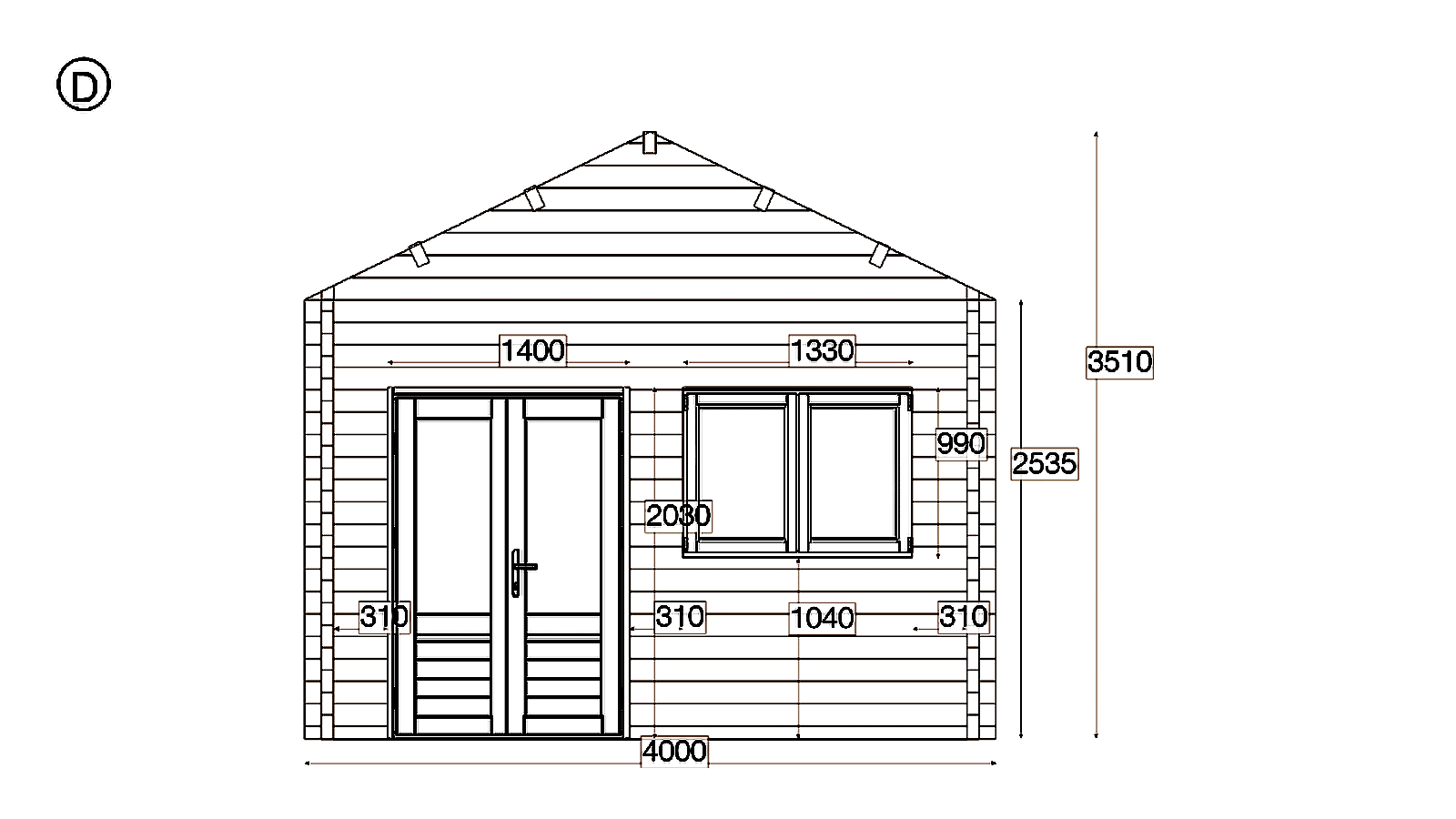

Custom-manufactured to exact specifications, the Apex Holiday Cabin 4.0×13.0 provides 46.3m² of usable floor area across overall dimensions of 4.0m x 13.0m. Internal dimensions of 3.7m x 12.7m are enclosed by 70mm solid log walls rising to a sidewall height of 2535mm, with the apex (gable) roof reaching 3510mm at the ridge. The design incorporates 5 windows and 1 door, positioned to the client’s layout brief, with the apex (gable) roof spanning 63.4m² above 40x60mm floor bearers. No off-the-shelf components are used in this log cabin; every element is cut and machined to the project-specific measurements, delivering a truly bespoke result for the dealer and their end client.
Why This Configuration
The apex (gable) roof provides balanced aesthetics with symmetrical slopes meeting at a central ridge, creating a classic silhouette that integrates well with residential surroundings.
The 70mm wall profile can support higher-specification projects and insulation packages. Any all-season, habitable-use or approval route must be reviewed for the specific project, market and local authority process.
With 5 windows, the design prioritises abundant natural light, reducing daytime reliance on artificial lighting and creating a bright, inviting interior. The double-door entry creates a generous opening for furniture delivery, equipment access and flexible circulation, adding versatility to the building’s potential use.
The deep 4.0m x 13.0m plan provides generous room depth, well-suited to open-plan living or configurations requiring clear span in the primary direction.
Materials & Construction
Constructed from 70mm solid log profiles milled from slow-grown Nordic spruce, each wall section is tongue-and-groove machined for a tight wind-proof fit. The natural thermal mass of solid timber moderates interior temperature swings, keeping the space cooler in summer and warmer in winter. The honest, textured finish of genuine log construction requires no interior cladding and appeals to buyers seeking authentic timber character.
The floor system comprises 40x60mm pressure-treated bearers supporting 28mm tongue-and-groove floorboards. This combination provides a rigid, level deck capable of handling furnishing loads, underfloor insulation, and finished flooring overlays as required by the end user.
The roof structure is carried on 5 purlins of 70x130mm section, covered with 19mm boards to form a total roof area of 63.4m². The deck is supplied ready for the dealer’s choice of final covering, EPDM rubber membrane, bitumen shingles, or standing-seam metal are popular options that Eurodita can advise on.
At 70mm, the wall profile is significantly thicker than the industry-standard 44mm used in most flat-pack garden buildings. This provides measurably better thermal insulation, acoustic separation, and structural rigidity, making the building suitable for year-round habitation without additional insulation in temperate climates.
All timber is sourced from FSC-managed Nordic forests and kiln-dried to 16–18% moisture content before machining, ensuring dimensional accuracy and resistance to biological degradation on arrival.
Customisation Options
Every parameter of this 46.3m² design is open to modification. Eurodita operates as a pure bespoke manufacturer: the project shown here is a starting point, not a fixed product.
External dimensions can be adjusted freely, the current 4.0m x 13.0m footprint is not a constraint. Wall thickness can move up or down from 70mm across the full range (28mm to 220mm), and the wall profile can switch between solid log, glulam, or double-wall insulated construction.
The apex (gable) roof shown here can be changed to any supported type (apex, pent, or hip), and the pitch adjusted to suit local planning or aesthetic preferences. Sidewall height, ridge height, and overhang dimensions are all variable.
Window and door positions, sizes, types, and quantities are fully configurable. Glazing can be specified as standard double-glazed (45mm) or living-type (68mm) profiles, with optional painted finishes and crossbar detailing.
Internal partitions, electrical pre-wiring channels, additional insulation packages, and bespoke floor plans are available on request. Eurodita’s engineering team works directly with dealer partners to resolve any design requirement.
Private-Label & White-Label Service
Eurodita offers full private-label manufacturing for this log cabin design. Every document, delivery note, and product label carries your brand, not ours. Your clients see your company name from quotation through to installation. This white-label service is available at no additional cost on all bespoke orders, making Eurodita the invisible manufacturer behind your timber building brand.
Ideal Use Cases
With 46.3m² of interior space, this design supports a broad range of applications: workspace, studio, leisure room, hospitality-support, or annexe-style layouts where local planning and building-control requirements allow. The generous floor plate permits flexible partitioning to suit the end user’s needs, and dealers should position buildings of this scale around the confirmed local approval route, operator requirements, and agreed specification. The 4.0m x 13.0m footprint fits comfortably within most residential plots while providing enough room for a kitchenette, bathroom pod, or separate sleeping area.
The wide double-door entry can support practical access planning for furniture, equipment and commercial fit-out, with accessibility requirements reviewed for the destination project.
The 70mm wall section can support insulation and services planning for higher-specification projects; final all-season or habitable-use positioning depends on the confirmed specification and local authority review route.
The generous glazing allowance makes the interior particularly appealing for studio, retail, and hospitality applications where natural light is a selling point.
Delivery & Production
Production takes place in Eurodita’s vertically integrated mill in Lithuania. Production timing is confirmed per quotation before EXW factory release. Delivery is flat-packed on standard road-freight pallets. All 70mm wall sections, roof purlins, 28mm floor panels, pre-fitted windows, doors, and fasteners are included as a complete kit with numbered components and illustrated assembly instructions. Eurodita prepares agreed commercial and export documentation for the confirmed route; freight, site access and final delivery arrangements are agreed per order with the dealer or appointed forwarder.
Frequently Asked Questions
Can I customise the dimensions of the Apex Holiday Cabin 4.0×13.0?
Yes. Every dimension of this 46.3m² log cabin is fully customisable. Eurodita manufactures to your exact floor plan, width, depth, wall height, and roof pitch can all be adjusted. Window and door positions, sizes, and types are also changeable. Contact us with your requirements for a bespoke quotation.
What wall thickness does the Apex Holiday Cabin 4.0×13.0 use?
This project record lists 70mm solid log walls for the shown design. Alternative wall specifications are confirmed by product family and project brief. Final use, insulation package, glazing, ventilation, installation and local authority review route are confirmed per dealer project before marketing or approval claims are made.
Is the Apex Holiday Cabin 4.0×13.0 suitable for year-round use?
Suitability for all-season or residential-style use is not confirmed from wall thickness alone. Eurodita provides project technical data for dealer and project review; the final specification and local authority route are confirmed per market and project.
How is the Apex Holiday Cabin 4.0×13.0 delivered?
This project is supplied as a precision-cut, flat-pack kit with numbered components for assembly by the dealer, installer or project team. Eurodita standard terms are EXW (Ex Works) from Kaunas, Lithuania. Delivered options can be arranged for selected markets and projects, with terms agreed individually per order. Production timing is confirmed per quote before EXW factory release, based on the final specification and agreed production slot.
Does Eurodita supply under my brand (private label)?
Yes. Eurodita offers full white-label and private-label manufacturing. All documentation, packaging, and delivery notes carry your brand identity. Your clients never see the Eurodita name, we are the invisible manufacturer behind your timber building business.
