Log Shed MM017 3.5x2.4m
Delivery is agreed individually with each client. Markets and languages
For private buyers the supply route is confirmed project by project.
At a glance

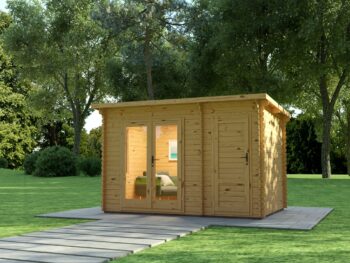

Log Shed MM017 3.5x2.4m is a log shed supplied as a building kit. It measures 3.5 x 2.4 m externally, an external footprint of 8.4 m². The ridge height is 220 cm and the eaves height 210 cm. It is listed with the garden sheds.
Read the full description
Walls
The wall logs are solid, of the 19 x 100 mm profile: each log is 19 mm thick and 100 mm high. Wall logs are supplied untreated by default. The profiles are set out on wall thickness and glulam profiles.
Technical data sheet
Specification recorded for Log Shed MM017 3.5x2.4m. Dimensions are the building's external dimensions. A row appears only where a figure is recorded for this model.
| Building | |
|---|---|
| External dimensions | 3.5 x 2.4 m |
| External footprint area | 8.4 m² |
| Eaves height | 210 cm |
| Ridge height | 220 cm |
| Base | External footprint 3.5 x 2.4 m. Base type and size are confirmed for the specific model and site. |
| Structure | |
| Wall profile | 19 x 100 mm as standard |
| Other wall options | A solid log model can be made in any of the 28, 34, 44, 58 and 70 mm profiles; the profile is confirmed in the written quotation. |
| Construction | Interlocking tongue and groove joints |
| Timber | Northern European timber |
| Storm brace and anchor set | Included |
| Floor | |
| Floor bearers | Not supplied with this model |
| Floor boards | Not supplied with this model |
| Roof | |
| Roof boards | 19 mm tongue and groove boards |
| Doors and windows | |
| Doors | Single glazed timber door |
| Windows | Single glazed timber window |
| Scope of these figures | |
| Insulation | Eurodita supplies the timber structure prepared for insulation where required, not the insulation material. |
| Performance | These dimensions establish no thermal, fire, structural or certification performance. |
Add-ons & Customisation
Options for this model (branding, wall thickness, openings, insulation preparation, partitions, veranda) are listed on What is in a Eurodita kit and confirmed per order.
How an Order Is Agreed
Scope is confirmed in the written quotation. Details: Reading a Eurodita quotation.
Need this in a different size?
Size, layout and the positions of doors and windows can be changed for an order. Send a sketch or a drawing. From a complete sketch to a 3D view, drawings and a price within one working day.
Supply
The kit is supplied EXW from the Eurodita factory. Installation and how it is organised is agreed per project.
For trade buyers
Dealers, distributors and private-label brands can carry this model in their own range.
Compared with similar models
Log Shed MM002 3.3x2.68m
| This model | MM002 3.3x2.68m | |
|---|---|---|
| External size | 3.5 x 2.4 m | 3.3 x 2.68 m |
| External footprint | 8.4 m² | 8.8 m² |
| Ridge height | 220 cm | 229 cm |
| Eaves height | 210 cm | 180 cm |
Log Shed MM005 3.3x3.48m
| This model | MM005 3.3x3.48m | |
|---|---|---|
| External size | 3.5 x 2.4 m | 3.3 x 2.68 m |
| External footprint | 8.4 m² | 8.8 m² |
| Ridge height | 220 cm | 229 cm |
| Eaves height | 210 cm | 180 cm |
Log Shed MM016 3.0x2.5m
| This model | MM016 3.0x2.5m | |
|---|---|---|
| External size | 3.5 x 2.4 m | 3 x 2.5 m |
| External footprint | 8.4 m² | 7.5 m² |
| Ridge height | 220 cm | 250 cm |
| Eaves height | 210 cm | 210 cm |
