Log Cabin James 4×4.8m, 44mm

External size4 x 4.8m
Wall44mm
SupplyKit, EXW Eurodita factory, quoted in writing
Request a quote

Technical data sheet

Specification recorded for Log Cabin James 4x4.8m, 44mm. Dimensions are the building's external dimensions. A row appears only where a figure is recorded for this model.

Building

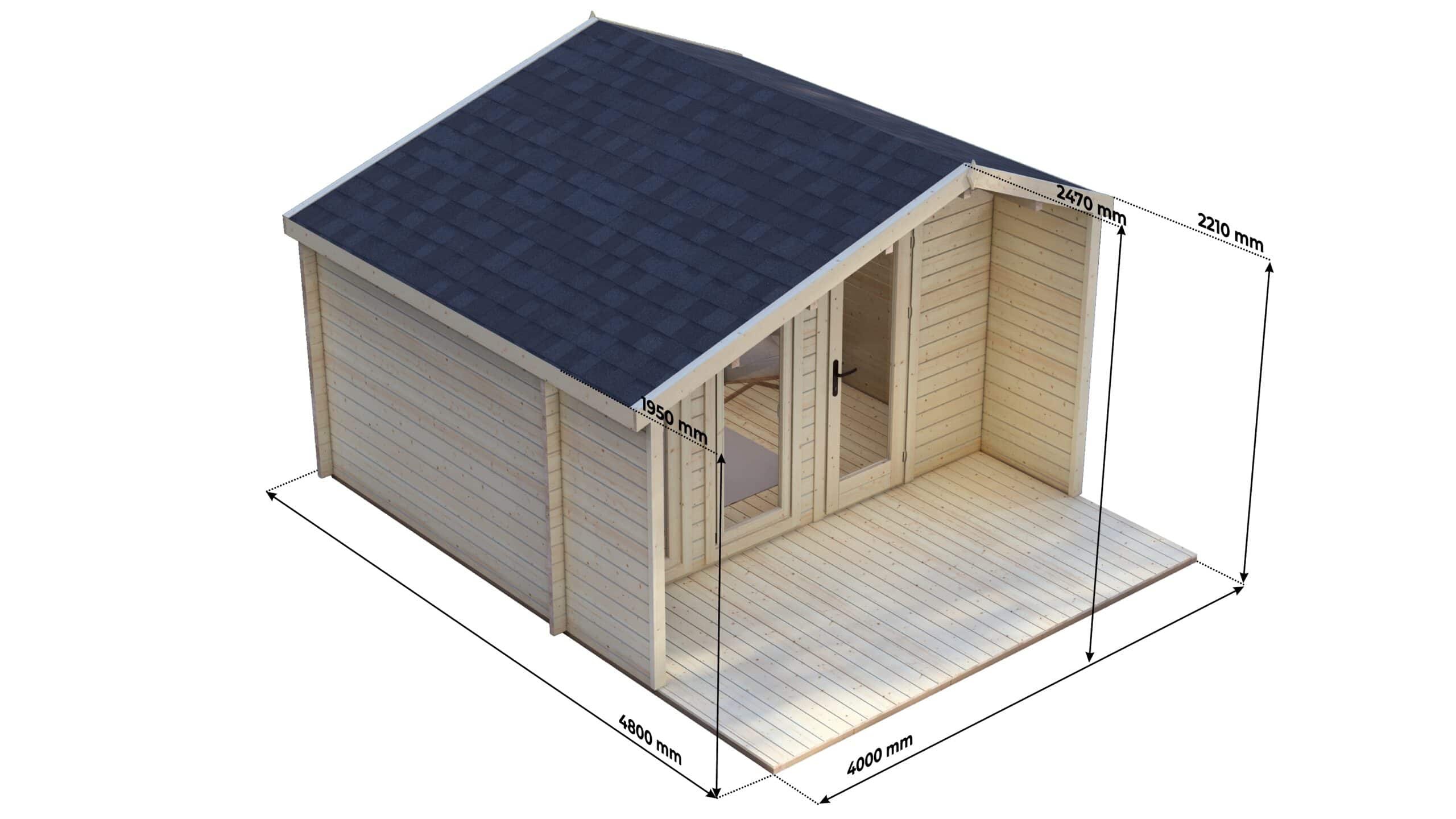

External dimensions4 x 4.8 m
External footprint area19.2 m²
Eaves height221 cm
Ridge height247 cm
BaseExternal footprint 4 x 4.8 m. Base type and size are confirmed for the specific model and site.
Structure
Wall profile44 x 130 mm as standard
Other wall optionsOther approved solid wall profiles can be specified to suit the project and budget.
ConstructionInterlocking tongue and groove joints
TimberNorthern European timber
Storm brace and anchor setIncluded
Floor
Floor bearersImpregnated as standard
Floor boards28 mm
Roof
Roof boards19 mm tongue and groove boards
Doors and windows
DoorsDouble-Glazed Timber Joinery, Standard Profile
WindowsDouble-Glazed Timber Joinery, Standard Profile
Scope of these figures
InsulationEurodita supplies the timber structure prepared for insulation where required, not the insulation material.
PerformanceThese dimensions establish no thermal, fire, structural or certification performance.

Download technical data sheet (PDF) Wall profile reference

Add-ons & Customisation

Options for this model (branding, wall thickness, openings, insulation preparation, partitions, veranda) are listed on What is in a Eurodita kit and confirmed per order.

B2B enquiry
Log Cabin James 4×4.8m, 44mm
44mm · 4 x 4.8m external · quoted in writing, EXW Eurodita factory
Different size or layout? Send a bespoke brief
Log Cabin James 4×4.8m, 44mmRequest a quote

Need this in a different size?

This model is supplied as a 4 x 4.8 m footprint, 44 mm wall profile. If your customer needs a different layout, send a drawing. Eurodita will confirm whether the qualified bespoke route and factory scope fit the exact project. Partner branding is agreed per order.

  1. 1 Send a drawing A hand sketch can start the review. Mark known window and door positions, wall thickness and heights; Eurodita confirms any missing technical inputs.
  2. 2 Confirm the quotation scope If the enquiry fits, pricing and any CAD/3D or technical material are prepared to the agreed scope.
  3. 3 Review the agreed scope Revisions follow the quotation and project scope until written sign-off.

CAD/3D quotation material is prepared to the qualified project scope. Availability and timing are confirmed during qualification. Partner branding is applied where agreed; required manufacturer, legal and traceability information is retained.

Send a bespoke brief

Dimensions, wall thickness and opening positions are confirmed per project at quote stage. Bespoke production timing is confirmed at quotation stage. See published projects for built examples with dimensions and drawings, or review the rest of the garden log cabins range.

About This Log Cabin James 4×4.8m, 44mm

Product Overview

The James log cabin delivers a versatile 4 x 4.8m garden building for residential clients seeking quality outdoor space. This 44mm wall cabin suits home offices, workshops, or recreational spaces. Trade partners appreciate the straightforward assembly process and reliable timber construction that appeals to self-build customers.

Layout & Configuration

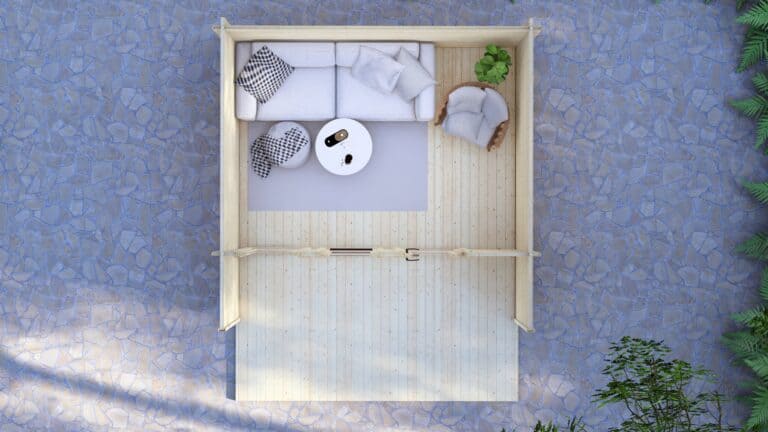

The single-room configuration provides 19.2 square metres of usable floor space with 221cm eaves height. Standard layout incorporates double-glazed timber door and window units positioned for optimal natural light. The open-plan interior allows flexible furniture arrangement according to intended use requirements.

Timber & Construction

Northern European timber supports dimensional stability throughout seasonal changes. The 44mm wall thickness provides adequate thermal specification for three-season use. Interlocking tongue-and-groove joints create weather-sealed connections without requiring specialized tools. Double-glazed timber joinery features standard profiles suitable for most project applications.

Floor & Roof

The floor system incorporates 28mm tongue-and-groove boards supported by pressure-treated bearers for ground contact protection. Roof construction features 19mm tongue-and-groove boarding beneath felt covering. Storm bracing components maintain assembly stability during adverse weather conditions typical in European climates.

Customisation Options

Wall thickness upgrades accommodate insulation requirements for extended seasonal use. Double or triple glazing options enhance thermal specification according to local climate conditions. Partition kits enable room division while veranda extensions expand covered outdoor space. Custom door and window configurations available upon request.

Manufacturing & Delivery

The Eurodita factory is dimensioned for 150,000 m³ of timber a year. Production allocation and the included material scope are confirmed in the written quotation. Freight route and final delivery timing are agreed per order in the written quotation. Eurodita standard terms are EXW from the Eurodita factory. Our manufacturing systems accommodate bespoke modifications while maintaining competitive pricing for volume orders.

Private Label Partnership

Private-label manufacturing enables dealers to market under their own branding. We provide comprehensive documentation including assembly guides and promotional materials featuring your company identity. 3D visualization services support showroom displays and customer presentations. The Eurodita sales team handles quotations, orders and documentation requests for partners.

What should dealers confirm before quoting Log Cabin James 4.x4.8m, 44mm?

Eurodita supplies Log Cabin James 4.x4.8m, 44mm as a private-label B2B garden cabin with a 4 x 4.8m footprint and 44mm Northern European timber wall specification. Before quoting, dealers should confirm the quote stage package, wall profile, glazing/openings, roof and floor options, finish or treatment route, packaging, unloading access, EXW release or freight route from the Eurodita factory, private-label documentation, and local-authority planning or site-use review requirements.

Product, order and after-sales conditions are confirmed in writing for each project in the quotation, order confirmation and applicable product documentation. Please contact Eurodita for the documentation relevant to your confirmed order.

B2B Order Framework

Scope is confirmed in the written quotation. Details: Reading a Eurodita quotation.

Private-label scope

Branding on packaging and documents, agreed per order.

Production planning

Production scope confirmed in the written quotation.

Commercial terms

Price, quantity and payment quoted per order.

Technical documents

Drawings and specifications listed in the order documentation.

Configuration review

Dimensions, openings and wall profile reviewed before quotation.

Dispatch terms

EXW Eurodita factory as standard; delivered options per market and order.
