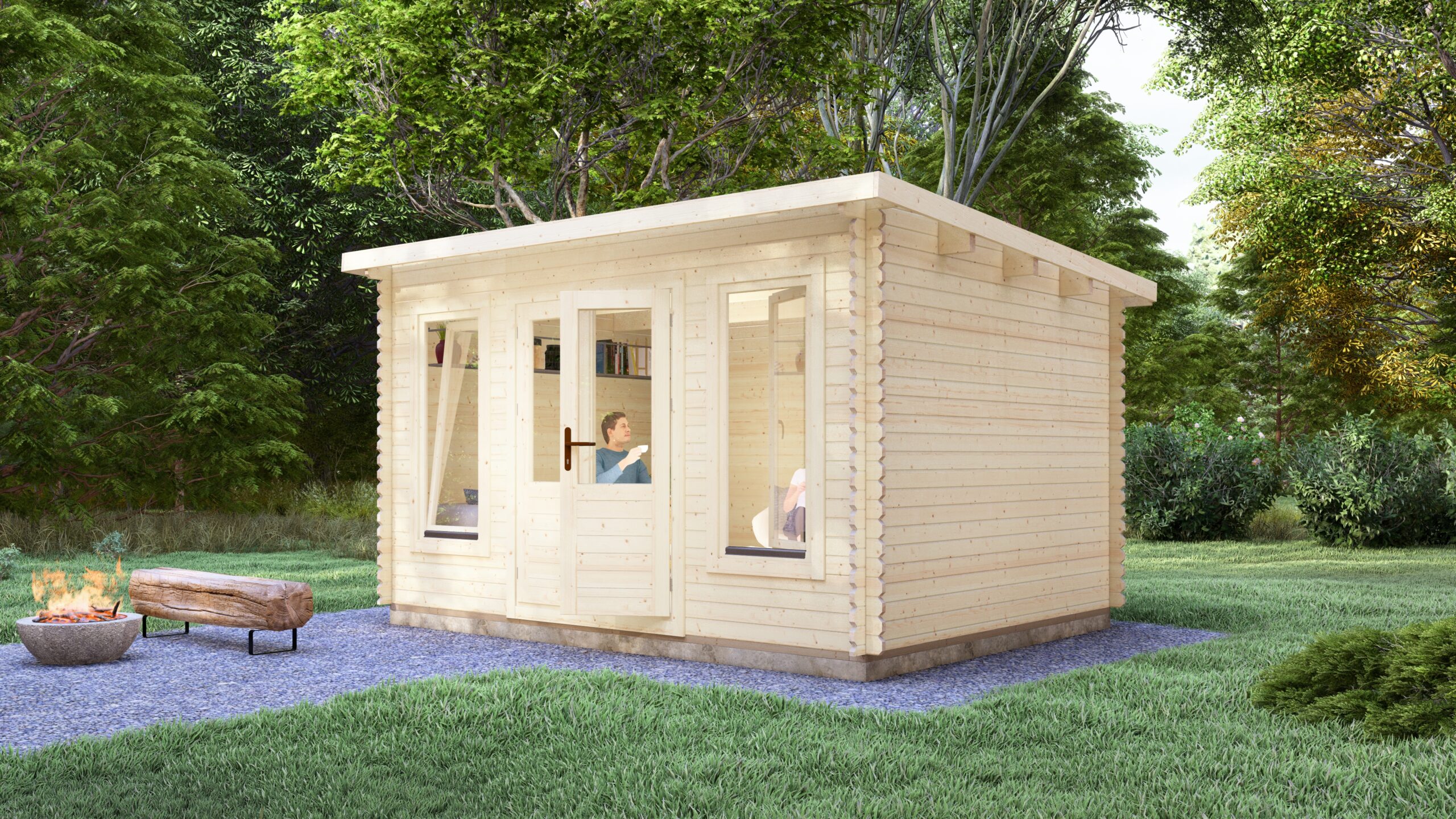

Log Cabin Glastonbury 4.2×3.2m, 34mm
The Glastonbury log cabin is a compact 4.2x3.2m supply option for trade partners reviewing garden room, office, studio or display briefs.
Technical data sheet
Specification recorded for Log Cabin Glastonbury 4.2x3.2m, 34mm. Dimensions are the building's external dimensions. A row appears only where a figure is recorded for this model.
| Building | |
|---|---|
| External dimensions | 4.2 x 3.2 m |
| External footprint area | 13.4 m² |
| Eaves height | 220 cm |
| Ridge height | 240 cm |
| Base | External footprint 4.2 x 3.2 m. Base type and size are confirmed for the specific model and site. |
| Structure | |
| Wall profile | 34 x 100 mm as standard |
| Other wall options | Other approved solid wall profiles can be specified to suit the project and budget. |
| Construction | Interlocking tongue and groove joints |
| Timber | Northern European timber |
| Storm brace and anchor set | Included |
| Floor | |
| Floor bearers | Impregnated as standard |
| Floor boards | 28 mm |
| Roof | |
| Roof boards | 19 mm tongue and groove boards |
| Doors and windows | |
| Doors | Double-Glazed Timber Joinery, Standard Profile |
| Windows | Double-Glazed Timber Joinery, Standard Profile |
| Scope of these figures | |
| Insulation | Eurodita supplies the timber structure prepared for insulation where required, not the insulation material. |
| Performance | These dimensions establish no thermal, fire, structural or certification performance. |
Add-ons & Customisation
Options for this model (branding, wall thickness, openings, insulation preparation, partitions, veranda) are listed on What is in a Eurodita kit and confirmed per order.
Need this in a different size?
This model is supplied as a 4.2 x 3.2 m footprint, 34 mm wall profile. If your customer needs a different layout, send a drawing. Eurodita will confirm whether the qualified bespoke route and factory scope fit the exact project. Partner branding is agreed per order.
- 1 Send a drawing A hand sketch can start the review. Mark known window and door positions, wall thickness and heights; Eurodita confirms any missing technical inputs.
- 2 Confirm the quotation scope If the enquiry fits, pricing and any CAD/3D or technical material are prepared to the agreed scope.
- 3 Review the agreed scope Revisions follow the quotation and project scope until written sign-off.
CAD/3D quotation material is prepared to the qualified project scope. Availability and timing are confirmed during qualification. Partner branding is applied where agreed; required manufacturer, legal and traceability information is retained.
Send a bespoke briefDimensions, wall thickness and opening positions are confirmed per project at quote stage. Bespoke production timing is confirmed at quotation stage. See published projects for built examples with dimensions and drawings, or review the rest of the summer house log cabins range.
About This Log Cabin Glastonbury 4.2×3.2m, 34mm
Product Overview
The Glastonbury log cabin is a compact 4.2x3.2m supply option for trade partners reviewing garden room, office, studio or display briefs. The 34mm wall construction, glazing and layout details are supplied as technical inputs for dealer, project team and local authority review where relevant.
Layout & Configuration
The single-room configuration maximises available floor area within the compact dimensions. Standard door and window placement allows flexible interior arrangement for office, studio, display, or storage applications. The 220cm eaves height provides comfortable headroom throughout, while the peaked roof design maintains standing height across most floor area.
Timber & Construction
Northern European timber forms the structural framework, with 34mm wall planks joined through precision tongue-and-groove connections. Double-glazed timber joinery is documented as part of the project specification for dealer review. The interlocking joint system is supplied for dealer specification review, with treatment, sealing and maintenance routes confirmed according to the final project and market requirements.
Floor & Roof
The floor system incorporates 28mm tongue-and-groove boards supported by pressure-treated bearers for ground-level stability. Roof construction features 19mm tongue-and-groove boarding providing structural deck and interior ceiling finish. Integrated bracing details are supplied for project review; site exposure, fixing method and any local structural checks remain part of the dealer or project team confirmation.
Customisation Options
Wall profile, glazing, partition kits and veranda options are confirmed per quote where the dealer or project team needs a different specification. Any insulation, heating or seasonal-use requirement should be checked against the final build-up and local site conditions. Factory-applied exterior treatments reduce on-site preparation needs for the agreed weather-protection finish.
Manufacturing & Delivery
Production at the Eurodita factory supports consistent quality through automated machinery and experienced craftsmen. The Eurodita factory is dimensioned for 150,000 m³ of timber a year. Production allocation and the included material scope are confirmed in the written quotation. Standard garden-cabin production follows the normal product route, while freight route, delivery timing and logistics documentation are confirmed per order with trade partners.
Private Label Partnership
Private-label capabilities allow dealers to brand cabins under their own identity. Customised documentation, technical drawings, and 3D visualisation tools support sales presentations. Dealer presentation support is agreed according to partner scope and project requirements. Partner-specific packaging and delivery documentation maintain brand consistency throughout the supply chain.
What should dealers confirm before quoting Log Cabin Glastonbury 4.2×3.2m, 34mm?
Eurodita supplies Log Cabin Glastonbury 4.2×3.2m, 34mm as a private-label B2B garden cabin / summer house with a 4.2x3.2m footprint and 34mm Northern European timber wall specification. Before quoting, dealers should confirm the quote stage package, wall profile, glazing/openings, roof and floor options, finish or treatment route, packaging, unloading access, EXW release or freight route from the Eurodita factory, private-label documentation, and local-authority planning or site-use review requirements.
Warranty & Support
Product, order and after-sales conditions are confirmed in writing for each project in the quotation, order confirmation and applicable product documentation. Please contact Eurodita for the documentation relevant to your confirmed order. Detailed assembly instructions with technical drawings facilitate professional installation. Post-delivery support scope and any replacement-component arrangements are confirmed in the written order documentation.
