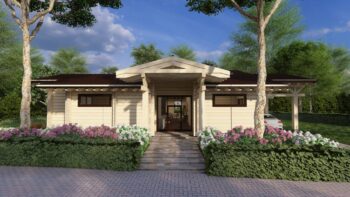

Glulam Log house Lumberlux
Supplied to dealers, developers and private-label partners; larger homes are also supplied directly to private clients.
Technical data sheet
Specification recorded for Glulam Log house Lumberlux. Dimensions are the building's external dimensions. A row appears only where a figure is recorded for this model.
| Building | |
|---|---|
| External dimensions | 16.70 x 18 m |
| External footprint area | 300.6 m² |
| Eaves height | 390 cm |
| Ridge height | 570 cm |
| Storeys | 1 |
| Base | External footprint 16.70 x 18 m. Base type and size are confirmed for the specific model and site. |
| Structure | |
| Wall profile options | 70 x 130 mm, 88 x 260 mm, 135 x 260 mm, 180 x 260 mm or 220 x 260 mm glulam, chosen per project and budget |
| Corner system | Dovetail corner system available on the 88 to 220 mm glulam profiles, not on 70 x 130 mm |
| Construction | Interlocking tongue and groove joints |
| Timber | Glued-laminated timber |
| Storm brace and anchor set | Included |
| Floor | |
| Floor bearers | Impregnated as standard |
| Floor boards | 28 mm |
| Roof | |
| Roof boards | 19 mm tongue and groove boards |
| Doors and windows | |
| Doors | Double-Glazed Timber Joinery, Insulated Profile |
| Windows | Double-Glazed Timber Joinery, Insulated Profile |
| Scope of these figures | |
| Insulation | Eurodita supplies the timber structure prepared for insulation where required, not the insulation material. |
| Performance | These dimensions establish no thermal, fire, structural or certification performance. |
Add-ons & Customisation
Options for this model (branding, wall thickness, openings, insulation preparation, partitions, veranda) are listed on What is in a Eurodita kit and confirmed per order.
Need this in a different size?
This model is supplied as a 16.70 x 18 m footprint. If your customer needs a different layout, send a drawing. Eurodita will confirm whether the qualified bespoke route and factory scope fit the exact project. Partner branding is agreed per order.
- 1 Send a drawing A hand sketch can start the review. Mark known window and door positions, wall thickness and heights; Eurodita confirms any missing technical inputs.
- 2 Confirm the quotation scope If the enquiry fits, pricing and any CAD/3D or technical material are prepared to the agreed scope.
- 3 Review the agreed scope Revisions follow the quotation and project scope until written sign-off.
CAD/3D quotation material is prepared to the qualified project scope. Availability and timing are confirmed during qualification. Partner branding is applied where agreed; required manufacturer, legal and traceability information is retained.
Send a bespoke briefDimensions, wall thickness and opening positions are confirmed per project at quote stage. Bespoke production timing is confirmed at quotation stage. See published projects for built examples with dimensions and drawings, or review the rest of the glulam houses range.
About This Glulam Log house Lumberlux
Product Overview
Designed for developers and contractors requiring premium project-specific accommodation solutions, the Lumberlux delivers substantial living space within 16.70 x 18m external dimensions. This contemporary glulam log house suits clients seeking project-specific accommodation with modern comfort standards and traditional timber construction aesthetics.

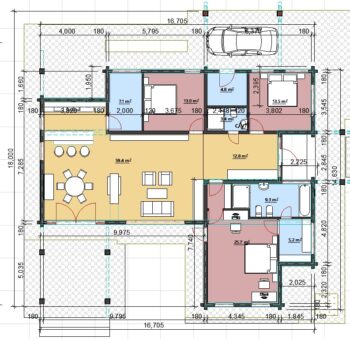

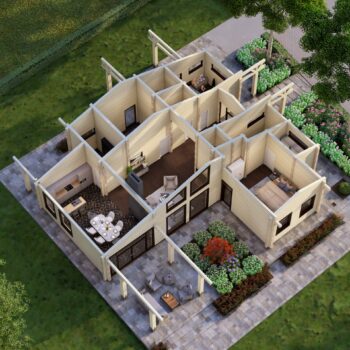

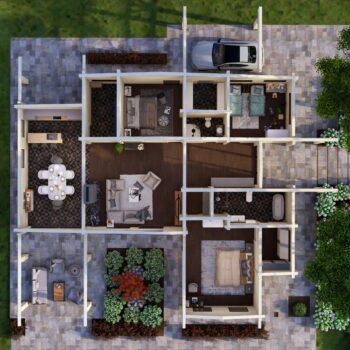

Layout & Configuration
The generous floor plan accommodates multiple room configurations across the substantial footprint. 390cm eaves height provides comfortable ceiling clearance throughout ground floor areas, while the 570cm ridge height creates potential for mezzanine or loft development to maximise the available living space.
Timber & Construction
Northern European timber forms the 180mm wall thickness through precision interlocking tongue-and-groove joints. All timber joinery incorporates double-glazed insulated profiles for doors and windows, supporting thermal specification reviews while maintaining traditional log house character and assembly stability.
Floor & Roof
The floor and roof specification uses 28mm floor boards supported by pressure-treated bearers for long-term stability. The roof system features 19mm tongue-and-groove boards with integrated storm bracing, providing weather resistance and structural support for various roofing material applications across the substantial span.
Customisation Options
Wall thickness upgrades accommodate enhanced insulation requirements for specific climate zones. Additional glazing configurations, internal partition kits, and veranda extensions adapt the structure to client specifications. Custom door and window positioning enables architects to optimise natural light distribution and room functionality.
Manufacturing & Delivery
The Eurodita factory is dimensioned for 150,000 m³ of timber a year. Bespoke modifications integrate directly into standard production workflows. Glulam production timing is confirmed per order according to project specification.
Private Label Partnership
Private-label manufacturing enables dealer branding across all documentation and materials. Partners receive branded 3D visualisation tools, technical specification sheets, and marketing support materials. Showroom display programmes provide physical samples and virtual reality presentations to demonstrate construction quality and design flexibility to end clients.
Product, order and after-sales conditions are confirmed in writing for each project in the quotation, order confirmation and applicable product documentation. Please contact Eurodita for the documentation relevant to your confirmed order.
What should dealers verify before quoting Glulam Log house Lumberlux?
Eurodita supplies Glulam Log house Lumberlux as a B2B private-label glulam house for dealers, developers and project teams. Before quoting, confirm whether the project uses the listed wall profile or another Eurodita glulam profile route, 88mm, 135mm, 180mm or 220mm, plus layout changes, documentation scope, EXW Eurodita factory logistics and local-authority review needs. Check Glulam Houses, private-label manufacturing, shipping policy and documentation status before client commitments.
