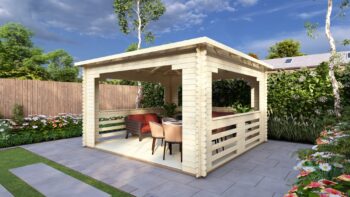

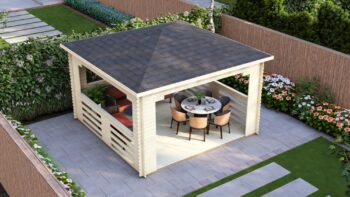

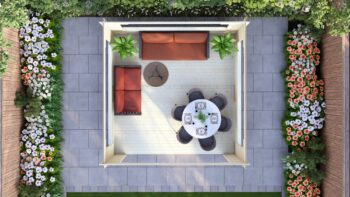

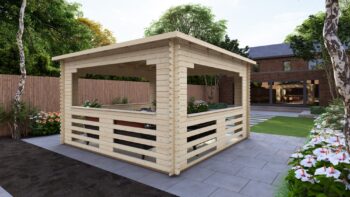

Garden Gazebo 4x4m, 28mm
Garden Gazebo 4x4m, 28mm is a B2B timber gazebo kit for private-label partners, distributors and project suppliers who need a compact outdoor structure within a wider garden-building range.
Technical data sheet
Specification recorded for Garden Gazebo 4x4m, 28mm. Dimensions are the building's external dimensions. A row appears only where a figure is recorded for this model.
| Building | |
|---|---|
| External dimensions | 4 x 4 m |
| External footprint area | 16 m² |
| Eaves height | 238 cm |
| Ridge height | 298 cm |
| Base | External footprint 4 x 4 m. Base type and size are confirmed for the specific model and site. |
| Structure | |
| Wall profile | 28 x 100 mm as standard |
| Other wall options | Other approved solid wall profiles can be specified to suit the project and budget. |
| Construction | Interlocking tongue and groove joints |
| Timber | Northern European timber |
| Storm brace and anchor set | Included |
| Floor | |
| Floor bearers | Impregnated as standard |
| Floor boards | 28 mm |
| Roof | |
| Roof boards | 19 mm tongue and groove boards |
| Doors and windows | |
| Doors | Double-Glazed Timber Joinery, Standard Profile |
| Windows | Double-Glazed Timber Joinery, Standard Profile |
| Scope of these figures | |
| Insulation | Eurodita supplies the timber structure prepared for insulation where required, not the insulation material. |
| Performance | These dimensions establish no thermal, fire, structural or certification performance. |
Add-ons & Customisation
Options for this model (branding, wall thickness, openings, insulation preparation, partitions, veranda) are listed on What is in a Eurodita kit and confirmed per order.
Need this in a different size?
This model is supplied as a 4 x 4 m footprint, 28 mm wall profile. If your customer needs a different layout, send a drawing. Eurodita will confirm whether the qualified bespoke route and factory scope fit the exact project. Partner branding is agreed per order.
- 1 Send a drawing A hand sketch can start the review. Mark known window and door positions, wall thickness and heights; Eurodita confirms any missing technical inputs.
- 2 Confirm the quotation scope If the enquiry fits, pricing and any CAD/3D or technical material are prepared to the agreed scope.
- 3 Review the agreed scope Revisions follow the quotation and project scope until written sign-off.
CAD/3D quotation material is prepared to the qualified project scope. Availability and timing are confirmed during qualification. Partner branding is applied where agreed; required manufacturer, legal and traceability information is retained.
Send a bespoke briefDimensions, wall thickness and opening positions are confirmed per project at quote stage. Bespoke production timing is confirmed at quotation stage. See published projects for built examples with dimensions and drawings, or review the rest of the gazebos & pergolas range.
About This Garden Gazebo 4x4m, 28mm
Product Overview
Garden Gazebo 4x4m, 28mm is a B2B timber gazebo kit for private-label partners, distributors and project suppliers who need a compact outdoor structure within a wider garden-building range. The model uses Northern European timber, a 28mm timber profile, a 4 x 4 metres footprint and a timber roof form. Final treatment, packing, branding and project scope are confirmed at quotation stage.
Practical Applications
This gazebo can support partner ranges for covered seating, outdoor display areas, leisure spaces, hospitality terraces, park facilities and garden structure projects. End-use suitability, anchoring, foundations, services and any local authority review must be checked by the dealer, project owner and local professionals before installation.
Timber & Construction
Eurodita manufactures the structure in Kaunas from Northern European timber. The listed source specification records 28mm timber profile thickness, 238 cm eaves height, 298 cm ridge height and 28mm floor boards. Outdoor performance depends on treatment, installation quality, site exposure and maintenance.
B2B Customisation
Eurodita can review project-specific design adjustments, private-label documentation, packaging or drawing branding, timber treatment choices, production scheduling and showroom support where agreed. Enclosed cabin features, specialist glazing, upgraded build-ups or fitted layouts must be confirmed separately for the exact project and should not be treated as part of the base gazebo specification.
Manufacturing & Order Scope
The product is manufactured for B2B supply from Eurodita's Kaunas factory. Standard commercial terms are EXW unless a delivered option is agreed individually. Manufacturing slot, packing list, technical data and any optional changes are confirmed in the quotation and order documentation.
Private Label Support
Private-label support can include unbranded supply, partner-facing product information, drawing or packaging branding and technical data for quotation workflows. Product, order and after-sales conditions are confirmed in writing for each project in the quotation, order confirmation and applicable product documentation. Please contact Eurodita for the documentation relevant to your confirmed order.
What should dealers confirm before quoting Garden Gazebo 4x4m, 28mm?
Before quoting Garden Gazebo 4x4m, 28mm, dealers should confirm intended end-market use, destination market, site-preparation assumptions, treatment or finish route, branding and packing needs, accessories, order quantity, any local-authority review, and logistics from Eurodita's Gazebos & Pergolas range. Eurodita supplies B2B private-label timber gazebo kits; final specification, scope and release timing are agreed at quote stage through private-label manufacturing and shipping coordination.
Explore Similar Products
B2B Order Framework
Scope is confirmed in the written quotation. Details: Reading a Eurodita quotation.
Private-label scope
Branding on packaging and documents, agreed per order.
Production planning
Production scope confirmed in the written quotation.
Commercial terms
Price, quantity and payment quoted per order.
Technical documents
Drawings and specifications listed in the order documentation.
Configuration review
Dimensions, openings and wall profile reviewed before quotation.
Dispatch terms
EXW Kaunas as standard; delivered options per market and order.
How a B2B Order Moves Forward
Each step is confirmed in writing for the specific order. See Reading a Eurodita quotation.
Specification
Manufacturing scope
Checking and packing
