Technical data sheet

Specification recorded for Log Cabin George 3.5x2.5m, 44mm. Dimensions are the building's external dimensions. A row appears only where a figure is recorded for this model.

Building

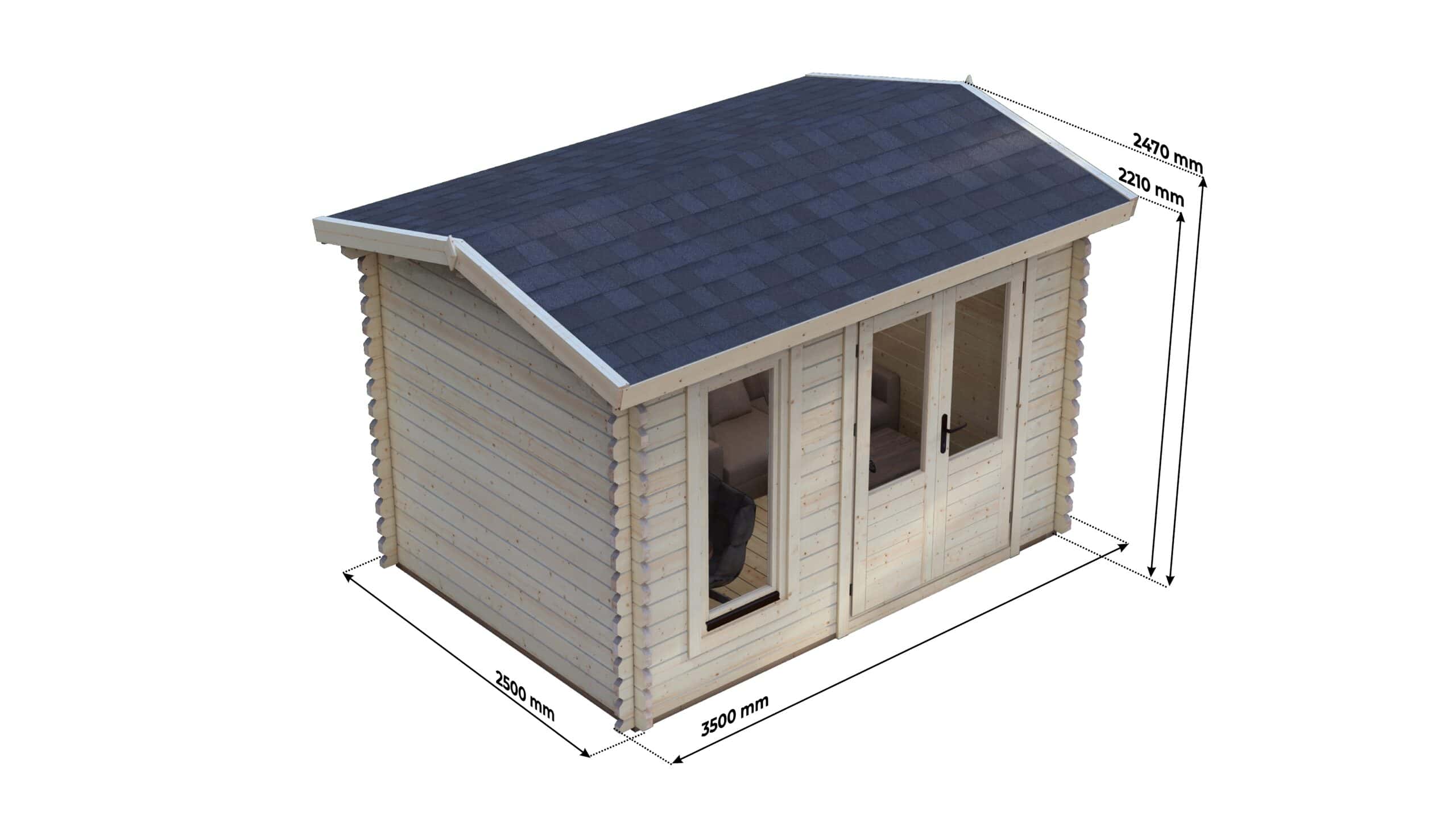

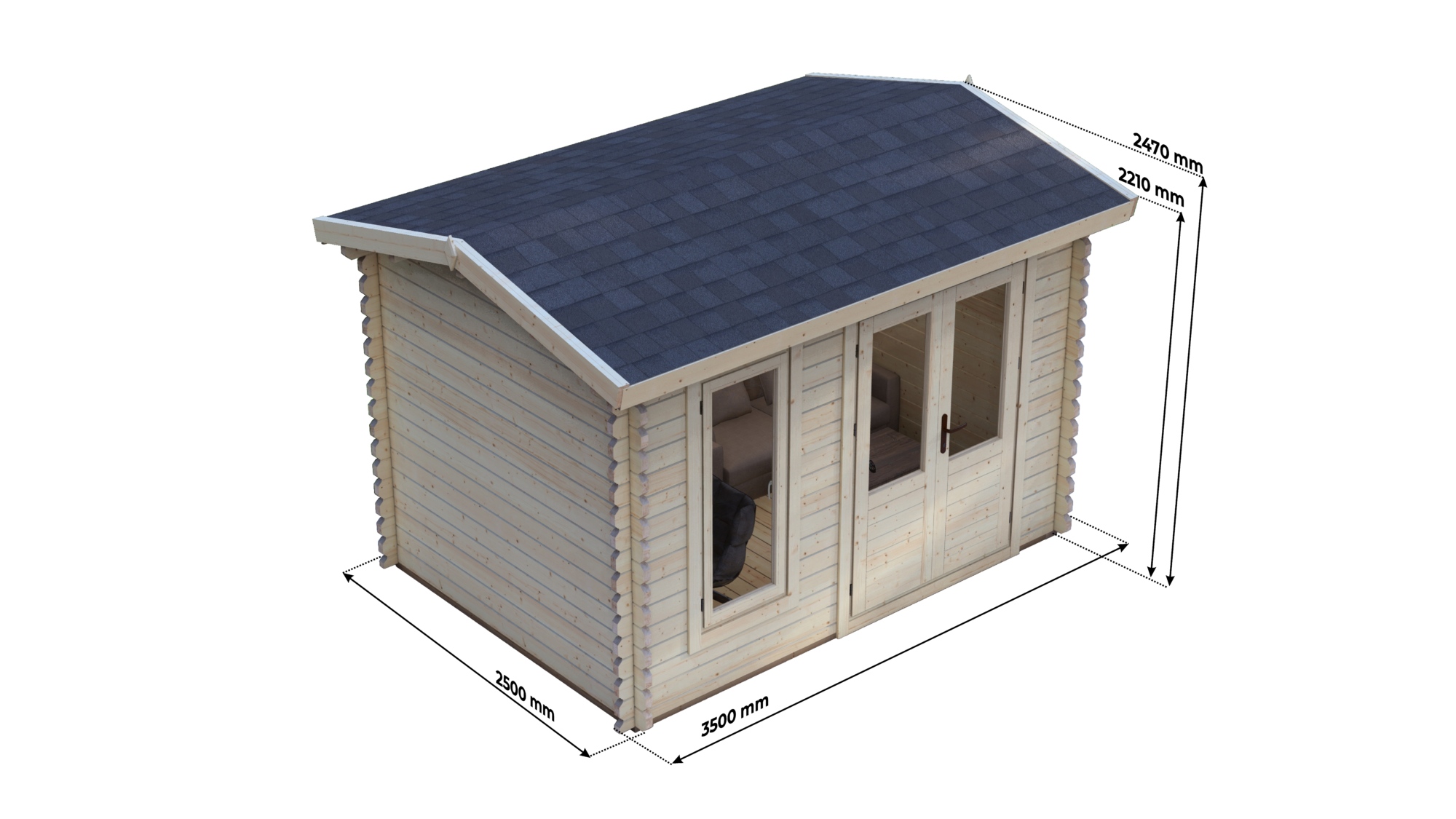

External dimensions3.5 x 2.5 m
External footprint area8.8 m²
Eaves height221 cm
Ridge height247 cm
BaseExternal footprint 3.5 x 2.5 m. Base type and size are confirmed for the specific model and site.
Structure
Wall profile44 x 130 mm as standard
Other wall optionsOther approved solid wall profiles can be specified to suit the project and budget.
ConstructionInterlocking tongue and groove joints
TimberNorthern European timber
Storm brace and anchor setIncluded
Floor
Floor bearersImpregnated as standard
Floor boards28 mm
Roof
Roof boards19 mm tongue and groove boards
Doors and windows
DoorsDouble-Glazed Timber Joinery, Standard Profile
WindowsDouble-Glazed Timber Joinery, Standard Profile
Scope of these figures
InsulationEurodita supplies the timber structure prepared for insulation where required, not the insulation material.
PerformanceThese dimensions establish no thermal, fire, structural or certification performance.

Download technical data sheet (PDF) Wall profile reference

Add-ons & Customisation

Options for this model (branding, wall thickness, openings, insulation preparation, partitions, veranda) are listed on What is in a Eurodita kit and confirmed per order.

Need this in a different size?

This model is supplied as a 3.5 x 2.5 m footprint, 44 mm wall profile. If your customer needs a different layout, send a drawing. Eurodita will confirm whether the qualified bespoke route and factory scope fit the exact project. Partner branding is agreed per order.

  1. 1 Send a drawing A hand sketch can start the review. Mark known window and door positions, wall thickness and heights; Eurodita confirms any missing technical inputs.
  2. 2 Confirm the quotation scope If the enquiry fits, pricing and any CAD/3D or technical material are prepared to the agreed scope.
  3. 3 Review the agreed scope Revisions follow the quotation and project scope until written sign-off.

CAD/3D quotation material is prepared to the qualified project scope. Availability and timing are confirmed during qualification. Partner branding is applied where agreed; required manufacturer, legal and traceability information is retained.

Send a bespoke brief

Dimensions, wall thickness and opening positions are confirmed per project at quote stage. Bespoke production timing is confirmed at quotation stage. See published projects for built examples with dimensions and drawings, or review the rest of the summer house log cabins range.

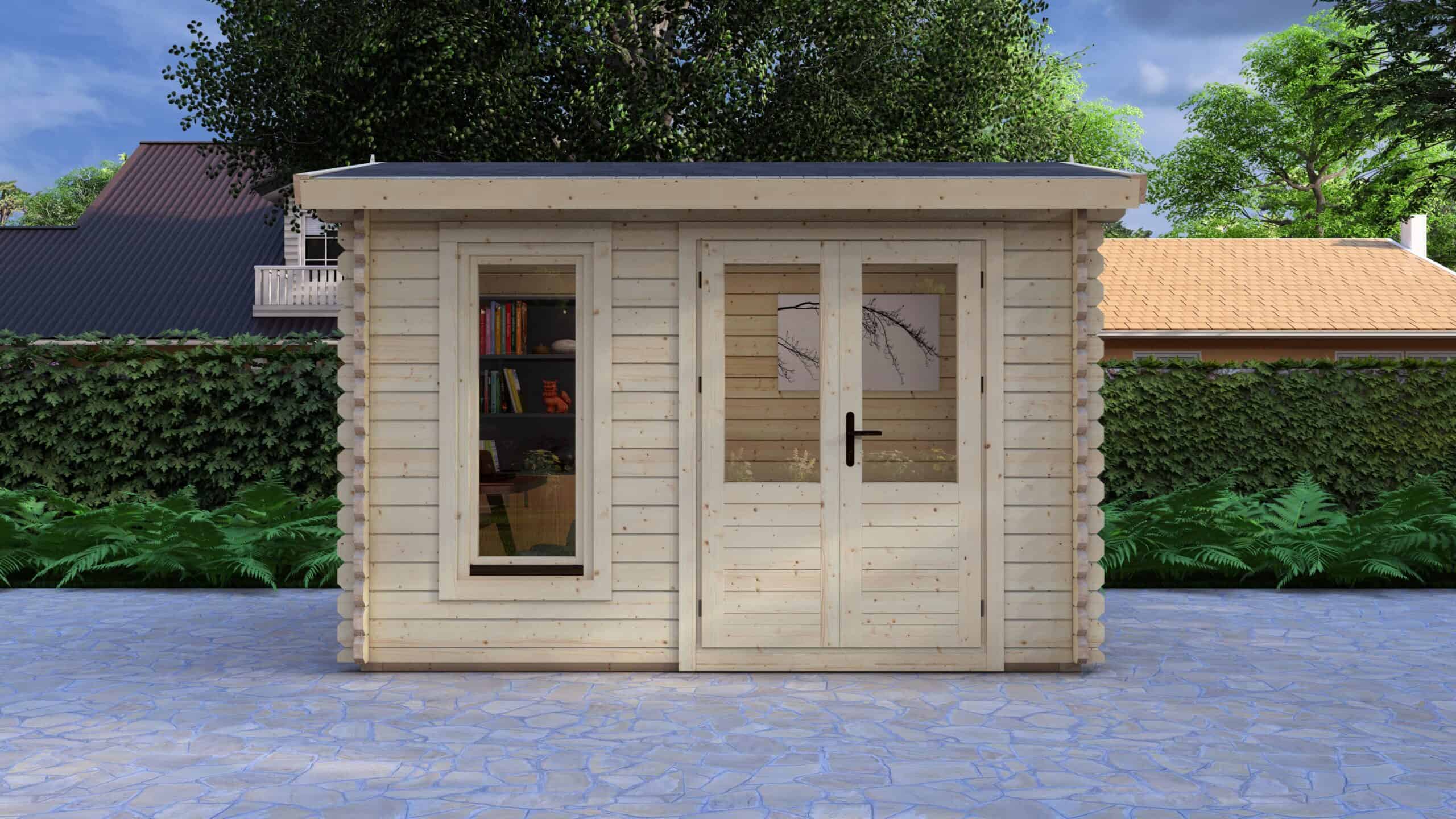

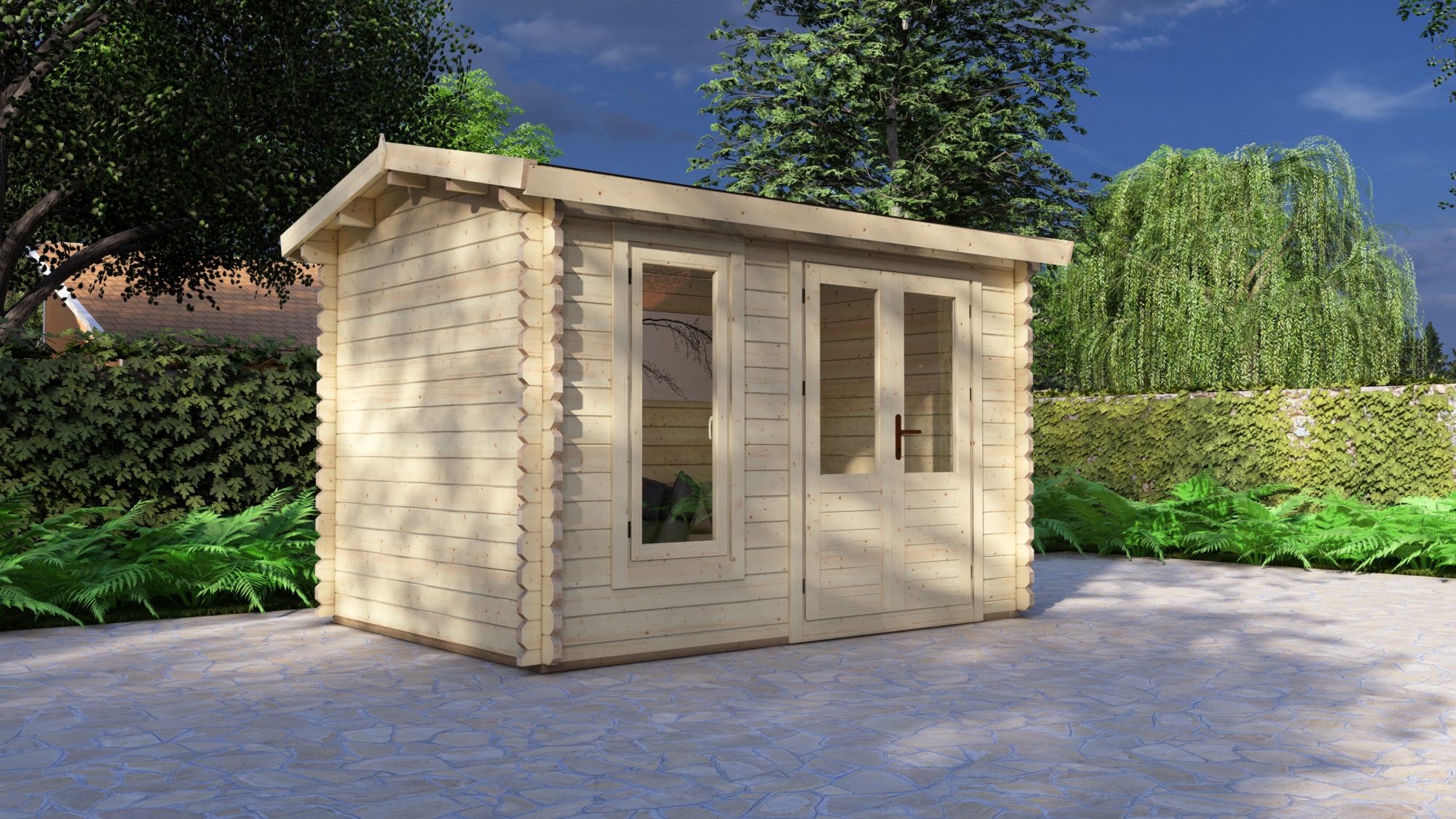

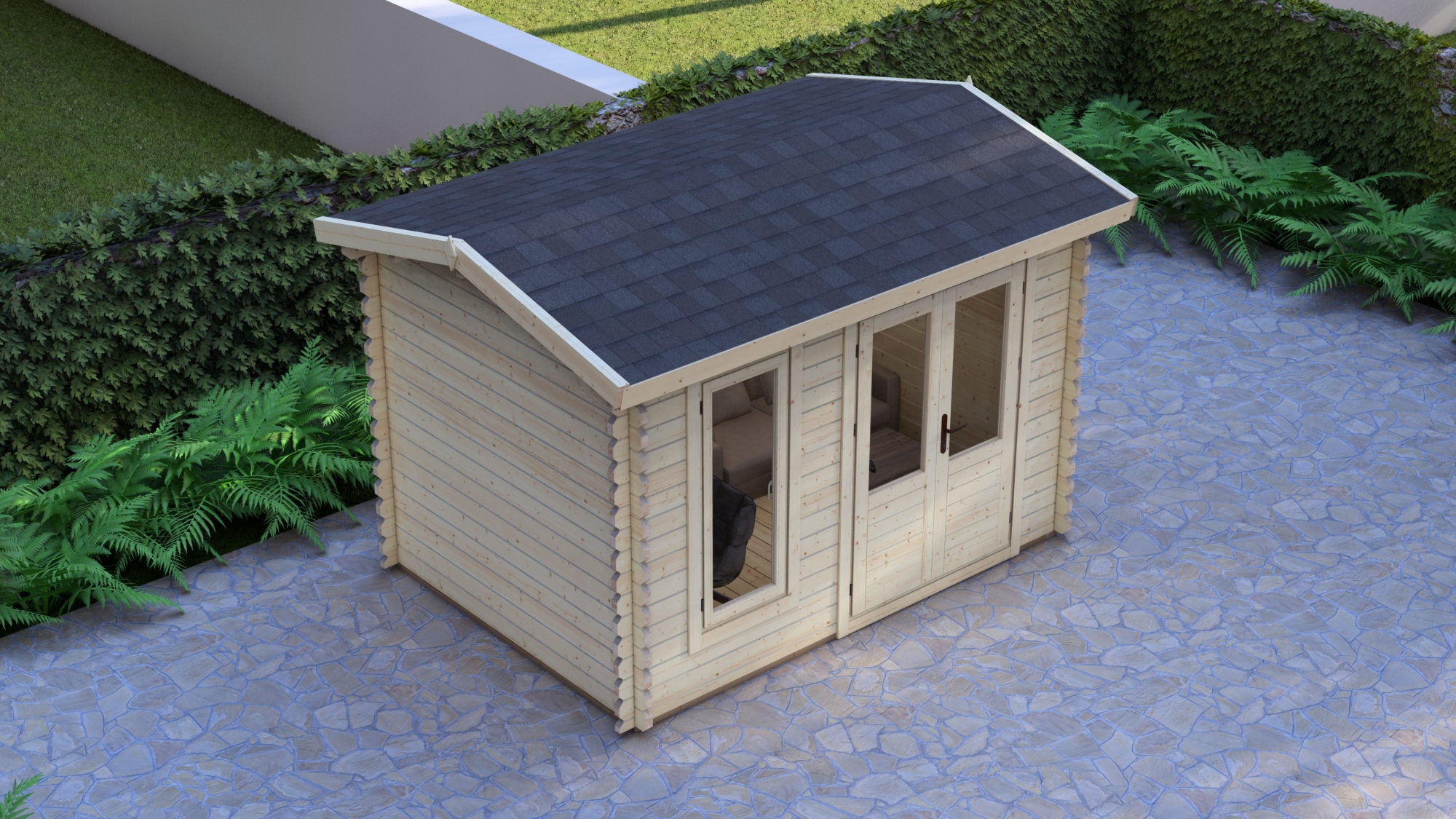

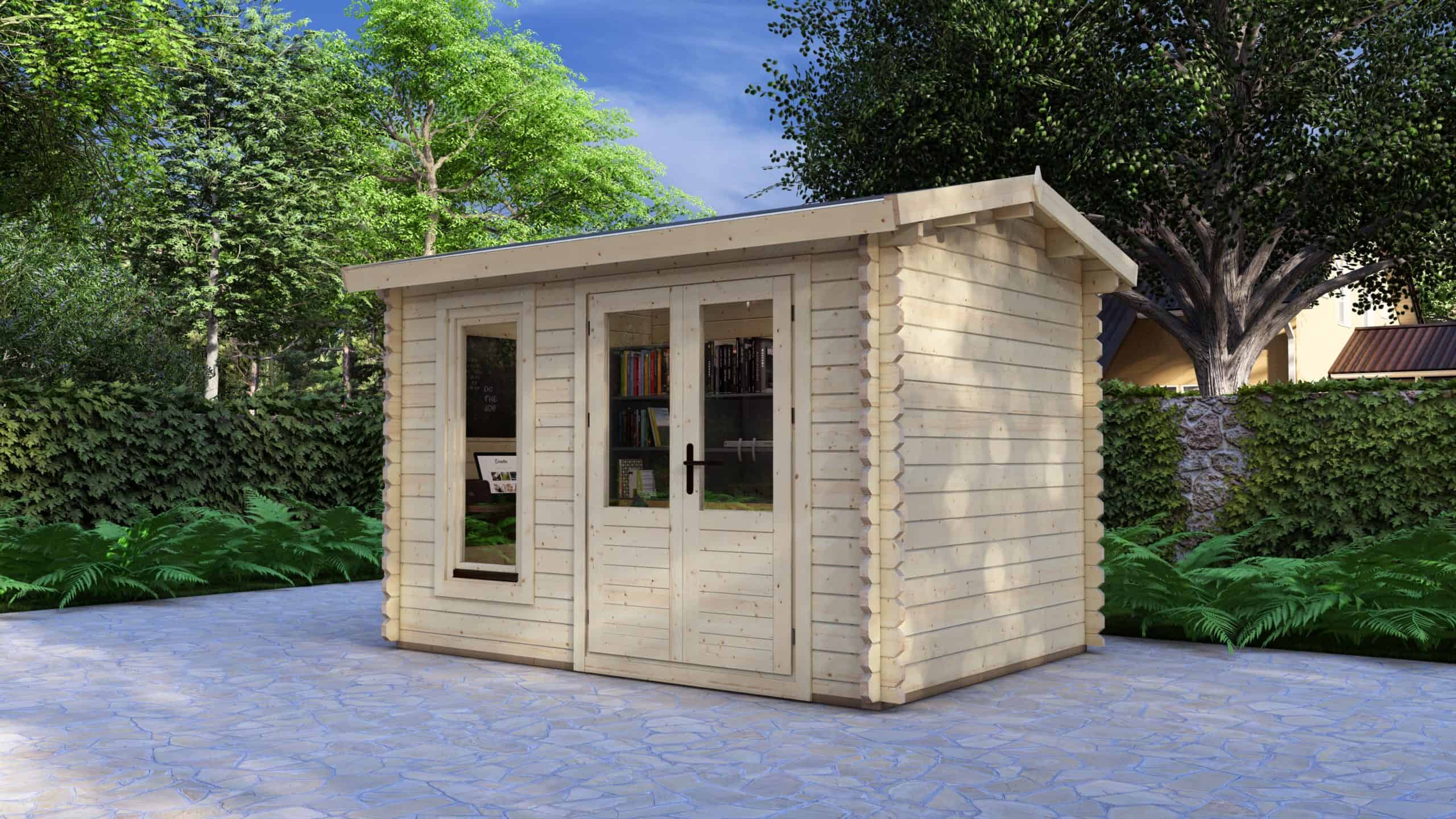

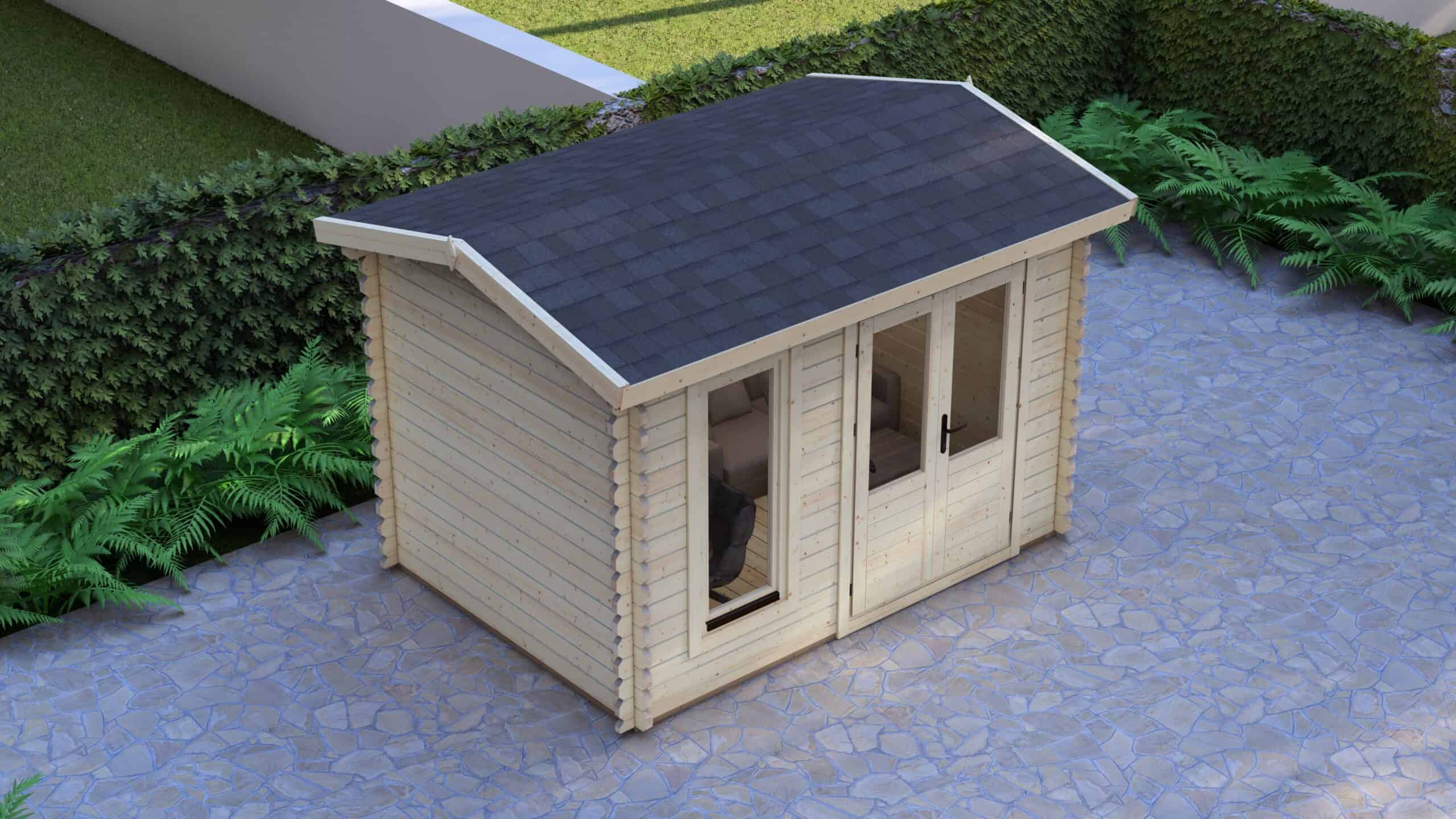

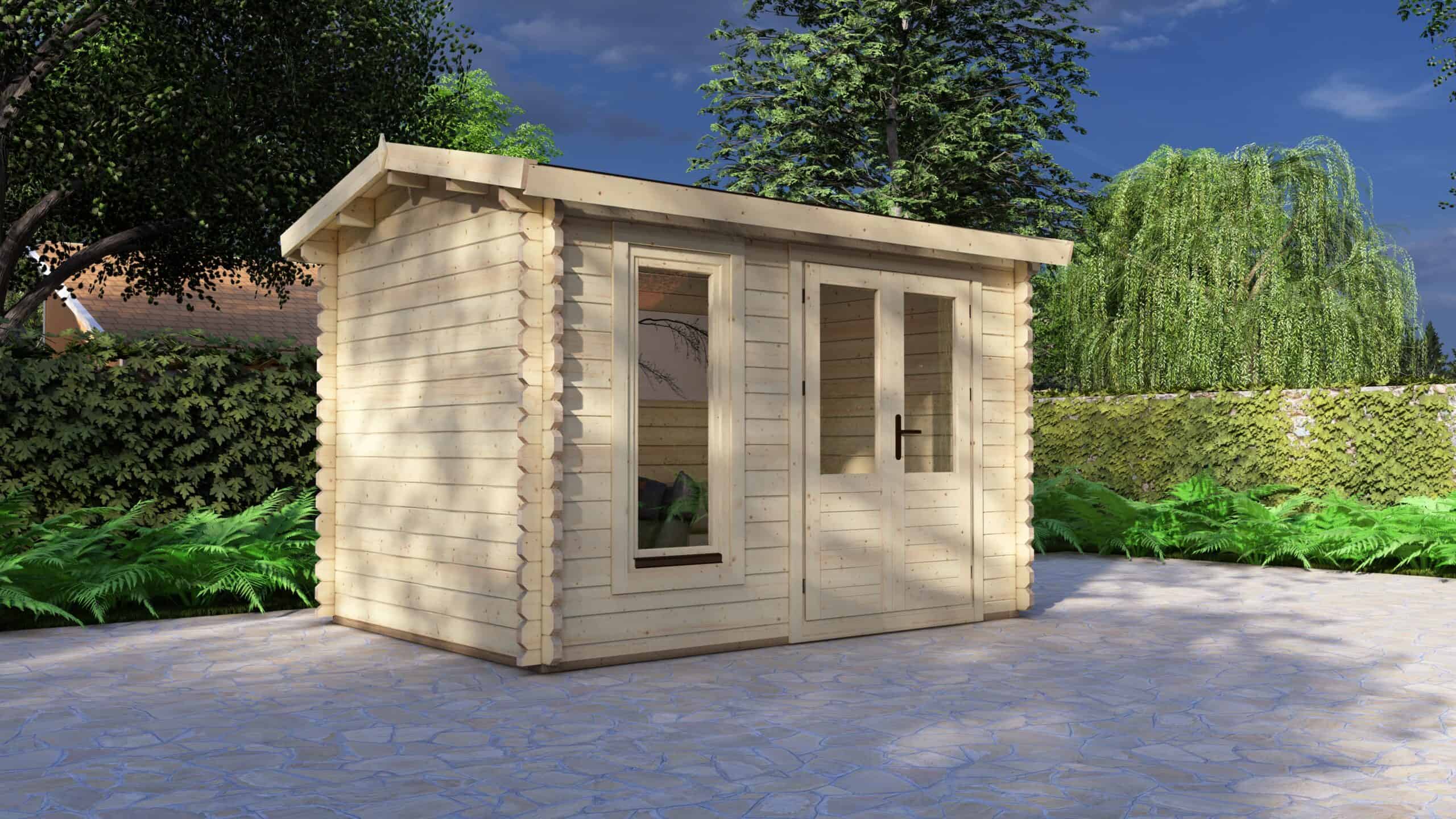

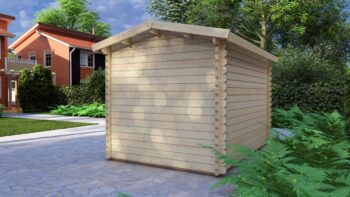

About This Log Cabin George 3.5×2.5m, 44mm

Product Overview

The George provides a compact timber building for clients seeking a quality garden room, office, studio, or leisure layout. This 3.5 x 2.5m log cabin suits projects where efficient floor area and dealer-ready specification matter. Northern European timber construction with 44mm wall thickness supports assembly stability for garden-building applications.

Layout & Configuration

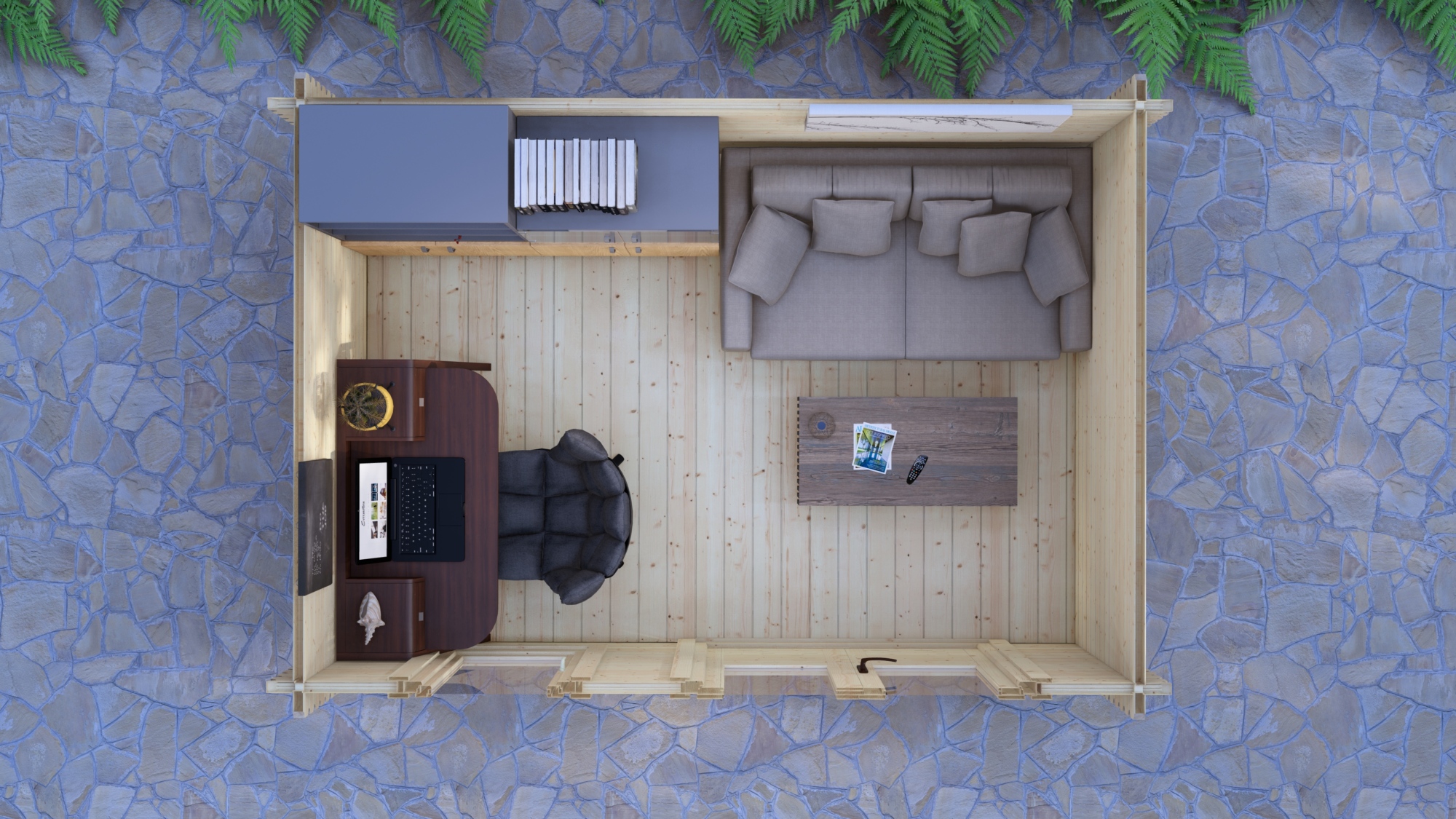

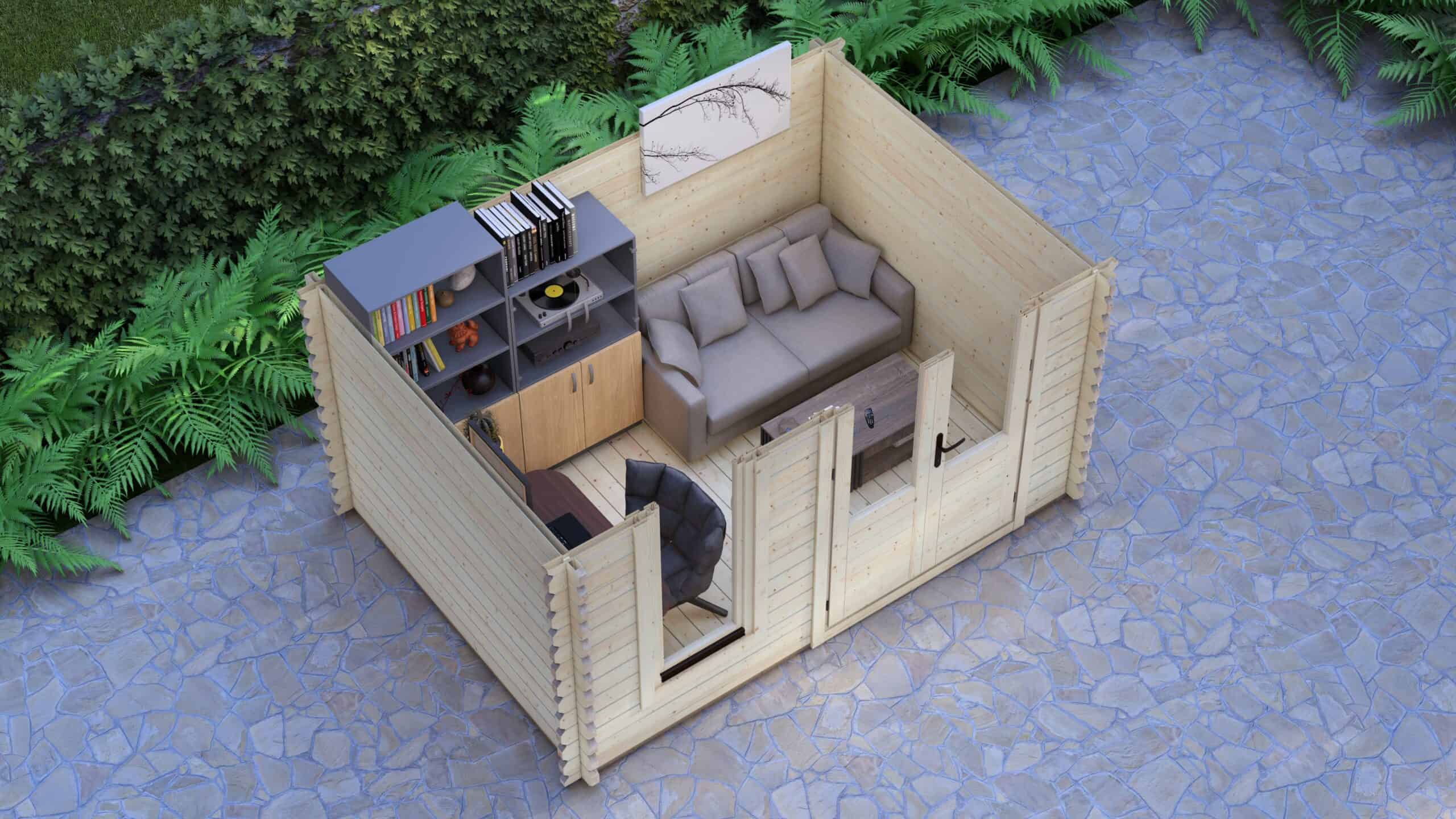

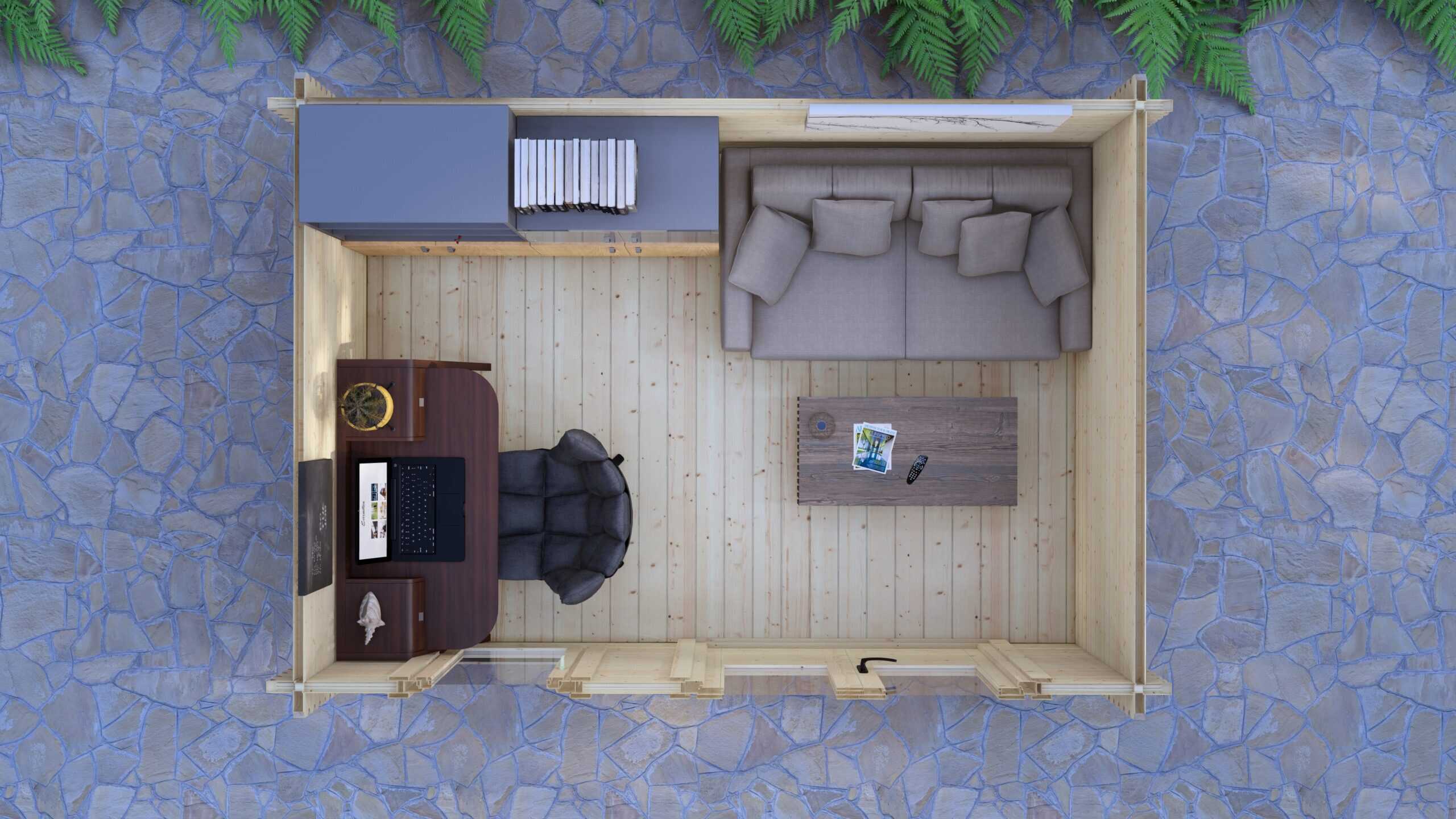

The single-room configuration maximises available floor space within the compact footprint. Standard 221cm eaves height rising to 247cm ridge height creates comfortable ceiling clearance throughout. The proportions suit conversion into a studio workspace, compact garden room, or open-plan leisure area depending on client requirements.

Timber & Construction

Northern European timber forms the primary structural material, delivering consistent density and minimal movement characteristics. Strong interlocking tongue-and-groove joints support weather-sealed assembly. Double-glazed timber joinery incorporates standard profile doors and windows for enhanced comfort in garden-building applications.

Floor & Roof

The floor system incorporates 28mm boards supported by pressure-treated bearers for moisture resistance and structural stability. Roof construction features 19mm tongue-and-groove boards providing solid decking beneath weathering materials. Storm bracing components ensure assembly stability under European wind-exposure requirements reviewed in project documentation conditions.

Customisation Options

Wall thickness upgrades accommodate enhanced comfort and insulation requirements where specified by the project brief. Upgraded joinery options, including triple glazing where required, can be reviewed at quote stage for colder climates. Internal partition kits enable room division, while extended roof lines create covered outdoor areas.

Manufacturing & Delivery

Eurodita processes 150,000 m³ of timber annually. Freight route and final delivery timing are agreed per order in the written quotation. Eurodita's standard terms are EXW from Kaunas. Custom specifications accommodate project requirements while maintaining delivery schedules through integrated manufacturing processes and established logistics networks.

Private Label Partnership

Private-label manufacturing enables dealers to market under their brand identity with customised documentation and specifications. Branded technical drawings, assembly instructions, and warranty documentation support sales processes. 3D visualisation services and showroom display programmes enhance customer presentation capabilities for trade partners.

What should dealers confirm before quoting Log Cabin George 3.5×2.5m, 44mm?

Eurodita supplies Log Cabin George 3.5×2.5m, 44mm as a private-label B2B garden cabin / summer house with a 3.5 x 2.5m footprint and 44mm Northern European timber wall specification. Before quoting, dealers should confirm the quote stage package, wall profile, glazing/openings, roof and floor options, finish or treatment route, packaging, unloading access, EXW release or freight route from Kaunas, private-label documentation, and local-authority planning or site-use review requirements.

Product, order and after-sales conditions are confirmed in writing for each project in the quotation, order confirmation and applicable product documentation. Please contact Eurodita for the documentation relevant to your confirmed order.

B2B Order Framework

Scope is confirmed in the written quotation. Details: Reading a Eurodita quotation.

Private-label scope

Branding on packaging and documents, agreed per order.

Production planning

Production scope confirmed in the written quotation.

Commercial terms

Price, quantity and payment quoted per order.

Technical documents

Drawings and specifications listed in the order documentation.

Configuration review

Dimensions, openings and wall profile reviewed before quotation.

Dispatch terms

EXW Kaunas as standard; delivered options per market and order.
