Corner Log Cabin With Veranda 3x5m, 44mm
Technical data sheet
Specification recorded for Corner Log Cabin With Veranda 3x5m, 44mm. Dimensions are the building's external dimensions. A row appears only where a figure is recorded for this model.
| Building | |
|---|---|

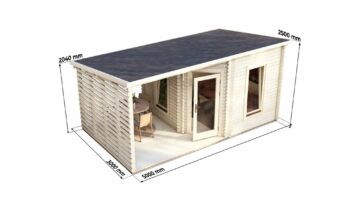

| External dimensions | 5.0 x 3 m |
| Eaves height | 200 cm |
| Ridge height | 250 cm |
| Base | External footprint 5.0 x 3 m. Base type and size are confirmed for the specific model and site. |
| Structure | |
| Wall profile | 44 x 130 mm as standard |
| Other wall options | Other approved solid wall profiles can be specified to suit the project and budget. |
| Construction | Interlocking tongue and groove joints |
| Timber | Northern European timber |
| Storm brace and anchor set | Included |
| Floor | |
| Floor bearers | Impregnated as standard |
| Floor boards | 28 mm |
| Roof | |
| Roof boards | 19 mm tongue and groove boards |
| Doors and windows | |
| Doors | Double-Glazed Timber Joinery, Standard Profile |
| Windows | Double-Glazed Timber Joinery, Standard Profile |
| Scope of these figures | |
| Insulation | Eurodita supplies the timber structure prepared for insulation where required, not the insulation material. |
| Performance | These dimensions establish no thermal, fire, structural or certification performance. |
Add-ons & Customisation
Need this in a different size?
This model is supplied as a 5.0 x 3 m footprint, 44 mm wall profile. If your customer needs a different layout, send a drawing. Eurodita will confirm whether the qualified bespoke route and factory scope fit the exact project. Partner branding is agreed per order.
- 1 Send a drawing A hand sketch can start the review. Mark known window and door positions, wall thickness and heights; Eurodita confirms any missing technical inputs.
- 2 Confirm the quotation scope If the enquiry fits, pricing and any CAD/3D or technical material are prepared to the agreed scope.
- 3 Review the agreed scope Revisions follow the quotation and project scope until written sign-off.
CAD/3D quotation material is prepared to the qualified project scope. Availability and timing are confirmed during qualification. Partner branding is applied where agreed; required manufacturer, legal and traceability information is retained.
Send a bespoke briefDimensions, wall thickness and opening positions are confirmed per project at quote stage. Bespoke production timing is confirmed at quotation stage. See published projects for built examples with dimensions and drawings, or review the rest of the corner log cabins range.
About This Corner Log Cabin With Veranda 3x5m, 44mm
Product Overview
Designed for trade partners serving clients requiring compact garden offices, this corner cabin delivers optimal space utilisation in restricted plots. The 5.0x3.0m footprint incorporates a welcoming veranda while maintaining efficient internal dimensions. Suited to contractors specialising in garden workspace solutions and dealers targeting the growing remote work sector.
Practical Applications
Primary application centres on garden office use, where the corner configuration maximises available space. Additional applications include artist studios requiring natural light, craft workshops, or seasonal guest accommodation. The integrated veranda provides external meeting space or equipment storage, enhancing functional versatility for professional applications.
Timber & Construction
Constructed from Northern European timber using 44mm wall thickness for reliable thermal specification. Strong interlocking tongue-and-groove joints ensure structural stability without additional fixings. Double-glazed timber joinery features standard profiles throughout, delivering consistent weather sealing and operational reliability across all openings.
Technical Specifications
Structural dimensions include 200cm eaves height and 250cm ridge height providing comfortable internal headroom. Foundation incorporates 28mm floor boards with 19mm tongue-and-groove roof boards. Complete package includes all wall panels, roofing materials, joinery components, and comprehensive hardware specifications for professional assembly.
Customisation Options
Wall thickness upgrades available to 70mm for enhanced insulation performance. Additional customisation includes triple glazing specification, internal partition kits for multi-room configuration, and extended veranda options. Insulation packages and upgraded joinery profiles can be specified for client requirements and regional project review.
Manufacturing & Delivery
Eurodita processes 150,000 m³ of timber annually. Production allocation and the included material scope are confirmed in the written quotation. Freight route and final delivery timing are agreed per order in the written quotation. Eurodita's standard terms are EXW from Kaunas. Bespoke modifications accommodate specific project requirements while maintaining efficient production schedules.
Private Label Partnership
Private-label capability enables dealers to market under their own brand identity with customised documentation and pricing structures. Partnership support includes 3D visualisation tools, branded technical specifications, and showroom display programmes. The Eurodita sales team handles quotations, orders and documentation requests for partners.
What should dealers confirm before quoting Corner Log Cabin With Veranda 3x5m, 44mm?
Eurodita supplies Corner Log Cabin With Veranda 3x5m, 44mm as a private-label B2B summer house with a 5.0x3m footprint and 44mm Northern European timber wall specification. Before quoting, dealers should confirm the quote stage package, wall profile, glazing/openings, roof and floor options, finish or treatment route, packaging, unloading access, EXW release or freight route from Kaunas, private-label documentation, and local-authority planning or site-use review requirements.
Product, order and after-sales conditions are confirmed in writing for each project in the quotation, order confirmation and applicable product documentation. Please contact Eurodita for the documentation relevant to your confirmed order.
Explore Similar Products
B2B Order Framework
Scope is confirmed in the written quotation and order documentation.
Private-label scope
Branding for packaging and relevant customer-facing documents is agreed per order.
Production planning
Production timing is confirmed in the written quotation and order acknowledgement for the selected model and specification.
Commercial terms
Price, quantity, payment and any volume conditions are quoted for the specific order.
Technical documents
The drawings, specifications and customer-facing documents included in the order are listed in the order documentation.
Configuration review
Dimensions, layout, openings, wall profile and other requested changes are reviewed before they are accepted into the quotation.
Dispatch terms
EXW Kaunas is the standard basis. Any delivered option is agreed for the specific market and order.
How a B2B Order Moves Forward
Specification
Share the model or drawing, destination, quantity and required configuration. Missing technical inputs are confirmed before quotation.
Manufacturing scope
Only the model, options, documentation and branding listed in the accepted order move into production.
Checking and packing
Completed order components are checked and packed against the agreed order scope before factory dispatch.
Dispatch terms
Orders are dispatched from Kaunas under the agreed collection or logistics terms. This does not promise carrier or final-mile delivery performance.
