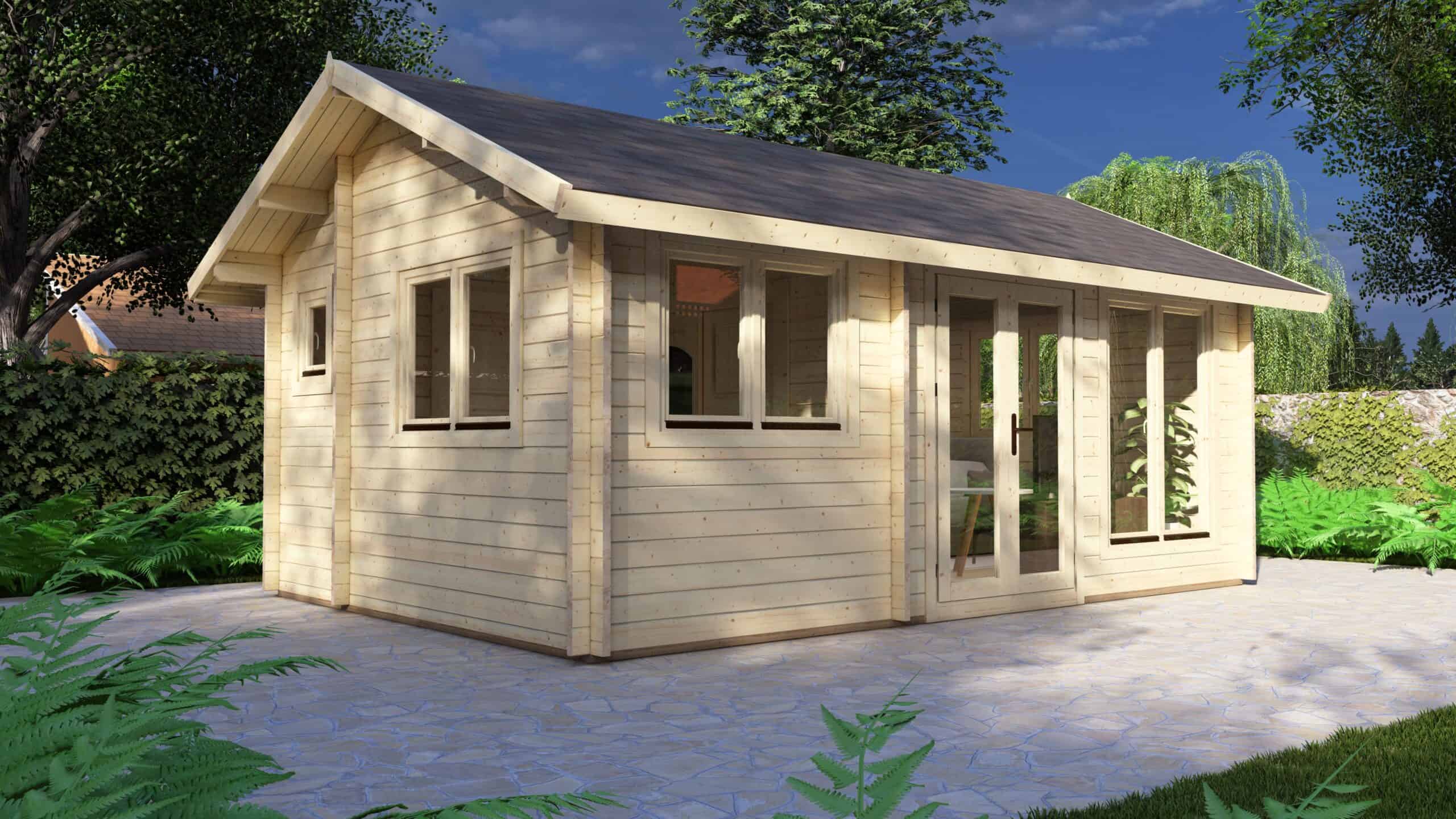

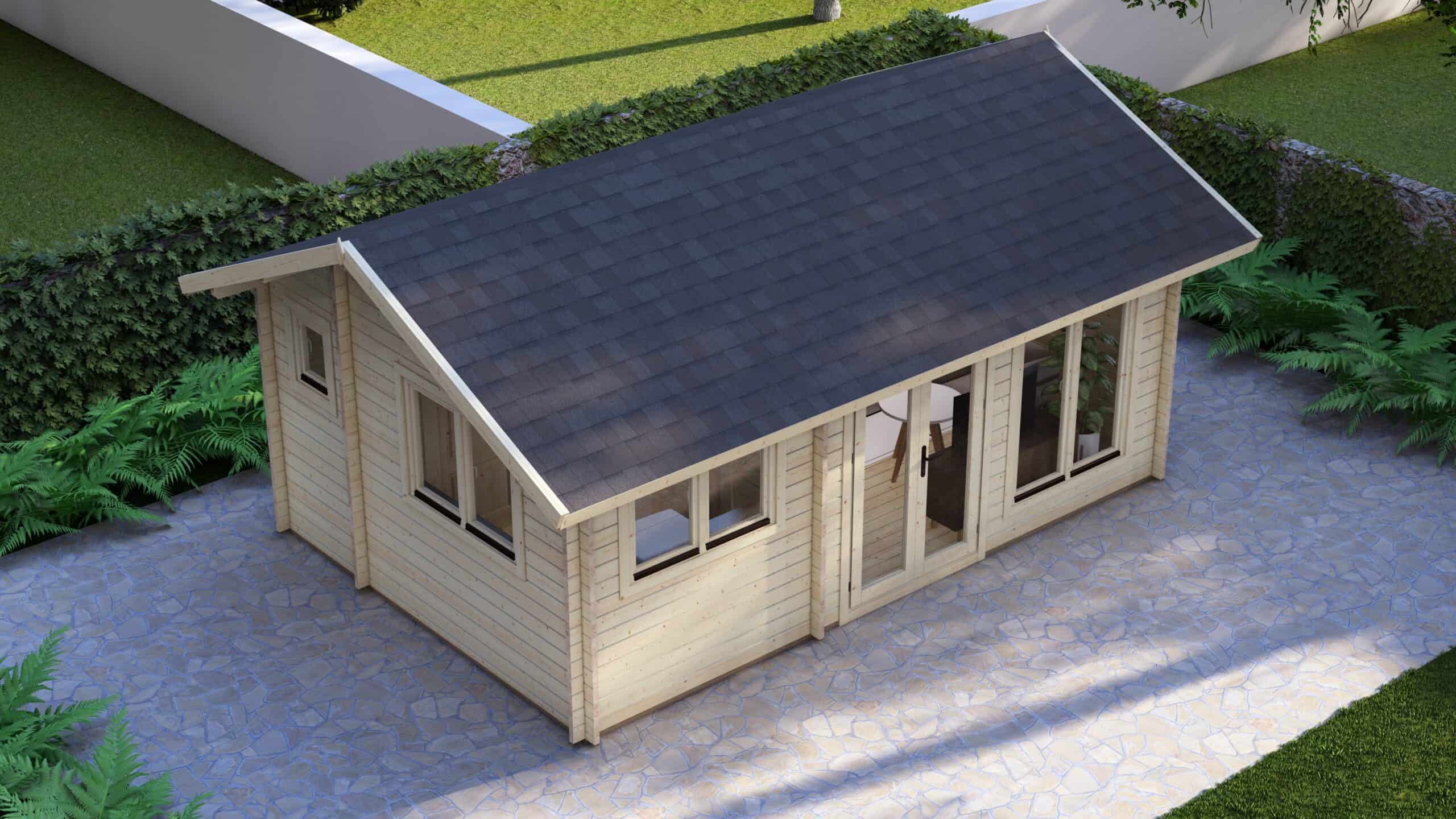

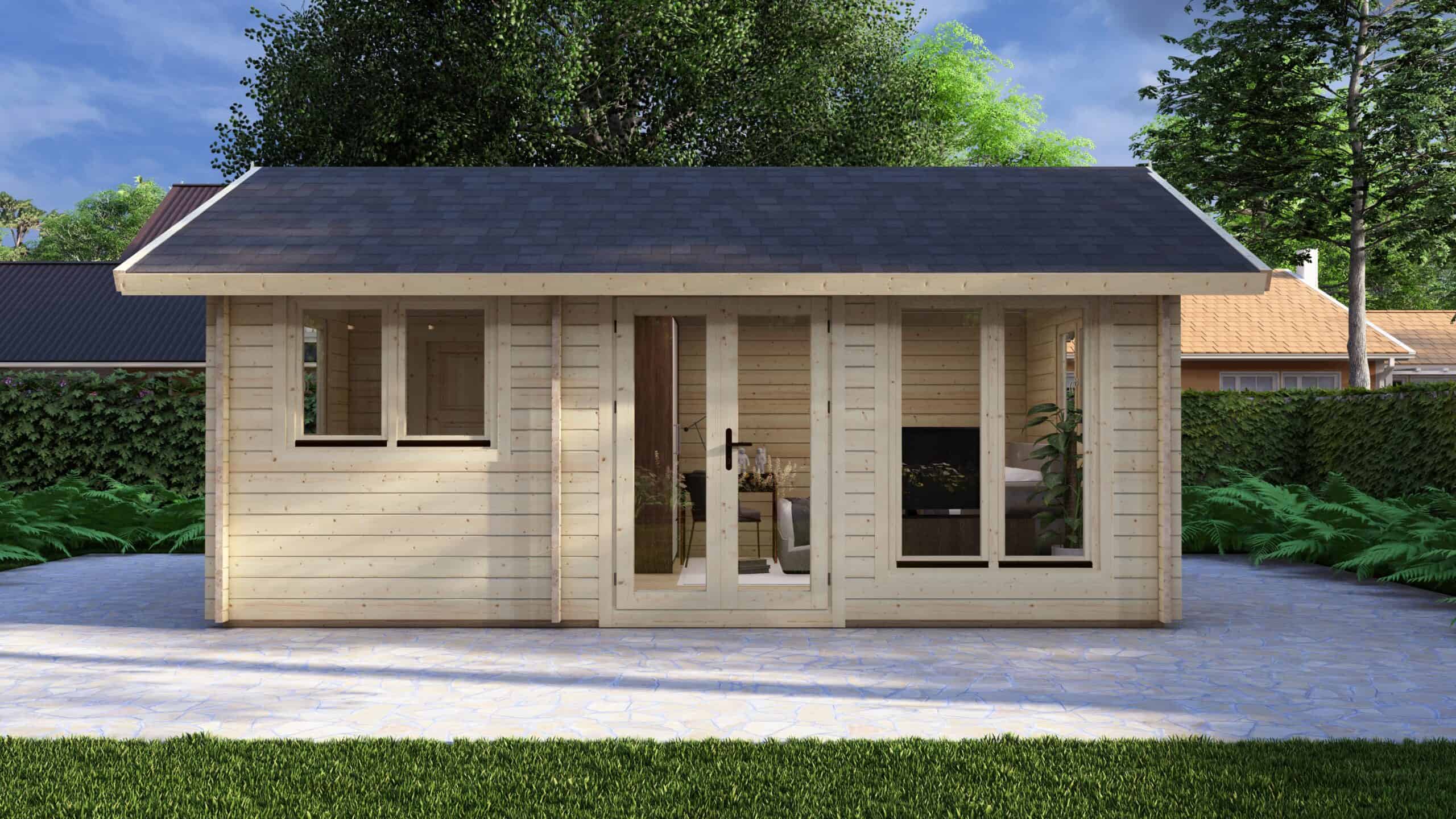

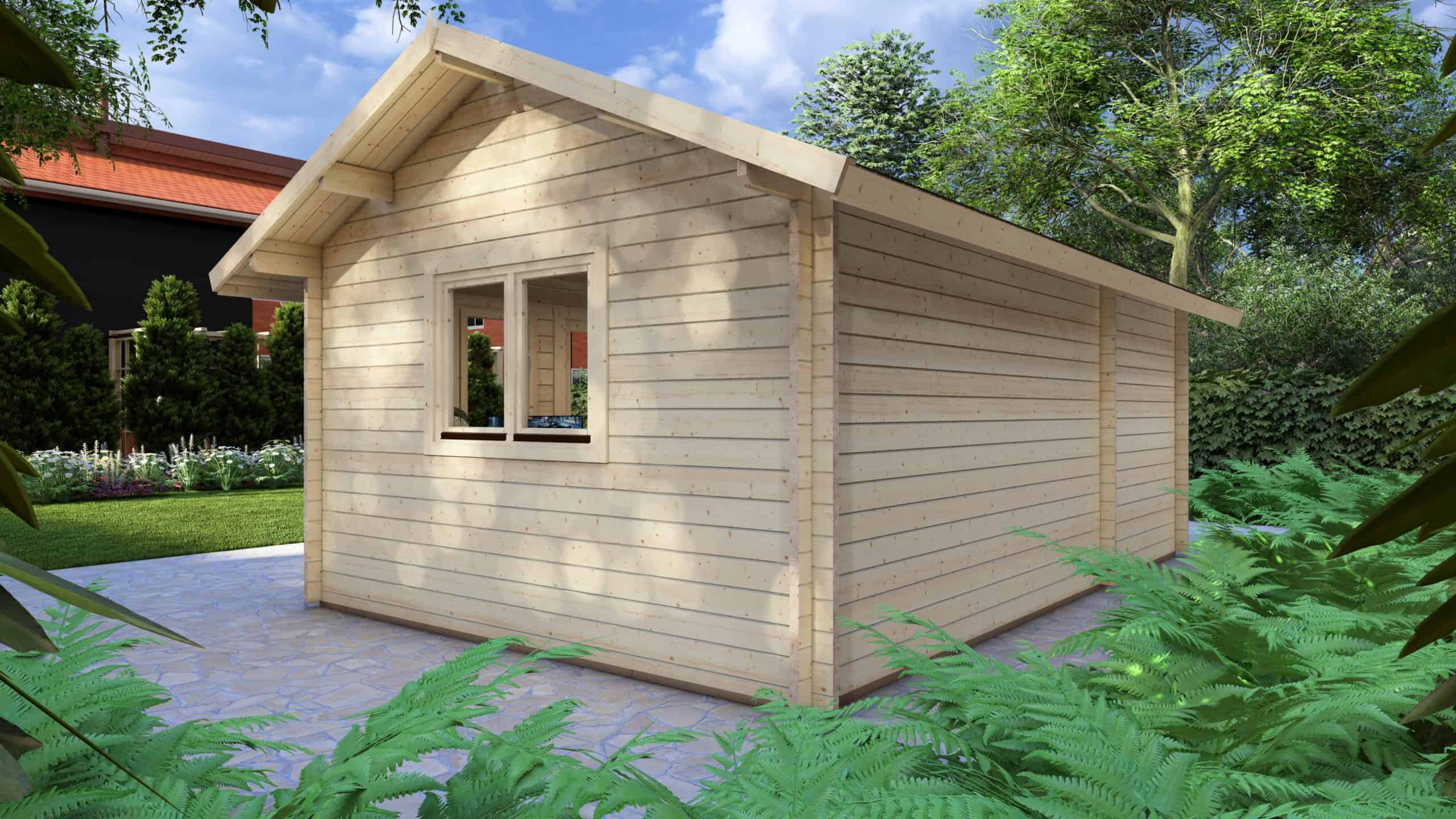

1 Bedroom Log Cabin 6x4m, 44mm

Projects requiring compact internal layouts need planning, services and local-authority review. This 6x4m one-bedroom log cabin delivers a project-specific cabin shell solution for holiday parks, glamping operators, and dealer-led developments.

Technical data sheet

Specification recorded for 1 Bedroom Log Cabin 6x4m, 44mm. Dimensions are the building's external dimensions. A row appears only where a figure is recorded for this model.

Building

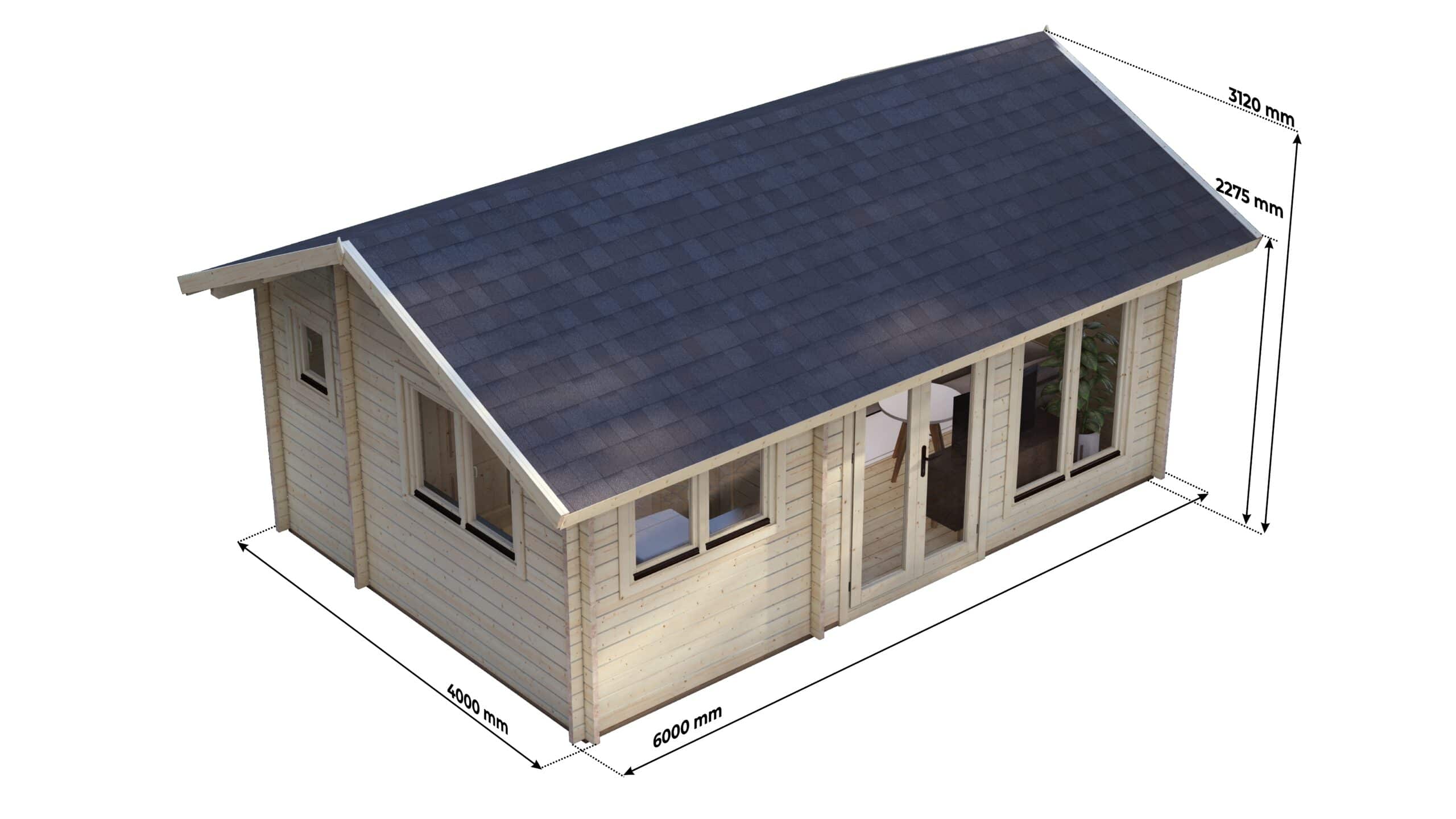

External dimensions6 x 4 m
External footprint area24 m²
Eaves height221 cm
Ridge height312 cm
Storeys1
BaseExternal footprint 6 x 4 m. Base type and size are confirmed for the specific model and site.
Structure
Wall profile44 x 130 mm as standard
Other wall optionsOther approved solid wall profiles can be specified to suit the project and budget.
ConstructionInterlocking tongue and groove joints
TimberNorthern European timber
Storm brace and anchor setIncluded
Floor
Floor bearersImpregnated as standard
Floor boards28 mm
Roof
Roof boards19 mm tongue and groove boards
Doors and windows
DoorsDouble-Glazed Timber Joinery, Insulated Profile
WindowsDouble-Glazed Timber Joinery, Insulated Profile
Scope of these figures
InsulationEurodita supplies the timber structure prepared for insulation where required, not the insulation material.
PerformanceThese dimensions establish no thermal, fire, structural or certification performance.

Download technical data sheet (PDF) Wall profile reference

Add-ons & Customisation

Options for this model (branding, wall thickness, openings, insulation preparation, partitions, veranda) are listed on What is in a Eurodita kit and confirmed per order.

Need this in a different size?

This model is supplied as a 6 x 4 m footprint, 44 mm wall profile. If your customer needs a different layout, send a drawing. Eurodita will confirm whether the qualified bespoke route and factory scope fit the exact project. Partner branding is agreed per order.

  1. 1 Send a drawing A hand sketch can start the review. Mark known window and door positions, wall thickness and heights; Eurodita confirms any missing technical inputs.
  2. 2 Confirm the quotation scope If the enquiry fits, pricing and any CAD/3D or technical material are prepared to the agreed scope.
  3. 3 Review the agreed scope Revisions follow the quotation and project scope until written sign-off.

CAD/3D quotation material is prepared to the qualified project scope. Availability and timing are confirmed during qualification. Partner branding is applied where agreed; required manufacturer, legal and traceability information is retained.

Send a bespoke brief

Dimensions, wall thickness and opening positions are confirmed per project at quote stage. Bespoke production timing is confirmed at quotation stage. See published projects for built examples with dimensions and drawings, or review the rest of the 1 bedroom log cabins range.

About This 1 Bedroom Log Cabin 6x4m, 44mm

Product Overview

Projects requiring compact internal layouts need planning, services and local-authority review. This 6x4m one-bedroom log cabin delivers a project-specific cabin shell solution for holiday parks, glamping operators, and dealer-led developments. The compact footprint maximises site utilisation while supporting extended-season project briefs after specification review.

Layout & Configuration

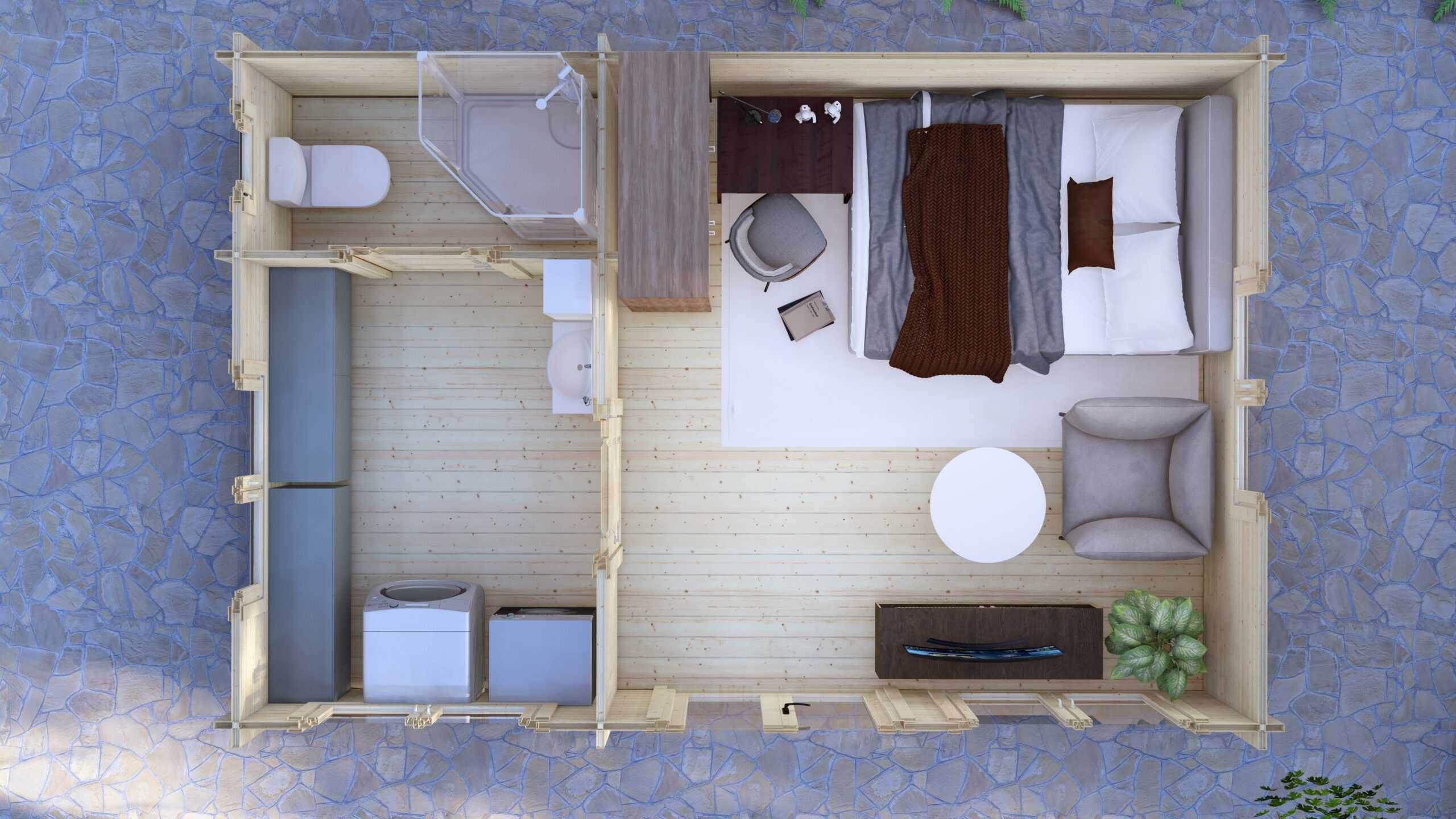

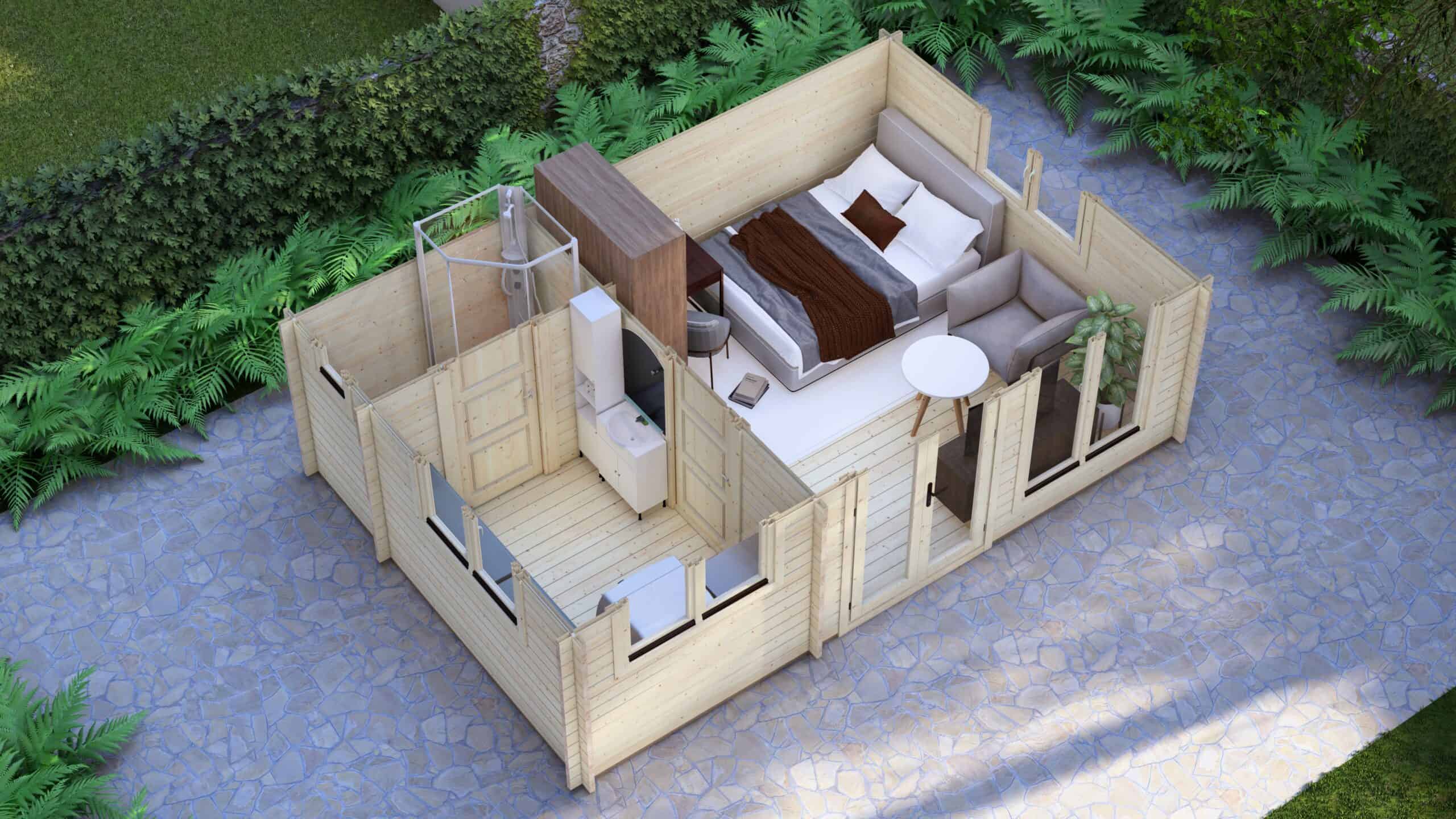

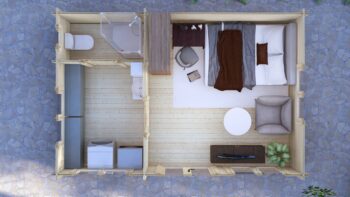

The single-bedroom layout incorporates an open-plan main room area with integrated kitchen space and separate bathroom facilities. Strategic window placement ensures natural light throughout while maintaining privacy. The 221cm eaves height creates generous headroom, with the peaked roof design allowing optional mezzanine storage or sleeping areas.

Timber & Construction

Northern European timber walls with 44mm thickness provide solid timber wall mass and assembly stability. Precision-machined tongue-and-groove joints help support consistent assembly detailing and well-fitted installation. Double-glazed timber joinery features insulated profiles throughout, delivering strong project-specific energy review compared to standard single-glazed alternatives commonly specified for site-specific accommodation.

Floor & Roof

28mm floor boards rest on pressure-treated bearers, providing stability and moisture protection for ground-level installations. The roof incorporates 19mm tongue-and-groove boards as standard, with integral storm bracing, with site exposure reviewed during project specification. This specification supports felt, shingle, or metal roof coverings based on local requirements.

Customisation Options

Wall thickness upgrades to 58mm or 70mm profiles enhance insulation specification planning for colder-climate briefs. Additional glazing configurations include triple-glazed units and larger window formats. Internal partition kits enable flexible room layouts, while veranda extensions create covered outdoor space. Insulation packages are confirmed against the dealer brief and any destination-market review requirements.

Manufacturing & Delivery

Eurodita processes 150,000 m³ of timber annually. Freight route and final delivery timing are agreed per order in the written quotation. Eurodita's standard terms are EXW from Kaunas. Each cabin ships as a complete kit with pre-cut components and comprehensive hardware packages.

Private Label Partnership

Private-label programmes enable dealers to market cabins under their own branding with customised documentation and technical drawings. Professional 3D visualisation services support sales presentations, while showroom display programmes provide demonstration units. This partnership approach strengthens dealer positioning in competitive accommodation markets without manufacturing investment.

Product, order and after-sales conditions are confirmed in writing for each project in the quotation, order confirmation and applicable product documentation. Please contact Eurodita for the documentation relevant to your confirmed order.

What should dealers confirm before quoting 1 Bedroom Log Cabin 6x4m 44mm?

Eurodita supplies 1 Bedroom Log Cabin 6x4m 44mm through its own-brand cabin manufacturing, with a 6 x 4m footprint and 44mm log walls. Before quoting, dealers should confirm openings, glazing package, insulation scope, foundation interface, unloading access, EXW logistics route from Kaunas and local authority review requirements. See the one-bedroom annexe specification route and route-specific delivery planning guidance before making client-facing commitments.

B2B Order Framework

Scope is confirmed in the written quotation. Details: Reading a Eurodita quotation.

Private-label scope

Branding on packaging and documents, agreed per order.

Production planning

Production scope confirmed in the written quotation.

Commercial terms

Price, quantity and payment quoted per order.

Technical documents

Drawings and specifications listed in the order documentation.

Configuration review

Dimensions, openings and wall profile reviewed before quotation.

Dispatch terms

EXW Kaunas as standard; delivered options per market and order.
