Bespoke Design — Manufactured to Client Specifications
Design Overview

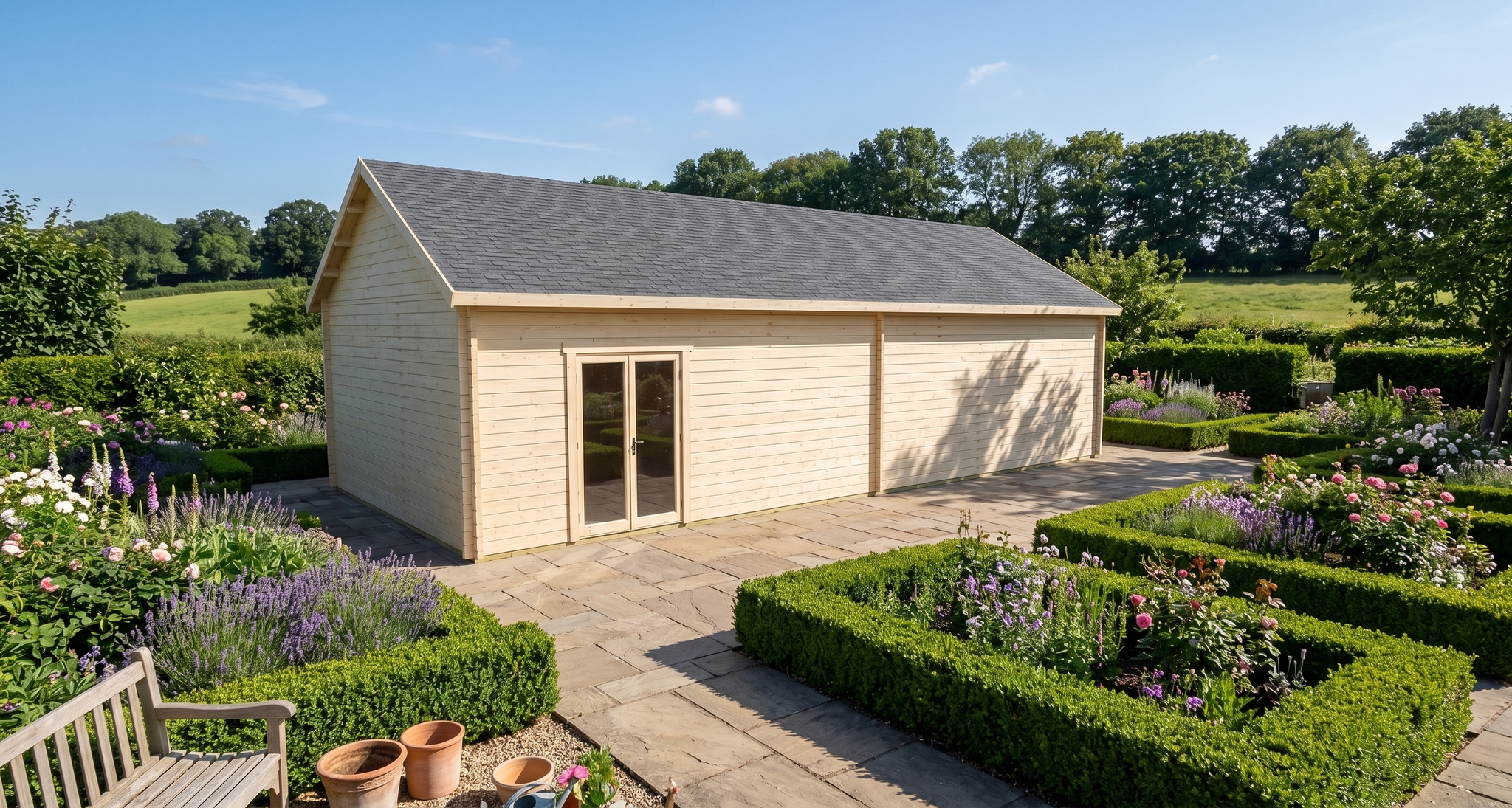

Custom-manufactured to exact specifications, the Glulam Apex Residential Cabin 4.9×10.9 provides 52.8m² of usable floor area across overall dimensions of 5.2m x 11.2m. The 70mm glue-laminated timber walls frame an internal volume of 4.9m x 10.9m with 2535mm sidewalls and a ridge height of 4030mm under the apex (gable) roof. The design incorporates 1 window and 1 door, positioned to the client’s layout brief, with the apex (gable) roof spanning 70.4m² above 100x60mm floor bearers. Every component of this log cabin is produced to the specified dimensions, ensuring the finished structure meets the exact requirements of the end client. This is not a catalogue product—it is a bespoke building manufactured to a single project specification.
Why This Configuration

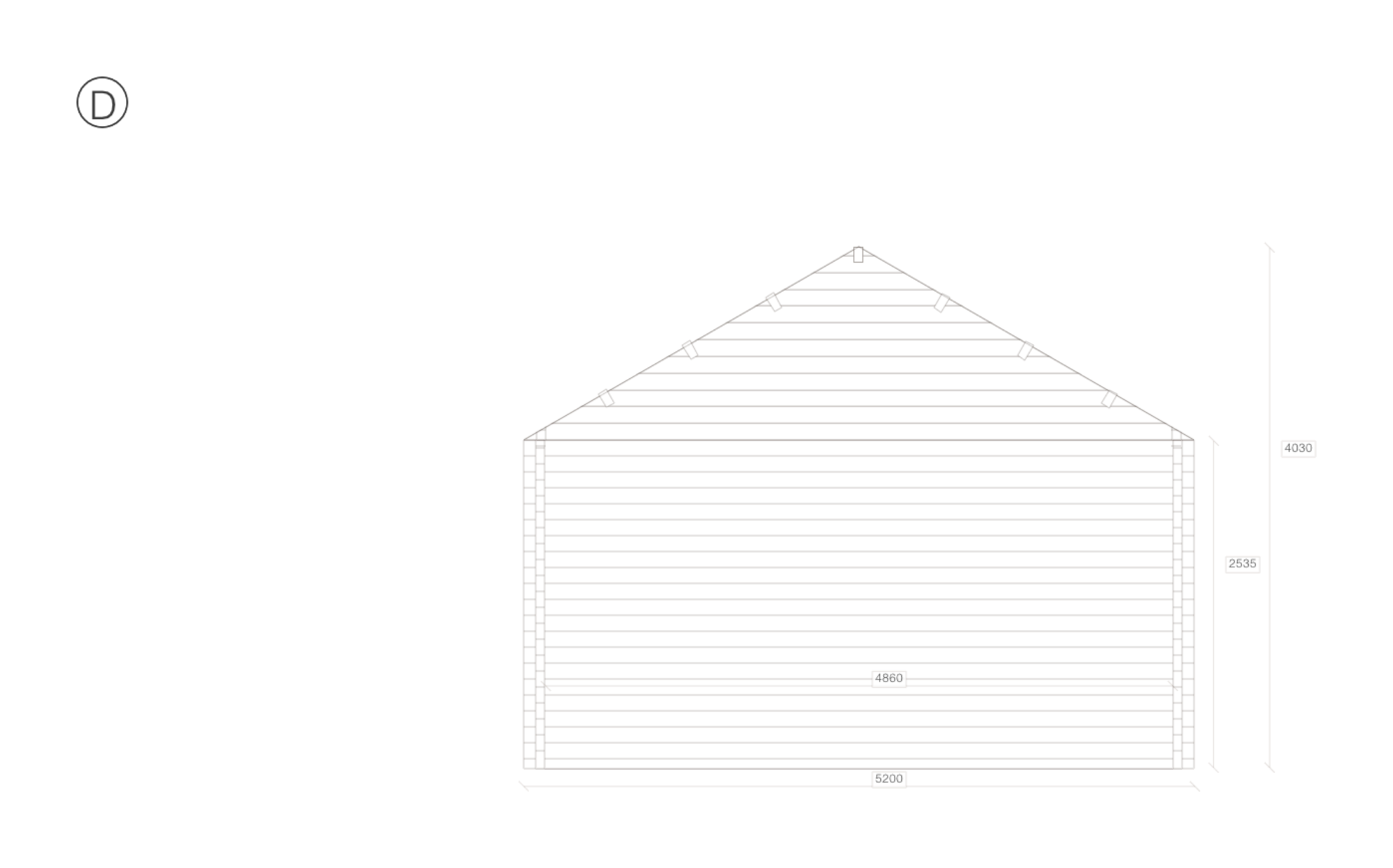

The apex (gable) roof provides balanced aesthetics with symmetrical slopes meeting at a central ridge, creating a classic silhouette that integrates well with residential surroundings. With a 30.5° pitch, the roof generates usable loft volume suitable for storage or mezzanine conversion, while shedding rain and snow efficiently.
At 70mm, the wall thickness meets the thresholds commonly required for year-round habitable structures, supporting insulation upgrades and Building Regulations compliance where needed.

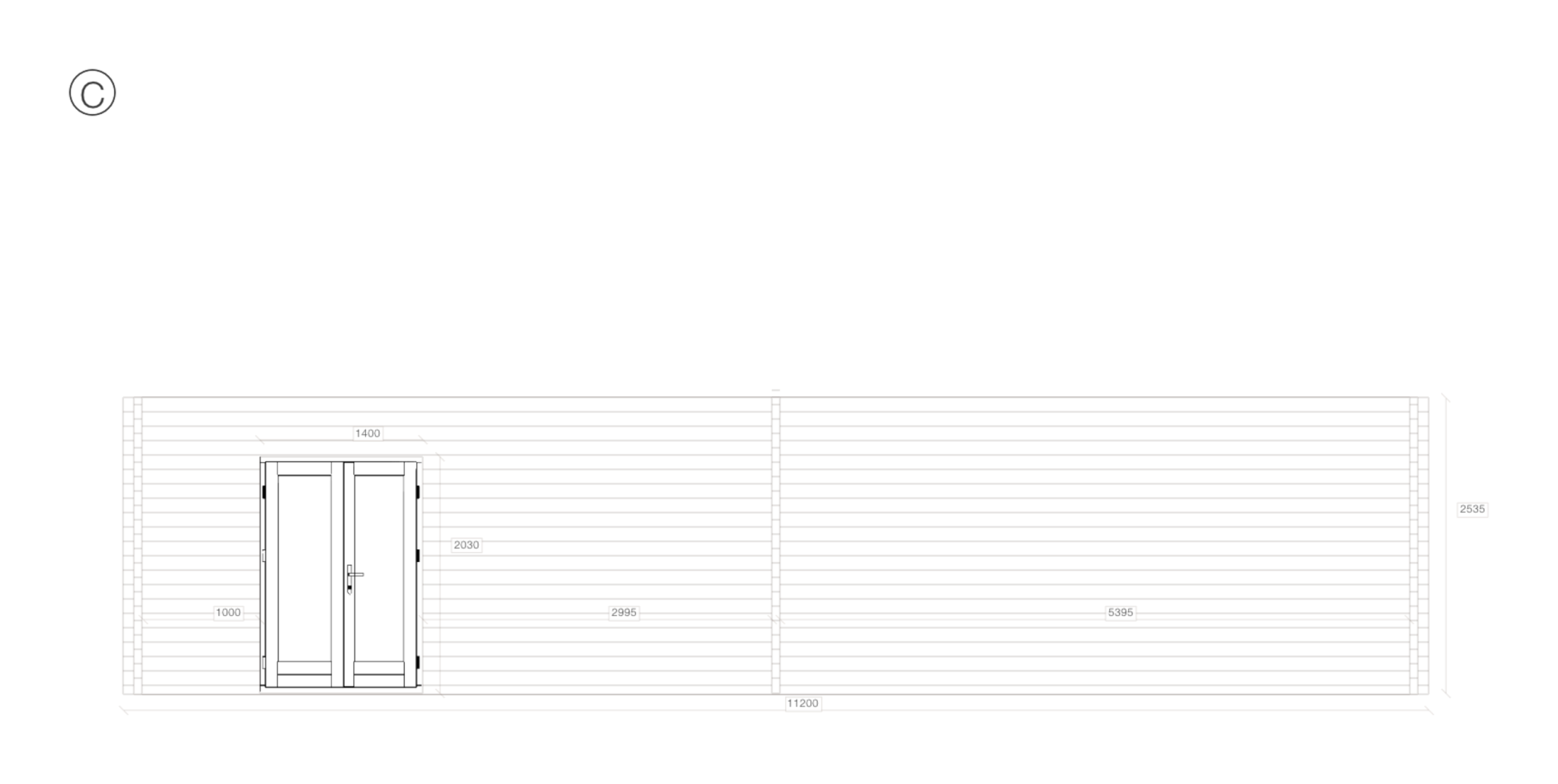

A single window provides controlled daylight while maximising uninterrupted wall area for improved thermal performance and privacy. The double-door entry creates a generous opening that accommodates furniture delivery, wheelchair access, and commercial foot traffic, adding versatility to the building’s potential use.

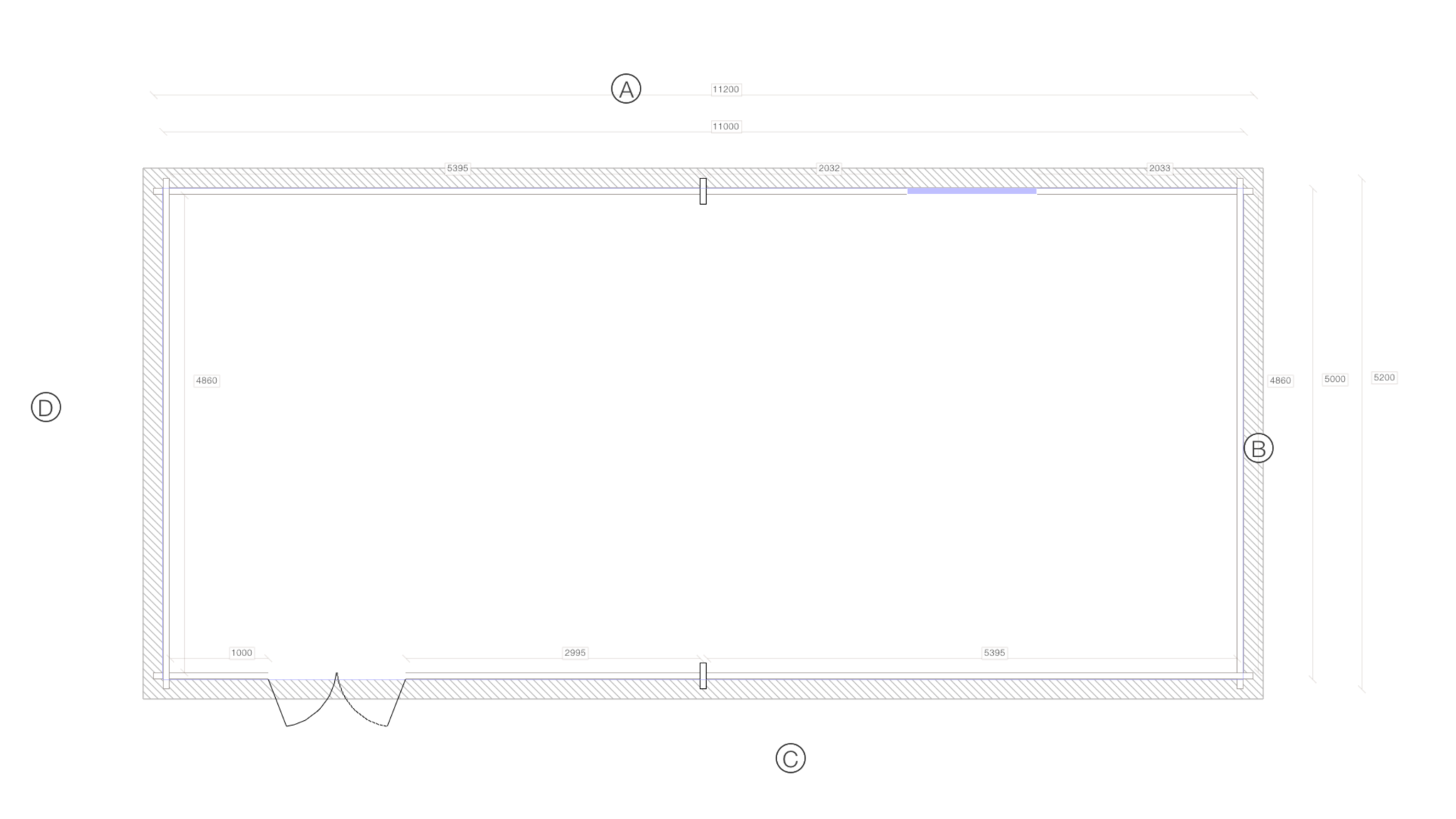

The deep 5.2m x 11.2m plan provides generous room depth, well-suited to open-plan living or configurations requiring clear span in the primary direction.
Materials & Construction
The 70mm glue-laminated (glulam) wall profiles used in this design are engineered for dimensional stability. Unlike conventional sawn timber, glulam undergoes kiln-drying and cross-grain lamination that virtually eliminates warping, twisting, and settlement over time. Each profile is precision-milled to tight tolerances, ensuring clean airtight joints across every wall section. This engineered approach delivers consistent thermal performance and a refined, contemporary finish that solid log cannot match.
The floor system comprises 100x60mm pressure-treated bearers supporting 28mm tongue-and-groove floorboards. This combination provides a rigid, level deck capable of handling furnishing loads, underfloor insulation, and finished flooring overlays as required by the end user.
The roof structure is carried on 7 purlins of 70x130mm section, covered with 19mm boards to form a total roof area of 70.4m². The deck is supplied ready for the dealer’s choice of final covering—EPDM rubber membrane, bitumen shingles, or standing-seam metal are popular options that Eurodita can advise on.
At 70mm, the wall profile is significantly thicker than the industry-standard 44mm used in most flat-pack garden buildings. This provides measurably better thermal insulation, acoustic separation, and structural rigidity — making the building suitable for year-round habitation without additional insulation in temperate climates.
All timber is sourced from FSC-managed Nordic forests and kiln-dried to 16–18% moisture content before machining, ensuring dimensional accuracy and resistance to biological degradation on arrival.
Customisation Options
Every parameter of this 52.8m² design is open to modification. Eurodita operates as a pure bespoke manufacturer: the project shown here is a starting point, not a fixed product.
External dimensions can be adjusted freely—the current 5.2m x 11.2m footprint is not a constraint. Wall thickness can move up or down from 70mm across the full range (28mm to 220mm), and the wall profile can switch between solid log, glulam, or double-wall insulated construction.
The apex (gable) roof shown here can be changed to any supported type (apex, pent, or hip), and the pitch adjusted to suit local planning or aesthetic preferences. Sidewall height, ridge height, and overhang dimensions are all variable.
Window and door positions, sizes, types, and quantities are fully configurable. Glazing can be specified as standard double-glazed (45mm) or living-type (68mm) profiles, with optional painted finishes and crossbar detailing.
Internal partitions, electrical pre-wiring channels, additional insulation packages, and bespoke floor plans are available on request. Eurodita’s engineering team works directly with dealer partners to resolve any design requirement.
Private-Label & White-Label Service
Eurodita offers full private-label manufacturing for this log cabin design. Every document, delivery note, and product label carries your brand — not ours. Your clients see your company name from quotation through to installation. This white-label service is available at no additional cost on all bespoke orders, making Eurodita the invisible manufacturer behind your timber building brand.
Ideal Use Cases
At 52.8m², this design enters full residential territory. Suitable as a primary dwelling, holiday lodge, or multi-let unit, it provides the space and structural specification required for permanent habitation, subject to local building regulations. Dealer partners serving the holiday park, glamping, and residential development sectors will find this scale well-suited to their project pipeline.
The wide double-door entry further extends commercial potential, accommodating retail displays, workshop equipment, and accessible access in line with disability regulations.
The 70mm wall section supports insulation and services integration for fully habitable use throughout the year, meeting the expectations of buyers who require a permanent, all-season structure.
Delivery & Production
Production takes place in Eurodita’s vertically integrated mill in Lithuania. Standard lead time from order confirmation to dispatch is 4–8 weeks. The building is delivered flat-packed on a standard road-transport pallet, with every component numbered and accompanied by detailed assembly drawings. Wall sections, roof elements, floor panels, windows, doors, and all hardware are included. Eurodita ships across Europe and the UK with established logistics partners, and can arrange delivery to site or dealer depot as required.
Frequently Asked Questions
Can I customise the dimensions of the Glulam Apex Residential Cabin 4.9×10.9?
Yes. Every dimension of this 52.8m² log cabin is fully customisable. Eurodita manufactures to your exact floor plan — width, depth, wall height, and roof pitch can all be adjusted. Window and door positions, sizes, and types are also changeable. Contact us with your requirements for a bespoke quotation.
What wall thickness does the Glulam Apex Residential Cabin 4.9×10.9 use?
This garden building uses 70mm glue-laminated timber walls. Eurodita offers wall thicknesses from 28mm to 220mm. Thicker walls provide better thermal insulation and structural rigidity for year-round habitation.
Is the Glulam Apex Residential Cabin 4.9×10.9 suitable for year-round use?
With 70mm walls, this timber cabin is suitable for year-round use: yes. Eurodita can supply insulation packages, double-glazed windows, and insulated roofing to meet your climate requirements.
How is the Glulam Apex Residential Cabin 4.9×10.9 delivered?
This log cabin is delivered as a precision-cut, flat-pack kit with numbered logs for straightforward assembly. Eurodita delivers across Europe via dedicated transport. Typical production time is 4–8 weeks from order confirmation.
Does Eurodita supply under my brand (private label)?
Yes. Eurodita offers full white-label and private-label manufacturing. All documentation, packaging, and delivery notes carry your brand identity. Your clients never see the Eurodita name — we are the invisible manufacturer behind your timber building business.
