Two storey Glulam Log house Verdantix
Verdantix delivers a contemporary two-storey glulam log residence designed for developers seeking glulam accommodation project briefs. This 13.47 x 13.38m structure provides substantial living space across two levels.
Supplied to dealers, developers and private-label partners; larger homes are also supplied directly to private clients.
Technical data sheet
Specification recorded for Two storey Glulam Log house Verdantix. Dimensions are the building's external dimensions. A row appears only where a figure is recorded for this model.
| Building | |
|---|---|
| External dimensions | 13.47 x 13.38 m |
| External footprint area | 180.2 m² |
| Eaves height | 280 cm |
| Ridge height | 695 cm |
| Storeys | 2 |
| Base | External footprint 13.47 x 13.38 m. Base type and size are confirmed for the specific model and site. |
| Structure | |
| Wall profile options | 70 x 130 mm, 88 x 260 mm, 135 x 260 mm, 180 x 260 mm or 220 x 260 mm glulam, chosen per project and budget |
| Corner system | Dovetail corner system available on the 88 to 220 mm glulam profiles, not on 70 x 130 mm |
| Construction | Interlocking tongue and groove joints |
| Timber | Glued-laminated timber |
| Storm brace and anchor set | Included |
| Floor | |
| Floor bearers | Impregnated as standard |
| Floor boards | 28 mm |
| Roof | |
| Roof boards | 19 mm tongue and groove boards |
| Doors and windows | |
| Doors | Double-Glazed Timber Joinery, Insulated Profile |
| Windows | Double-Glazed Timber Joinery, Insulated Profile |
| Scope of these figures | |
| Insulation | Eurodita supplies the timber structure prepared for insulation where required, not the insulation material. |
| Performance | These dimensions establish no thermal, fire, structural or certification performance. |
Add-ons & Customisation
Options for this model (branding, wall thickness, openings, insulation preparation, partitions, veranda) are listed on What is in a Eurodita kit and confirmed per order.
Need this in a different size?
This model is supplied as a 13.47 x 13.38 m footprint. If your customer needs a different layout, send a drawing. Eurodita will confirm whether the qualified bespoke route and factory scope fit the exact project. Partner branding is agreed per order.
- 1 Send a drawing A hand sketch can start the review. Mark known window and door positions, wall thickness and heights; Eurodita confirms any missing technical inputs.
- 2 Confirm the quotation scope If the enquiry fits, pricing and any CAD/3D or technical material are prepared to the agreed scope.
- 3 Review the agreed scope Revisions follow the quotation and project scope until written sign-off.
CAD/3D quotation material is prepared to the qualified project scope. Availability and timing are confirmed during qualification. Partner branding is applied where agreed; required manufacturer, legal and traceability information is retained.
Send a bespoke briefDimensions, wall thickness and opening positions are confirmed per project at quote stage. Bespoke production timing is confirmed at quotation stage. See published projects for built examples with dimensions and drawings, or review the rest of the glulam houses range.
About This Two storey Glulam Log house Verdantix
Product Overview
Verdantix delivers a contemporary two-storey glulam log residence designed for developers seeking glulam accommodation project briefs. This 13.47 x 13.38m structure provides substantial living space across two levels. The design accommodates modern lifestyle requirements while maintaining traditional timber construction integrity for development projects.

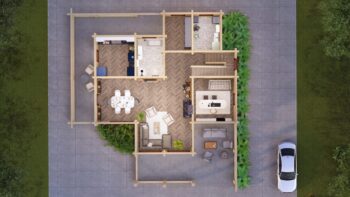

Layout & Configuration

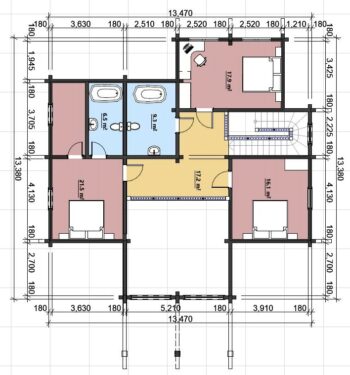

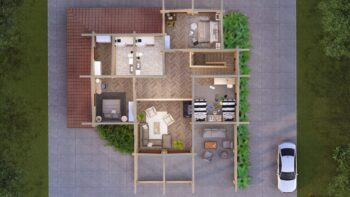

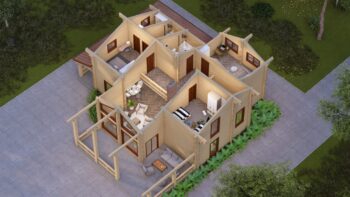

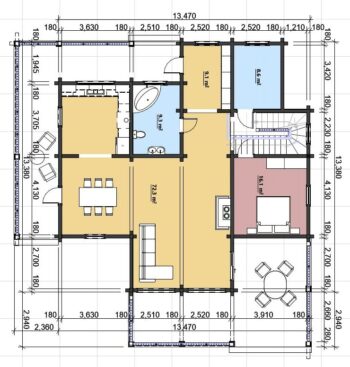

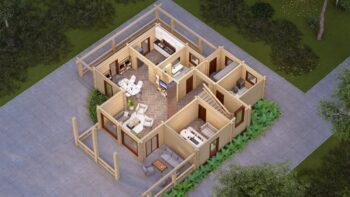

The two-storey configuration maximizes the footprint efficiency with ground floor living areas and upper level accommodation. The 2.8m eaves height ensures comfortable ceiling clearance throughout. The 6.95m ridge height provides generous loft space utilization, allowing flexible room arrangements across both levels.
Timber & Construction
Northern European timber construction incorporates 180mm wall thickness for project-specific thermal specification. Strong interlocking tongue-and-groove joints ensure assembly stability and airtightness. Double-glazed timber joinery with insulated profiles delivers project-specific energy specification while maintaining authentic timber aesthetics throughout the structure.
Floor & Roof
The flooring system features 28mm thick boards supported by pressure-treated bearers for long-term durability. Tongue-and-groove roof boards at 19mm thickness provide roof deck boards. Storm bracing details are reviewed against site wind exposure while supporting the building's assembly stability during adverse weather conditions.
Customisation Options
Wall thickness upgrades accommodate enhanced insulation requirements for specific climate zones. Triple-glazing options provide project-specific thermal specification options. Interior partition kits enable flexible room configurations. Veranda extensions integrate directly with the main structure, expanding outdoor living potential while maintaining architectural coherence.
Manufacturing & Delivery
The Eurodita factory is dimensioned for 150,000 m³ of timber a year. Bespoke modifications accommodate specific project requirements. Glulam production timing is confirmed per order according to project specification.
Private Label Partnership
Private-label manufacturing capabilities support dealer brand development programs. Branded documentation packages include technical specifications and marketing materials. Professional 3D visualization services assist with customer presentations. Showroom display programs provide physical samples to support sales initiatives and technical consultations.
Product, order and after-sales conditions are confirmed in writing for each project in the quotation, order confirmation and applicable product documentation. Please contact Eurodita for the documentation relevant to your confirmed order.
What should dealers verify before quoting Two storey Glulam Log house Verdantix?
Eurodita supplies Two storey Glulam Log house Verdantix as a B2B private-label glulam house for dealers, developers and project teams. Before quoting, confirm whether the project uses the listed wall profile or another Eurodita glulam profile route, 88mm, 135mm, 180mm or 220mm, plus layout changes, documentation scope, EXW Eurodita factory logistics and local-authority review needs. Check Glulam Houses, private-label manufacturing, shipping policy and documentation status before client commitments.
