Glulam Log House Woodglow
Delivery is agreed individually with each client. Markets and languages
Supplied to dealers, developers and private-label partners; larger homes are also supplied directly to private clients.
At a glance

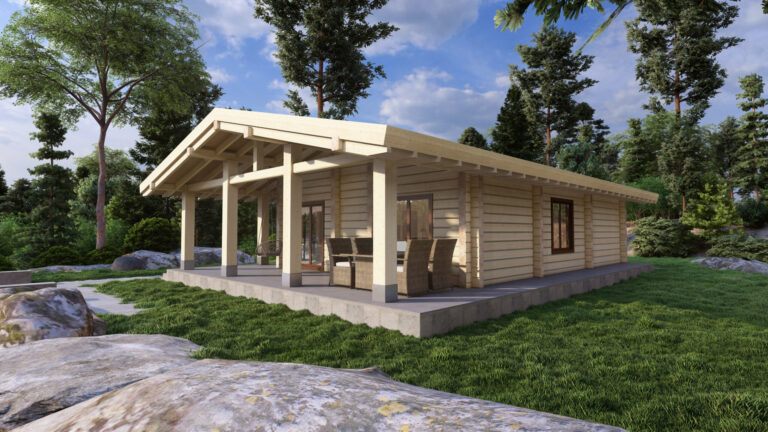

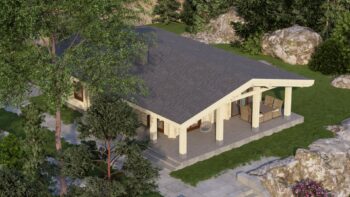

Glulam Log House Woodglow is a glulam log house supplied as a building kit. It measures 9.18 x 10.8 m externally, an external footprint of 99.1 m². The ridge height is 480 cm and the eaves height 300 cm. It has one storey. It is listed with the contemporary glulam homes.
Read the full description
Layout

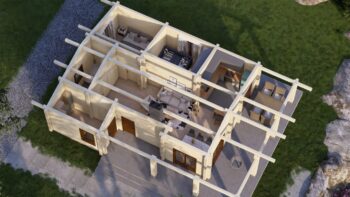

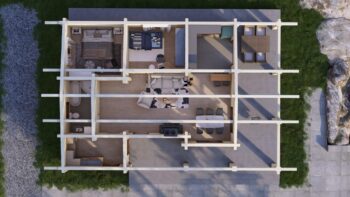

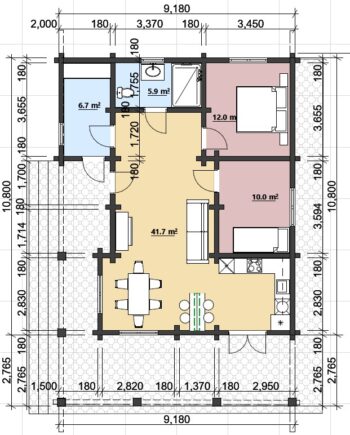

The plan drawing shows an open living room with a kitchen area, two bedrooms, a bathroom and a utility room with its own outside door. It also shows a terrace under the roof along the front and one side.
Walls

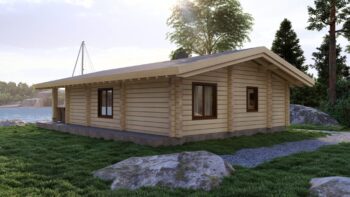

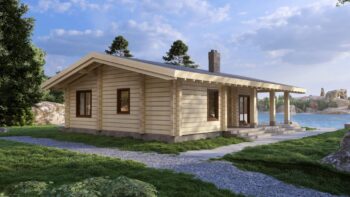

The walls are glulam wall logs of the 180 x 260 mm profile: each log is 180 mm thick and 260 mm high. A glulam model can be made in any glulam profile. The glulam is glued, profiled and CNC machined at the Eurodita factory. The profiles are set out on wall thickness and glulam profiles.
Doors and windows
Doors and windows are made by Eurodita in timber. See windows and doors.
Technical data sheet
Specification recorded for Glulam Log House Woodglow. Dimensions are the building's external dimensions. A row appears only where a figure is recorded for this model.
| Building | |
|---|---|
| External dimensions | 9.18 x 10.8 m |
| External footprint area | 99.1 m² |
| Eaves height | 300 cm |
| Ridge height | 480 cm |
| Storeys | 1 |
| Base | External footprint 9.18 x 10.8 m. Base type and size are confirmed for the specific model and site. |
| Structure | |
| Wall profile options | 70 x 130 mm, 88 x 260 mm, 135 x 260 mm, 180 x 260 mm or 220 x 260 mm glulam, chosen per project and budget |
| Corner system | Dovetail corner system available on the 88 to 220 mm glulam profiles, not on 70 x 130 mm |
| Construction | Interlocking tongue and groove joints |
| Timber | Glued-laminated timber |
| Floor | |
| Floor bearers | Impregnated as standard |
| Floor boards | 28 mm |
| Roof | |
| Roof boards | 19 mm tongue and groove boards |
| Doors and windows | |
| Doors | Residential type (IV68) timber door, 5-point locking, 4-16-4 mm double glazing |
| Windows | Residential type (IV68) timber window, tilt and turn, 4-16-4 mm double glazing |
| Scope of these figures | |
| Insulation | Eurodita supplies the timber structure prepared for insulation where required, not the insulation material. |
| Performance | These dimensions establish no thermal, fire, structural or certification performance. |
Add-ons & Customisation
Options for this model (branding, wall thickness, openings, insulation preparation, partitions, veranda) are listed on What is in a Eurodita kit and confirmed per order.
How an Order Is Agreed
Scope is confirmed in the written quotation. Details: Reading a Eurodita quotation.
Need this in a different size?
Size, layout and the positions of doors and windows can be changed for an order. Send a sketch or a drawing. From a complete sketch to a 3D view, drawings and a price within one working day.
Supply
Supplied EXW from the Eurodita factory. We supply the kit with assembly drawings; installation is not part of our supply.
What is in a Eurodita kitGlulam log houses and cabinsReading a Eurodita quotation
For trade buyers
Dealers, distributors and private-label brands can carry this model in their own range.
Compared with similar models
Two Storey Glulam Log House Glulife
| This model | Glulife | |
|---|---|---|
| External size | 9.18 x 10.8 m | 10.18 x 10.02 m |
| External footprint | 99.1 m² | 102 m² |
| Ridge height | 480 cm | 735 cm |
| Eaves height | 300 cm | 265 cm |
| Storeys | 1 | 2 |
| Wall logs | 180 x 260 mm glulam | 180 x 260 mm glulam |
Contemporary 2 Bedroom Log Home Rutland
| This model | Rutland | |
|---|---|---|
| External size | 9.18 x 10.8 m | 10.25 x 8.95 m |
| External footprint | 99.1 m² | 91.7 m² |
| Ridge height | 480 cm | 310 cm |
| Eaves height | 300 cm | 230 cm |
| Storeys | 1 | 1 |
| Wall logs | 180 x 260 mm glulam | 88 x 260 mm glulam |
